Installing a fuel injector wire harness can be a complex process, requiring careful planning and execution. Before beginning the installation, it is important to have a clear understanding of the wiring and make any necessary modifications, especially for automatic transmission and specific car electronics. The process may involve disconnecting the battery, locating and disconnecting the cam position sensor, and identifying the relevant wires and connectors. It is crucial to have the appropriate service manual for your vehicle and to take necessary safety precautions. The installation process can vary depending on the specific vehicle and the condition of the existing wiring harness. In some cases, it may be necessary to repair or replace damaged wires, connectors, or other components.

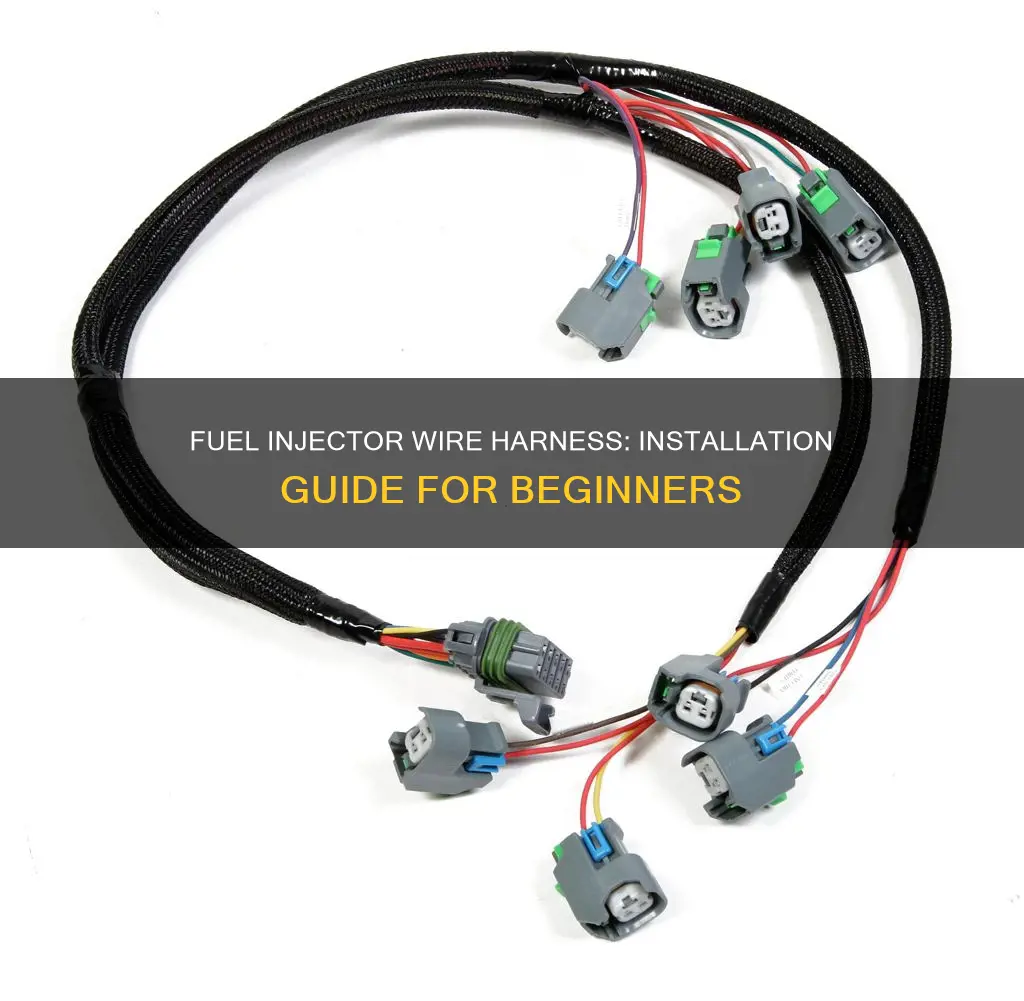

How to Install a Fuel Injector Wire Harness
| Characteristics | Values |
|---|---|
| Required Tools | Crimp tool, Wire stripper, Braided sleeve (1/4" and 1/2"), Heat Shrink, Self-Fusing Tape, Heat gun, De-pinning tool |
| Required Parts | 18AWG TXL Wire (or 20-gauge), 12-pin sealed connector, EV14 specific connectors, OEM injector terminals, OEM rubber boots |
| First Steps | Disconnect the battery, Disconnect the harness from the cam position sensor, Disconnect the harness from the fuel rail |
| Common Issues | Damaged wire insulation, Cracked injector pintel cap, Exposed wires, Faulty connectors |
| Suggested Fixes | Replace wire insulation with liquid insulation, Replace cracked injector pintel cap, Use heat gun to remove old caps, Solder new connectors, Swap injectors |
| Additional Tips | Consult service manual for specific vehicle, Compare with existing harness, Take pictures during disassembly, Ensure new harness is away from the exhaust |
Explore related products
What You'll Learn
How to disconnect your battery and remove the harness
Disconnecting your car battery and removing the harness is a relatively simple process that can be done at home. Here is a step-by-step guide to help you through the process:
Turn off your vehicle: Before you begin, make sure your car is turned off. It is important never to attempt to disconnect the battery while the car is powered on.
Put on safety gear: It is recommended to wear safety gear, such as gloves and safety goggles, to protect yourself during the process.
Open the hood: Pop the hood of your car using the release mechanism inside the car's cabin or under the hood itself.
Locate the battery: Car batteries are typically large, block-like components with two large cables attached to them near the engine bay's surface. They are usually located under the hood, but in some cases, they may be in the trunk. If you cannot locate it, refer to your owner's manual.
Identify the negative terminal: Once you have located the battery, identify the negative terminal. It is important to work on the negative side first to avoid any potential electrical issues.
Disconnect the negative cable: Loosen the nut or bolt holding the negative cable in place and detach the cable from the terminal. You may need to use a wrench or a screwdriver for this step.
Disconnect the positive cable: After the negative cable is disconnected, move to the positive cable. Again, loosen the nut or bolt and detach the cable. Ensure that the cables do not touch any metal parts of the car to prevent electrical shorts.
Remove the battery harness: With both cables disconnected, you can now remove the battery harness. This may involve removing any mounting brackets or clamps holding the battery in place. Be careful not to damage any nearby components.
Store or replace the battery: Depending on the reason for disconnecting the battery, you can now store it or replace it with a new one. If you are storing the battery, keep it in a cool, dry place and recharge it as needed.
Remember that this guide applies to low-voltage batteries in internal combustion engine vehicles. For electric vehicles or high-voltage batteries, it is recommended to seek the assistance of a trained technician.
Fuel Injector Facts for 2002 Subaru WRX Enthusiasts
You may want to see also
Explore related products
Understanding the wiring and making modifications
In the case of Joe's Projects, modifications were made to accommodate the automatic transmission and specific car electronics. This involved creating a new wiring diagram, which served as a guide for replacing the old engine wiring with the new harness. It's important to consult resources like the MegaManual or seek advice from experts to ensure that modifications are accurate and safe.
When it comes to the fuel injectors themselves, there are different types available, such as EV1 and EV6 injectors. The compatibility of the injectors with the harness is crucial. For example, in Joe's Projects, the EV6 style injectors with USCAR connectors did not fit the fuel rail clips properly, and the connectors designed for Jetronic/Minitimer connectors had to be replaced with USCAR connectors to ensure a secure fit.
Additionally, it's important to consider the condition of the existing wiring and connectors. In some cases, heat damage or worn-out insulation may necessitate repairs or replacements. For instance, in the case of an Audi A4, the fuel injector harness exhibited severe heat damage, and the injector connectors required repair or replacement due to cracked wire insulation.
Lastly, it's worth noting that separate fuses for the left and right banks of injectors may be required, as indicated in the specifications. While the reason for this may not be immediately apparent, following the provided diagrams and manuals is essential to ensure the proper functioning of the fuel injector wire harness.
Fuel Injector Replacement: Nissan Dealership Cost Analysis
You may want to see also
Explore related products
Tools and components you'll need
To install a fuel injector wire harness, you will need a variety of tools and components, including:
- A suitable replacement wiring harness, with the correct number of injector plugs (typically six) and a main plug, as well as any other necessary connectors such as for the MAP sensor.
- Tools for disconnecting the battery and removing the old harness, such as a wrench for battery terminals and a screwdriver for harness clips.
- Tools for soldering and wiring, such as a soldering iron, solder, wire strippers, and crimping tools.
- Replacement injector clips, pigtails, and other connector components, such as OEM injector terminals and rubber boots if needed.
- Heat-resistant tubing and a heat gun for applying heat shrink tubing.
- Electrical tape for insulating and securing wires.
- A torque wrench for reassembling components.
- A repair manual specific to your vehicle, which will provide information on circuits, routing, and physical components.
It is important to have a clear understanding of the wiring and any necessary modifications before beginning the installation process. Additionally, it is recommended to take pictures during disassembly for reference during reassembly.
The Cost of Replacing Fuel Injectors: Expensive Car Maintenance
You may want to see also
Explore related products
Replacing injector clips and soldering
When replacing injector clips, it is important to first understand the wiring of the harness and make any necessary modifications. The process may vary depending on the make and model of your car, so it is always a good idea to consult a professional or a trusted guide specific to your vehicle.
To begin, disconnect the battery and pop the hood of your car. Locate the cam position sensor and the metal tabs on the back of the connectors. You may need to use a tool to release the connector by pushing in on the metal tab.
If the injector clips are brittle or broken, you have a few options for replacement. One method is to use a zip tie by threading it through the connector; the teeth on the zip tie will hold it in place. Another option is to purchase new connectors with pigtails, which can be crimped or soldered on.
If you choose to solder, be aware that lead-free solder is more difficult to work with than regular 60/40 leaded solder. The solder joint is also stiffer than the copper wire, which can lead to fatigue failure. Additionally, solder has a tendency to crack from vibration, movement, and heat, which can be problematic in an engine bay.
If you prefer not to solder, crimping is another option. This method is less stressful on the junction than soldering and is the method used for all OE connections. To crimp a harness, use open barrel through splices with an appropriate open barrel crimping die tool, and cover the joint with glue-lined heatshrink.
For those who prefer a visual guide, YouTube has videos demonstrating the zip tie connector method, and there are also guides available for soldering and crimping connectors.
Fuel Injector 53030778: One or Four Holes?
You may want to see also
Explore related products
$9.39 $12.99
Testing for effectiveness and final installation
Once you have installed the fuel injector wire harness, the next step is to test it for effectiveness before finalising the installation.
Testing for Effectiveness:
Firstly, you will need to test the harness for effectiveness by installing it temporarily. This will allow you to identify any issues or adjustments needed before finalising the permanent installation. Check for voltage and conductivity. You can refer to the wiring diagram you created earlier to ensure everything is connected correctly.
Final Installation:
Now, you can finalise the installation by making the necessary permanent connections. This may involve soldering, splicing, and insulating wires, as well as attaching terminals and setting them into sealed connectors. Ensure that all connections are secure and insulated to prevent any short circuits or damage to the wiring.
It is important to take your time during this process and refer to your vehicle's service manual for specific instructions and precautions. Additionally, having a helper during this process can be beneficial, especially when dealing with hard-to-reach areas or when an extra pair of hands is needed.
Finally, once the installation is complete, test the vehicle to ensure that the fuel injector wire harness is functioning properly. Start the engine and monitor for any unusual behaviour or errors. If everything operates as expected, then you have successfully installed the fuel injector wire harness.
Cleaning Fuel Injectors: Ted Wiens' Expert Guide
You may want to see also
Frequently asked questions
Before installing a fuel injector wire harness, it is important to understand the wiring and make any necessary modifications for your car's electronics and transmission.
You will need a crimp tool, wire stripper, braided sleeve, heat shrink, self-fusing tape, and 18-20 AWG wire. You may also need a de-pinning tool and a heat gun if you are using heat shrink tubing.
The first step is to disconnect the battery. Then, pop the hood and start disconnecting the old harness. Locate the cam position sensor and push the metal tab to release the connector.
If your fuel injector wires are damaged, you may need to replace the entire harness. Try to identify the source of the problem and fix any broken or exposed wires. You can also add another section of wire to the existing wires.
To remove the plastic cover, locate the tabs on the front side and unhook them. There may also be bolts holding the harness protector in place that you will need to remove. You may need to disconnect the harness from the inside to get a clear working area.
