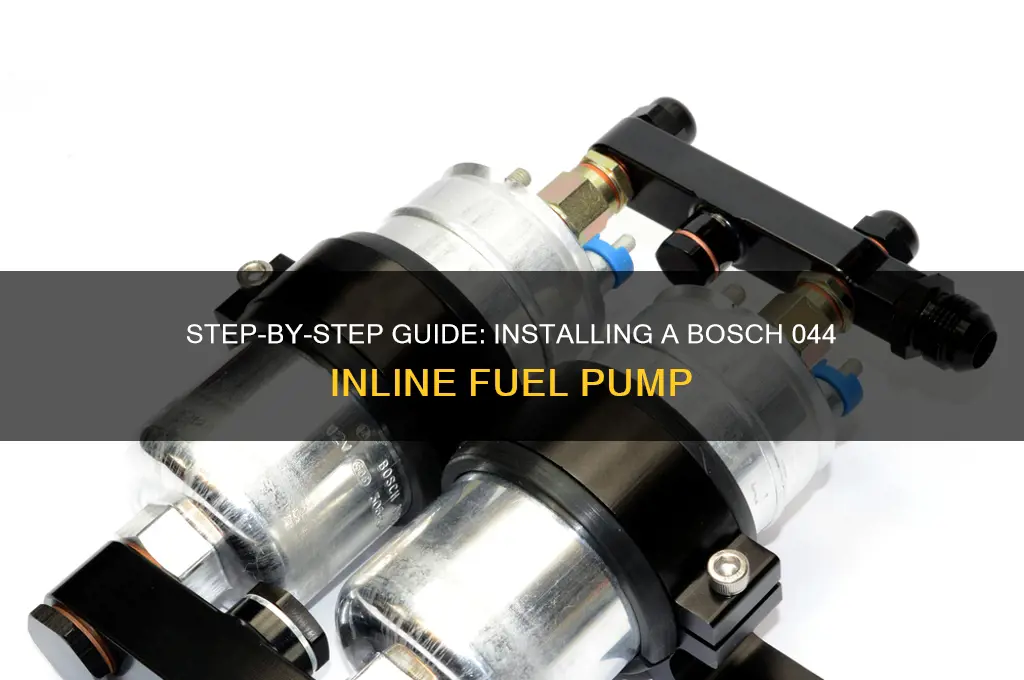

Installing a Bosch 044 inline fuel pump is a straightforward process that requires basic mechanical skills and the right tools. This high-performance fuel pump is commonly used in aftermarket applications to ensure consistent fuel delivery, especially in high-horsepower or turbocharged engines. To begin, gather all necessary components, including the pump, mounting brackets, fuel lines, and electrical connectors. Start by locating a suitable mounting position, ensuring it is secure and away from excessive heat. Next, connect the fuel lines, using proper fittings and clamps to prevent leaks. Wire the pump to the vehicle’s electrical system, typically using a relay and fuse for safety. Finally, prime the pump and check for any fuel leaks before starting the engine. Following these steps will ensure a reliable and efficient installation of the Bosch 044 fuel pump.
Explore related products
What You'll Learn
- Gather Tools & Materials: Socket set, wrenches, fuel line, hose clamps, pump, wiring kit, safety gear
- Disconnect Battery & Fuel Lines: Ensure safety by disconnecting power and relieving fuel pressure before starting
- Mount the Pump Securely: Attach pump to a stable surface using brackets and ensure it’s level
- Connect Fuel & Wiring: Attach inlet/outlet lines, secure with clamps, and wire pump to power source
- Test & Verify Operation: Reconnect battery, check for leaks, and confirm pump primes and runs smoothly
Gather Tools & Materials: Socket set, wrenches, fuel line, hose clamps, pump, wiring kit, safety gear
Before diving into the installation of a Bosch 044 inline fuel pump, it's crucial to assemble the right tools and materials. This step is often overlooked, but it’s the foundation of a successful and safe installation. A socket set and wrenches are essential for removing and securing components, ensuring a tight fit without damaging threads or surfaces. Fuel line and hose clamps are critical for connecting the pump to the fuel system, preventing leaks that could lead to performance issues or safety hazards. The Bosch 044 pump itself is the centerpiece, designed to deliver high-pressure fuel for enhanced engine performance. A wiring kit is necessary to integrate the pump with your vehicle’s electrical system, ensuring it operates efficiently. Lastly, safety gear, including gloves and safety goggles, protects you from fuel spills and debris during the installation process.
Analyzing the tools and materials reveals their interconnected roles. The socket set and wrenches, for instance, are not just for tightening bolts—they ensure components are secured at the manufacturer’s recommended torque specifications, which vary by vehicle. Fuel lines must be compatible with your vehicle’s fuel type (e.g., ethanol-blended gasoline requires specific materials to prevent degradation). Hose clamps should be stainless steel to resist corrosion, especially in high-moisture environments. The wiring kit often includes relays and fuses, which are vital for preventing electrical overloads that could damage the pump or vehicle. Safety gear is non-negotiable; fuel is flammable, and even small spills can pose risks if not handled properly.
From a practical standpoint, organizing your workspace with these tools and materials streamlines the installation process. Lay out the socket set and wrenches in order of size for quick access. Pre-cut the fuel line to the appropriate length, allowing for slight bends without kinking. Test-fit the hose clamps to ensure they’re the right size for your fuel line diameter. Inspect the Bosch 044 pump for any shipping damage, as even minor defects can affect performance. Label the wiring kit components to avoid confusion during installation. Finally, wear safety gear from start to finish, even if the task seems straightforward—accidents often happen during routine steps.
Comparing this preparation to other automotive projects highlights its importance. Unlike simple oil changes or air filter replacements, fuel pump installations involve high-pressure systems and electrical connections, requiring precision and caution. Skipping tools like torque wrenches or using subpar fuel lines can lead to leaks, reduced pump lifespan, or even engine failure. Similarly, neglecting safety gear in a fuel-related project is far riskier than in tasks like changing spark plugs. By treating this step as a checklist rather than an afterthought, you ensure the installation is not only successful but also safe and durable.
In conclusion, gathering the right tools and materials is a strategic step that sets the tone for the entire installation. It’s not just about having what you need—it’s about understanding how each item contributes to the process. A socket set ensures proper torque, fuel lines prevent leaks, the Bosch 044 pump delivers performance, the wiring kit ensures electrical integrity, and safety gear protects you. By approaching this step methodically, you minimize risks and maximize efficiency, turning a complex task into a manageable project.
Failing Fuel Pump: The Hidden Cause of Engine Surging Explained
You may want to see also
Explore related products
Disconnect Battery & Fuel Lines: Ensure safety by disconnecting power and relieving fuel pressure before starting
Before installing a Bosch 044 inline fuel pump, prioritizing safety is non-negotiable. The first critical step involves disconnecting the battery and fuel lines, a process that demands precision and caution. Start by locating the negative terminal of your vehicle’s battery and using a wrench to loosen the nut, then carefully remove the cable. This action cuts power to the fuel system, minimizing the risk of electrical mishaps or accidental pump activation during installation. Always wear gloves and ensure the area is well-ventilated to avoid contact with corrosive battery acid or fumes.
Relieving fuel pressure is the next essential step, as it prevents fuel from spraying or leaking during the installation process. Locate the fuel pressure relief valve or Schrader valve, typically found on the fuel rail or near the fuel filter. Attach a fuel pressure gauge if available, or use a small hose to direct fuel into a container. Depress the valve to release pressure, ensuring all fuel lines are depressurized before proceeding. This step is particularly crucial in high-performance or turbocharged systems, where residual pressure can be significant.
While these steps may seem straightforward, overlooking them can lead to hazardous situations. For instance, working on a pressurized fuel system increases the risk of fire or explosion, especially if sparks are introduced. Similarly, an active electrical connection could cause the pump to engage unexpectedly, leading to injury or damage. By disconnecting the battery and relieving fuel pressure, you create a controlled environment that safeguards both you and your vehicle.
Practical tips can further enhance safety and efficiency. Use a battery terminal puller if the cable is stubborn, and secure the disconnected cable away from metal surfaces to prevent accidental reconnection. When relieving fuel pressure, work methodically, checking all lines for residual pressure. If your vehicle lacks a pressure relief valve, consult the manual for alternative methods, such as removing the fuel pump fuse and running the engine until it stalls. These precautions ensure a smooth and secure installation process, setting the stage for the successful integration of your Bosch 044 inline fuel pump.
2001 Beetle Fuel Pump Module: Function, Troubleshooting, and Replacement Guide
You may want to see also
Explore related products
Mount the Pump Securely: Attach pump to a stable surface using brackets and ensure it’s level
Securing your Bosch 044 inline fuel pump properly is critical for its longevity and performance. Vibration from the engine and road can cause misalignment or damage if the pump isn’t mounted firmly. Start by selecting a stable surface near the fuel tank or along the fuel line, ensuring it’s free from obstructions and heat sources. Use heavy-duty brackets designed for the pump’s weight and size, typically made of steel or aluminum for durability. Position the pump so that its inlet and outlet ports align seamlessly with the fuel lines, minimizing bends or kinks that could restrict flow.
Leveling the pump is equally important, as an uneven orientation can lead to air pockets or inconsistent fuel delivery. Use a bubble level to verify the pump’s alignment before tightening the brackets. If the mounting surface isn’t naturally level, shim the base with thin washers or spacers to achieve the correct angle. Double-check that all bolts are torqued to the manufacturer’s specifications—overtightening can warp the pump housing, while undertightening risks loosening over time. A secure, level mount ensures the pump operates efficiently, reducing the risk of fuel starvation or pressure fluctuations.
Consider the environment where the pump will be installed. If your vehicle operates in rough terrain or high-vibration conditions, reinforce the mounting with additional supports or vibration-dampening pads. These pads, often made of rubber or silicone, absorb shocks and prevent metal fatigue in the brackets. For added stability, some installers weld custom mounts directly to the chassis, though this is more labor-intensive and permanent. Always inspect the mounting hardware periodically, especially after off-road use or long trips, to ensure nothing has shifted or worn.
A common mistake is rushing the mounting process, leading to misalignment or inadequate support. Take your time to measure twice and drill once, ensuring the brackets are positioned precisely. If you’re unsure about the pump’s orientation, consult the Bosch 044 manual or online diagrams for clarity. Proper mounting isn’t just about securing the pump—it’s about creating a foundation that supports its function under all driving conditions. Done correctly, this step will save you from troubleshooting fuel delivery issues down the road.
Step-by-Step Guide to Rebuilding Your Yamaha Fuel Pump Efficiently
You may want to see also
Explore related products
Connect Fuel & Wiring: Attach inlet/outlet lines, secure with clamps, and wire pump to power source
Connecting the fuel and wiring is a pivotal step in installing a Bosch 044 inline fuel pump, as it ensures the pump functions efficiently and safely. Begin by attaching the inlet and outlet lines to the pump, ensuring the flow direction aligns with the pump’s specifications—typically marked with arrows. Use high-quality fuel hose compatible with your vehicle’s fuel type (e.g., ethanol-resistant for E85 setups). Secure the lines with stainless steel or worm-drive clamps, tightening them just enough to prevent leaks without crushing the hose. Overtightening can damage the hose, while undertightening risks fuel seepage, which poses a fire hazard.
Wiring the pump to the power source requires precision and adherence to safety standards. Connect the pump’s positive terminal directly to the battery or a dedicated relay, using 10-gauge wire or thicker to handle the pump’s current draw (typically 10–15 amps). Install an inline fuse (rated at 20 amps) within 12 inches of the power source to protect against short circuits. Ground the pump’s negative terminal to a clean, unpainted metal surface on the vehicle’s chassis, ensuring a solid connection to prevent voltage drops. Avoid running wires near hot components like exhaust manifolds or fuel lines to minimize fire risks.
A common oversight is neglecting to test the system before finalizing connections. After wiring, activate the pump momentarily to check for leaks at the hose clamps and electrical connections. Use a fuel pressure gauge to verify the pump is delivering the correct pressure (usually 40–80 PSI, depending on the application). If the pump fails to prime or pressure is inconsistent, recheck the wiring polarity and fuel line connections. Proper testing at this stage can save hours of troubleshooting later.
For enthusiasts upgrading to a Bosch 044 pump, consider the pump’s placement in the fuel system. If installed as a push setup (after the tank), ensure the inlet line is submerged in fuel to prevent cavitation. If used as a pull setup (before the tank), add a pre-pump filter to protect the pump from debris. Regardless of configuration, always use a check valve on the outlet side to maintain fuel pressure between pump cycles, reducing strain on the system.
In summary, connecting the fuel and wiring of a Bosch 044 pump demands attention to detail and adherence to safety protocols. Proper hose clamping, secure wiring, and thorough testing are non-negotiable steps. By following these guidelines, you’ll ensure a reliable fuel delivery system that maximizes the pump’s performance while minimizing risks. Treat this phase as the backbone of your installation—done correctly, it guarantees a seamless integration into your vehicle’s fuel system.
Walbro Fuel Pump Amperage Guide: Optimal Power for Performance
You may want to see also
Explore related products
Test & Verify Operation: Reconnect battery, check for leaks, and confirm pump primes and runs smoothly
With the Bosch 044 inline fuel pump installed, the final and most critical phase begins: ensuring it operates flawlessly. This stage demands precision and attention to detail, as even minor oversights can lead to significant issues down the line. Start by reconnecting the battery, a step that breathes life into the system and allows you to assess the pump’s functionality. Before firing up the engine, pause to inspect all connections and fittings for leaks. Fuel leaks are not only hazardous but also indicative of improper installation or damaged components. Use a clean rag to wipe down the area, making it easier to spot any drips or wet spots during the test.
Once the system is leak-free, turn the ignition to the "on" position without starting the engine. Listen carefully for the pump’s priming cycle—a distinct humming sound that confirms fuel is being drawn into the system. This priming process typically lasts 2-3 seconds and is essential for establishing proper fuel pressure. If the pump fails to prime, double-check the wiring, fuse, and relay connections, as electrical issues are often the culprit. A multimeter can be invaluable here to verify power is reaching the pump.
Next, start the engine and observe the pump’s operation. It should run smoothly, maintaining consistent fuel pressure as indicated by the gauge (if installed). Irregular noises, such as whining or grinding, signal potential issues like air in the system or a failing pump. Allow the engine to idle for a few minutes, monitoring for any fluctuations in performance or unusual smells that could indicate overheating or fuel leakage.
For a thorough verification, perform a load test by revving the engine to simulate driving conditions. Watch the fuel pressure gauge to ensure it remains stable under stress. If the pump struggles to keep up, inspect the fuel lines for restrictions or consider upgrading to a higher-capacity pump. Conversely, excessive pressure may point to a faulty regulator or blocked return line.
In conclusion, testing and verifying the Bosch 044 inline fuel pump’s operation is a meticulous process that safeguards both performance and safety. By systematically checking for leaks, confirming priming, and monitoring operation under load, you ensure the pump integrates seamlessly into your fuel system. This step is not merely procedural—it’s the linchpin of a successful installation, preventing costly repairs and ensuring reliable operation for miles to come.
Diagnosing and Starting a Vehicle with a Faulty Fuel Pump
You may want to see also
Frequently asked questions
You will need basic hand tools such as wrenches, pliers, a screwdriver, hose clamps, fuel line disconnect tools, and a multimeter for electrical testing.
The pump should be mounted as close to the fuel tank as possible, below the fuel level, to ensure proper priming and prevent airlocks. Avoid mounting it in areas exposed to extreme heat.
Use compatible fuel hose and hose clamps to connect the inlet and outlet ports. Ensure all connections are tight and sealed to prevent leaks. The inlet should face the tank, and the outlet should face the engine.
The pump requires a 12V power source, typically connected to the ignition switch. Use a relay to handle the high current draw. Ground the pump securely to the chassis, and ensure the wiring is protected from heat and abrasion.
