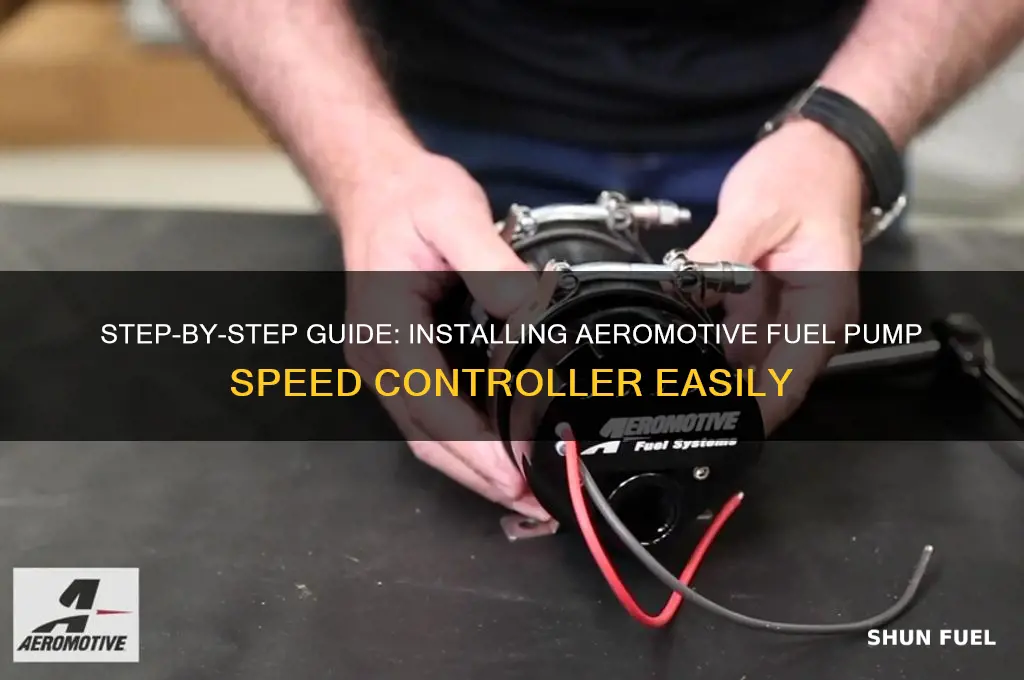

Installing an Aeromotive Fuel Pump Speed Controller is a crucial step in optimizing your vehicle’s fuel delivery system, ensuring efficient performance and longevity of the fuel pump. This device allows you to regulate the speed of your fuel pump based on engine demand, reducing unnecessary wear and heat while maintaining consistent fuel pressure. The installation process typically involves locating a suitable mounting position, connecting the controller to the fuel pump’s power supply, and integrating it with the vehicle’s ECU or a standalone wiring harness. Proper grounding and wiring are essential to prevent electrical issues, and calibration may be required to match the controller’s settings to your specific fuel system needs. Following the manufacturer’s instructions carefully ensures a seamless installation and maximizes the benefits of this upgrade.
Explore related products
What You'll Learn
- Gather Tools & Parts: Assemble required tools, wiring, and the Aeromotive fuel pump speed controller kit components
- Locate Fuel Pump: Identify the fuel pump’s position and disconnect the battery for safety
- Install Controller: Mount the speed controller securely and connect it to the fuel pump wiring
- Wire Connections: Follow the diagram to connect power, ground, and signal wires to the controller
- Test & Calibrate: Reconnect the battery, start the engine, and adjust the controller for optimal performance
Gather Tools & Parts: Assemble required tools, wiring, and the Aeromotive fuel pump speed controller kit components
Before diving into the installation of an Aeromotive fuel pump speed controller, it’s crucial to ensure you have everything needed at hand. This step is often overlooked, but it’s the foundation of a smooth and efficient installation process. The Aeromotive kit typically includes the controller unit, wiring harness, mounting hardware, and instructions. However, additional tools and parts are required to complete the job. Start by laying out all components on a clean, organized workspace to verify nothing is missing.
Analyzing the tools required, you’ll need a basic set of hand tools, including a screwdriver set (flathead and Phillips), wire strippers, crimping pliers, and a multimeter for electrical testing. A drill with appropriate bits may be necessary if you’re mounting the controller in a custom location. For wiring, ensure you have heat shrink tubing, electrical tape, and zip ties for securing and protecting connections. It’s also wise to have a soldering iron and solder on hand for more robust wire connections, though the Aeromotive kit often includes pre-crimped terminals.
From a comparative standpoint, the Aeromotive kit is designed to be user-friendly, but the quality of your installation depends on the tools and parts you use. For instance, using high-quality heat shrink tubing versus cheap alternatives can prevent future electrical issues. Similarly, a reliable multimeter ensures accurate voltage readings during testing, which is critical for diagnosing potential problems. Investing in the right tools not only simplifies the process but also ensures longevity and safety.
Instructively, begin by cross-referencing the Aeromotive kit’s contents with the provided checklist. Double-check that all wiring harnesses, connectors, and mounting brackets are present. If the kit includes a ground wire, verify its length is sufficient for your installation. Next, gather your tools and organize them in a way that keeps them accessible throughout the process. A magnetic parts tray can be invaluable for keeping small components like screws and terminals from getting lost.
Finally, a practical tip: label your wiring before disconnecting anything. Use masking tape and a marker to identify which wires go where, especially if you’re working with an existing fuel system. This simple step can save hours of frustration during reassembly. By meticulously gathering and organizing your tools and parts, you set the stage for a seamless installation of the Aeromotive fuel pump speed controller.
