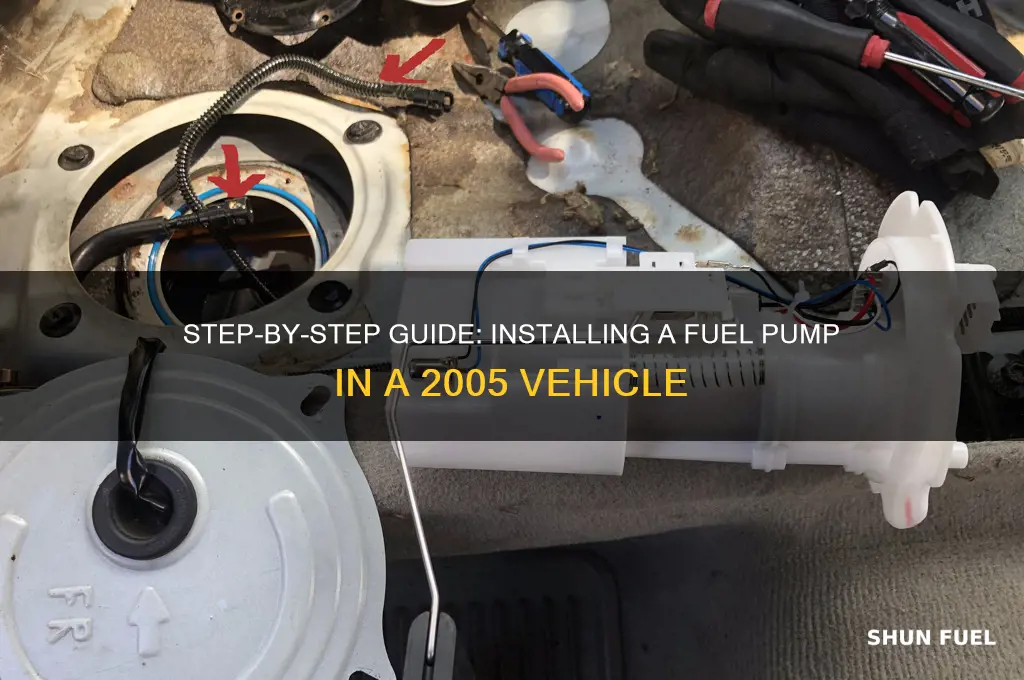

Installing a fuel pump in a 2005 vehicle requires careful preparation and attention to detail to ensure safety and functionality. Begin by disconnecting the battery to prevent electrical hazards, then locate the fuel tank, typically found beneath the rear seat or trunk area. Relieve the fuel system pressure by removing the fuel pump fuse or relay and running the engine until it stalls. Safely raise the vehicle and support it on jack stands to access the fuel tank. Remove the fuel tank shield, if applicable, and disconnect the fuel lines, electrical connectors, and tank straps. Lower the tank to access the fuel pump assembly, which is usually secured by a locking ring or bolts. Carefully remove the old pump, replace it with the new one, and reinstall the assembly in reverse order. Ensure all connections are secure, refill the tank, and check for leaks before testing the system. Always refer to the vehicle’s manual for model-specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Compatibility | 2005 models (specific make/model required for exact instructions) |
| Tools Required | Socket set, wrenches, screwdriver, fuel line disconnect tool, safety gear |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Location of Fuel Pump | Inside the fuel tank (accessible from underside of vehicle) |
| Fuel Tank Removal | May require lowering or removing the fuel tank for access |
| Fuel Pump Module | Includes pump, sender unit, and float assembly |
| Electrical Connections | Disconnect and reconnect wiring harness securely |
| Fuel Lines | Use quick-disconnect tools to remove and reinstall lines |
| Lock Ring Removal | Use a specialized tool to remove the fuel pump lock ring |
| Installation Steps | 1. Relieve pressure, 2. Disconnect battery, 3. Remove tank, 4. Replace pump, 5. Reinstall tank |
| Testing | Check for leaks, ensure pump operates correctly after installation |
| Estimated Time | 2-4 hours depending on experience and vehicle model |
| Difficulty Level | Intermediate to advanced DIY skill required |
| Cost of Parts | $100-$300 (varies by vehicle and pump brand) |
| Professional Assistance | Recommended if unsure or lacking proper tools |
| Maintenance Tips | Regularly inspect fuel lines and connections for wear or leaks |
Explore related products
What You'll Learn
- Gather Tools and Materials: Socket set, wrenches, fuel line disconnect, new pump, gloves, safety gear
- Relieve Fuel Pressure: Locate Schrader valve, attach gauge, release pressure safely before proceeding
- Access Fuel Pump: Remove rear seat, lift carpet, disconnect battery, unbolt pump assembly
- Replace Fuel Pump: Install new pump, reconnect lines, secure with bolts, ensure proper sealing
- Test and Verify: Reconnect battery, check for leaks, start engine, confirm pump operation
Gather Tools and Materials: Socket set, wrenches, fuel line disconnect, new pump, gloves, safety gear
Before diving into the installation of a fuel pump for a 2005 vehicle, it's crucial to assemble the right tools and materials to ensure a smooth and safe process. A socket set, for instance, is indispensable for removing bolts and fasteners that secure the fuel pump in place. Opt for a metric socket set, as most 2005 vehicles use metric measurements, and ensure it includes a variety of sizes to accommodate different fasteners. Pair this with a set of wrenches, including both open-end and box-end types, to handle nuts and bolts in tight spaces where the socket set might not fit.
One often-overlooked tool is the fuel line disconnect, which is essential for safely detaching the fuel lines from the old pump without causing leaks or damage. This tool varies by vehicle make and model, so verify compatibility with your 2005 vehicle before purchasing. For example, some disconnect tools are designed for quick-connect fittings, while others are tailored for specific fuel line diameters. Investing in the correct tool can save time and prevent costly mistakes, such as damaging the fuel lines or spilling fuel.
The centerpiece of this project is, of course, the new fuel pump. When selecting a replacement, ensure it’s compatible with your 2005 vehicle’s make, model, and engine type. Aftermarket pumps are often more affordable than OEM (Original Equipment Manufacturer) options, but verify their quality and warranty to avoid premature failure. Inspect the new pump for any defects or missing components before installation, as a faulty pump can lead to poor engine performance or even safety hazards.
Safety should never be an afterthought when working with fuel systems. Wear nitrile gloves to protect your skin from gasoline, which can cause irritation or absorb harmful chemicals. Pair these with safety goggles to shield your eyes from fuel splashes or debris. Additionally, work in a well-ventilated area and avoid open flames or sparks, as fuel vapors are highly flammable. A fire extinguisher nearby is a prudent precaution, even if you’re confident in your safety measures.
Finally, organize your workspace to streamline the installation process. Lay out all tools and materials within easy reach, and use a tray or container to keep small parts like bolts and washers from getting lost. If you’re working on a vehicle with a full fuel tank, consider siphoning some fuel to reduce weight and minimize spill risks. By meticulously gathering and preparing these tools and materials, you’ll set the stage for a successful fuel pump installation, ensuring both efficiency and safety throughout the process.
Multimeter Fuel Pump Testing: A Step-by-Step Diagnostic Guide
You may want to see also
Explore related products
Relieve Fuel Pressure: Locate Schrader valve, attach gauge, release pressure safely before proceeding
Before diving into the installation of a fuel pump on a 2005 vehicle, it's crucial to address a critical safety step: relieving fuel pressure. This process is not just a precautionary measure; it’s a necessity to prevent accidents, such as fuel spray or fires, during the installation. The Schrader valve, a small yet vital component typically located on the fuel rail, is your gateway to safely releasing this pressure.
Steps to Relieve Fuel Pressure:
- Locate the Schrader Valve: Start by identifying the valve, which resembles a tire valve stem, usually found near the fuel injectors or on the fuel rail. Consult your vehicle’s manual if you’re unsure of its exact position.
- Attach a Fuel Pressure Gauge: Use a compatible gauge to monitor the pressure. Thread it securely onto the Schrader valve to ensure no leaks occur during the process.
- Release Pressure Safely: With the gauge attached, depress the Schrader valve to release the fuel pressure. Do this slowly and methodically, allowing the pressure to drop to zero. If your vehicle has a returnless fuel system, you may need to run the engine briefly with the fuel pump relay removed to fully depressurize the system.
Cautions and Practical Tips:
Always work in a well-ventilated area and avoid open flames or sparks. Wear safety goggles and gloves to protect against fuel exposure. If fuel spills, clean it immediately to prevent slipping hazards. For vehicles with high-pressure fuel systems, such as direct injection models, consult a professional if you’re unsure about the process.
Relieving fuel pressure is a non-negotiable step in fuel pump installation. By locating the Schrader valve, attaching a gauge, and releasing pressure safely, you not only protect yourself but also ensure a smoother, more efficient installation process. Skipping this step could lead to dangerous consequences, making it a cornerstone of automotive safety.
Step-by-Step Guide to Repairing Your Fuel Pump Wire Easily
You may want to see also
Explore related products
Access Fuel Pump: Remove rear seat, lift carpet, disconnect battery, unbolt pump assembly
Accessing the fuel pump in a 2005 vehicle often requires a methodical approach, as it’s typically located beneath the rear seat and protected by layers of interior components. Begin by removing the rear seat, a task that usually involves locating and unscrewing retaining bolts hidden beneath plastic caps or using a specialized tool to release seat latches. Once the seat is out, lift the carpet to expose the access panel, which may be secured by additional screws or clips. This step demands precision to avoid damaging the interior trim, so work slowly and use a trim removal tool if necessary.
Before proceeding further, disconnect the battery to eliminate any risk of electrical shock or accidental fuel pump activation. Locate the negative terminal, loosen the nut with a wrench, and remove the cable. This precautionary measure is critical, as fuel systems operate under high pressure and electrical components can spark if mishandled. With the battery disconnected, focus shifts to the fuel pump assembly itself, which is typically housed in a module beneath the access panel.
Unbolting the fuel pump assembly requires both the right tools and awareness of potential complications. Use a socket wrench to remove the bolts securing the assembly, but be prepared for rust or corrosion, especially in older vehicles. Applying penetrating oil beforehand can ease this process. Once unbolted, carefully lower the assembly, taking note of its orientation for reassembly. Be cautious not to spill residual fuel, and have a drain pan ready if necessary.
This sequence—removing the rear seat, lifting the carpet, disconnecting the battery, and unbolting the pump assembly—is a foundational step in fuel pump replacement. It balances mechanical skill with safety precautions, ensuring both the task’s completion and the technician’s well-being. While seemingly straightforward, each step requires attention to detail, from preserving interior components to managing electrical and fuel hazards. Mastery of this process not only facilitates the repair but also builds confidence for tackling more complex automotive tasks.
Wheel Base Impact on Fuel Pump Efficiency: What You Need to Know
You may want to see also
Explore related products
Replace Fuel Pump: Install new pump, reconnect lines, secure with bolts, ensure proper sealing
Installing a new fuel pump in a 2005 vehicle requires precision and attention to detail to ensure safety and functionality. Begin by positioning the new pump into the fuel tank, aligning it carefully with the mounting points. Most 2005 models use a modular design, so ensure the pump assembly fits snugly into the tank’s housing. Double-check the orientation of the pump’s electrical connector and fuel lines to avoid misalignment, as this can lead to leaks or electrical malfunctions. Proper placement is critical, as even a slight misfit can compromise performance.
Reconnecting the fuel lines is a step that demands both patience and caution. Start by attaching the inlet and outlet lines to the pump, ensuring each connection is secure and free of debris. Use new O-rings or seals if the old ones show signs of wear, as even minor damage can cause fuel leaks. Tighten the line fittings by hand before using a wrench to avoid over-torquing, which can crack the fittings or damage the pump. For 2005 vehicles, typical torque specifications for fuel line fittings range between 15 to 25 foot-pounds, but always consult the vehicle’s manual for exact values.
Securing the pump with bolts is straightforward but requires adherence to manufacturer specifications. Use the provided bolts or replacements of the same grade and size, as mismatched hardware can lead to instability or damage. Tighten the bolts in a diagonal pattern to ensure even pressure distribution, typically to a torque of 10 to 15 foot-pounds. Over-tightening can strip threads or warp the mounting flange, while under-tightening may allow the pump to shift during operation. Always use a torque wrench to achieve the correct tension.
Ensuring proper sealing is the final, non-negotiable step in the installation process. Inspect all seals, gaskets, and O-rings for integrity before reassembly. Apply a thin layer of fuel-resistant sealant to gaskets if recommended by the manufacturer, but avoid over-application, as excess sealant can clog fuel lines. After installation, perform a leak test by pressurizing the fuel system and inspecting for drips or wet spots. This step is crucial, as fuel leaks pose a significant fire hazard and can render the vehicle unsafe to operate.
In summary, replacing a fuel pump in a 2005 vehicle involves meticulous installation, secure reconnection of lines, precise bolt tightening, and thorough sealing verification. Each step builds on the last, ensuring the pump operates efficiently and safely. By following these guidelines and adhering to vehicle-specific instructions, you can restore your fuel system’s reliability and avoid common pitfalls associated with DIY repairs. Always prioritize safety and accuracy to achieve professional-grade results.
Does Your Fuel Pump Make Noise Before Starting? Here's Why
You may want to see also
Explore related products
Test and Verify: Reconnect battery, check for leaks, start engine, confirm pump operation
After installing a fuel pump in a 2005 vehicle, the final and most critical phase is testing and verification. This step ensures that the installation is not only complete but also functional and safe. Begin by reconnecting the battery, making sure the terminals are securely tightened to prevent any electrical issues. A loose connection can lead to starting problems or even damage to the new fuel pump. Once the battery is reconnected, take a moment to inspect all fuel lines and connections for leaks. Even a small leak can lead to significant safety hazards, including fire risks. Use a flashlight and a rag to wipe down the area, checking for any wet spots or the smell of gasoline. If a leak is detected, immediately address it by tightening the connections or replacing faulty components.
Starting the engine is the next crucial step in the verification process. Turn the ignition key and listen carefully for the fuel pump’s priming cycle, which typically lasts 2-3 seconds. This sound, often described as a low hum or whir, confirms that the pump is operational. If the engine starts smoothly and idles steadily, it’s a positive sign, but further confirmation is necessary. Use a fuel pressure gauge to test the pump’s output, ensuring it matches the manufacturer’s specifications for your 2005 model. For example, a typical fuel pressure range for many vehicles is between 40-60 PSI, but always refer to your vehicle’s manual for precise values. Inconsistent pressure readings may indicate a faulty pump or improper installation.
Comparing the new pump’s performance to the old one can provide additional insights. If the vehicle previously struggled with starting or exhibited symptoms like sputtering or stalling, note whether these issues have been resolved. Improved acceleration and smoother operation are strong indicators of a successful installation. However, if problems persist, recheck all connections and ensure the fuel filter and lines are free of debris. Sometimes, residual contaminants from the old system can affect the new pump’s performance.
A persuasive argument for thorough testing lies in safety and longevity. Skipping this step could lead to costly repairs or dangerous situations down the road. For instance, an undetected leak could worsen over time, or a malfunctioning pump could cause engine damage. By taking the time to verify each component, you not only ensure immediate functionality but also extend the life of your vehicle’s fuel system. Practical tips include running the engine for a few minutes in a well-ventilated area to monitor for leaks and using a multimeter to check the pump’s electrical circuit for continuity.
In conclusion, testing and verifying a newly installed fuel pump is a multi-step process that demands attention to detail. From reconnecting the battery to confirming pump operation, each action plays a vital role in ensuring safety and performance. By following these steps and using the appropriate tools, you can confidently confirm that your 2005 vehicle’s fuel system is operating as intended, providing peace of mind and reliable operation for miles to come.
Rebuilding a 62 IH Fuel Pump: Step-by-Step Guide and Tips
You may want to see also
Frequently asked questions
You’ll typically need a floor jack, jack stands, wrenches, screwdrivers, a fuel line disconnect tool, safety goggles, and a new fuel pump assembly.
Locate the fuel pump relay or fuse, remove it, and then start the engine until it stalls. This will relieve the pressure in the fuel system.
The fuel pump is usually located inside the fuel tank, which is accessible from underneath the vehicle after removing the tank’s protective cover.
Yes, it’s recommended to drain as much fuel as possible to avoid spills and make the process safer and easier.
After installation, reconnect the battery, turn the ignition to the "on" position (but don’t start the engine), and listen for the fuel pump priming sound. Then, start the engine to ensure it runs smoothly.
