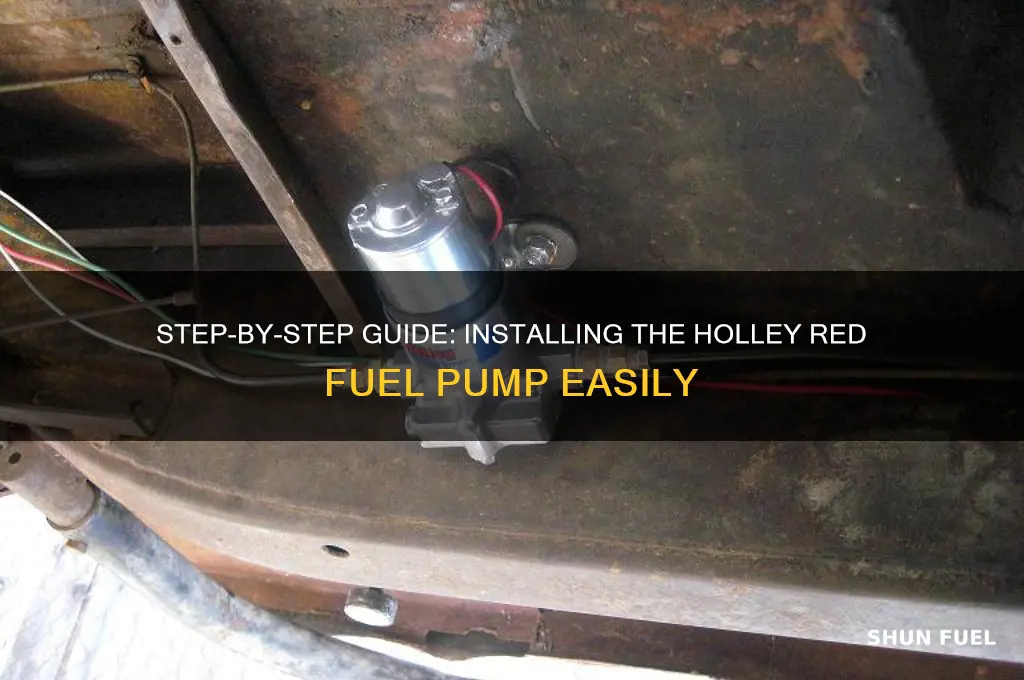

Installing a Holley Red Fuel Pump is a straightforward process that can significantly enhance your vehicle’s fuel delivery system, ensuring optimal performance and reliability. This electric fuel pump is designed for high-output applications, making it ideal for carbureted engines and high-performance setups. The installation begins with selecting the appropriate location for the pump, typically near the fuel tank or in-line with the fuel system, ensuring it is securely mounted and accessible for maintenance. Next, you’ll need to connect the fuel lines, ensuring all fittings are tight and leak-free, and install an inline fuel filter to protect the pump and engine from contaminants. Electrical connections are crucial; the pump should be wired directly to the battery or a switched power source, with a relay and fuse to safeguard the system. Finally, priming the pump and checking for leaks before starting the engine will ensure everything functions correctly. Following these steps will help you successfully install the Holley Red Fuel Pump, improving your vehicle’s fuel efficiency and overall performance.
Explore related products
$19.99 $20.99
$21.99
What You'll Learn
Gather Tools and Materials
Before embarking on the installation of a Holley Red fuel pump, it’s essential to assemble the right tools and materials to ensure a smooth and efficient process. The success of this project hinges on preparation, as missing components or improper tools can lead to frustration and delays. Start by verifying the compatibility of the Holley Red fuel pump with your vehicle’s make, model, and fuel system requirements. This step is critical, as using the wrong pump can compromise performance and safety.
Analyzing the installation process reveals that the tools needed are relatively standard but specific. You’ll require a wrench set (both open-end and box-end), socket set, screwdrivers (flathead and Phillips), and a pair of pliers. For cutting and stripping wires, a wire cutter/stripper tool is indispensable. Additionally, a multimeter will help test electrical connections, ensuring the pump functions correctly before final installation. Don’t overlook safety gear—safety goggles and nitrile gloves protect against fuel spills and debris.
Comparing this installation to others, the Holley Red fuel pump often requires additional materials like fuel line hoses, hose clamps, and electrical connectors. Ensure the fuel line is compatible with ethanol-blended fuels, as modern gasoline can degrade inferior materials. For electrical connections, heat shrink tubing and a heat gun are recommended to seal and protect wiring from moisture and corrosion. If your vehicle uses an in-tank pump, you may also need a fuel tank sending unit gasket to maintain a proper seal.
Persuasively, investing in high-quality tools and materials upfront saves time and prevents potential issues down the road. For instance, using cheap hose clamps can lead to leaks, while subpar electrical connectors may cause intermittent pump failure. A practical tip is to lay out all tools and materials before starting, creating a workspace that minimizes the risk of misplacing items mid-installation. This organized approach not only streamlines the process but also enhances focus and efficiency.
Descriptively, imagine your workspace as a well-prepared station where every tool has its place. The wrenches gleam under the light, ready to tighten fittings, while the multimeter stands by to confirm electrical integrity. Fuel lines are neatly coiled, and the Holley Red pump sits proudly, awaiting its new home. This level of preparation transforms a potentially daunting task into a manageable, even enjoyable, project. By gathering the right tools and materials, you’re not just installing a fuel pump—you’re setting the stage for success.
Effective Techniques to Silence Your Carter Fuel Pump Noise
You may want to see also
Explore related products
Locate Fuel Pump Mounting Spot
Choosing the right mounting spot for your Holley Red fuel pump is critical for performance, safety, and longevity. The ideal location balances accessibility for maintenance, protection from heat and debris, and proper fuel flow dynamics. Start by assessing your vehicle’s chassis and engine bay layout. Look for a flat, sturdy surface near the fuel tank but away from exhaust manifolds, headers, or other heat sources that could degrade the pump’s performance or lifespan. Ensure the spot allows for a downward slope from the tank to the pump, promoting natural fuel flow and minimizing the risk of air pockets.
Analyzing the fuel pump’s orientation is equally important. The Holley Red pump should be mounted horizontally to ensure the internal components function optimally. Avoid vertical mounting, as it can lead to inconsistent fuel delivery and premature wear. If your chosen spot requires a bracket or adapter plate, ensure it’s made of corrosion-resistant material like aluminum or stainless steel. Measure twice and drill once—accuracy in mounting hole placement prevents unnecessary stress on the pump and its connections.
A persuasive argument for prioritizing safety cannot be overstated. Mounting the pump too close to the engine or exhaust can expose it to temperatures exceeding 200°F, which may cause fuel vaporization or damage to the pump’s internal seals. Conversely, placing it too far from the tank increases the risk of fuel starvation during hard cornering or acceleration. Strike a balance by positioning the pump within 12–18 inches of the tank, using a fuel line with a minimum 3/8-inch diameter to maintain adequate flow.
Comparing mounting locations reveals common pitfalls. For example, mounting the pump inside the trunk or cabin is inadvisable due to fumes and fire hazards. Exterior mounting under the vehicle is popular but exposes the pump to road debris and moisture. A compromise is mounting it behind the rear axle, where it’s shielded from direct impact yet remains accessible. Always use rubber isolators or vibration dampeners to secure the pump, reducing noise and preventing fatigue-related failures.
In conclusion, locating the fuel pump mounting spot requires a blend of practicality and foresight. Assess your vehicle’s layout, prioritize safety and efficiency, and avoid common mistakes by learning from others’ experiences. A well-chosen spot ensures your Holley Red fuel pump operates reliably, delivering consistent fuel pressure and contributing to your vehicle’s overall performance. Take the time to measure, test-fit, and secure the pump properly—it’s an investment in both your vehicle and your peace of mind.
1991 Ford Econoline Fuel Pump Count: What You Need to Know
You may want to see also
Explore related products
Connect Wiring and Ground
Proper wiring and grounding are critical to ensuring your Holley Red Fuel Pump operates reliably and safely. Start by identifying the pump’s power and ground wires—typically a red wire for power and a black wire for ground. Strip approximately ¼ inch of insulation from the ends of these wires using a wire stripper, ensuring clean, exposed copper for secure connections. Avoid over-stripping, as this can weaken the wire and lead to potential failure under vibration or heat.
Next, connect the power wire to a switched 12-volt power source, such as the fuel pump relay or a dedicated circuit in your vehicle’s fuse box. This ensures the pump only operates when the ignition is on, preventing unnecessary battery drain. Use a butt connector or solder the connection for maximum durability, followed by heat shrink tubing to insulate the joint. Inadequate insulation can lead to short circuits, especially in the engine bay where moisture and debris are common.
Grounding the fuel pump is equally vital. Secure the ground wire to a clean, unpainted metal surface on the vehicle’s chassis, ensuring a low-resistance connection. Poor grounding can cause voltage drops, leading to erratic pump performance or complete failure. Use a wire brush to remove any paint, rust, or corrosion from the grounding point before attaching the wire with a ring terminal and bolt. Tighten the connection firmly, but avoid over-torquing to prevent damage to the terminal or chassis.
Consider adding an inline fuse between the power source and the pump to protect the wiring harness from short circuits or overcurrent. A 15-20 amp fuse is typically sufficient for most Holley Red Fuel Pumps, but consult the manufacturer’s specifications for your specific model. This small precaution can save you from costly repairs down the line.
Finally, test the wiring before securing it in place. Turn the ignition on and listen for the pump’s priming cycle, which should last 2-3 seconds. If the pump fails to activate, double-check all connections for continuity and proper polarity. Once confirmed, route the wires away from hot surfaces and moving parts, using zip ties or wire looms to keep them tidy and protected. Proper wiring and grounding not only ensure performance but also contribute to the overall safety and longevity of your fuel system.
Does the Small Block GM Fuel Pump Include an Anti-Siphon Valve?
You may want to see also
Explore related products
Install Fuel Lines Properly
Fuel line installation is a critical step in setting up your Holley Red Fuel Pump, directly impacting performance and safety. Improperly routed or secured lines can lead to leaks, pressure drops, or even fuel starvation under load. Start by selecting the correct fuel line material—rubber hoses for carbureted systems or high-pressure EFI-rated hoses for fuel-injected setups. Ensure the inner diameter matches your pump’s flow requirements, typically 3/8-inch for carbureted applications. Always use compatible clamps, such as stainless steel worm-drive clamps, to secure the lines without damaging the hose.
Routing the fuel lines demands careful planning to avoid heat sources, sharp edges, and moving components. Keep lines away from exhaust manifolds, headers, and other high-temperature areas that can degrade the material overProper fuel line installation is critical for the Holley Red Fuel PumpFuel line installation is a critical step in setting up your Holley Red Fuel Pump, directly impacting performance and safety. Improperly routed or secured lines can lead to leaks, pressure drops, or even fuel starvation under load. Start by selecting the correct fuel line material—Holley recommends using high-pressure rubber hose or braided stainless steel lines rated for ethanol-blended fuels. Avoid cheap alternatives that may degrade over time, especially when exposed to heat or vibration.
Routing the fuel lines requires careful planning. Keep lines away from hot surfaces like exhaust manifolds or headers, as excessive heat can cause fuel vaporization or line failure. Use clamps every 12–18 inches to secure the lines, ensuring they don’t rub against sharp edges or moving components. For carbureted setups, position the fuel line inlet at a downward angle to prevent air pockets from forming. If using an electric fuel pump like the Holley Red, ensure the line from the tank to the pump is larger in diameter than the return line to maintain proper flow.
Pressure ratings are non-negotiable. The Holley Red Fuel Pump operates at pressures up to 15 psi, so your fuel lines must be rated for at least 20 psi to provide a safety margin. Double-check fittings for compatibility—AN (Army-Navy) fittings are common for high-performance applications, but ensure they match the pump’s ports. Tighten all connections hand-tight, then use a wrench to add a quarter-turn to secure without over-tightening, which can damage the fittings.
Finally, test the system before firing the engine. With the pump running, inspect all connections for leaks using a spray bottle of soapy water. Even a small bubble indicates a potential failure point. If leaks are detected, shut down theProper fuel line installation is critical to ensuring your Holley Red Fuel Pump operates efficiently and safely. Incorrectly routed or secured lines can lead to leaks, reduced fuel flow, or even engine damage. Start by selecting the correct fuel line material—Holley recommends using high-pressure rubber hose or stainless steel braided lines rated for ethanol-blended fuels. Avoid cheap alternatives that may degrade over time. Measure and cut the lines to the exact length needed, ensuring minimal bends to reduce flow restriction. Use double clamps at each connection point to prevent leaks, especially on high-vibration engines.
Routing the fuel lines is both an art and a science. Keep them away from hot surfaces like exhaust manifolds or headers, as excessive heat can cause the lines to soften or crack. Aim for a clean, organized layout that avoids sharp bends or kinks, which can restrict fuel flow. If your setup includes a return line, ensure it’s positioned lower than the pump to prevent air pockets. For carbureted systems, maintain a slight downward slope from the pump to the carburetor to assist fuel delivery. Always double-check clearances during engine operation to avoid rubbing or chafing.
Pressure testing your fuel lines before final installation is a step often overlooked but highly recommended. Use a fuel pressure gauge to verify the system holds pressure without leaks. Apply a soapy water solution to all connections and look for bubbles, which indicate leaks. If using AN fittings, ensure they’re tightened to the manufacturer’s torque specifications—overtightening can damage the fittings, while undertightening can cause leaks. This step may add time to your installation but is far less costly than troubleshooting issues later.
Finally, consider the fuel pump’s orientation and mounting. The Holley Red Fuel Pump should be mounted as close to the fuel tank as possible to minimize the risk of cavitation, which occurs when the pump draws air instead of fuel. Secure the pump firmly to the chassis or firewall using rubber isolators to dampen vibrations. If your vehicle operates in extreme angles (e.g., off-roading), install a check valve in the fuel line to prevent fuel from draining back into the tank when the engine is off. Proper mounting and orientation ensure consistent fuel delivery and extend the pump’s lifespan.
By following these steps, you’ll not only install your fuel lines correctly but also optimize the performance and reliability of your Holley Red Fuel Pump. Attention to detail in routing, securing, and testing will save you from headaches down the road, ensuring your fuel system operates smoothly under any driving conditions.
Warning Signs of a Failing Fuel Pump: What to Watch For
You may want to see also
Explore related products
Test Pump for Leaks/Function
Before securing the Holley Red fuel pump in place, a critical step is to verify its integrity and functionality. Begin by submerging the pump in a container of clean fuel or soapy water, ensuring all components are fully covered. Activate the pump for a brief period, typically 10-15 seconds, while observing closely for any signs of leakage. Even the smallest bubble escaping from seals or connections indicates a potential issue that could compromise performance or safety. This simple yet effective test acts as a safeguard, preventing future headaches caused by undetected defects.
A comparative analysis reveals that this method is more reliable than dry inspections, which often miss subtle imperfections. The pressure exerted during operation can expose weaknesses that remain dormant under static conditions. For instance, a hairline crack in the housing or a slightly misaligned gasket might go unnoticed until fuel begins to escape under the stress of normal use. By simulating real-world conditions, this test provides a clearer picture of the pump’s readiness for installation.
Persuasively, skipping this step could lead to costly consequences. Fuel leaks not only waste resources but also pose fire hazards and environmental risks. Imagine the frustration of completing the installation only to discover a leak that requires disassembly and potential part replacement. Investing a few minutes in this test is a small price to pay for long-term reliability and peace of mind.
Descriptively, the process should be methodical and deliberate. After submersion, watch for bubbles forming around the motor, inlet, outlet, and mounting flanges. Use a bright light source to enhance visibility, especially in translucent fluids. If bubbles appear, mark the location with a grease pencil or tape for further inspection. Disassemble the pump if necessary, replacing worn O-rings, tightening connections, or addressing manufacturing defects before proceeding with installation.
Instructively, if the pump passes the leak test, proceed to verify its functionality. Connect the pump to a power source and measure the output pressure using a fuel pressure gauge. Compare the reading to the manufacturer’s specifications, typically 6-8 PSI for Holley Red pumps. Inconsistent pressure or failure to reach the target range suggests internal issues, such as a faulty diaphragm or clogged filter. Address these problems by disassembling the pump, cleaning components, or replacing worn parts before final installation. This dual-purpose test ensures both safety and performance, setting the stage for a successful fuel system upgrade.
Step-by-Step Guide to Removing Fuel Pump in 89 Dodge
You may want to see also
Frequently asked questions
You will need basic hand tools such as wrenches, screwdrivers, a fuel line disconnect tool, and safety equipment like gloves and safety goggles.
The installation is straightforward and can be done by most DIY enthusiasts with basic mechanical skills. However, if you’re unsure, consult a professional.
Mount the pump as close to the fuel tank as possible, ensuring it’s in a cool, well-ventilated area and below the fuel tank level to prevent cavitation.
Yes, using a pre-filter is highly recommended to protect the pump from debris and ensure long-term reliability.
Connect the pump’s power wire to a switched 12V source (e.g., the fuel pump relay or ignition switch) and ground it securely to the chassis. Use a fuse or circuit breaker for safety.
