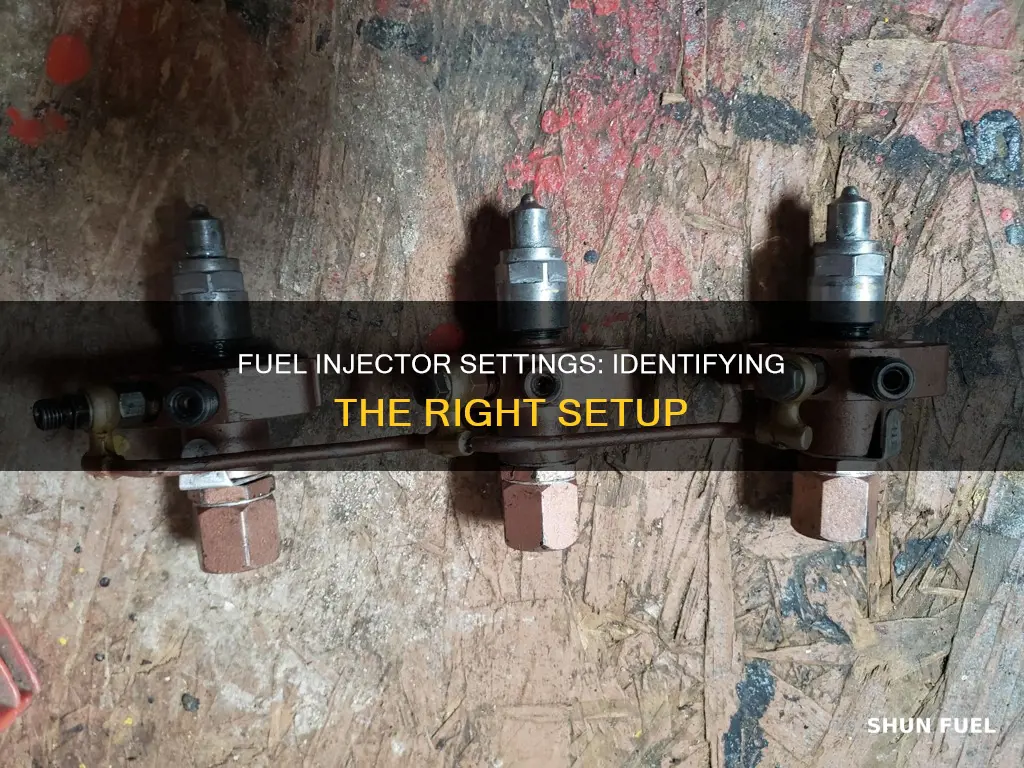

Fuel injectors are an important component of a vehicle's engine, responsible for spraying fuel into the cylinders, where it combines with air and is compressed before ignition. When fuel injectors malfunction, it can lead to engine performance issues or even failure. Identifying the correct fuel injector for your vehicle is crucial for maintaining optimal engine performance and avoiding potential damage. This process involves several steps, from understanding the role of fuel injectors and the factors influencing their selection to practical tests that help identify issues and ensure the correct settings. This guide will cover various aspects, including the function of fuel injectors, the impact of fuel type and engine settings, methods for testing and identifying issues, and the importance of injector data for engine performance.
| Characteristics | Values |
|---|---|
| Fuel injectors spray | Fuel into the cylinders of the engine |
| Fuel injectors are | Electrical-mechanical devices |
| Fuel injectors are controlled by | On-board computers |
| Fuel injectors are controlled by | On-board computers sending out a signal in the form of a pulse |
| The length of the pulse | Determines the amount of fuel delivered to the engine |
| The pulse is measured in | Milliseconds open time |
| The correct air to fuel ratio | Varies based on the rpm and load the engine is seeing |
| Fuel injectors can malfunction due to | Old age or dirt |
| Fuel injectors can be tested by | Disconnecting the electrical connector and using a multimeter to take a resistance reading |
| Fuel injectors with power issues | Can cause the engine to run poorly or fail to run |
| Fuel injectors can be identified by | The part number stamped on the side |
| Fuel injectors can also be identified by | The engine code or name |
Explore related products
What You'll Learn
Identify the negative terminal on the battery
Fuel injectors are components that use an electrical signal to deliver a precise amount of fuel into your engine. They are designed to spray fuel into the cylinders of your engine, where it is combined with air and compressed before being ignited by the spark plug to produce power. As they get older or dirty, they can start to malfunction.
To identify the negative terminal on the battery, look for the negative symbol (-) or the letters NEG. The negative terminal is often black and marked with a "-" sign. The battery casing next to the terminal should also have a "-" stamp. If your battery has poles but no markings, the smaller of the two is the negative terminal.
When testing fuel injectors, locate the two wires going into each injector. Each fuel injector will have a metal clip plugged into it with two wires coming out of it. One of those wires is a 12-volt constant that should be continuously receiving power from your vehicle's electrical system. These wires are often grey and black but can be other colours. Test each wire for voltage by taking the sharp end of the test light and pressing it firmly into the rubber coating around each wire until it penetrates the metal wiring.
Repeat the process for each injector. If you locate one injector with a power issue, this doesn't mean the others are fine. Once you identify an issue, make a note of which one it is and continue testing the rest.
Cleaning Fuel Injectors in Your Acura 2000 TL: Step-by-Step Guide
You may want to see also
Explore related products
Locate wires and metal clips
To locate wires and metal clips on a fuel injector, you will need to first identify the fuel injectors in your vehicle. Typically, fuel injectors are black plastic housings installed directly above the cylinder. There is one fuel injector per cylinder.
Once you have located the fuel injectors, you should see that there are two wires going into each injector. These wires are often grey and black but can be in any number of colours. They will be the only wires coming from each injector. Make sure that you can see a small portion of each wire exposed, coming out of the plastic clip that connects to the injector.
Now, focus on the metal clips. These metal clips are used to brace the bottom of the connector. If you are looking to remove the metal clips, you can do so by pulling the fuel rail off and disconnecting the injectors. This will give you ample room to work and wiggle the clips off. Alternatively, you can simply press down on the wire at the top with your thumb and pop the connector off.
If you are looking to install new metal clips, you can purchase new pigtails that have a better design while still using a metal retaining clip.
The Magic of Fuel Injectors: Atomization Process Explained
You may want to see also
Explore related products
Test wires for voltage
To test wires for voltage, you will need a voltmeter or a test light. Some sources recommend using a multimeter, which can also measure ohms or resistance. Before performing electrical tests, it is important to inspect the fuel injectors for leaks as leaking injectors may cause fire hazards.
First, make sure the key is off, as you don't need power for this test. Next, remove the injector wiring harness. There may be a slide lock that needs to be moved before pressing down on the tabs to remove the wiring harness.
Now, you can test the wires for voltage. With the key in the On position, use a test light or voltmeter connected to the negative side of the battery. Gently probe both sides of the injector wiring connector, and one of the wires should react by registering around 12 volts on the meter or illuminating the test light. Repeat this process with all injector wiring harnesses, leaving the ground lead in position. They should all be around 12 volts. A lower reading means there is excess resistance in the wire somewhere.
If neither wire reacts, test the fuel injector fuse in the PDC. If the fuse is okay, a fuel injection wiring diagram is needed to help trace the wire and repair the connection.
To check the injector spray pattern, the injector must be removed. Attach a 12-volt power and ground source to energize the injector. Compressed air should be released from the outlet valve with traces of fuel still remaining from the injector. Observe the pattern, which should be robust. If the pattern is muted, the injector should be replaced.
Understanding Diesel Engine Fuel Injector Systems
You may want to see also
Explore related products
Check for breaks in wires
To check for breaks in wires when identifying the setting on a fuel injector, follow these steps:
First, locate the wires going into each injector. Each fuel injector will have a metal clip plugged into it, with two wires coming out. These wires are typically grey and black, but they can be other colours. One of these wires is a 12-volt constant that should be continuously receiving power from the vehicle's electrical system.
Next, test each wire for voltage. You can do this by taking the sharp end of a test light and pressing it firmly into the rubber coating around each wire, until it makes contact with the metal wiring inside. Be careful not to push the probe through the other side of the wire. Cover any holes made in the wire's protective coating with electric tape when you're done.
Repeat this process for each injector, and make a note of any injectors with power issues. Once you've identified a problem, follow the wires on the injectors that fail to engage the test light to ensure there are no breaks in the wires that might be preventing electricity from reaching the injector.
If you find a break in the wire, it may be necessary to replace the vehicle's electronic control unit.
The Perfect Fuel Injector Spray: Angle, Pattern, and Droplet Size
You may want to see also
Explore related products
Check resistance with a multimeter
To check the resistance with a multimeter, start by turning off your vehicle's engine. This is important for safety and to ensure an accurate reading. Next, locate the fuel injectors; they are typically black plastic housings installed directly above each cylinder. Once located, disconnect the electrical connector for the fuel injector.
Now, take your multimeter and set it to the appropriate setting to measure resistance, often denoted by the symbol Ω (ohms). Most fuel injectors should read between 10 and 18 ohms, but it's always best to check your vehicle's service manual or look up the correct value online to ensure accuracy. Make sure the multimeter is set to the correct range; if you're expecting a reading of 15 ohms, for example, ensure the multimeter is set to a range that includes this value, such as 20 ohms or 50 ohms.
With the multimeter set up, connect the probes to the injector's electrical connector. Touch one probe to the metal terminal in the centre of the connector and the other to the metal portion of the connector's body. The multimeter will now display the resistance value of the fuel injector. Take note of this value, and repeat the process for each injector, ensuring you reconnect the electrical connector before moving on to the next one. All injectors should have similar readings and they should all fall within the range specified by the manufacturer.
If any of the injectors show resistance readings that are significantly different or outside the specified range, it may indicate a problem. A faulty injector could cause issues with engine performance or even lead to engine damage, so it's important to address the issue promptly. A resistance reading that is too high could indicate a blockage or buildup within the injector, while a reading that is too low could suggest a short circuit or a damaged component. In either case, further investigation and possible repair or replacement of the injector may be necessary.
Cleaning Fuel Injectors: 3800 Series 2 Engine Maintenance Guide
You may want to see also
Frequently asked questions
All injectors have a part number stamped on the side, which can be used to search for the correct injector. Alternatively, if you know your engine code or name, this can also be used to search for the correct fuel injector.
First, identify the location of your fuel injectors. There is one per cylinder, typically a black plastic housing installed directly above the cylinder. Then, with your vehicle off, disconnect the electrical connector for your fuel injector and use a multimeter to take a resistance reading. Check your vehicle’s service manual or look online to find the correct value (most fuel injectors should read between 10 and 18 ohms).
Locate the two wires going into each injector. One of these will be a 12-volt constant that should be continuously receiving power from your vehicle’s electrical system. Test each wire for voltage by taking the sharp end of a test light and pressing it firmly into the rubber coating around each wire until it penetrates the metal wiring.
