Keeping your fuel injectors clean is essential for optimal engine performance. The 3800 Series II engine is no exception, and fuel injector maintenance is a task that many car enthusiasts and mechanics have tackled before. This guide will explore the steps to clean or replace fuel injectors, common problems, and how to diagnose issues with your fuel injector circuit. Whether you're dealing with a clogged injector, a faulty circuit, or simply performing routine maintenance, this guide will provide the information you need to get your 3800 Series II engine's fuel injectors back to peak condition.

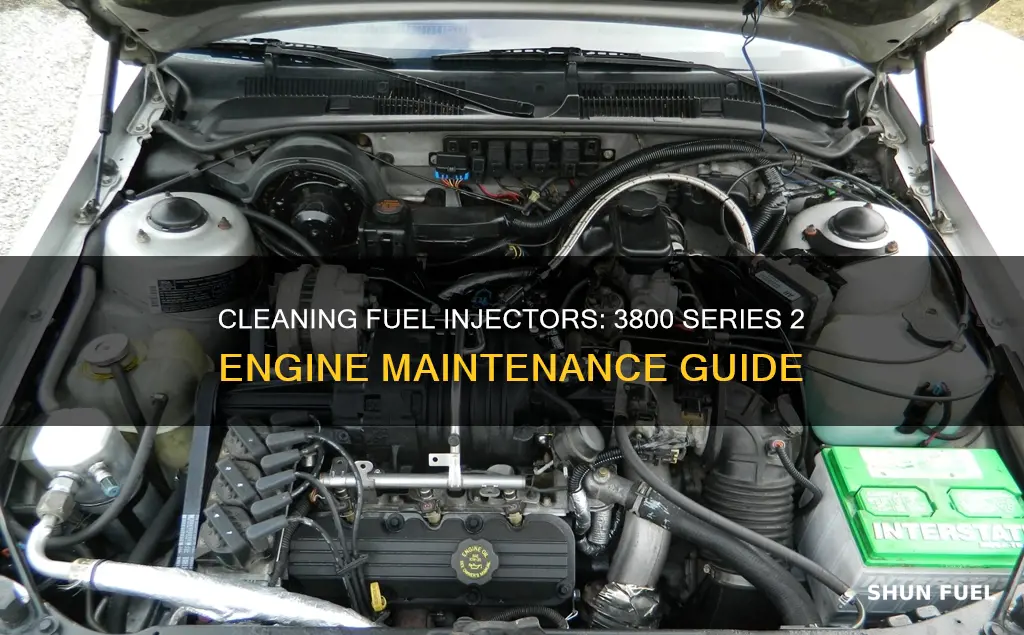

How to clean fuel injectors on a 3800 Series 2 engine
| Characteristics | Values |
|---|---|
| Fuel problems | Not unique to the 3800 engine; injectors can get gummed up from burning gasoline with low levels of detergents |
| GM recommendation | Use "top-tier" gasoline with higher levels of detergent to maintain injector cleanliness, especially for engines used for short trips with frequent stops/starts or prolonged idling |
| Fuel pressure | Should be 48-55 psi with the key on and engine off |
| Fuel volume test spec | N/A (not provided by GM), but a good pump should deliver approximately one quart of fuel in 30 seconds |
| Fuel injector circuit diagnosis | Can be performed with a scope to assess the health of drivers and injectors |
| Cylinder misfire | Could be due to a clogged or dead fuel injector; check resistance across injector terminals |
| Injector resistance | Test spec is 11.80 to 12.60 ohms; readings outside this range may indicate a problem |
| Noid light usage | If injector resistance is within the acceptable range, use a noid light to check for an injector pulse from the PCM injector driver circuit |
| Injector pulse absence | Potential issues include a faulty injector driver circuit in the PCM or lack of input from the camshaft position sensor (CMP) |
| CMP sensor location | Mounted on the front timing cover |
| Supercharged 3800 engines | Oil reservoir for the supercharger should be monitored as it is often overlooked |
| Fuel injector removal | Disconnect the fuel rail before attempting to remove the injectors |
| Fuel injector cleaning | OTC cleaner can be applied to the rail without injector removal using a pressurized vessel (cleaning kit) |
Explore related products
What You'll Learn
Confirm injector circuit health with a scope
To confirm injector circuit health with a scope, you must understand the principles of operation of electric fuel injectors, voltage and current waveforms, and diagnostics for troubleshooting injector issues.
The electric fuel injector has been around for over 50 years. Its operation is simple: an electromagnetic coil moves a pintle in a chamber that has pressurized fuel on one side and a nozzle on the other. The coil is typically energised by a driver pulling the circuit to the ground. As the coil is saturated with energy, the pintle moves upward against a spring, allowing fuel to be injected into the engine. Most injectors use 12 volts to energise the coil.
When diagnosing a fuel injector circuit with a scope, you can compare the waveforms to other injectors on the vehicle or to a known-good waveform found online or in service information. On their own, the current and voltage waveforms can confirm that the internals of the injector are moving. This can be very helpful when trying to track down a misfire problem due to an open, leaking, or stuck injector.
When the injector is energised, the voltage drops to almost zero. If it does not, it could mean an open or weak connection in the wiring harness or open coils inside the injector. When the voltage is turned off, the needle starts to close, generating a voltage spike known as the "inductive kick". This spike can range from 50 to 100 volts. Some circuits use a diode to cap the voltages seen at the driver to prevent damage. On the backside of the inductive kick, you may see a small positive hump or bump, which is the pintle hitting the seat of the injector and closing. This is a very powerful diagnostic insight.
Additionally, if you have a cylinder misfire but have a good spark and compression, the fuel injector is likely clogged or dead. The 3800 engine uses high-impedance 12-ohm injectors, and the test spec is 11.80 to 12.60 ohms. Therefore, check the resistance across the injector terminals if you suspect a bad injector. If an injector reads outside this range, even by a few tenths of an ohm, it may be enough to cause a problem. If an injector reads good, use a noid light to check for an injector pulse from the PCM injector driver circuit. No pulse could indicate a bad injector driver circuit in the PCM or no input from the camshaft position sensor (CMP), which the PCM uses to fire the injectors.
Cleaning Fuel Injector Rails: A Step-by-Step Guide
You may want to see also
Explore related products
Check fuel pressure
To check the fuel pressure of your 3800 Series II engine, you will need a fuel pressure tester or gauge. This is a simple tool consisting of a gauge attached to a fuel hose with multiple fittings that can connect to the fuel system of most vehicles.
First, ensure you are working in a well-ventilated area, as some fuel fumes may escape. Then, turn off the engine and connect the tester to the fuel system. Once the fuel system is pressurised, the tester will display the pressure in psi on its gauge. For a Series II 3800 engine, the fuel pressure should be 48 to 55 psi with the key on and the engine off.
If you are experiencing issues with your engine, checking the fuel pressure can be a good starting point for diagnosis. Low fuel pressure may cause a slow start-up, low performance, misfires, and stalling. High fuel pressure may result in excessive fuel consumption, black smoke from unburned gas, an overheating catalytic converter, and rough idling.
If you are unsure what fuel pressure your engine requires, you can refer to a repair manual or consult a professional.
Testing Fuel Injector Flow: A Step-by-Step Guide
You may want to see also
Explore related products
Use OTC cleaner for on-the-rail cleaning
If your fuel injectors are clogged or spraying incorrectly, you can use an OTC cleaner for on-the-rail cleaning without removing the injectors. This is a pretty easy method and works.
The OTC 7649A Fuel Injector Cleaning Kit has everything you need to begin direct injector cleaning and decarbonizing. The kit includes a heavy-duty stainless steel container, a removable hose, an easy-to-open/close ball valve, a blowout fitting attachment, a spring lock coupling adapter, and a decarbonizing adapter. The hose is constructed to handle aggressive cleaners and ethanol fuels without cracking or swelling. The kit also includes common rail adapters for many domestic and import applications, as well as a blowout fitting to remove residual chemicals from the hose.
To use the OTC cleaner for on-the-rail cleaning, you will need to introduce a strong cleaning solvent directly into the fuel rail. The debris that is loosened or dissolved will then be combusted and removed through the vehicle's exhaust system. Make sure to use a safe and effective solvent that is compatible with your vehicle. Follow the instructions on the solvent and kit carefully for the best results.
It is important to note that fuel problems on the 3800 Series II engine are no different than those on any other engine. The injectors can get gummed up from burning gasoline that contains low levels of detergents. To prevent this issue, GM recommends using "top-tier" gasoline that contains higher levels of detergent to keep the injectors clean. This is especially important for engines used for short-trip driving, frequent stop/starts, or prolonged idling.
Cleaning Ford Ranger Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Diagnose cylinder misfire
If you are experiencing a cylinder misfire on your 3800 Series 2 engine, there are several diagnostic steps you can take to identify the root cause.
Firstly, check for any visible signs of damage or wear on the engine. This includes inspecting the wires and terminals for any corrosion or brittleness, which can be common issues on older vehicles. Ensure that the connections are secure and free from dirt and debris.
Next, you can use a diagnostic tool to help pinpoint the issue. A dealer or repair shop may have access to more advanced equipment, but you can also use a free OBD2 scan app on your PC, along with a $10 cable, to display individual cylinder misfire counts. This can provide valuable data to help identify the specific cylinder or cylinders that are misfiring.
If you have a good spark and compression but are still experiencing a cylinder misfire, the issue could be related to the fuel injectors. The 3800 engine uses high-impedance 12-ohm injectors, and you can check the resistance across the injector terminals to identify any potential problems. If an injector reads outside the specified range of 11.80 to 12.60 ohms, it may be causing the misfire.
In addition to checking the injectors, you should also inspect the fuel pressure. On a Series II 3800 engine, the fuel pressure should be 48 to 55 psi with the key on and the engine off. If the fuel pressure is outside this range, it could be contributing to the cylinder misfire.
Other potential causes of cylinder misfire include issues with the EGR valve, spark plugs, plug wires, crankshaft position sensor, or camshaft position sensor. It is recommended to refer to the factory manual or seek assistance from a qualified mechanic if you are unsure about any of these components.
Calibrating Fuel Injectors: 2007 Freightliner Edition
You may want to see also
Explore related products
Remove the fuel injector
To remove the fuel injector on a 3800 Series II engine, you must first disconnect the fuel rail.
Before beginning, ensure you have the necessary tools and safety equipment, including gloves and eye protection. Work in a well-ventilated area, as you will be handling fuel.
First, relieve the fuel system pressure, then remove the fuel pump relay and crank the engine for approximately 10 seconds to ensure that the pressure is relieved. Disconnect the negative battery cable, and relieve the pressure in the fuel rail by pressing the Schrader valve with a small screwdriver. Once the pressure is released, you can remove the fuel rail by loosening the bolts that secure it in place.
Now, you can access the fuel injectors. They are held in place by clips, which you can release using a small screwdriver. Be careful not to break the plastic housing that keeps the connection tight. Once the clips are released, you can carefully remove the fuel injectors.
If your fuel injectors are clogged, you can clean them using an OTC cleaner from a pressurized vessel (a cleaning kit). Alternatively, you can install new injectors if the old ones are damaged or worn out.
It is important to note that fuel injectors rarely need to be removed, and the most common cause for removal is clogging or incorrect spraying.
Cleaning Honda Fuel Injectors: DIY Home Guide
You may want to see also
Frequently asked questions
If you have a cylinder misfire, but a good spark and compression, your fuel injector is likely clogged or dead.
OTC cleaner can be used from a pressurized vessel (cleaning kit) to clean the injectors without removal.
GM recommends using “top-tier” gasoline that contains higher levels of detergent to keep the injectors clean.
