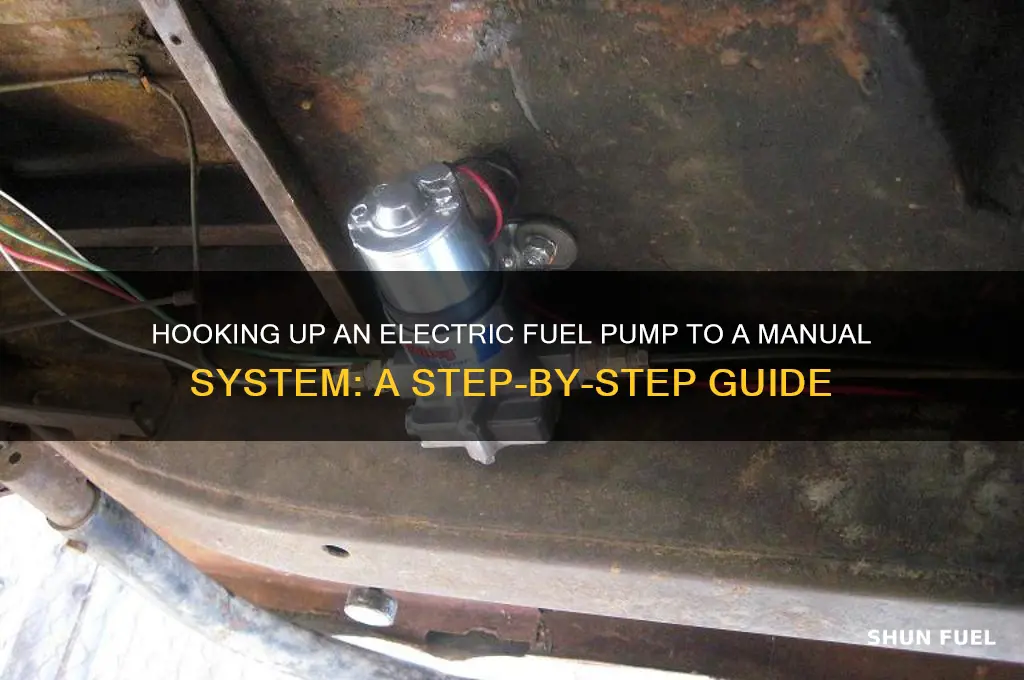

Hooking up an electric fuel pump to a manual fuel system requires careful planning and execution to ensure proper functionality and safety. The process involves integrating the electric pump into the existing manual setup, which typically includes disconnecting the mechanical fuel pump, installing the electric pump in-line with the fuel system, and wiring it to the vehicle’s electrical system. Key steps include selecting a compatible pump, mounting it securely, connecting fuel lines with appropriate fittings, and ensuring a reliable power source with a relay and fuse to protect the circuit. Additionally, a pressure regulator and filter may be necessary to maintain optimal fuel delivery. Proper grounding and testing are crucial to verify the system operates efficiently and safely. Always refer to the pump’s manual and vehicle specifications for precise instructions.
Explore related products
What You'll Learn
- Wiring Basics: Connect power, ground, and relay to the pump for proper electrical flow
- Fuel Line Installation: Route lines from tank to pump and engine securely
- Pressure Regulation: Install a fuel pressure regulator to maintain optimal system pressure
- Safety Measures: Add an inertia switch and fuse for safety and protection
- Testing & Troubleshooting: Verify connections, check for leaks, and ensure pump operation before driving
Wiring Basics: Connect power, ground, and relay to the pump for proper electrical flow
Connecting an electric fuel pump to a manual system requires precise wiring to ensure reliable and safe operation. The core components—power, ground, and relay—must be integrated correctly to maintain proper electrical flow. Start by identifying the pump’s power wire, typically a thick gauge (10-14 AWG), which should be connected directly to the battery’s positive terminal or a fused power source. This ensures the pump receives consistent voltage, usually 12V, essential for its operation. Never bypass the fuse, as it protects the circuit from overcurrent that could damage the pump or cause a fire.
Grounding is equally critical. Secure the pump’s ground wire to a clean, unpainted metal surface on the vehicle’s chassis. Poor grounding can lead to voltage drops, causing the pump to underperform or fail. Use a wire gauge similar to the power wire (10-14 AWG) and clean the grounding point with sandpaper or a wire brush to ensure a solid connection. A weak ground can mimic symptoms of a faulty pump, so double-check this step if issues arise.
The relay acts as a switch, allowing the pump to draw high current without overloading the ignition switch. Connect the relay’s power terminal (usually pin 30) to the battery’s positive terminal via a fused line. The ground terminal (pin 87) connects to the pump’s power wire. Trigger the relay by linking the control terminal (pin 85) to the fuel pump’s activation circuit, often through the oil pressure switch or ECU. Finally, ground the relay’s coil terminal (pin 86) to the chassis. This setup ensures the pump operates only when the engine is running, conserving power and preventing dry running.
A common mistake is neglecting the relay, which can lead to melted wires or a drained battery. Always use a relay rated for the pump’s current draw, typically 30-40 amps. Test the circuit with a multimeter to verify continuity and voltage at each connection point. If the pump fails to prime, check for blown fuses, loose connections, or a faulty relay before suspecting the pump itself.
In summary, wiring an electric fuel pump involves a systematic approach: secure power with a fused line, establish a solid ground, and integrate a relay to manage current flow. Each step is interdependent, and precision ensures longevity and safety. Treat this process as a checklist, verifying each connection before starting the engine. Proper wiring not only powers the pump but also safeguards your vehicle’s electrical system.
Step-by-Step Guide: Removing Fuel Pump from 2001 Harley Road King
You may want to see also
Explore related products
Fuel Line Installation: Route lines from tank to pump and engine securely
Routing fuel lines from the tank to the pump and engine is a critical step in ensuring a reliable and safe fuel system. The path you choose must balance accessibility for maintenance with protection from heat, debris, and potential damage. Begin by planning the route, avoiding areas near exhaust manifolds, sharp edges, or moving components. Use a flexible measuring tape to estimate the length needed, adding extra for bends and connections. Remember, a well-planned route minimizes the risk of leaks and maximizes the system’s longevity.
When selecting fuel lines, opt for high-quality materials like stainless steel braided hoses or nylon-reinforced rubber lines, which resist corrosion and withstand pressure. Ensure the inner diameter matches your fuel pump’s requirements—typically 3/8-inch for most applications. Secure the lines using clamps every 12–18 inches, tightening them just enough to prevent movement without crushing the hose. For added protection, wrap high-temperature insulation around sections near heat sources or use heat shields where necessary.
Installation begins at the fuel tank, where you’ll connect the pickup line to the pump. Use a wrench to tighten fittings hand-tight, then add an extra 1/4 turn to ensure a seal. Route the line along the chassis, using existing holes or brackets for support. At the engine bay, connect the pump output line to the fuel rail, ensuring all fittings are torqued to specifications. Double-check for kinks or sharp bends that could restrict flow, and test the system for leaks before starting the engine.
A common mistake is neglecting to account for engine movement, which can stress fuel lines over time. Incorporate flexible sections or loops near the engine to accommodate vibration and shifting. Additionally, always install a fuel filter along the line to protect the pump and injectors from debris. For carbureted setups, position the filter before the pump; for EFI systems, place it after. This small step significantly extends the life of your fuel system components.
Finally, pressure test the system before final assembly. Use a gauge to ensure the lines can handle the pump’s maximum output, typically 40–80 PSI for EFI systems. Inspect all connections for leaks, using soapy water to detect even minor seepage. Once confirmed secure, secure the lines with zip ties or clamps to prevent rubbing against other components. A meticulously installed fuel line not only ensures performance but also safeguards against potential hazards, making it a cornerstone of any manual fuel pump setup.
