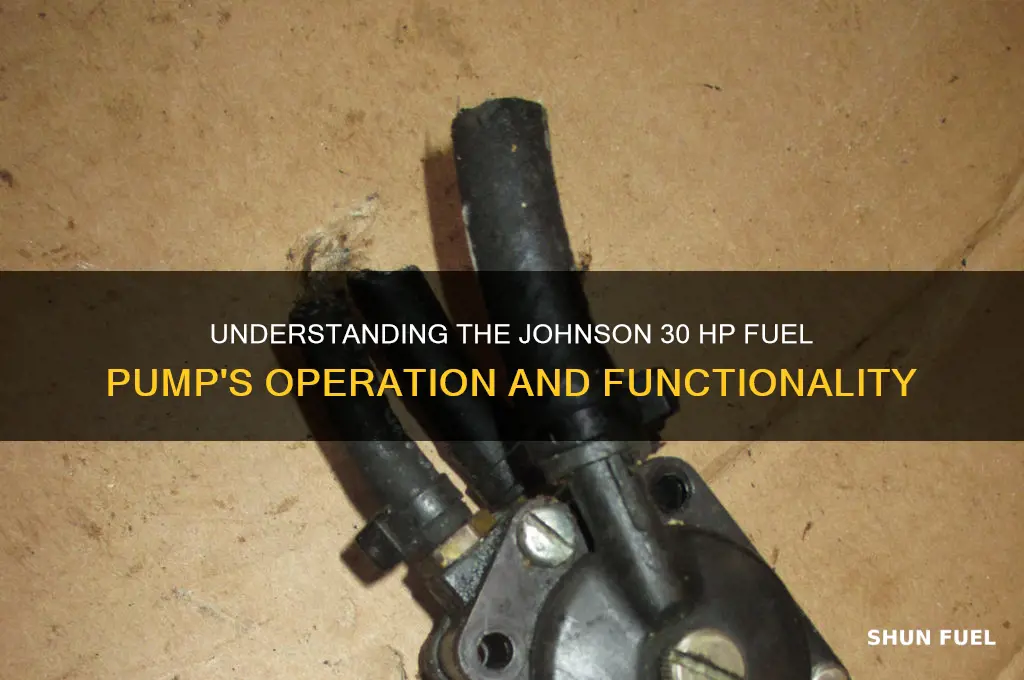

The Johnson 30 horsepower fuel pump is a crucial component in the fuel delivery system of outboard motors, ensuring a consistent and reliable supply of fuel to the engine. It operates by drawing fuel from the tank through a series of mechanical actions, typically driven by the engine's camshaft or a dedicated electric motor. The pump creates a vacuum that pulls fuel into its chamber, then pressurizes it before delivering it to the carburetor or fuel injection system. This process is essential for maintaining optimal engine performance, especially under varying load conditions. Understanding how the Johnson 30 horsepower fuel pump works involves examining its internal components, such as the diaphragm, valves, and check mechanisms, which work together to prevent fuel backflow and ensure efficient operation. Proper maintenance and troubleshooting of this pump are vital to avoid issues like fuel starvation or engine misfires, making it a key area of focus for outboard motor enthusiasts and mechanics.
| Characteristics | Values |
|---|---|
| Type | Mechanical, diaphragm-type fuel pump |
| Operation | Driven by engine camshaft, utilizes a diaphragm to create suction and pressure |
| Fuel Flow | Delivers fuel from the tank to the carburetor at a consistent pressure |
| Pressure Regulation | Maintains optimal fuel pressure for efficient engine performance |
| Compatibility | Specifically designed for Johnson 30 HP outboard engines |
| Components | Diaphragm, inlet and outlet valves, pump housing, cam-driven linkage |
| Maintenance | Requires periodic inspection and replacement of diaphragm and valves |
| Failure Symptoms | Hard starting, rough idling, or engine stalling due to insufficient fuel delivery |
| Replacement Interval | Typically replaced every 3-5 years or as needed based on usage and condition |
| Fuel Type | Compatible with gasoline, may require adjustments for ethanol blends |
| Mounting | Integrated into the engine block or mounted externally depending on model |
| Priming | May require manual priming to fill the fuel lines and pump initially |
| Noise Level | Operates quietly as part of the engine's mechanical system |
| Efficiency | Optimized for the fuel demands of a 30 HP outboard engine |
| Availability | Genuine Johnson/Evinrude parts or compatible aftermarket replacements |
Explore related products
What You'll Learn
- Fuel Pump Components: Overview of the pump's diaphragm, check valves, and housing structure
- Suction Process: How the diaphragm creates vacuum to draw fuel into the pump
- Pressure Buildup: Mechanism for compressing fuel and forcing it into the carburetor
- Check Valve Function: Role of inlet and outlet valves in maintaining one-way fuel flow
- Pump Operation Cycle: Sequence of diaphragm movement during engine operation
Fuel Pump Components: Overview of the pump's diaphragm, check valves, and housing structure
The Johnson 30 horsepower fuel pump operates as a mechanical diaphragm pump, a design favored for its reliability and simplicity in small outboard engines. At its core, the diaphragm acts as the primary mover, flexing up and down to create a vacuum and pressure cycle that draws fuel from the tank and pushes it toward the carburetor. Made from durable, fuel-resistant materials like nitrile rubber or neoprene, the diaphragm withstands constant flexing and exposure to gasoline without degrading. Its rhythmic motion is driven by the engine’s camshaft, ensuring fuel delivery synchronizes with engine demand. Without this component, the pump would fail to generate the necessary suction and pressure differential, rendering the system inoperable.
Flanking the diaphragm are check valves, critical one-way gates that maintain fuel flow direction and prevent backflow. Typically made of stainless steel or brass with a rubber or plastic sealing disc, these valves open and close with precision as the diaphragm moves. The inlet valve allows fuel into the pump chamber during the suction stroke, while the outlet valve directs fuel toward the carburetor during the pressure stroke. Proper valve function is essential; a faulty or stuck valve can cause fuel starvation or airlock, leading to engine sputtering or failure. Regular inspection and cleaning of these valves, especially in ethanol-blended fuels that accelerate residue buildup, can extend pump life and ensure consistent performance.
Encasing these components is the housing structure, a robust assembly designed to withstand vibration, corrosion, and the harsh marine environment. Typically constructed from aluminum or corrosion-resistant composites, the housing features precision-machined chambers and ports to ensure airtight operation and efficient fuel flow. Its design includes mounting points for secure attachment to the engine block and access points for maintenance, such as diaphragm replacement or valve cleaning. Over time, housing seals may degrade, leading to air leaks that reduce pump efficiency. Applying a marine-grade sealant during reassembly and avoiding overtightening bolts (which can warp the housing) are practical tips to maintain integrity.
Together, these components form a symbiotic system: the diaphragm generates motion, the check valves control flow, and the housing provides structure and protection. Understanding their interplay allows for targeted troubleshooting—for instance, a soft diaphragm might cause weak fuel delivery, while a cracked housing could introduce air into the system. By focusing on these specifics, operators can diagnose issues more accurately and perform maintenance with confidence, ensuring the Johnson 30 horsepower fuel pump operates reliably season after season.
Reprogramming Your Fuel Pump Control Module: A Step-by-Step Guide
You may want to see also
Explore related products
Suction Process: How the diaphragm creates vacuum to draw fuel into the pump
The diaphragm in a Johnson 30 horsepower fuel pump is the unsung hero of the suction process, a critical phase in fuel delivery. This flexible membrane, typically made of durable rubber or synthetic material, is housed within the pump body and connected to a mechanical linkage. When the engine’s camshaft or governor activates the pump, the diaphragm begins its rhythmic motion, alternating between compression and expansion. This movement is the cornerstone of vacuum creation, which is essential for drawing fuel from the tank into the pump.
Consider the mechanics: as the diaphragm expands, it increases the volume within the pump chamber, reducing air pressure below atmospheric levels. This pressure differential—a vacuum—creates a force that pulls fuel through the inlet valve. The process is akin to sipping liquid through a straw, where the suction force overcomes gravity and resistance in the fuel lines. The diaphragm’s design ensures a consistent and reliable vacuum, even in low-pressure environments or when fuel levels in the tank are low.
However, the diaphragm’s effectiveness isn’t just about motion; it’s also about precision. The material must be resilient enough to withstand thousands of cycles without losing flexibility or developing leaks. A worn or cracked diaphragm can compromise the vacuum, leading to air infiltration and reduced fuel flow. Regular inspection and replacement, especially after 500–1000 engine hours, are practical steps to maintain optimal performance. For DIY enthusiasts, replacing the diaphragm is a straightforward task, requiring only basic tools and a compatible replacement kit.
Comparatively, the diaphragm-based system in the Johnson 30 horsepower pump offers advantages over electric or rotary pumps. Its mechanical simplicity reduces the risk of electrical failures, making it ideal for marine environments where moisture and corrosion are constant threats. Additionally, the diaphragm’s ability to self-prime ensures the pump can draw fuel even after extended periods of inactivity, a feature particularly useful for seasonal boat owners. Understanding this suction process highlights why the diaphragm is not just a component but the heart of the pump’s functionality.
Repairing a Kohler 22 HP Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
Pressure Buildup: Mechanism for compressing fuel and forcing it into the carburetor
The Johnson 30 horsepower fuel pump operates on a diaphragm-based mechanism, a design that ensures reliable fuel delivery to the carburetor. At the heart of this system is the pressure buildup process, which compresses fuel and forces it into the carburetor. This mechanism is critical for maintaining consistent engine performance, especially under varying load conditions. Understanding how this process works can help troubleshoot issues and optimize fuel efficiency.
Mechanism Overview: The pressure buildup begins when the diaphragm inside the fuel pump is actuated by the engine’s camshaft or a mechanical linkage. As the diaphragm moves downward, it creates a vacuum in the pump chamber, drawing fuel from the tank through the inlet valve. Once the diaphragm reverses its motion, moving upward, it compresses the fuel, increasing its pressure. The outlet valve then opens, allowing the pressurized fuel to flow into the carburetor. This cyclic action ensures a steady supply of fuel, even when the engine demands more under acceleration.
Key Components and Their Roles: The diaphragm, inlet valve, outlet valve, and pump chamber are the primary components involved in pressure buildup. The diaphragm’s flexibility and durability are essential, as it must withstand thousands of cycles without failing. The valves are equally critical; the inlet valve must seal tightly to maintain vacuum, while the outlet valve must open precisely to release fuel at the correct pressure. For optimal performance, ensure these components are free from debris and wear. Regular inspection and replacement of worn parts, such as diaphragms and valves, can prevent fuel delivery issues.
Practical Tips for Maintenance: To maintain efficient pressure buildup, clean the fuel tank and lines annually to prevent clogs. Use a fuel filter with a 10-micron rating to capture contaminants before they reach the pump. When replacing the diaphragm, apply a thin coat of silicone grease to the sealing surfaces to ensure a proper fit. Always use manufacturer-recommended parts to avoid compatibility issues. For troubleshooting, check for air leaks in the fuel lines, as even small leaks can disrupt pressure buildup. If the engine hesitates or stalls, inspect the pump for diaphragm tears or valve malfunctions.
Comparative Analysis: Unlike electric fuel pumps, the diaphragm-based system in the Johnson 30 horsepower pump relies on mechanical energy from the engine, making it less prone to electrical failures. However, it requires precise timing and robust components to function effectively. Compared to inline pumps, the diaphragm design is more compact and integrates seamlessly with the engine’s mechanics. While it may not deliver the high pressures of modern fuel injection systems, it is well-suited for carbureted engines, providing reliable performance in marine environments. Understanding these differences can help users appreciate the pump’s design and limitations.
Fuel Pump Count: 04 XJ8's System Explained in Detail
You may want to see also
Explore related products
$22.08
Check Valve Function: Role of inlet and outlet valves in maintaining one-way fuel flow
The check valve system in a Johnson 30 horsepower fuel pump is a critical component ensuring efficient and safe fuel delivery. This mechanism relies on the precise operation of inlet and outlet valves to maintain a unidirectional fuel flow, preventing backflow and ensuring consistent engine performance. Understanding their roles provides insight into the pump's reliability and longevity.
Inlet valves act as the gatekeepers, allowing fuel to enter the pump from the tank. When the pump creates a vacuum during its suction stroke, these valves open, permitting fuel to flow into the pump chamber. This process is crucial for maintaining a steady supply of fuel to the engine. The design of the inlet valve ensures it opens only when the pressure differential is favorable, preventing air or fuel from entering the pump in the wrong direction.
Conversely, outlet valves control the exit of fuel from the pump to the carburetor or fuel injection system. These valves open during the pump's compression stroke, when pressure inside the pump exceeds that in the fuel line. This ensures fuel is delivered at the required pressure and volume, optimizing engine performance. The outlet valve’s one-way function is vital to prevent fuel from returning to the pump, which could cause cavitation or airlock issues.
The interplay between inlet and outlet valves is a delicate balance of timing and pressure. For instance, if the inlet valve fails to close properly, air can enter the system, leading to poor engine performance or stalling. Similarly, a malfunctioning outlet valve can cause fuel to backflow, potentially damaging the pump or creating an unsafe fuel-air mixture. Regular inspection and maintenance of these valves are essential to avoid such issues.
Practical tips for maintaining check valve function include using clean, debris-free fuel to prevent valve obstruction and periodically inspecting the valves for wear or damage. If the engine exhibits symptoms like hard starting or erratic idling, check the valves for proper operation. Replacing worn valves promptly can save costly repairs and ensure the Johnson 30 horsepower fuel pump operates at peak efficiency. By understanding and maintaining these valves, users can prolong the life of their fuel pump and ensure reliable engine performance.
Accessing the Fuel Pump on a 1997 Ford Escort: A Step-by-Step Guide
You may want to see also
Explore related products
Pump Operation Cycle: Sequence of diaphragm movement during engine operation
The Johnson 30 horsepower fuel pump operates through a precise sequence of diaphragm movements, ensuring consistent fuel delivery to the engine. This mechanical pump relies on the reciprocating action of a flexible diaphragm, driven by the engine’s camshaft or a dedicated eccentric lobe. Understanding this cycle is crucial for diagnosing issues and maintaining optimal performance.
Phase 1: Intake Stroke
As the engine’s camshaft rotates, the eccentric lobe lowers, creating a vacuum within the pump chamber. This vacuum causes the diaphragm to flex downward, drawing fuel from the tank through the inlet valve. The inlet valve opens under low pressure, allowing fuel to fill the chamber. This phase is critical for ensuring a steady supply of fuel, particularly during high-demand conditions such as acceleration.
Phase 2: Compression Stroke
When the eccentric lobe rises, the diaphragm is pushed upward, compressing the fuel in the chamber. Simultaneously, the inlet valve closes to prevent fuel from returning to the tank. The pressure builds until it exceeds the resistance of the outlet valve, which then opens. This phase demonstrates the pump’s ability to generate sufficient pressure to overcome the engine’s fuel system requirements, even at varying RPMs.
Phase 3: Discharge Stroke
With the outlet valve open, the compressed fuel is forced into the carburetor or fuel injection system. The diaphragm continues its upward movement until the chamber is nearly empty. This phase ensures a consistent fuel flow, maintaining the air-fuel mixture necessary for combustion. Proper calibration of the diaphragm’s movement is essential to avoid over- or under-fueling, which can lead to engine inefficiency or stalling.
Phase 4: Return Stroke
As the eccentric lobe begins its descent again, the diaphragm returns to its resting position, and the outlet valve closes. This prepares the pump for the next intake stroke, completing the cycle. The return stroke also allows the diaphragm to reset, ensuring longevity and reducing wear. Regular inspection of the diaphragm for cracks or stiffness is recommended, as these issues can disrupt the cycle and compromise fuel delivery.
By mastering this sequence, operators can troubleshoot common issues such as fuel starvation or inconsistent engine performance. For instance, a stiff diaphragm may fail to flex properly during the intake stroke, leading to insufficient fuel draw. Conversely, a leaking outlet valve can cause pressure loss during the compression stroke, resulting in weak engine response. Understanding the pump’s operation cycle empowers users to maintain their Johnson 30 horsepower engine effectively, ensuring reliability and performance in marine or small engine applications.
Does Mercruiser Fuel Pump Include a One-Way Valve?
You may want to see also
Frequently asked questions
The Johnson 30 horsepower fuel pump operates mechanically, driven by the engine's camshaft or crankshaft. It uses a diaphragm or piston mechanism to create suction, drawing fuel from the tank and delivering it to the carburetor at the required pressure.
The Johnson 30 horsepower outboard motor typically uses a mechanical fuel pump, often integrated into the engine block or mounted externally. It is designed to work with the engine's rotation to ensure consistent fuel delivery.
In many cases, the fuel pump in a Johnson 30 horsepower engine can be repaired by replacing worn diaphragms, valves, or seals. However, if the pump is severely damaged or corroded, replacement may be necessary.
Common signs of a failing fuel pump include difficulty starting the engine, sputtering or stalling during operation, reduced power, and fuel leaks. Regular inspection and maintenance can help prevent these issues.
