Hooking up a 30 amp fuel pump relay is a crucial step in ensuring your vehicle’s fuel system operates efficiently and safely. A relay acts as a switch, allowing the fuel pump to draw power directly from the battery while protecting the vehicle’s wiring and ECU from high current loads. To begin, gather the necessary tools and components, including the relay, wiring harness, fuse, and connectors. Start by locating the fuel pump’s power wire and disconnecting it from the pump. Connect this wire to the relay’s output terminal (usually pin 87 or 87A). Next, run a fused power wire from the battery to the relay’s power input terminal (pin 30), ensuring the fuse is rated for 30 amps. Connect the relay’s ground wire (pin 85) to a clean chassis ground, and the control wire (pin 86) to the fuel pump’s trigger signal from the ECU. Double-check all connections for tightness and accuracy, then test the system to ensure the fuel pump activates properly. This setup not only enhances reliability but also prevents electrical issues caused by high-current draw directly through the ECU.
Explore related products
What You'll Learn
- Identify Relay Components: Locate terminals, coil pins, and power connections on the 30 amp fuel pump relay
- Wire Connections: Connect battery, ground, and fuel pump wires to the relay terminals securely
- Trigger Setup: Link ECU or ignition switch to the relay coil for activation control
- Fuse Protection: Install an appropriate fuse between the battery and relay for safety
- Test Operation: Verify relay function by checking fuel pump activation and current flow
Identify Relay Components: Locate terminals, coil pins, and power connections on the 30 amp fuel pump relay

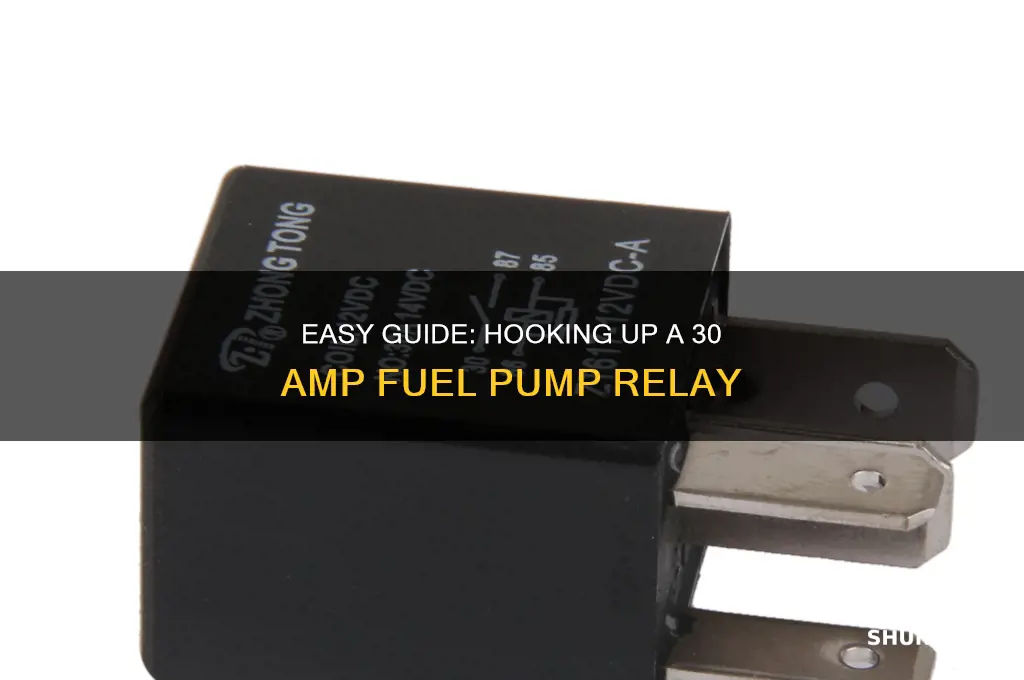

Understanding the anatomy of a 30 amp fuel pump relay is crucial before attempting any installation. These relays typically feature a robust design to handle high current demands, with clearly labeled terminals and pins. The primary components include the coil pins, which activate the relay when energized, and the power terminals, which manage the high-current flow to the fuel pump. Identifying these elements correctly ensures a safe and efficient setup, preventing potential electrical issues or damage to your vehicle’s system.
Begin by examining the relay’s physical layout. Most 30 amp fuel pump relays have a rectangular or square body with numbered or labeled terminals. The coil pins are usually smaller and located on one side, often marked as “85” and “86,” corresponding to the ground and power connections for the coil. The high-current terminals, typically labeled “30” (battery power) and “87” (load to the fuel pump), are larger and designed to handle the 30 amp load. Some relays may include a “87a” terminal, which is optional and not always used in fuel pump applications.
A practical tip for identification is to consult the relay’s datasheet or the vehicle’s wiring diagram. These resources provide precise terminal assignments and voltage requirements, ensuring compatibility with your fuel pump system. For instance, the coil pins often operate on 12V, while the power terminals must match the fuel pump’s current draw, typically ranging from 15 to 30 amps. Double-checking these specifications avoids common mistakes like reversing polarity or overloading the relay.
Once you’ve located the terminals and pins, inspect their condition. Clean, corrosion-free connections are essential for reliable performance. Use a multimeter to test continuity between the coil pins and ensure the high-current terminals are securely attached to their respective wires. If the relay is new, verify that all components are intact and properly aligned. For older relays, consider replacing them if signs of wear or damage are evident, as compromised components can lead to intermittent fuel pump operation or electrical failures.
In summary, identifying the relay components is a foundational step in hooking up a 30 amp fuel pump relay. By accurately locating the coil pins, power terminals, and understanding their functions, you lay the groundwork for a successful installation. This attention to detail not only ensures optimal performance but also safeguards your vehicle’s electrical system from potential hazards. Always refer to manufacturer guidelines and test connections thoroughly before finalizing the setup.
Step-by-Step Guide: Safely Removing a Fuel Pump Relay Fuse
You may want to see also
Explore related products
Wire Connections: Connect battery, ground, and fuel pump wires to the relay terminals securely
Securing wire connections to a 30-amp fuel pump relay is a critical step that ensures reliable operation and prevents electrical failures. Begin by identifying the relay terminals: typically, terminal 30 connects to the battery, terminal 87 to the fuel pump, and terminal 85 to the ground. Terminal 86 is usually the trigger wire, which connects to the ignition or ECU. Use a digital multimeter to verify polarity and continuity before making any connections, as miswiring can damage components or create safety hazards. Always work with the ignition off and the battery disconnected to avoid accidental activation.
When connecting the battery wire to terminal 30, use a 10-gauge or thicker wire to handle the 30-amp load efficiently. Strip ¼ inch of insulation from the wire end, insert it into the terminal, and secure it with a crimp connector or solder for a robust connection. Insulate the joint with heat shrink tubing to protect against moisture and vibration. For the ground wire at terminal 85, ensure the connection point is clean and free of rust or paint to maintain low resistance. A poor ground can cause voltage drop, leading to erratic fuel pump operation or overheating of the relay.
The fuel pump wire to terminal 87 requires similar attention to detail. Use a wire gauge appropriate for the pump’s current draw, typically 12-14 gauge, and secure it firmly. If the relay has a diode or capacitor, ensure it’s correctly oriented to protect against voltage spikes when the pump shuts off. Double-check all connections with a tug test to confirm they won’t loosen under vibration. Loose connections are a common cause of intermittent fuel pump issues, which can be difficult to diagnose later.
A comparative analysis of connection methods reveals that soldering provides the most reliable joint but requires skill and time. Crimp connectors are quicker and more forgiving, making them ideal for DIY installations. However, they can degrade over time if not properly insulated. For high-vibration environments, such as racing applications, consider using weatherproof connectors and silicone-based dielectric grease to enhance durability. Regardless of the method, consistency in wire stripping, crimping, and insulation is key to long-term reliability.
In conclusion, securing wire connections to a 30-amp fuel pump relay demands precision, attention to detail, and adherence to best practices. By using the correct wire gauges, verifying polarity, and employing robust connection methods, you can ensure a safe and efficient fuel delivery system. Treat each terminal connection as a critical component of the overall system, and you’ll minimize the risk of electrical failures that could leave you stranded or cause damage. Always test the setup before driving to confirm proper functionality.
Why Your CRX Fuel Pump Makes Noise at Startup: Explained
You may want to see also
Explore related products
Trigger Setup: Link ECU or ignition switch to the relay coil for activation control
The relay coil is the brain’s trigger finger in a 30-amp fuel pump setup—it decides when the pump activates. To control this, you must link either the ECU (Engine Control Unit) or the ignition switch to the relay coil. The ECU offers precision, activating the pump based on engine parameters like RPM or load, while the ignition switch provides simplicity, turning the pump on when the key is in the "ON" position. Choose your trigger based on your system’s complexity and your goals: performance tuning or basic functionality.
Steps for ECU-Controlled Activation:
- Identify the ECU Output Wire: Locate the ECU’s fuel pump control wire, typically labeled "FP" or "Fuel Pump." Consult your ECU’s manual for pinout details.
- Connect to Relay Coil: Attach this wire to the relay coil’s input terminal (usually pin 85 or 86). Use a 16–18 gauge wire and ensure a secure connection.
- Ground the Coil: Connect the other coil terminal to a chassis ground. This completes the circuit, allowing the ECU to energize the coil and activate the pump.
- Test for Variability: Verify the ECU adjusts pump activation based on engine conditions. Use a multimeter to confirm voltage at the coil during operation.
Steps for Ignition Switch Activation:
- Tap into Ignition Wire: Locate the ignition switch’s "ACC" (accessory) or "ON" wire, typically 12V when the key is turned. Use a wiring diagram for your vehicle to identify it.
- Connect to Relay Coil: Run this wire to one of the relay coil terminals. Ensure it’s fused with a 5–10 amp inline fuse to protect against shorts.
- Ground the Coil: Connect the second coil terminal to ground. This ensures the pump activates whenever the ignition is on.
- Add a Fail-Safe: Install a manual override switch in parallel with the ignition wire. This allows pump activation even if the ignition fails.
Cautions and Best Practices:
- Avoid Overloading: Never connect the relay coil directly to the battery without a fuse. This can cause a fire hazard.
- Check Polarity: Ensure the ECU or ignition output is 12V positive. Reverse polarity can damage the relay.
- Use Relays for High-Draw Pumps: A 30-amp relay is essential for high-current pumps. Smaller relays will overheat and fail.
Triggering a 30-amp fuel pump relay via the ECU or ignition switch is straightforward but requires attention to detail. The ECU provides dynamic control for performance builds, while the ignition switch offers simplicity for basic setups. Always prioritize safety with proper fusing and grounding, and test your system thoroughly before driving. This setup ensures reliable fuel delivery, whether you’re tuning for the track or upgrading a daily driver.
Does the 2005 Ranger Have a Fuel Pump Driver Module?
You may want to see also
Explore related products
Fuse Protection: Install an appropriate fuse between the battery and relay for safety
Fuses are the unsung heroes of electrical systems, silently guarding against catastrophic failures. When hooking up a 30-amp fuel pump relay, the fuse acts as the first line of defense, preventing excessive current from reaching the relay and causing damage. Without it, a short circuit or overload could melt wires, ignite fires, or destroy components. A properly rated fuse ensures that the circuit breaks safely before harm occurs, making it a non-negotiable step in any installation.
Selecting the correct fuse is both a science and an art. For a 30-amp fuel pump relay, a 30-amp fuse might seem logical, but it’s often recommended to use a slightly lower rating, such as a 25-amp fuse. This ensures the fuse blows before the relay or wiring is pushed to its limit. Always refer to the manufacturer’s specifications for the relay and fuel pump to determine the ideal fuse size. Using a higher-rated fuse defeats the purpose of protection, while a lower-rated one may cause unnecessary interruptions.
Installation location matters as much as the fuse rating. Place the fuse as close to the battery as possible, ensuring it’s the first component in the circuit. This minimizes the length of unprotected wiring, reducing the risk of damage in case of a fault. Use a fuse holder designed for high-current applications, and secure it firmly to prevent vibration-related issues. A loose fuse or holder can lead to intermittent connections, which are just as dangerous as a short circuit.
Consider the fuse type for added safety. Blade fuses are common and easy to install, but high-current circuits benefit from ANL (Mini ANL) or bolt-in fuses, which offer better heat dissipation and durability. For extreme conditions, such as off-road or racing applications, a circuit breaker can be a reusable alternative, though it may not provide the same level of instantaneous protection as a fuse. Always prioritize reliability over convenience in critical systems like fuel delivery.
Finally, test the circuit after installation to ensure the fuse functions as intended. Simulate a fault by temporarily creating a short circuit (with caution) to verify the fuse blows promptly. Regularly inspect the fuse and wiring for signs of wear or corrosion, especially in harsh environments. A blown fuse is a small inconvenience compared to the potential consequences of ignoring this critical safety measure. In the world of electrical systems, the fuse is your circuit’s last stand—make it count.
How Petrol Pumps Accurately Measure Fuel: A Detailed Explanation
You may want to see also
Explore related products
Test Operation: Verify relay function by checking fuel pump activation and current flow
Testing the operation of a 30-amp fuel pump relay is a critical step in ensuring your vehicle’s fuel system functions reliably. Begin by activating the ignition to the "on" position without starting the engine. Listen carefully for the fuel pump’s priming cycle, a brief humming sound that typically lasts 2-3 seconds. This initial activation confirms the relay is engaging the pump as designed. If no sound is heard, proceed to the next diagnostic step to isolate the issue.
To verify current flow, use a multimeter set to the amperage (A) range and connect it in series with the fuel pump circuit. Start the engine and observe the current draw, which should align with the pump’s specifications (typically 10-20 amps for a 30-amp relay). A reading outside this range indicates a potential relay malfunction or wiring issue. Ensure the multimeter is rated for the expected current to avoid damage.
A comparative analysis of the relay’s performance under load can provide deeper insights. Test the fuel pump’s activation at varying fuel tank levels, as lower levels increase pump strain and current draw. If the relay fails to maintain consistent activation or current flow, it may be overheating or failing under load. This test is particularly useful for diagnosing intermittent issues that occur during extended drives.
For a persuasive argument in favor of thorough testing, consider the safety and performance implications. A faulty relay can lead to fuel starvation, engine stalling, or even fire hazards. By systematically checking activation and current flow, you not only ensure the relay’s functionality but also extend the lifespan of the fuel pump and related components. Invest time in this test to avoid costly repairs and dangerous failures down the road.
Finally, a descriptive walkthrough of troubleshooting can aid in practical application. If the relay fails the initial activation test, inspect the wiring harness for loose connections or corrosion. Use a test light to confirm power is reaching the relay’s input terminal (pin 85) and ground (pin 86). If power is present but the pump doesn’t activate, replace the relay. Always disconnect the battery before handling electrical components to prevent short circuits. This methodical approach ensures a comprehensive diagnosis and resolution.
Mobile Fuel Pump Gas Costs: Understanding Pricing and Convenience
You may want to see also
Frequently asked questions
A 30 amp fuel pump relay is an electrical switch that controls the power supply to a fuel pump. It is needed to protect the fuel pump circuit from overloading and to ensure the pump operates efficiently without drawing excessive current directly from the vehicle’s ECU or fuse box.
Connect the battery’s positive terminal to the relay’s 87 pin, the fuel pump to the 87A pin, and the 30 pin to a switched 12V power source. Ground the relay’s 85 pin and connect the 86 pin to the fuel pump trigger wire from the ECU or ignition switch.
Use 10-12 AWG wire for the power and ground connections to handle the 30 amp current safely. Ensure all connections are properly insulated and fused for protection.
No, a 30 amp relay is rated for 30 amps maximum. Using it for a higher amperage pump can cause overheating, failure, or fire. Always match the relay rating to the pump’s current draw.
Apply power to the 85 and 86 pins to activate the relay. Use a multimeter to check continuity between 30 and 87 pins when activated. If there’s no continuity, the relay is faulty and needs replacement.
