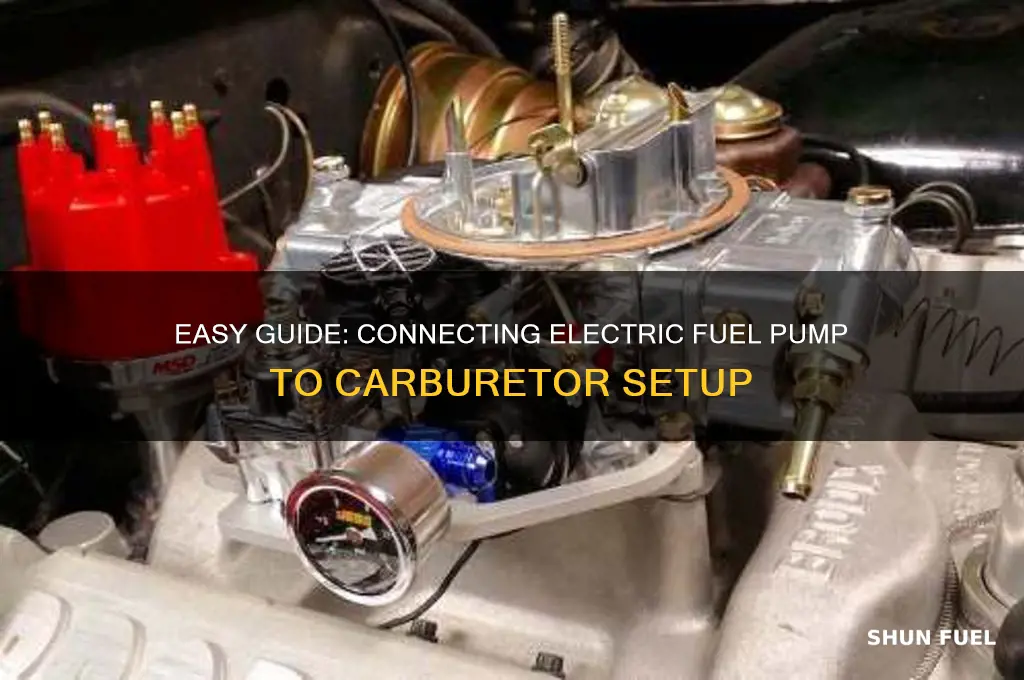

Hooking up an electric fuel pump to a carburetor is a crucial step in ensuring a reliable and efficient fuel delivery system for your vehicle. This process involves connecting the pump to the fuel tank, running a fuel line to the carburetor, and ensuring proper grounding and power supply. It’s essential to choose a fuel pump compatible with your carburetor and engine setup, as well as to install an inline fuel filter to prevent contaminants from reaching the carburetor. Proper installation includes securing the pump, using appropriate fittings to avoid leaks, and setting the correct fuel pressure for optimal performance. Following a step-by-step guide and adhering to safety precautions will help you achieve a smooth and safe installation.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Electric, typically 12V |
| Fuel Pump Flow Rate | 30-100 GPH (Gallons Per Hour), depending on engine size and carburetor requirements |
| Fuel Pump Pressure | 4-7 PSI (Pounds per Square Inch), regulated by a fuel pressure regulator |
| Fuel Line Size | 3/8" or 5/16" (inside diameter), depending on pump and carburetor fittings |
| Fuel Filter | Inline fuel filter recommended between pump and carburetor |
| Wiring | 12-gauge wire, fused with a 15-20 amp inline fuse |
| Relay | Optional, but recommended for high-current pumps to protect the switch and wiring |
| Switch | Ignition-triggered or manual switch to control pump operation |
| Ground Connection | Securely grounded to the vehicle chassis |
| Fuel Pump Mounting | Mounted below the fuel tank to prevent dry running and ensure consistent fuel supply |
| Carburetor Inlet | Connected to the carburetor's fuel inlet using appropriate fittings and hoses |
| Return Line | Optional, for fuel injection systems or to prevent fuel boiling in the carburetor |
| Safety Precautions | Ensure all connections are tight, use proper flare fittings, and avoid kinking fuel lines |
| Testing | Test the system for leaks and proper fuel delivery before starting the engine |
| Compatibility | Ensure the fuel pump is compatible with the carburetor's fuel requirements (e.g., ethanol-resistant materials) |
Explore related products
What You'll Learn
Choose Correct Fuel Pump
Selecting the right electric fuel pump is crucial for ensuring your carburetor receives the correct fuel volume and pressure. Start by determining your engine’s fuel demand, which depends on factors like horsepower, fuel type, and operating conditions. For example, a small-block V8 carbureted engine typically requires a pump delivering 30–40 gallons per hour (GPH) at 4–6 psi. High-performance engines may need pumps rated at 100+ GPH. Always match the pump’s specifications to your engine’s needs to avoid fuel starvation or excessive pressure, which can damage the carburetor’s float system.
Consider the pump’s design and mounting options to ensure compatibility with your vehicle’s layout. In-tank pumps are common but require a fuel tank designed to accommodate them. External pumps, such as inline models, offer flexibility in mounting but must be installed below the fuel tank to prevent cavitation. For carbureted setups, external pumps are often preferred due to their ease of installation and accessibility for maintenance. Ensure the pump’s inlet and outlet ports align with your fuel lines and carburetor’s requirements to avoid leaks or flow restrictions.
Noise and durability are practical factors that differentiate fuel pumps. High-quality pumps with quieter operation use dampening technology to minimize vibration and sound, which is especially important in classic or show cars. Look for pumps with robust construction, such as anodized aluminum bodies or stainless steel internals, to withstand ethanol-blended fuels and harsh conditions. Cheaper pumps may save money upfront but often fail prematurely, leading to costly repairs and downtime.
Finally, integrate safety features to protect your investment. A pre-pump filter prevents debris from entering the pump, while a post-pump pressure regulator ensures consistent fuel delivery to the carburetor. Some pumps include built-in check valves to maintain pressure in the fuel lines when the engine is off, reducing vapor lock risks. Always install a fuel pump relay to protect your vehicle’s wiring and ensure the pump receives adequate power directly from the battery, bypassing the ECU or ignition switch. These precautions not only enhance performance but also safeguard your engine from fuel-related failures.
Does the 2003 Tahoe Fuel Pump Have a Fuse?
You may want to see also
Explore related products
Install Fuel Lines Properly
Fuel line installation is a critical step in connecting an electric fuel pump to a carburetor, as it ensures a consistent and safe fuel supply. The process begins with selecting the correct fuel line material, typically stainless steel or high-pressure rubber hose, to withstand the demands of modern fuel systems. Stainless steel braided lines offer durability and resistance to corrosion, while rubber hoses provide flexibility for easier routing. Ensure the inner diameter matches the pump and carburetor fittings, commonly 3/8-inch for most applications, to maintain optimal flow without restriction.
Routing the fuel lines requires careful planning to avoid sharp bends, heat sources, and moving components. Start by measuring the distance between the fuel pump and carburetor, adding extra length for bends and connections. Secure the lines using clamps or zip ties every 12–18 inches to prevent vibration-induced fatigue. Avoid running lines near exhaust manifolds or headers, as prolonged heat exposure can degrade the material. If crossing over sharp edges, use protective sleeves or conduit to prevent abrasion.
Connecting the fuel lines involves proper fittings and sealing techniques. Use AN (Army-Navy) fittings for a secure, leak-free connection, ensuring they match the thread size of the pump and carburetor. Apply a thin coat of Teflon tape or thread sealant to the fittings, but avoid over-tightening to prevent damage. For rubber hoses, use hose clamps with a minimum torque of 20 in-lbs to secure the connection without crushing the material. Test all connections with a low-pressure air test (3–5 PSI) before installing to identify leaks.
A common mistake is neglecting the return line, essential for carbureted systems to regulate fuel pressure. Route the return line from the carburetor back to the fuel tank, ensuring it is the same size as the supply line. Use a check valve or anti-siphon valve in the return line to prevent fuel from draining back into the tank when the engine is off. Properly installing both supply and return lines ensures consistent fuel delivery and prevents vapor lock, especially in high-performance or hot-weather conditions.
Finally, inspect the fuel lines periodically for signs of wear, leaks, or damage. Replace any cracked, brittle, or leaking lines immediately to avoid fuel system failure. Keep a small repair kit with spare fittings, clamps, and hose segments in your vehicle for emergencies. By following these steps, you’ll ensure a reliable fuel system that supports both daily driving and high-performance applications, maximizing the efficiency of your electric fuel pump and carburetor setup.
Replacing a Fuel Pump Relay: Timeframe and Essential Steps Explained
You may want to see also
Explore related products
$62.69 $65.99
Connect Power Wiring Safely
Electric fuel pumps require a dedicated power source, and connecting the wiring safely is critical to prevent shorts, fires, or pump failure. Start by selecting a fuse rated for the pump’s amperage draw, typically 10–20 amps for most carbureted setups. Install this fuse as close to the power source (battery or alternator) as possible to protect the wiring harness. Use 12-gauge stranded copper wire for durability and flexibility, ensuring it’s rated for automotive use. Always connect the pump’s power wire to a switched 12-volt source, such as the ignition switch, to avoid draining the battery when the engine is off. Ground the pump directly to the chassis or engine block using a clean, unpainted metal surface to ensure a solid electrical connection.
Analyzing common mistakes reveals that improper grounding is a frequent culprit in fuel pump wiring failures. A weak ground can cause the pump to run intermittently or not at all, leading to poor engine performance. To avoid this, use a wire brush to clean the grounding point and secure the connection with a star washer or nut to maintain contact. Similarly, avoid running power wires near hot exhaust components or sharp edges that could damage the insulation. If routing through the engine bay, use split loom tubing or high-temperature wire sleeving to protect the wiring.
Persuasively, investing in a relay is one of the smartest decisions you can make when wiring an electric fuel pump. A relay isolates the pump’s high-current draw from the ignition switch, preventing overload and potential damage. Wire the relay’s coil to the ignition switch and the pump’s power wire to the relay’s contact terminal. This setup ensures the pump activates only when the key is on, reducing wear on the switch and improving reliability. Relays are inexpensive, easy to install, and offer peace of mind for long-term performance.
Comparatively, while some enthusiasts opt for direct wiring to the battery, this approach is risky without proper safeguards. A direct connection bypasses the ignition switch, meaning the pump runs continuously, even with the engine off. This not only wastes fuel but also increases the risk of overheating or failure. In contrast, a switched power source with a relay and fuse provides control, safety, and efficiency. For example, a pump drawing 15 amps running for an extra hour could drain a small battery significantly, whereas a switched setup prevents this entirely.
Descriptively, imagine the wiring as the fuel pump’s lifeline—it must be robust, secure, and free from hazards. Picture the power wire running neatly along the firewall, tucked away from moving parts and heat sources, with connections sealed against moisture. The fuse sits prominently near the battery, a visible reminder of the system’s protection. The ground wire, short and direct, ensures the pump operates without hesitation. When done correctly, the wiring becomes invisible in its functionality, allowing the pump to deliver fuel seamlessly to the carburetor without interruption.
Do Smith's Fuel Stations Provide Free Air Pumps for Customers?
You may want to see also
Explore related products
Set Fuel Pressure Regulator
Setting the fuel pressure regulator correctly is crucial for ensuring your carburetor receives the right amount of fuel at the appropriate pressure. A misadjusted regulator can lead to poor engine performance, from rough idling to hesitation under load. Start by locating the regulator, typically mounted near the carburetor or fuel rail, and identify its adjustment screw or diaphragm. Most regulators operate within a range of 4 to 8 psi for carbureted systems, but always consult your vehicle’s manual or the carburetor manufacturer’s specifications for the exact value.
To adjust the regulator, first disconnect the vacuum hose (if applicable) to set the base pressure. Use a fuel pressure gauge to monitor the pressure while turning the adjustment screw. Tightening the screw increases pressure, while loosening it decreases it. Gradually adjust until the gauge reads the recommended psi. Reattach the vacuum hose if your regulator uses one, as this allows pressure to vary with engine load, ensuring optimal fuel delivery during acceleration and cruising.
One common mistake is over-tightening the adjustment screw, which can damage the regulator’s internal components. Always make small, incremental changes and recheck the pressure after each adjustment. If your system includes a return-style fuel setup, ensure the regulator is plumbed correctly to send excess fuel back to the tank, preventing pressure spikes. For mechanical fuel pumps, verify compatibility with the regulator, as some older pumps may not handle higher pressures efficiently.
In practice, consider using a fuel pressure gauge with a T-fitting to monitor pressure during engine operation. This allows you to observe how the regulator responds under different conditions, such as idle, cruising, and full throttle. If the pressure drops significantly under load, the regulator may be faulty or improperly adjusted. Conversely, if pressure remains high, check for restrictions in the return line or a malfunctioning vacuum diaphragm.
Finally, remember that fuel pressure is just one part of a well-tuned carbureted system. Ensure the float level in the carburetor is correctly set, as improper float height can counteract the regulator’s efforts. Regularly inspect fuel lines and fittings for leaks, especially after adjustments, as even small leaks can disrupt pressure regulation. By mastering the fuel pressure regulator, you’ll achieve a smoother, more efficient engine that responds predictably to your throttle inputs.
Does PCM Control Fuel Pump? Understanding the Role of PCM
You may want to see also
Explore related products
Test System for Leaks
Before firing up your engine, ensuring your fuel system is leak-free is paramount for both performance and safety. Even a small leak can lead to fuel wastage, potential fire hazards, or engine misfires. Testing for leaks is a critical step in the process of hooking up an electric fuel pump to a carburetor, and it requires a systematic approach to identify any vulnerabilities in the system.
The Pressure Test Method: One effective way to test for leaks is by pressurizing the fuel system. Start by disconnecting the fuel line from the carburetor and attaching a fuel pressure gauge. Ensure all connections are tight and secure. Then, turn on the electric fuel pump to build pressure within the system. Observe the pressure gauge; if the pressure drops, it indicates a leak. This method allows you to pinpoint the leak's location by inspecting the fuel lines, fittings, and connections under pressure.
In contrast, a more straightforward approach is the visual inspection and soap solution test. This method is particularly useful for identifying leaks at connections and fittings. Mix a soapy water solution and apply it to all fuel line connections, including the pump, filter, and carburetor junctions. If bubbles form, you've found a leak. This simple test is highly effective for detecting even minor leaks that might go unnoticed otherwise.
For a comprehensive assessment, consider a combination of both methods. Begin with the visual inspection and soap test to identify obvious leaks. Then, proceed with the pressure test to ensure the system's integrity under operating conditions. This two-pronged approach minimizes the chances of missing any potential leak points.
Caution and Safety: When testing for leaks, always prioritize safety. Work in a well-ventilated area, away from open flames or sparks. Fuel is highly flammable, so take precautions to avoid any ignition sources. Additionally, wear protective gear, such as gloves and safety goggles, to prevent skin and eye irritation from fuel exposure.
In summary, testing for leaks is a critical aspect of installing an electric fuel pump and carburetor setup. By employing pressure testing, visual inspections, or a combination of both, you can ensure a safe and efficient fuel system. These methods provide a comprehensive evaluation, allowing you to address any issues before they become problematic. Remember, a leak-free fuel system is essential for optimal engine performance and your safety.
Fuel Pump Lifespan in Crossfire Models: What to Expect
You may want to see also
Frequently asked questions
Connect the fuel pump’s outlet to the carburetor’s inlet using a fuel line, ensuring it’s secure and leak-free. Use a pre-filter before the pump and a post-filter after it for optimal performance.
Wire the fuel pump through the ignition switch to ensure it only operates when the engine is running, reducing the risk of dry pumping and extending pump life.
Use a fuel line size recommended by the pump manufacturer, typically 3/8-inch or 5/16-inch, to ensure proper fuel flow and pressure.
Yes, a fuel pressure regulator is necessary to maintain the correct fuel pressure for the carburetor, usually around 4-6 PSI, preventing flooding or lean conditions.
Install a check valve in the fuel line between the pump and carburetor to maintain pressure and prevent fuel from draining back into the tank when the pump is off.
