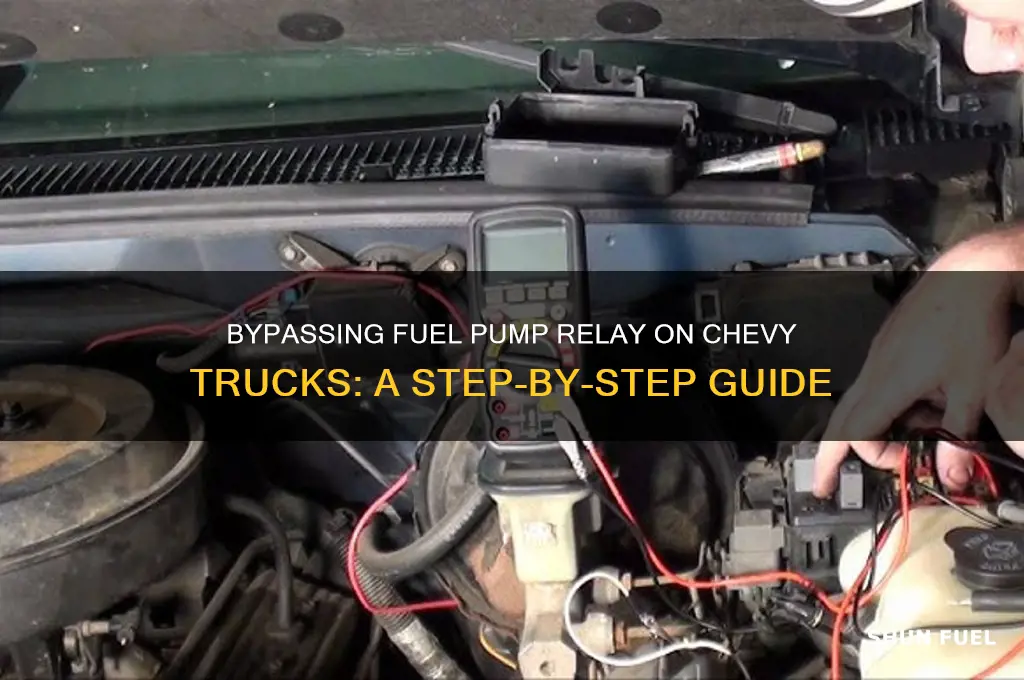

Bypassing the fuel pump relay on a Chevy truck can be a useful troubleshooting step or a temporary fix when the relay fails, but it should be approached with caution as it involves working with the vehicle’s electrical system. The fuel pump relay is a critical component that controls power to the fuel pump, ensuring it operates only when the engine is running. If the relay malfunctions, the fuel pump may not receive power, causing the engine to stall or fail to start. Bypassing the relay involves directly connecting the fuel pump to the battery or another power source, effectively bypassing the relay’s control. This method is typically used for diagnostic purposes or as a temporary solution until a replacement relay can be installed. However, it’s important to note that bypassing the relay permanently can lead to safety risks, such as the fuel pump running continuously, which may drain the battery or cause overheating. Always consult a professional or a repair manual specific to your Chevy truck model before attempting this procedure.
| Characteristics | Values |
|---|---|
| Purpose | Temporarily bypass the fuel pump relay to diagnose fuel pump issues or start the vehicle in an emergency. |
| Vehicle Compatibility | Primarily applicable to Chevrolet trucks with a fuel pump relay system (e.g., Silverado, Colorado). |
| Tools Required | Basic hand tools (screwdriver, pliers), jumper wires, and a multimeter (optional). |
| Safety Precautions | Disconnect the battery before working on the electrical system to avoid short circuits or accidents. |
| Relay Location | Typically found in the underhood fuse/relay box. Consult the vehicle manual for exact location. |
| Bypass Method | Connect a jumper wire between the fuel pump relay's power input (usually pin 85 or 86) and the battery positive terminal. |
| Temporary Fix | This is a temporary solution and not recommended for long-term use, as it bypasses safety features. |
| Diagnosis | Use a multimeter to test the relay and fuel pump circuit before bypassing to identify the root cause. |
| Professional Advice | Consult a professional mechanic if unsure or if the issue persists after bypassing the relay. |
| Legal Disclaimer | Bypassing safety systems may violate local laws or vehicle warranties. Proceed with caution. |
Explore related products
What You'll Learn
- Identify Relay Location: Locate the fuel pump relay in the fuse box under the hood
- Use Jumper Wire: Connect a jumper wire to bypass the relay’s terminals directly
- Test Voltage Supply: Ensure power reaches the fuel pump by testing voltage at the connector
- Temporary Fix Only: Bypassing is a short-term solution; replace the relay promptly
- Safety Precautions: Disconnect the battery and avoid sparks when working on electrical components
Identify Relay Location: Locate the fuel pump relay in the fuse box under the hood
The fuel pump relay in a Chevy truck is a critical component, but locating it can be the first hurdle in any troubleshooting or bypass attempt. Start by opening the hood and identifying the fuse box, typically situated near the battery or along the inner fender. Most Chevy trucks house the fuel pump relay within this under-hood fuse box, often labeled for easy identification. If the label is missing or unclear, consult your truck’s manual or a reliable online diagram specific to your model year. This initial step is straightforward but crucial—misidentifying the relay can lead to unnecessary complications or damage.
Once you’ve located the fuse box, carefully remove its cover to expose the relays and fuses inside. The fuel pump relay is usually a rectangular or square module with several pins, distinguishable from other components by its size and position. In some Chevy models, it’s positioned near the center or along the edge of the fuse box. If you’re unsure, compare it to a known relay or use a multimeter to test for continuity while the ignition is on. This hands-on approach ensures accuracy, especially in older trucks where wear and tear might obscure labels or markings.
For those unfamiliar with automotive systems, it’s helpful to note that the fuel pump relay’s location can vary slightly depending on the Chevy truck’s make and model. For instance, in a 1995-2000 Chevy Silverado, the relay is often found in the under-hood fuse box labeled “FUEL PUMP.” In contrast, newer models like the 2010-2019 Chevy Colorado may require additional steps, such as removing a secondary cover within the fuse box. Always cross-reference your specific truck’s documentation to avoid confusion.
A practical tip for quick identification is to use a relay puller tool, which allows you to safely extract the relay without damaging surrounding components. Once removed, inspect the relay for signs of corrosion, melting, or loose connections—common issues that might necessitate a bypass. If you’re bypassing the relay due to failure, ensure the replacement or temporary solution aligns with the original’s specifications, typically rated for 30-40 amps in most Chevy trucks. This attention to detail prevents electrical hazards and ensures the fuel pump operates efficiently.
In summary, locating the fuel pump relay in a Chevy truck’s under-hood fuse box is a foundational step in any bypass or diagnostic process. By combining visual inspection, model-specific knowledge, and practical tools, you can confidently identify the relay and proceed with further actions. Remember, precision at this stage sets the tone for a successful repair or modification, ensuring your truck’s fuel system functions reliably.
Does the Duramax Fuel Pump Have a Fuse? Explained
You may want to see also
Explore related products
Use Jumper Wire: Connect a jumper wire to bypass the relay’s terminals directly
Bypassing a fuel pump relay on a Chevy truck using a jumper wire is a direct method to troubleshoot or temporarily resolve fuel pump issues. This technique involves connecting the relay’s terminals directly, effectively bypassing the relay’s switching function. It’s a straightforward approach but requires caution, as improper execution can lead to electrical damage or safety hazards. Always ensure the ignition is off and the battery is disconnected before starting.
To execute this method, locate the fuel pump relay in the fuse box, typically under the hood or near the driver’s side dashboard. Identify the relay’s power input (usually pin 85 or 86) and output (usually pin 30) terminals. Use a jumper wire with sufficient gauge to handle the current draw of the fuel pump, typically 14-16 AWG. Strip both ends of the wire and securely connect one end to the power input terminal and the other to the output terminal. This creates a direct circuit, allowing power to flow to the fuel pump without the relay’s intervention.
While this method is effective for diagnostic purposes, it’s not a long-term solution. Running the fuel pump continuously without the relay’s control can lead to overheating or premature pump failure. Additionally, the fuel pump may not shut off when the ignition is turned off, posing a fire risk. Use this bypass only for short-term testing, such as confirming whether the relay or another component is faulty. If the fuel pump operates correctly with the relay bypassed, the relay is likely the issue.
A practical tip is to label the relay terminals before disconnecting them to avoid confusion during reassembly. After testing, immediately remove the jumper wire and reinstall the relay or replace it if defective. For safety, wear insulated gloves and ensure no metal objects are near the battery terminals during the process. This method is a quick, cost-effective way to isolate relay issues but should be followed by proper repairs to ensure vehicle reliability and safety.
N52 Engine: Does It Feature a High-Pressure Fuel Pump?
You may want to see also
Explore related products
Test Voltage Supply: Ensure power reaches the fuel pump by testing voltage at the connector
Before attempting to bypass the fuel pump relay on your Chevy truck, it's crucial to confirm that the issue lies with the relay itself and not the power supply to the fuel pump. A common diagnostic step is to test the voltage supply at the fuel pump connector, ensuring that power is indeed reaching the pump. This process involves a multimeter, a basic understanding of electrical systems, and a systematic approach to pinpoint potential problems.
To begin, locate the fuel pump connector, typically found near the fuel tank or along the chassis. With the ignition in the "on" position but the engine off, set your multimeter to measure DC voltage and connect the probes to the appropriate pins on the connector. Refer to your Chevy truck’s service manual for the specific pinout, as this can vary by model and year. A healthy system should show battery voltage (around 12–14 volts) at the connector when the fuel pump is activated, such as during a key-on or cranking event. If voltage is absent, the issue may lie in the wiring harness, fuse, or a related component upstream of the relay.
Analyzing the results of this test is critical. If voltage is present but the fuel pump isn’t operating, the pump itself or the ground circuit may be faulty. Conversely, if no voltage is detected, trace the circuit back to the relay and fuses, checking for breaks, corrosion, or blown fuses. This step-by-step approach not only isolates the problem but also prevents unnecessary modifications, such as bypassing the relay, which can lead to safety risks or further damage if the root cause isn’t addressed.
For those considering bypassing the fuel pump relay, understanding the voltage supply is a prerequisite. Bypassing the relay without confirming power delivery can result in a non-functional fuel pump or, worse, an electrical fire. Always prioritize diagnostics over quick fixes, especially in critical systems like fuel delivery. By testing the voltage supply first, you ensure that any bypass attempt is both necessary and safe, preserving the integrity of your Chevy truck’s electrical system.
Understanding the Functionality of an Electric Fuel Pump in Vehicles
You may want to see also
Explore related products
Temporary Fix Only: Bypassing is a short-term solution; replace the relay promptly
Bypassing a fuel pump relay on a Chevy truck can get your vehicle running in a pinch, but it’s a temporary fix at best. The relay is a critical component that controls power to the fuel pump, ensuring it operates only when the engine is running or being started. Bypassing it means the fuel pump runs continuously, which can drain your battery, overwork the pump, and increase the risk of fire or electrical damage. While this workaround might save you from being stranded, it’s not a long-term solution.
Consider the mechanics of the bypass: typically, you’d connect the fuel pump directly to the battery or a constant power source, bypassing the relay’s control. This method works because it forces the pump to run, but it eliminates the safety and efficiency features the relay provides. For instance, the relay is designed to shut off the pump during a collision or when the ignition is off, preventing fuel from spraying in dangerous situations. Bypassing it removes these safeguards, making it a risky choice beyond immediate necessity.
From a practical standpoint, bypassing the relay is straightforward but requires caution. You’ll need basic tools like wire strippers, electrical tape, and a fuse holder to ensure the connection is secure and doesn’t short-circuit. However, this fix should only be used to get your truck to a repair shop or a safe location. Driving long distances with a bypassed relay can cause the fuel pump to overheat or fail prematurely, leading to costlier repairs. Always monitor the pump’s temperature and your battery’s charge while using this method.
The takeaway is clear: bypassing the fuel pump relay is a stopgap, not a repair. Relays are inexpensive and easy to replace—most auto parts stores carry them, and installation takes minutes. Delaying the replacement puts your vehicle and safety at risk. If you’re unsure about diagnosing the issue or replacing the relay, consult a mechanic. Temporary fixes have their place, but they’re no substitute for addressing the root problem promptly.
Step-by-Step Guide to Safely Disconnecting an In-Tank Fuel Pump
You may want to see also
Explore related products
$12.27 $12.99
Safety Precautions: Disconnect the battery and avoid sparks when working on electrical components
Before attempting to bypass the fuel pump relay on your Chevy truck, prioritize safety by disconnecting the battery. This simple step eliminates the risk of electrical shorts, sparks, or accidental activation of the fuel pump, which could lead to fires or explosions. Always use insulated tools and wear non-conductive gloves to further minimize risks.
Analyzing the electrical system of a vehicle reveals its sensitivity to even minor disruptions. A single spark near fuel vapors can ignite a dangerous situation. By disconnecting the battery, you effectively cut power to the entire system, creating a safe environment for troubleshooting or modifications. This precaution is especially critical when working near fuel lines or the fuel pump itself.
Instructively, start by locating the battery, typically under the hood or in the trunk of your Chevy truck. Loosen the nut on the negative terminal with a wrench, then carefully lift the cable off the battery post. Ensure the cable does not come into contact with the positive terminal or any metal surfaces. Secure the disconnected cable away from the battery to prevent accidental reconnection.
Persuasively, consider the consequences of skipping this step. Even experienced mechanics adhere to this safety measure because the potential for disaster is real. A momentary lapse in caution can lead to irreversible damage or injury. Investing a few seconds to disconnect the battery is a small price to pay for peace of mind and personal safety.
Comparatively, while some DIY enthusiasts might argue that working with the battery connected saves time, the risks far outweigh the benefits. Modern vehicles, including Chevy trucks, have complex electrical systems that can react unpredictably when tampered with. Disconnecting the battery is a universally accepted practice that aligns with professional standards and ensures a controlled working environment.
Descriptively, imagine the scenario: you’re under the truck, focused on bypassing the fuel pump relay, when a tool slips and creates a spark. Without the battery disconnected, this spark could ignite fuel vapors, turning a routine repair into a catastrophic event. By taking this precautionary step, you create a buffer against such accidents, allowing you to work with confidence and precision.
Understanding Fuel Pump Sensors: Functionality and Operation Explained
You may want to see also
Frequently asked questions
A fuel pump relay is an electrical switch that controls power to the fuel pump. Bypassing it is sometimes done for diagnostic purposes or as a temporary fix if the relay fails, ensuring the fuel pump receives constant power.
To bypass the fuel pump relay, locate the relay in the fuse box, remove it, and connect the power wire (usually the pin that gets constant power) directly to the fuel pump wire (usually the pin that goes to the pump). Use a fused wire to prevent electrical issues.
No, bypassing the fuel pump relay is not safe for long-term use. It can cause the fuel pump to run constantly, leading to overheating, reduced lifespan, and potential fuel system issues. It should only be used temporarily.
Signs of a failing fuel pump relay include difficulty starting the engine, stalling, or a complete loss of power. You may also hear the fuel pump not priming when turning the key to the "on" position. Testing or replacing the relay is recommended if these symptoms occur.
