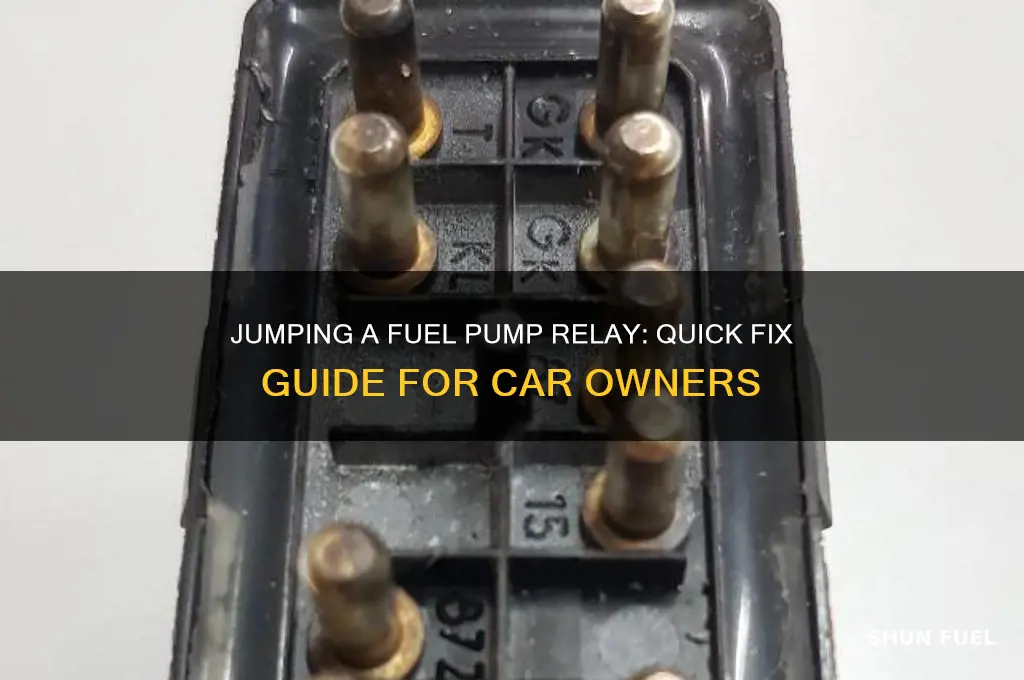

Jumping a fuel pump relay is a troubleshooting technique used to determine if the fuel pump is functioning properly or if the relay itself is faulty. This method involves bypassing the relay to directly engage the fuel pump, which can help diagnose issues such as a no-start condition or insufficient fuel delivery. By connecting a wire or jumper between the relay’s power and ground terminals, you can temporarily activate the fuel pump to check for operation. This process requires caution, as improper handling can lead to electrical damage or safety hazards. It’s essential to consult a vehicle’s manual or wiring diagram to identify the correct relay terminals and ensure the procedure is performed correctly.
| Characteristics | Values |
|---|---|
| Purpose | To bypass the fuel pump relay and directly activate the fuel pump. |
| Tools Required | Screwdriver, jumper wires, multimeter (optional). |
| Safety Precautions | Disconnect the battery, work in a well-ventilated area, avoid sparks. |
| Steps | 1. Locate the fuel pump relay in the fuse box. |
| 2. Identify the relay terminals (typically 30, 87, and 85/86). | |
| 3. Connect a jumper wire between the power (30) and output (87) terminals. | |
| 4. Apply power to the relay coil (85/86) to activate the pump. | |
| Common Relay Terminals | 30 (Power), 87 (Output), 85 (Ground), 86 (Control). |
| Alternative Method | Use a fused jumper wire directly from the battery to the fuel pump. |
| Risks | Overloading the circuit, potential damage to the fuel pump or wiring. |
| When to Use | Diagnostic purposes or emergency situations when the relay fails. |
| Professional Advice | Consult a mechanic if unsure or for long-term solutions. |
