Ameer Randolph

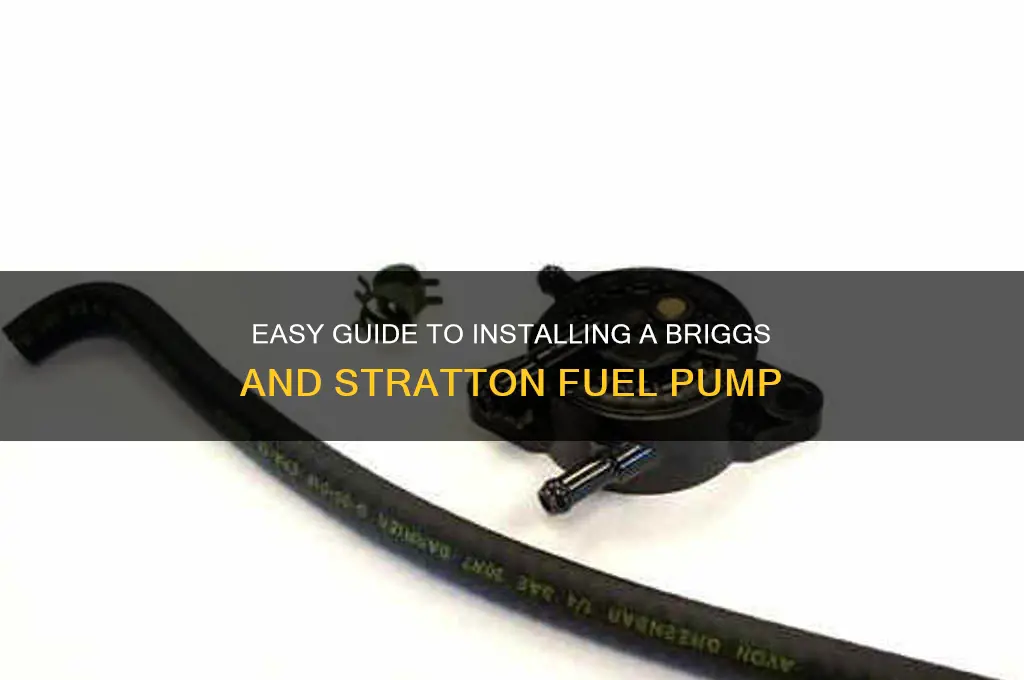

Hooking up a Briggs and Stratton fuel pump is a straightforward process that ensures your small engine receives a consistent fuel supply for optimal performance. Whether you’re replacing a faulty pump or installing one on a new engine, understanding the steps is crucial. The process typically involves locating the fuel pump, connecting it to the fuel line, and securing it in place with proper fittings and clamps. Briggs and Stratton fuel pumps are designed for compatibility with their engines, making installation relatively simple. By following the manufacturer’s instructions and ensuring all connections are tight and leak-free, you can restore or maintain efficient fuel delivery to your engine, ensuring reliable operation.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Typically diaphragm-type, often used in Briggs & Stratton engines |
| Compatibility | Specific to Briggs & Stratton engines; check model number for compatibility |
| Mounting Location | Usually mounted on the carburetor or nearby, ensuring easy fuel flow |
| Connections | 1. Fuel Line Inlet: Connects to the fuel tank. 2. Fuel Line Outlet: Connects to the carburetor. 3. Pulse Line: Connects to the engine's crankcase or camshaft for diaphragm actuation. |
| Tools Required | Basic hand tools: wrenches, screwdrivers, and fuel line clamps |
| Installation Steps | 1. Prepare: Ensure engine is off and cool. 2. Disconnect Old Pump: Remove old fuel lines and pump if replacing. 3. Install New Pump: Mount the pump securely, ensuring proper orientation. 4. Connect Fuel Lines: Attach inlet and outlet lines, ensuring tight connections. 5. Connect Pulse Line: Attach to the engine's pulse source. 6. Test: Prime the pump and start the engine to check for leaks and proper fuel delivery. |
| Maintenance | Regularly inspect for leaks, clean fuel lines, and replace if pump fails to deliver fuel |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, and ensure fuel tank is not overfilled |
| Troubleshooting | Check for clogged fuel lines, damaged diaphragm, or improper pulse line connection if fuel delivery issues occur |
| Replacement Interval | Replace if pump fails to deliver fuel or shows signs of wear (e.g., cracks, leaks) |
Explore related products
What You'll Learn
- Fuel Pump Compatibility: Ensure the pump matches your Briggs & Stratton engine model and specifications
- Installation Tools Needed: Gather wrenches, screwdrivers, and pliers for a smooth installation process
- Connecting Fuel Lines: Attach inlet and outlet lines securely to avoid leaks and ensure proper flow
- Mounting the Pump: Secure the pump to the engine using brackets and bolts for stability
- Testing the Setup: Prime the pump, check for leaks, and verify fuel delivery to the carburetor
Fuel Pump Compatibility: Ensure the pump matches your Briggs & Stratton engine model and specifications
Selecting the correct fuel pump for your Briggs & Stratton engine isn’t just a matter of preference—it’s a requirement. Briggs & Stratton engines are engineered with specific fuel delivery systems, and using an incompatible pump can lead to poor performance, engine damage, or even safety hazards. For instance, a pump designed for a small vertical-shaft engine won’t work efficiently on a larger horizontal-shaft model due to differences in fuel pressure and flow rate requirements. Always cross-reference the pump’s specifications with your engine’s model number and type, found on the engine’s data plate, to ensure compatibility.
Compatibility extends beyond the physical fit. Fuel pumps are rated for specific fuel types (gasoline, ethanol blends, etc.) and flow rates, measured in gallons per hour (GPH). A pump rated for 3 GPH may suffice for a 5-horsepower engine but fall short for a 20-horsepower model, which could require 7 GPH or more. Additionally, consider the pump’s voltage requirements if it’s electric—most Briggs & Stratton engines use 12-volt systems, but mismatching voltage can cause operational failures. Always consult the engine’s manual or Briggs & Stratton’s online parts lookup tool to verify these details.
One common mistake is assuming that all Briggs & Stratton fuel pumps are interchangeable. While some pumps may look similar, they often differ in internal components like diaphragms, valves, or mounting configurations. For example, a pump designed for a Vanguard series engine won’t align with the mounting holes on an Intek series engine. Even if the pump appears to fit, improper alignment can cause leaks or inefficient fuel delivery. When in doubt, purchase pumps directly from Briggs & Stratton or authorized dealers to guarantee authenticity and compatibility.
Practical tips can simplify the compatibility check. Start by noting the engine’s displacement (in cubic centimeters or liters) and horsepower, as these directly influence fuel pump requirements. If replacing an existing pump, compare its part number with the new one—Briggs & Stratton uses unique part numbers for each model. For electric pumps, test the wiring harness compatibility before installation to avoid short circuits. Finally, if your engine operates in extreme conditions (high altitude, cold temperatures), opt for a pump with a slightly higher flow rate to compensate for environmental factors.
Ignoring compatibility can lead to costly repairs. An undersized pump will starve the engine of fuel, causing stalling or misfires, while an oversized pump can flood the carburetor or injectors. Over time, this can damage internal components like pistons or valves. By investing a few minutes in verifying compatibility, you not only ensure optimal engine performance but also extend its lifespan. Remember, the goal isn’t just to hook up a fuel pump—it’s to hook up the *right* fuel pump.
Testing Your Fuel Pump Check Valve: A Step-by-Step Guide
You may want to see also
Explore related products
Installation Tools Needed: Gather wrenches, screwdrivers, and pliers for a smooth installation process
Before diving into the installation of a Briggs and Stratton fuel pump, it’s crucial to assemble the right tools. A disorganized workspace or missing instrument can turn a straightforward task into a frustrating ordeal. Wrenches, screwdrivers, and pliers are the backbone of this process, each serving a specific function that ensures precision and efficiency. Without them, you risk damaging components or prolonging the installation unnecessarily.
Consider the wrenches first. Adjustable wrenches are ideal for tightening or loosening nuts and bolts securing the fuel pump. A set of metric and standard sizes (such as 8mm, 10mm, and 5/16-inch) ensures compatibility with various fittings. Over-tightening is a common mistake, so use a torque wrench if available to apply the manufacturer’s recommended force, typically around 10-15 foot-pounds for fuel pump connections. This prevents leaks or stripped threads that could compromise performance.
Screwdrivers are equally indispensable, particularly flathead and Phillips-head varieties. These tools are used to remove or secure mounting screws holding the fuel pump in place. A magnetic-tip screwdriver can be a game-changer, especially when working in tight spaces where dropped screws are a constant threat. For stubborn screws, apply penetrating oil and allow it to sit for 10 minutes before attempting removal to avoid stripping the head.
Pliers round out the toolkit, offering versatility in gripping, bending, and cutting. Needle-nose pliers are perfect for maneuvering fuel lines or clamps in cramped areas, while slip-joint pliers provide a stronger grip for tougher tasks. If working with plastic fuel lines, use a pair of diagonal cutting pliers to trim excess material cleanly, ensuring a snug fit onto the pump’s barbs. Always avoid over-crimping, as this can restrict fuel flow or damage the line.
In practice, organizing these tools beforehand streamlines the installation. Lay them out on a clean surface in the order they’ll be used, reducing the need to search mid-task. A small parts tray or magnetic organizer can keep screws, washers, and other components from being misplaced. By treating tool preparation as a critical step, rather than an afterthought, you’ll save time and maintain focus on the task at hand, ensuring a smooth and error-free installation.
Testing Your Mercury Outboard Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Connecting Fuel Lines: Attach inlet and outlet lines securely to avoid leaks and ensure proper flow
Fuel line connections are the lifeblood of your Briggs & Stratton fuel pump, and a single loose fitting can spell disaster. Think of them as the veins and arteries of your engine, delivering the vital fuel needed for combustion. A secure connection ensures a steady, uninterrupted flow, preventing air bubbles that can starve your engine and cause stalling. Conversely, a leaky connection not only wastes fuel but also poses a serious fire hazard.
Gasoline is highly flammable, and even a small leak can ignite with catastrophic consequences.
Attaching the inlet and outlet lines correctly is a straightforward process, but demands attention to detail. Start by identifying the correct ports on your fuel pump – typically marked "in" and "out". Use the appropriate size fuel line for your pump, ensuring a snug fit. Clamp the lines securely using fuel line clamps, tightening them enough to prevent movement but not so tight as to crush the line. Double-check for any signs of leakage by applying a soapy water solution to the connections – bubbles indicate a leak that needs addressing.
Remember, a little preventative maintenance here goes a long way in avoiding costly repairs and dangerous situations down the road.
Consider the analogy of a garden hose. A kink in the hose restricts water flow, just as a poorly connected fuel line restricts fuel delivery. Similarly, a loose connection on the hose can lead to water spraying everywhere, mirroring the dangers of a fuel leak. By treating your fuel lines with the same care you'd give a high-pressure water system, you ensure the longevity and safety of your Briggs & Stratton engine.
For added peace of mind, consider using fuel line with a protective outer layer to resist abrasion and weathering. Regularly inspect your fuel lines for cracks, brittleness, or signs of wear and tear, replacing them as needed. Think of it as an investment in your engine's health – a small outlay now can prevent a major breakdown later. By prioritizing secure fuel line connections, you're not just maintaining your equipment, you're safeguarding yourself and your surroundings.
Understanding Dual Fuel Heat Pumps: Efficient Heating and Cooling Explained
You may want to see also
Explore related products
Mounting the Pump: Secure the pump to the engine using brackets and bolts for stability
Securing the Briggs and Stratton fuel pump to the engine is a critical step that ensures stability and longevity. Improper mounting can lead to vibrations, leaks, or even pump failure, compromising engine performance. The key to a secure installation lies in using the correct brackets and bolts, which distribute the pump’s weight evenly and minimize movement during operation. Always refer to the manufacturer’s specifications for the exact bracket type and bolt size, as these can vary depending on the engine model and pump design.
Begin by positioning the fuel pump in its designated location, typically near the fuel tank or carburetor for optimal fuel flow. Align the pump’s mounting holes with those on the engine block or mounting plate. If brackets are required, ensure they are compatible with both the pump and engine. Use a torque wrench to tighten the bolts to the manufacturer’s recommended specifications—overtightening can strip threads or damage components, while undertightening risks instability. For example, a common torque value for M6 bolts might range between 5-7 Nm, but always verify for your specific setup.
A practical tip is to apply a thread-locking compound to the bolts before tightening, especially in high-vibration environments. This prevents bolts from loosening over time, a common issue in small engines. Additionally, inspect the mounting area for obstructions or sharp edges that could damage the pump or its wiring. If the pump includes a rubber gasket or vibration isolator, ensure it is properly seated to reduce wear and tear.
Comparatively, while some fuel pumps may be lighter and require minimal mounting hardware, others, particularly high-capacity models, demand robust brackets and additional support. For instance, a pump mounted on a vertical shaft engine may need a reinforced bracket to counteract gravitational forces. In contrast, horizontal shaft engines often allow for simpler mounting configurations. Understanding these differences ensures a tailored and effective installation.
In conclusion, mounting the Briggs and Stratton fuel pump is a straightforward yet crucial process that demands attention to detail. By using the correct brackets, tightening bolts to the proper torque, and considering environmental factors, you can achieve a secure and stable installation. This not only enhances engine reliability but also extends the life of the fuel pump, saving time and money on future repairs.
Is Your Fuel Pump Clogged? Signs, Symptoms, and Solutions
You may want to see also
Explore related products
Testing the Setup: Prime the pump, check for leaks, and verify fuel delivery to the carburetor
Once the Briggs and Stratton fuel pump is installed, testing the setup is critical to ensure reliable engine operation. Begin by priming the pump to eliminate air pockets and establish fuel flow. To prime, manually operate the pump handle or use an electric primer if equipped. Apply 10–15 strokes or run the primer bulb until fuel is visible in the pump’s sight glass or outlet line. This step ensures the pump is ready to deliver fuel under pressure. If the engine has a manual choke, engage it during priming to assist fuel draw into the carburetor.
Next, inspect the entire fuel system for leaks, as even minor seepage can lead to performance issues or safety hazards. Start by checking all connections, including the pump inlet, outlet, and carburetor line. Tighten hose clamps or fittings if necessary, but avoid over-tightening to prevent damage. Run the engine briefly at idle, then shut it off and reinspect for wet spots or drips. Pay close attention to areas where vibration occurs, as this can loosen connections over time. If leaks persist, replace damaged hoses or seals before proceeding.
Verifying fuel delivery to the carburetor is the final step in testing the setup. Remove the air filter housing and inspect the carburetor’s inlet for fuel presence. Crank the engine for 5–10 seconds and observe if fuel sprays into the carburetor throat. If no fuel is visible, check for clogs in the fuel line or a malfunctioning pump diaphragm. Alternatively, disconnect the carburetor line and place the end in a container while cranking the engine to measure flow rate. A healthy pump should deliver 1–2 ounces of fuel per minute, depending on engine size.
Comparing the tested setup to a properly functioning system can highlight inefficiencies. For instance, if fuel delivery is weak, compare the pump’s output to specifications in the Briggs and Stratton manual. A significant discrepancy may indicate a faulty pump or restricted fuel line. Conversely, excessive fuel flow could suggest a carburetor issue or incorrect pump calibration. By systematically testing priming, leaks, and delivery, you ensure the fuel pump operates optimally, minimizing downtime and maximizing engine performance.
Removing the Fuel Pump Lock Ring on a 2008 Silverado: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You will need basic tools such as a wrench or socket set, pliers, screwdriver, and Teflon tape or thread sealant for secure connections.
Attach the inlet line to the pump’s inlet port and the outlet line to the outlet port, ensuring the arrows on the lines match the flow direction. Use hose clamps for a secure fit.
Mount the fuel pump close to the fuel tank, ensuring it’s secure and away from hot engine components. Use the provided mounting bracket and hardware.
Turn the engine off, loosen the pump’s purge screw, and pump the primer bulb until fuel flows out. Tighten the screw and start the engine.
Check for loose connections, clogged fuel lines, or a faulty pump. Ensure the pump is properly primed and the fuel tank has sufficient fuel.
