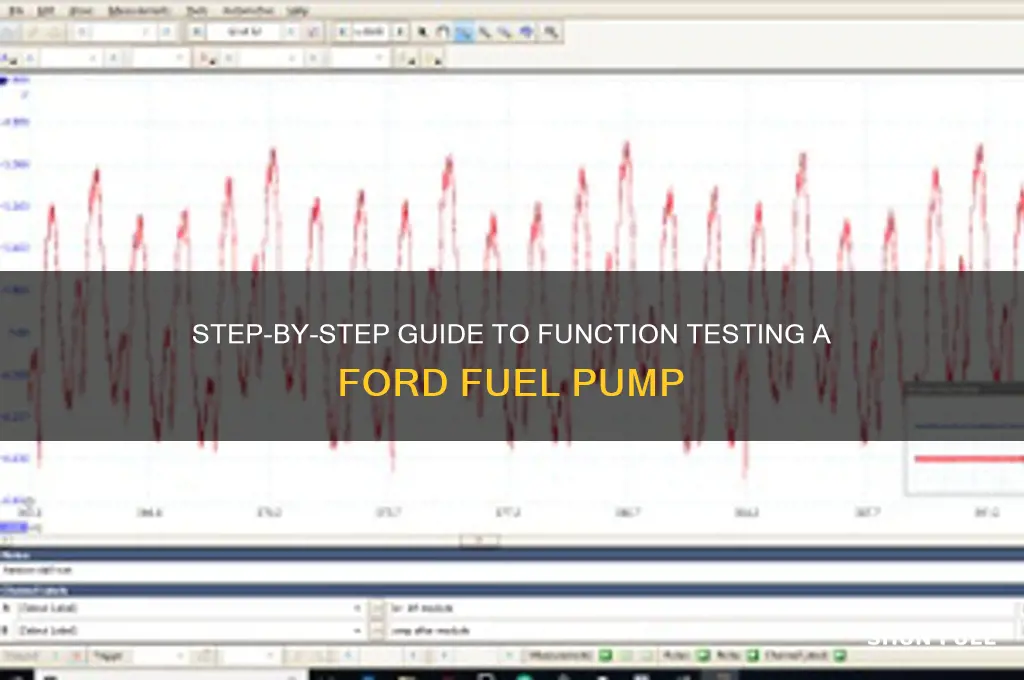

Function testing a Ford fuel pump is a critical step in diagnosing fuel system issues and ensuring optimal engine performance. The process involves verifying the pump’s ability to deliver fuel at the correct pressure and volume, typically using a fuel pressure gauge and multimeter. Begin by relieving fuel system pressure, disconnecting the fuel lines, and attaching the gauge to the fuel rail. With the ignition on, observe the pressure reading to ensure it matches the manufacturer’s specifications. Additionally, check for proper operation by listening for the pump’s priming cycle when the key is turned to the on position. If the pump fails to maintain pressure or operate as expected, it may indicate a faulty component requiring replacement or further inspection. Always consult the Ford service manual for model-specific procedures and safety precautions.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, fuel pressure gauge, safety gloves, safety goggles, disconnect tool |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Testing Method 1: Electrical Test | Measure voltage at the fuel pump connector (typically 12V with key on) |
| Testing Method 2: Fuel Pressure Test | Connect a fuel pressure gauge to the fuel rail and check pressure (30-60 PSI for most Fords) |
| Testing Method 3: Listen for Operation | Have an assistant crank the engine while you listen near the fuel tank for the pump humming |
| Expected Results | Electrical test: Voltage present; Pressure test: Within spec; Audible test: Humming sound |
| Common Failure Symptoms | No start, sputtering, loss of power, whining noise from the fuel tank |
| Applicable Ford Models | F-150, Mustang, Focus, Escape, Explorer (varies by year and engine type) |
| Frequency of Testing | Test if fuel-related issues arise or during routine maintenance |
| Replacement Recommendation | Replace if electrical, pressure, or audible tests fail |
| Professional Assistance | Consult a mechanic if unsure or for complex fuel system diagnostics |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
- Electrical Testing: Check power and ground connections, verify pump relay operation
- Pressure Testing: Measure fuel pressure with gauge, compare to specifications
- Flow Rate Check: Test fuel delivery volume, ensure meets Ford’s requirements
- Post-Test Inspection: Reassemble components, reconnect battery, confirm proper pump function
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
Before testing a Ford fuel pump, meticulous pre-test preparation is critical to ensure accuracy, safety, and efficiency. Begin by gathering the necessary tools: a fuel pressure gauge, wrenches or sockets (typically 8mm or 10mm for Ford models), safety gloves, safety goggles, and a container for fuel spillage. These tools are essential for both the testing process and maintaining control over potential hazards. Skipping this step risks inefficiency or, worse, accidents that could have been avoided with proper preparation.
Safety is non-negotiable when working with fuel systems. Fuel is flammable and can ignite under the right conditions, so ensure the work area is free of open flames, sparks, or other ignition sources. Wear nitrile gloves to protect your skin from fuel exposure and safety goggles to shield your eyes from accidental splashes. Position a fire extinguisher nearby as a precautionary measure. These steps are not merely procedural—they are your first line of defense against preventable accidents.
Disconnecting the battery is a step often overlooked but crucial for safety and diagnostic clarity. Start by locating the negative battery terminal, typically marked with a "-" symbol. Use the appropriate wrench or socket to loosen the nut securing the cable, then carefully remove the cable from the terminal. This action prevents accidental electrical shorts and ensures the fuel pump does not activate unexpectedly during testing. Wait at least 10 minutes after disconnection to allow any residual charge in the system to dissipate.
Relieving fuel pressure is the final preparatory step and one of the most critical. Ford vehicles often have a Schrader valve on the fuel rail, which allows for easy pressure release. Attach the fuel pressure gauge to the valve and depress it to release the pressure. If your model lacks a Schrader valve, consult the vehicle’s manual for the specific procedure, which may involve loosening the fuel line at the filter or rail. Failure to relieve pressure can lead to fuel spraying under high pressure, creating a dangerous situation and complicating the testing process.
In summary, pre-test preparation is a systematic process that combines tool readiness, safety precautions, battery disconnection, and fuel pressure relief. Each step serves a distinct purpose, from preventing accidents to ensuring the accuracy of the fuel pump test. By approaching this phase with diligence and attention to detail, you set the stage for a successful and safe diagnostic procedure.
