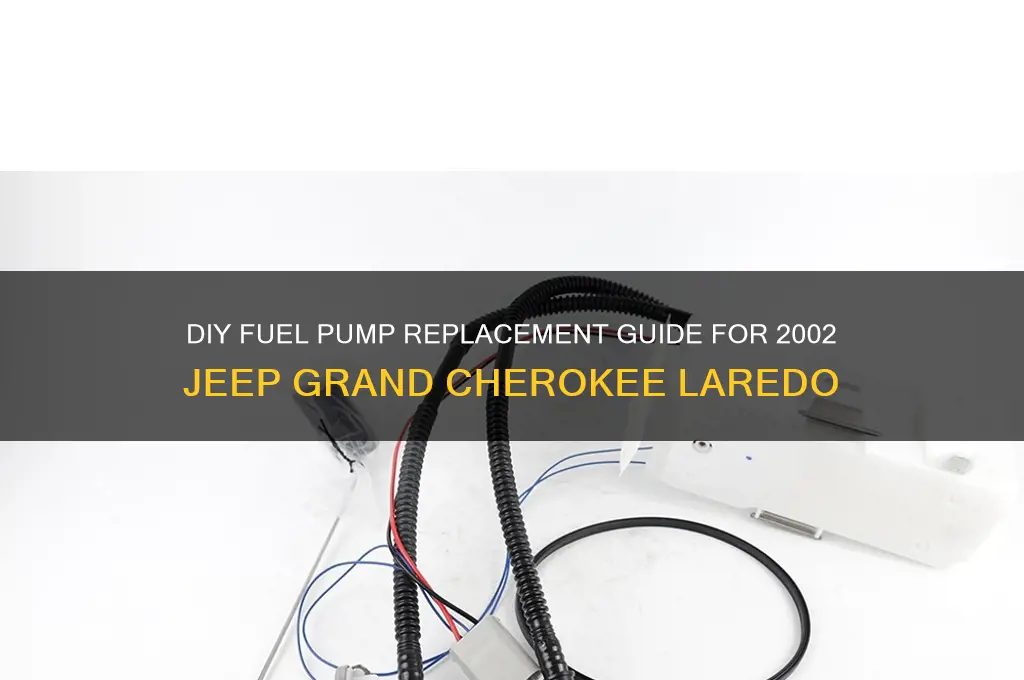

Replacing the fuel pump on a 2002 Jeep Grand Cherokee Laredo is a task that requires careful preparation and attention to detail. The fuel pump is located inside the fuel tank, which means the tank must be safely lowered and removed to access the pump. Before starting, ensure the vehicle is on a level surface, the fuel tank is as empty as possible, and the battery is disconnected to prevent any accidents. You’ll need basic tools like wrenches, screwdrivers, and a jack, as well as a new fuel pump assembly compatible with your vehicle. Following a step-by-step guide or consulting a repair manual is highly recommended to ensure the process is completed correctly and safely.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2002 Jeep Grand Cherokee Laredo |
| Fuel Pump Location | Inside the fuel tank |
| Tools Required | Socket set, wrenches, screwdriver, jack, jack stands, safety goggles |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Replace | 1. Relieve fuel pressure 2. Disconnect battery 3. Drain fuel tank (if necessary) 4. Remove rear seat and access panel 5. Disconnect electrical connectors and fuel lines 6. Remove old fuel pump 7. Install new fuel pump 8. Reconnect fuel lines and electrical connectors 9. Reinstall access panel and rear seat 10. Reconnect battery and test system |
| Estimated Time | 2-4 hours (depending on experience) |
| Difficulty Level | Moderate to Difficult |
| Common Issues | Fuel pump failure, clogged fuel filter, electrical connection problems |
| Replacement Parts | Fuel pump module, fuel filter (if needed), fuel lines (if damaged) |
| Cost of Replacement | $200-$500 (parts and labor, if DIY; higher if professional service) |
| Symptoms of Failure | Engine stalling, difficulty starting, loss of power, whining noise from tank |
| Maintenance Tips | Regularly replace fuel filter, keep fuel tank above 1/4 full to prevent pump overheating |
| Reference Sources | Jeep service manual, online repair guides (e.g., YouTube, forums) |
Explore related products
What You'll Learn
- Gather Tools and Materials: Socket set, wrenches, screwdriver, new fuel pump, gloves, safety goggles, fuel line disconnect tool
- Locate Fuel Pump: Access through the rear seat or fuel tank, depending on the model
- Disconnect Battery and Lines: Remove negative terminal, disconnect fuel lines using proper tools to avoid spills
- Remove and Install Pump: Lower tank, remove old pump, install new one, secure with lock ring
- Test and Reassemble: Reconnect lines, battery, and test for leaks, reinstall components, and start vehicle
Gather Tools and Materials: Socket set, wrenches, screwdriver, new fuel pump, gloves, safety goggles, fuel line disconnect tool
Before diving into the fuel pump replacement on your 2002 Jeep Grand Cherokee Laredo, it’s critical to assemble the right tools and materials. This isn't just about having what you need—it’s about ensuring safety, efficiency, and precision. A socket set, for instance, is indispensable for removing bolts and fasteners, while wrenches come in handy for loosening fuel lines and clamps. A screwdriver, though seemingly basic, is essential for prying and adjusting components. The fuel line disconnect tool is a game-changer, preventing spills and damage to the lines during disconnection. Gloves and safety goggles aren’t optional; they protect against fuel exposure and debris, which can cause serious injury. Finally, the new fuel pump itself must be compatible with your vehicle’s make and model—double-check the part number to avoid costly mistakes.
Consider the analytical aspect: each tool serves a specific purpose, and skipping any could lead to complications. For example, attempting to disconnect fuel lines without the proper tool risks damaging the quick-connect fittings, which are expensive to replace. Similarly, using the wrong socket size can strip bolts, turning a straightforward job into a nightmare. The materials you gather are equally important. A high-quality fuel pump ensures longevity and performance, while safety gear minimizes risks associated with handling flammable liquids. This step isn’t just preparatory—it’s foundational to the entire process.
From a comparative perspective, DIYers often underestimate the importance of specialized tools like the fuel line disconnect tool. While it’s possible to jury-rig a solution, the risk of fuel spills or line damage is significantly higher. Professional mechanics invest in these tools for a reason: they streamline the process and reduce the chance of errors. Similarly, safety goggles and gloves might seem excessive for a garage project, but they’re standard in professional settings for a reason. Fuel exposure can cause skin irritation and eye damage, and debris from the fuel tank can fly unexpectedly.
Instructively, here’s how to approach this step: Start by laying out all tools and materials in a clean, organized workspace. Verify the new fuel pump’s compatibility by cross-referencing the part number with your vehicle’s VIN or consulting a trusted auto parts supplier. Inspect the socket set and wrenches for wear—damaged tools can compromise your work. Ensure the fuel line disconnect tool fits your vehicle’s specific quick-connect fittings. Finally, wear gloves and safety goggles from the moment you begin working near the fuel tank.
The takeaway is clear: gathering the right tools and materials isn’t just a preliminary step—it’s a critical investment in the success and safety of your fuel pump replacement. Skimping on tools or safety gear can lead to costly mistakes, injuries, or both. By prioritizing preparation, you set the stage for a smooth, efficient repair that restores your Jeep’s performance without unnecessary complications.
