Maintaining and troubleshooting the fuel pump in a Ford Ranger is essential for ensuring reliable performance and preventing unexpected breakdowns. The fuel pump plays a critical role in delivering fuel from the tank to the engine, and understanding how to diagnose issues, replace, or service it can save time and money. Whether you’re experiencing symptoms like engine sputtering, difficulty starting, or a complete loss of power, knowing the steps to inspect, test, and replace the fuel pump in a Ford Ranger is invaluable for both DIY enthusiasts and professional mechanics. This guide will walk you through the process, from identifying common problems to safely completing the repair, ensuring your vehicle runs smoothly and efficiently.
| Characteristics | Values |
|---|---|
| Vehicle Model | Ford Ranger |
| Fuel Pump Location | Inside the fuel tank (in-tank fuel pump) |
| Tools Required | Socket set, wrenches, screwdriver, fuel line disconnect tool, safety gear |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Replace | 1. Relieve fuel pressure 2. Disconnect battery 3. Drain fuel tank (if necessary) 4. Remove fuel tank 5. Disconnect fuel lines and electrical connectors 6. Remove old fuel pump 7. Install new fuel pump 8. Reassemble components 9. Test for leaks and functionality |
| Common Symptoms of Failure | Engine sputtering, difficulty starting, loss of power, no start condition |
| Replacement Interval | Typically lasts 100,000+ miles; replace if faulty |
| Part Compatibility | Ensure new fuel pump matches Ford Ranger year, make, and model |
| Cost of Replacement | $200-$500 (parts and labor, depending on model and location) |
| DIY Difficulty Level | Moderate to difficult (requires mechanical skills and tools) |
| Professional Recommendation | Recommended for complex or high-pressure fuel systems |
Explore related products
What You'll Learn
- Locating the Fuel Pump: Identify the fuel pump's position in your Ford Ranger for easy access
- Testing Fuel Pump Functionality: Use a multimeter to check if the fuel pump is operational
- Replacing the Fuel Pump: Step-by-step guide to safely replace a faulty fuel pump
- Fuel Pump Relay Inspection: Learn how to inspect and replace the fuel pump relay
- Troubleshooting Common Issues: Diagnose and fix common fuel pump problems in Ford Rangers

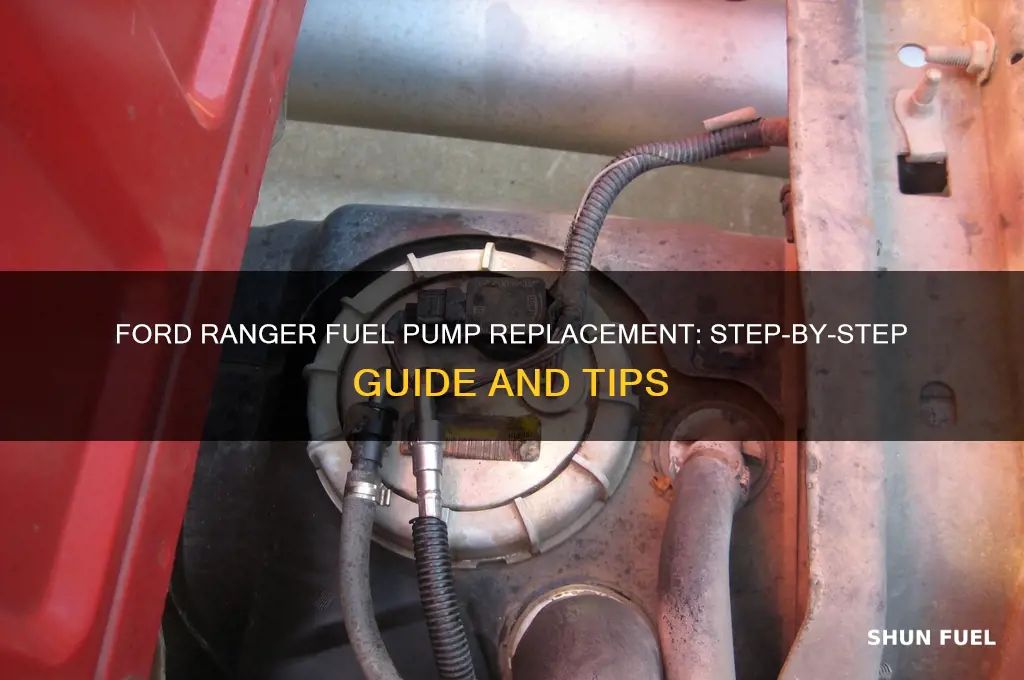

Locating the Fuel Pump: Identify the fuel pump's position in your Ford Ranger for easy access
The fuel pump in your Ford Ranger is a critical component, but its location isn’t always intuitive. Unlike some vehicles where the pump is directly under the rear seat, the Ford Ranger’s fuel pump is housed within the fuel tank, which is positioned beneath the truck bed, closer to the driver’s side. This placement is deliberate, optimizing weight distribution and protecting the pump from debris. Knowing this exact location saves time and frustration when troubleshooting or replacing the pump.
To locate the fuel pump, start by identifying the fuel tank. On most Ford Ranger models, the tank is a rectangular or oval-shaped unit secured by straps and bolts. The pump assembly is attached to the top of the tank, accessible through a service panel or by lowering the tank itself. For 1995–2011 models, the tank is typically found just behind the driver’s side rear tire, while newer models may have slight variations. Always consult your vehicle’s manual for model-specific details.
Accessing the fuel pump requires safety precautions. Begin by relieving the fuel system pressure using the Schrader valve on the fuel rail. Disconnect the battery to prevent accidental sparks, and ensure the truck is on a flat surface with jack stands for stability. If the tank needs to be lowered, use a floor jack and support it securely before unbolting the straps. Avoid working on a full tank, as fuel spillage can be hazardous and complicate the process.
Once the tank is accessible, the fuel pump module is usually held in place by a locking ring or retaining mechanism. Use a specialized tool to release the ring and carefully lift the module out. Inspect the pump, filter, and sender unit for damage or wear. Replacement kits often include detailed instructions, but if you’re unsure, consult a professional to avoid costly mistakes. Properly locating and accessing the pump ensures a smoother repair or maintenance process.
Understanding the fuel pump’s position in your Ford Ranger isn’t just about convenience—it’s about efficiency and safety. By familiarizing yourself with the tank’s location, taking necessary precautions, and following a systematic approach, you can tackle fuel pump issues with confidence. Whether you’re a DIY enthusiast or preparing for a professional repair, knowing where to start is half the battle.
