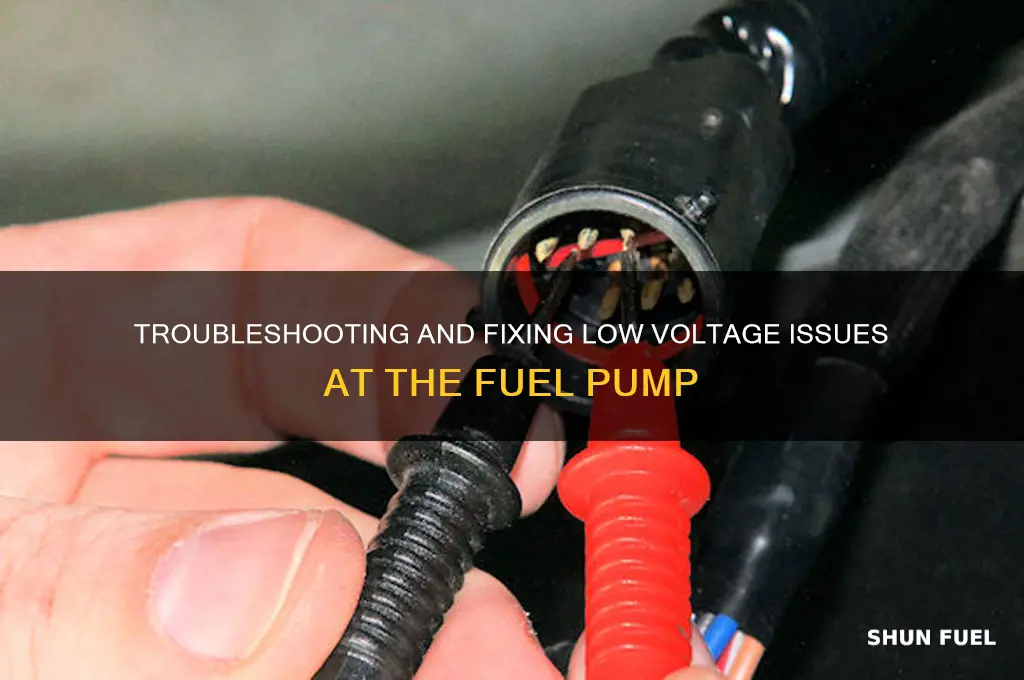

Low voltage issues at the fuel pump can lead to poor engine performance, stalling, or even failure to start. This problem often arises from weak or corroded electrical connections, a faulty fuel pump relay, a failing alternator, or a drained battery. Diagnosing the root cause involves checking the voltage at the fuel pump connector, inspecting wiring for damage, and testing related components like the relay and fuse. Solutions may include cleaning or replacing connections, installing a new relay, or addressing broader electrical system issues such as a malfunctioning alternator or battery. Proper troubleshooting and repair are essential to restore reliable fuel delivery and ensure optimal vehicle operation.
| Characteristics | Values |
|---|---|
| Common Causes | Faulty wiring, corroded connectors, weak battery, bad fuse, relay failure |
| Diagnostic Tools | Multimeter, voltage drop tester, fuel pressure gauge |
| Steps to Fix | 1. Check battery voltage 2. Inspect fuses and relays 3. Test wiring continuity 4. Clean or replace connectors 5. Verify ground connections 6. Replace faulty components |
| Preventive Measures | Regularly inspect wiring, clean connectors, maintain battery health |
| Symptoms of Low Voltage | Engine sputtering, difficulty starting, reduced power, stalling |
| Optimal Voltage Range | Typically 12V (static) and 13.5-14.5V (running) at the fuel pump |
| Professional Assistance | Recommended if issue persists after basic troubleshooting |
| Cost of Repairs | Varies: $50-$200 (DIY) to $200-$500+ (professional repair) |
| Common Affected Vehicles | Older vehicles, high-mileage cars, vehicles with aftermarket modifications |
| Safety Precautions | Disconnect battery before working on electrical components |
