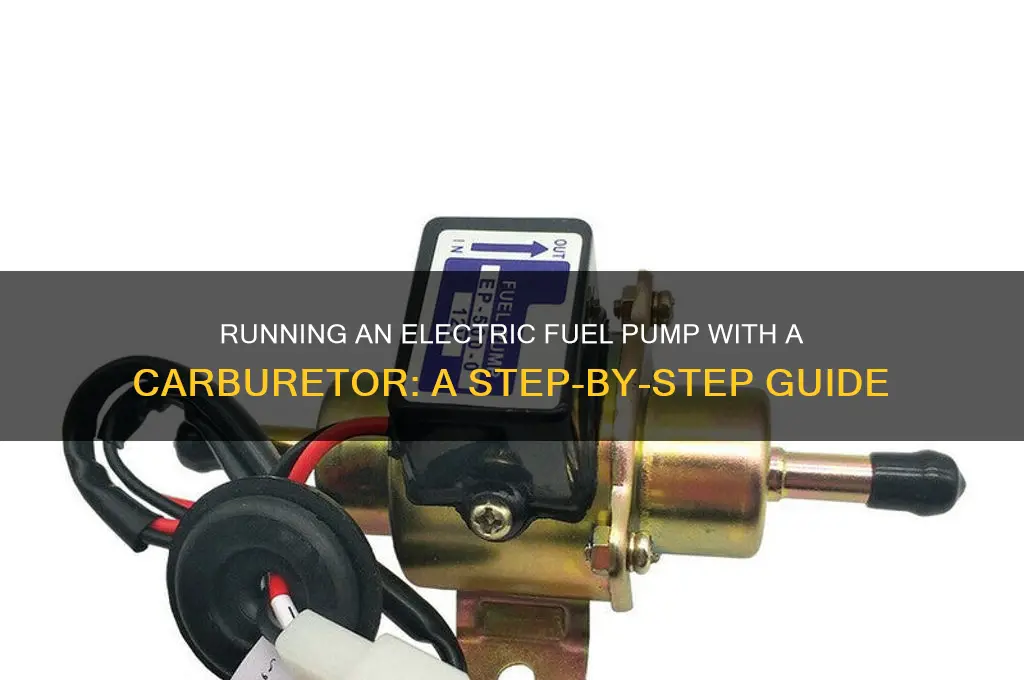

Running an electric fuel pump with a carburetor requires careful integration to ensure consistent fuel delivery and optimal engine performance. Unlike mechanical fuel pumps, electric pumps offer greater control and reliability, but they must be properly matched to the carburetor’s fuel demands. To begin, select an electric fuel pump with a flow rate and pressure suitable for your carburetor’s requirements, typically measured in gallons per hour (GPH) and pounds per square inch (PSI). Install the pump in-line between the fuel tank and carburetor, ensuring it is mounted below the fuel level to prevent airlocks. Use a fuel pressure regulator to maintain the correct pressure, as excessive pressure can overwhelm the carburetor and cause flooding. Additionally, incorporate an inline fuel filter to protect the carburetor from debris. Wiring the pump to a switched power source ensures it operates only when the engine is running, conserving energy and reducing the risk of fuel system issues. Finally, test the system for leaks and proper fuel delivery before starting the engine to ensure seamless operation.
Explore related products
What You'll Learn
Wiring the Pump to the Ignition
Integrating an electric fuel pump with a carburetor requires precise wiring to ensure the pump activates only when the engine is running. The ignition switch serves as the ideal control point, allowing the pump to operate solely during engine operation, which prevents fuel pressure buildup when the vehicle is off. To achieve this, connect the pump’s power wire directly to the ignition-switched accessory circuit (typically the "IGN" terminal on the fuse box or relay panel). This ensures the pump receives power only when the key is in the "ON" or "START" position, aligning pump operation with engine demand.
A common mistake in this setup is wiring the pump directly to the battery, which keeps the pump running continuously, leading to excessive fuel pressure and potential safety hazards. Instead, use a relay to manage the pump’s power draw efficiently. Connect the relay’s coil to the ignition-switched circuit and the relay’s output to the pump. This setup isolates the pump’s high-current draw from the ignition system, reducing the risk of electrical overload. A 30-amp relay is typically sufficient for most electric fuel pumps, ensuring reliable operation without straining the wiring harness.
For added safety and control, incorporate a fuel pump fuse and an inertia switch into the wiring. Install a 10–20 amp fuse in the power line between the relay and the pump to protect against short circuits. The inertia switch, mounted in the passenger compartment, automatically cuts power to the pump in the event of a collision, minimizing fire risks. Route the wiring away from hot surfaces and sharp edges, using heat-resistant loom for protection. This layered approach ensures both functionality and safety in the fuel pump’s ignition-controlled operation.
Testing the wiring is crucial before finalizing the installation. With the key in the "OFF" position, verify that the pump does not run. Turn the key to "ON" and listen for the pump’s priming cycle, which should last 2–3 seconds as it pressurizes the fuel system. Start the engine and confirm the pump remains active. If the pump fails to shut off when the key is turned off, recheck the wiring for direct battery connections or relay malfunctions. Properly executed, this wiring configuration ensures the electric fuel pump operates seamlessly with the carburetor, optimizing performance while maintaining safety.
