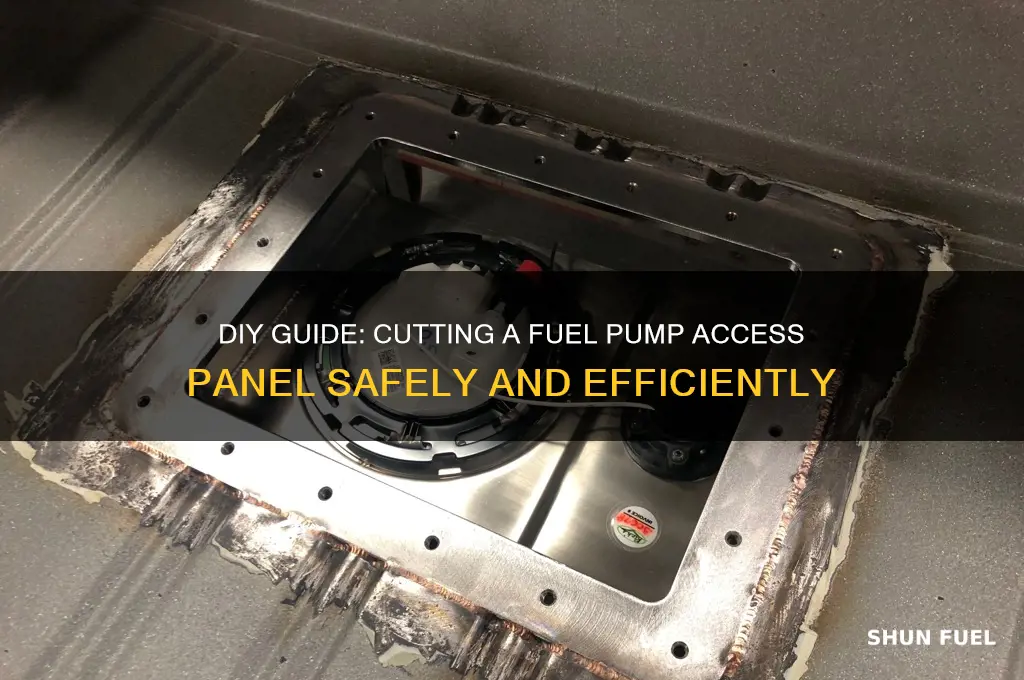

Cutting a fuel pump access panel is a crucial step in accessing and servicing the fuel pump of a vehicle, requiring precision and the right tools to ensure safety and efficiency. Before beginning, it is essential to gather materials such as a metal-cutting blade, a reciprocating saw or angle grinder, safety gear including gloves and goggles, and a template or measurements to ensure an accurate cut. Start by locating the fuel pump area, typically beneath the rear seat or trunk, and mark the panel’s dimensions carefully. Using the chosen cutting tool, make clean, straight cuts along the marked lines, taking care to avoid damaging nearby components or fuel lines. Once the panel is removed, inspect the area for any debris or sharp edges, smoothing them as needed to prevent future issues. This process not only facilitates fuel pump maintenance but also ensures the vehicle’s structural integrity and safety.
| Characteristics | Values |
|---|---|
| Tools Required | Angle grinder, reciprocating saw, jigsaw, metal cutting blade, safety gear (gloves, eye protection, respirator) |
| Material of Panel | Typically steel or aluminum, thickness varies by vehicle |
| Location of Panel | Usually found on the top or side of the fuel tank, consult vehicle manual for exact location |
| Cutting Method | Use an angle grinder or reciprocating saw with a metal cutting blade; follow the marked outline or template |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel system pressure, avoid sparks near fuel vapors |
| Panel Size | Varies by vehicle; measure and mark the required size before cutting |
| Edge Finishing | Deburr and smooth edges with a file or sandpaper to prevent sharp edges |
| Reinstallation | Secure the panel with appropriate fasteners (bolts, screws) and ensure a tight seal to prevent leaks |
| Alternative Methods | Some vehicles may allow access without cutting, such as removable panels or existing access points |
| Professional Assistance | Recommended for complex or high-risk situations, especially if unsure about safety procedures |
Explore related products
What You'll Learn
- Tools Needed: Gather tin snips, drill, safety gear, marker, and measuring tape for precise panel cutting
- Marking the Panel: Measure and outline the panel area using a template or fuel pump specs
- Drilling Starter Holes: Drill small holes at corners to guide tin snips for clean cuts
- Cutting the Panel: Use tin snips to carefully cut along marked lines, avoiding jagged edges
- Smoothing Edges: File or sand sharp edges to ensure safety and prevent damage to components
Tools Needed: Gather tin snips, drill, safety gear, marker, and measuring tape for precise panel cutting
Cutting a fuel pump access panel requires precision and the right tools to ensure safety and efficiency. Among the essentials are tin snips, a drill, safety gear, a marker, and a measuring tape. Each tool plays a distinct role in the process, from marking the cut lines to executing clean, accurate cuts. Without these, you risk uneven edges, incorrect sizing, or even personal injury, turning a straightforward task into a frustrating ordeal.
Tin snips are the backbone of this operation, designed to cut through sheet metal with minimal effort. Choose aviation snips for straight or gentle curves, or compound-action snips for thicker materials. When using them, apply steady pressure and follow your marked lines closely. A common mistake is forcing the tool, which can lead to jagged edges or broken blades. Always cut slightly outside your marked line to account for the snips’ blade width, ensuring the final panel fits perfectly.
Safety gear is non-negotiable. Wear gloves to protect against sharp metal edges, safety goggles to shield your eyes from debris, and a dust mask to avoid inhaling metal particles. Even a small oversight here can lead to serious injury. For example, a single metal shaving in the eye can cause permanent damage, while inhaling dust over time can lead to respiratory issues. Treat safety as a priority, not an afterthought.
The drill serves a dual purpose: creating pilot holes for the tin snips and securing the panel afterward. Use a 1/8-inch bit to drill starter holes along your cut line, making it easier to insert the snips. After cutting, these holes can be used to fasten the panel with screws or rivets. Ensure the drill is set to the correct speed to avoid overheating or damaging the metal. A steady hand and deliberate motion are key to maintaining control.
A marker and measuring tape are your guides to precision. Measure twice, mark once—this adage holds true here. Use the tape to determine the exact dimensions of the panel, then mark the lines clearly with a permanent marker. Double-check alignment by holding the panel in place before cutting. This step prevents costly mistakes, such as cutting too much material or misaligning the panel, which can compromise the fuel system’s integrity.
In summary, gathering the right tools—tin snips, a drill, safety gear, a marker, and measuring tape—transforms a potentially daunting task into a manageable one. Each tool has a specific function, and using them correctly ensures a clean, safe, and precise cut. Skimping on preparation or tools will only lead to frustration and risk, so invest the time and effort upfront for a job well done.
Does a Carburetor Require a Fuel Pump? Essential Insights Explained
You may want to see also
Explore related products
Marking the Panel: Measure and outline the panel area using a template or fuel pump specs
Precision is paramount when marking the panel for a fuel pump access cut. A single mismeasurement can lead to structural damage, compromised safety, or costly rework. Begin by gathering the fuel pump’s specifications, typically found in the vehicle’s service manual or manufacturer’s documentation. These specs outline the exact dimensions required for the access panel, ensuring compatibility and functionality. If a template is available—either provided by the pump manufacturer or created from a pre-existing panel—use it as a guide. Place the template on the fuel tank’s surface, aligning it with the pump’s mounting points to guarantee accuracy. Without a template, manually measure the required dimensions using a ruler or calipers, double-checking each mark to avoid errors.
The act of outlining the panel area is both an art and a science. Start by lightly tracing the template’s edges with a permanent marker or scribe tool, ensuring the line is visible but not overly intrusive. If working without a template, use a straightedge to connect measured points, maintaining clean, sharp lines. Consider the material of the fuel tank—whether steel, aluminum, or plastic—as this influences the marking tool’s effectiveness. For reflective surfaces, masking tape can serve as a temporary guide, allowing for precise marking without slipping. Always account for any additional clearance needed around the pump, typically 1–2 millimeters, to accommodate installation and future maintenance.
A comparative approach highlights the advantages of using a template versus manual measurement. Templates eliminate guesswork, reduce the risk of human error, and save time, making them ideal for professionals or repeat installations. However, they may not always be available or affordable. Manual measurement, while more labor-intensive, offers flexibility and can be tailored to unique tank configurations. Whichever method is chosen, the goal remains the same: create a clear, accurate outline that serves as the foundation for the cutting process.
Finally, a persuasive argument for meticulous marking cannot be overstated. A well-marked panel ensures a seamless fit, minimizes the risk of leaks, and preserves the tank’s structural integrity. Rushed or inaccurate markings can lead to costly mistakes, from purchasing incorrect replacement parts to causing irreversible damage to the tank. Invest time in this step, using the right tools and double-checking measurements. The effort pays dividends in the form of a professional-grade installation that stands the test of time and use. Treat marking as the critical first step it is—the blueprint for a successful fuel pump access panel cut.
Exploring the 1997 Ford Explorer's Fuel Pump Configuration: Single or Multiple?
You may want to see also
Explore related products
Drilling Starter Holes: Drill small holes at corners to guide tin snips for clean cuts
Drilling starter holes is a pivotal step in cutting a fuel pump access panel, ensuring precision and minimizing the risk of jagged edges or material warping. By creating small pilot holes at the corners of your marked cutting line, you establish a clear path for your tin snips, effectively turning a freehand task into a guided process. This technique is particularly useful when working with thin metal sheets, where the slightest misalignment can lead to uneven cuts or unintended damage.
Consider the analogy of threading a needle: just as a pre-made hole guides the thread, starter holes act as anchors for your cutting tool. For optimal results, use a 1/8-inch drill bit, which is small enough to maintain structural integrity yet large enough to accommodate the tin snips’ blades. Position each hole directly at the corners of your cutting layout, ensuring they are evenly spaced and aligned with your measurements. This method not only enhances accuracy but also reduces the physical strain of cutting through metal, as the snips can pivot smoothly around these points.
While drilling starter holes may seem like an extra step, it’s a time-saving measure in the long run. Without them, tin snips can slip or bind, leading to uneven cuts that require additional filing or sanding. Moreover, this technique is especially valuable when working with older vehicles or panels with corrosion, where the metal is more prone to cracking or splintering. By investing a few minutes in drilling these holes, you safeguard against costly mistakes and ensure a professional finish.
A practical tip: mark your cutting line with a permanent marker or scribe before drilling to maintain visibility. If your panel has a protective coating, lightly score the line with a utility knife to prevent the marker from smudging. Once the starter holes are in place, insert the tin snips into one hole and carefully follow the marked path, using the adjacent holes as pivot points. This approach not only yields cleaner cuts but also preserves the structural integrity of the panel, which is critical in fuel system applications where safety and precision are non-negotiable.
Honda Shadow 1100 ACE 1996: Fuel Pump Presence Explained
You may want to see also
Explore related products
Cutting the Panel: Use tin snips to carefully cut along marked lines, avoiding jagged edges
Cutting a fuel pump access panel requires precision and the right tools. Tin snips are the ideal choice for this task due to their ability to navigate tight curves and deliver clean cuts through sheet metal. Unlike power tools, which can be unwieldy or risk damaging nearby components, tin snips offer control and accuracy. Begin by firmly gripping the snips and positioning the blades at the start of your marked line. Apply steady pressure, allowing the tool to do the work without forcing it, which can lead to jagged edges or metal fatigue.
The technique for cutting with tin snips involves a rhythmic motion, similar to using scissors but with deliberate force. For straight lines, maintain consistent pressure and keep the blades aligned with your markings. When navigating curves, pivot the snips slightly with each cut, ensuring the blades follow the contour smoothly. Avoid the temptation to rush—speed increases the likelihood of errors, such as slipping or creating uneven edges. Patience is key to achieving a professional finish that fits seamlessly when reassembled.
Jagged edges are more than an aesthetic issue; they pose practical risks. Sharp burrs can snag on fuel lines, wiring, or insulation, potentially causing damage or creating safety hazards. To prevent this, deburr the edges immediately after cutting using a metal file or sanding tool. Run your gloved finger along the cut edge to identify any rough spots, and smooth them until the surface is safe to handle. This extra step ensures the panel is both functional and hazard-free.
For those new to working with sheet metal, practice on a scrap piece before tackling the actual panel. This allows you to familiarize yourself with the tool’s handling and pressure required. Additionally, consider using a marker to darken your cutting lines for better visibility, especially in low-light conditions. By combining the right tool, proper technique, and attention to detail, cutting a fuel pump access panel becomes a manageable task that yields clean, professional results.
Understanding the Johnson 30 HP Fuel Pump's Operation and Functionality
You may want to see also
Explore related products
Smoothing Edges: File or sand sharp edges to ensure safety and prevent damage to components
Sharp edges left after cutting a fuel pump access panel pose immediate risks: they can snag clothing, cut skin, or abrade nearby wires and hoses. Even a single burr on the metal edge can compromise the integrity of a fuel line or insulation over time. Smoothing these edges isn’t just cosmetic—it’s a critical safety and maintenance step.
Filing offers precision for tight spaces and stubborn burrs. Use a flat metal file with a medium grit (150-180) to methodically stroke the edge in one direction, avoiding back-and-forth motions that can dull the file. For curved edges or intricate areas, a round or half-round file provides better control. Always wear gloves and safety goggles, as metal filings can be sharp and airborne.
Sanding is faster and more efficient for larger, flatter surfaces. Start with 80-grit sandpaper to remove rough edges, then progress to 120-grit for smoothing, and finish with 220-grit for a polished feel. Attach the sandpaper to a flat block for even pressure, or use a sanding sponge for contours. Electric sanders save time but require caution to avoid overheating the metal or removing too much material.
Compare the two methods: filing is ideal for detail work and areas where power tools can’t reach, while sanding is better for speed and uniformity. Whichever you choose, test the edge with your gloved hand frequently to ensure it’s smooth to the touch. A single sharp spot can undo your work, so thoroughness is key.
The final step is a practical tip: run a piece of cloth or a soft brush along the edge to catch any remaining metal shavings. These can accumulate in the fuel tank or around components, leading to long-term damage. By smoothing edges meticulously, you not only protect yourself but also extend the life of your vehicle’s critical systems.
Understanding Dual Action Fuel Pumps: Functionality and Benefits Explained
You may want to see also
Frequently asked questions
You will need a reciprocating saw or a rotary cutoff tool, a metal-cutting blade, safety gear (gloves, goggles, and a mask), a marker, a straight edge, and a drill with a metal bit for pilot holes.
Use a marker and a straight edge to outline the dimensions of the access panel. Ensure the area is clear of any fuel lines, wiring, or other components. Double-check measurements before cutting.
In most cases, yes. However, it’s crucial to relieve fuel system pressure, disconnect the battery, and ensure the area is free of flammable materials before cutting. Always refer to your vehicle’s manual for specific instructions.
Wear safety gear, work in a well-ventilated area, and ensure there are no open flames or sparks nearby. Relieve fuel system pressure, disconnect the battery, and have a fire extinguisher on hand as a precaution.
Use a sharp metal-cutting blade, secure the work area to prevent movement, and cut slowly to avoid jagged edges. Sand or file the edges after cutting to smooth them and prevent injury.
