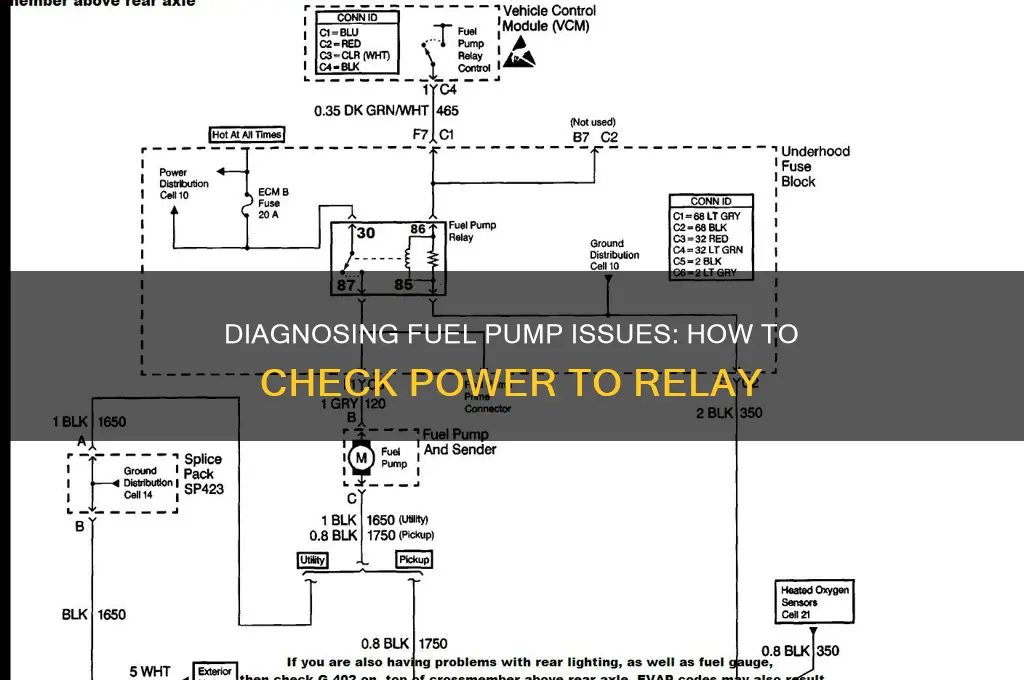

Checking the power to a fuel pump relay is a crucial diagnostic step when troubleshooting fuel system issues in a vehicle. The fuel pump relay acts as a switch, controlling the flow of electricity to the fuel pump, ensuring it operates only when the engine is running or being started. To verify power to the relay, start by locating it in the fuse box or relay panel, typically found under the hood or inside the cabin. Use the vehicle’s manual to identify the correct relay. With the ignition on, use a multimeter to test for voltage at the relay’s power input terminal, usually pin 87 or 30, depending on the relay type. If voltage is present, check the ground connection and the signal from the engine control unit (ECU) to ensure the relay is receiving the necessary inputs. If power is absent, inspect the fuse, wiring, and connections for faults. This process helps determine whether the issue lies with the relay, the power supply, or another component in the fuel system.
| Characteristics | Values |
|---|---|
| Purpose | To verify if the fuel pump relay is receiving power and functioning correctly. |
| Tools Required | Multimeter, test light, or voltmeter. |
| Safety Precautions | Disconnect the battery before testing to avoid electrical hazards. |
| Locate the Relay | Consult the vehicle's manual to find the fuel pump relay in the fuse box. |
| Check Power Supply | Test the relay's input terminal for battery voltage (typically 12V). |
| Test Ground Connection | Ensure the relay's ground terminal is connected and not corroded. |
| Activate the Relay | Turn the ignition to the "ON" position to energize the relay. |
| Measure Output Voltage | Check the relay's output terminal for voltage when activated. |
| Listen for Fuel Pump Operation | Have an assistant turn the key while you listen for the fuel pump humming. |
| Common Issues | Blown fuse, faulty relay, bad ground, or wiring issues. |
| Replacement | Replace the relay if it fails to supply power to the fuel pump. |
| Professional Assistance | Consult a mechanic if the issue persists after basic checks. |
Explore related products
What You'll Learn
- Locate Relay: Identify relay position in fuse box using vehicle manual or diagram
- Test Voltage: Use multimeter to check power supply at relay terminals
- Inspect Connections: Ensure relay plugs are clean, secure, and free of corrosion
- Swap Relays: Test by replacing with a similar relay to check functionality
- Ground Verification: Confirm proper grounding of relay circuit for accurate operation
Locate Relay: Identify relay position in fuse box using vehicle manual or diagram
The fuse box, often a labyrinth of switches and relays, can be daunting to navigate. But locating the fuel pump relay is crucial for diagnosing potential issues. Your vehicle’s manual or diagram is the Rosetta Stone here, translating the cryptic arrangement into actionable knowledge. Without it, you’re essentially searching for a needle in a haystack. Most manuals provide a detailed layout of the fuse box, labeling each component, including the fuel pump relay. If your manual is missing, online resources or a quick call to your dealership can often provide a digital copy.
Analyzing the diagram, you’ll notice relays are typically grouped by function, with the fuel pump relay often near other engine-related components. Look for symbols resembling a rectangle with a diagonal line or a coil, which commonly represent relays. The diagram may also include a legend, decoding these symbols for clarity. If the diagram is color-coded, relays might be highlighted in a distinct shade, making them easier to spot. Cross-referencing the diagram with the physical fuse box ensures accuracy, as some vehicles may have slight variations in layout.
Persuasively, using the manual or diagram isn’t just about convenience—it’s about safety and efficiency. Attempting to locate the relay through trial and error risks damaging other components or misidentifying the correct relay. For instance, confusing the fuel pump relay with the A/C compressor relay could lead to unnecessary troubleshooting. The manual’s precision saves time and prevents errors, especially in newer vehicles where components are densely packed. It’s a small step that pays dividends in both accuracy and peace of mind.
Comparatively, while some vehicles place the fuel pump relay in the engine bay fuse box, others house it in the cabin’s interior fuse panel. This variation underscores the importance of consulting the manual. For example, in a 2015 Toyota Camry, the fuel pump relay is located in the engine bay fuse box, marked as “EFI MAIN.” In contrast, a 2018 Honda Civic positions it in the under-dash fuse box, labeled “PGM-FI MAIN.” Knowing these differences ensures you’re looking in the right place from the start.
Descriptively, the fuel pump relay itself is usually a small, rectangular component with four to five pins. It’s often black or gray, blending in with the surrounding fuses. Once you’ve identified its position via the diagram, physically locating it in the fuse box becomes straightforward. Use a flashlight if necessary, as the area can be dimly lit. Gently probing with your fingers or a non-conductive tool can help confirm its placement. With the relay identified, you’re now poised to proceed with testing its power supply, a critical step in diagnosing fuel system issues.
Step-by-Step Guide to Mounting a Holley Blue Fuel Pump
You may want to see also
Explore related products
Test Voltage: Use multimeter to check power supply at relay terminals
A multimeter is an indispensable tool for diagnosing fuel pump relay issues, offering a direct window into the electrical health of your vehicle's fuel system. By measuring voltage at the relay terminals, you can pinpoint whether the relay is receiving the necessary power to activate the fuel pump. This process is straightforward but requires precision to avoid misdiagnosis. Start by locating the fuel pump relay in your vehicle’s fuse box, typically found under the hood or near the driver’s side dashboard. Consult your vehicle’s manual for the exact location, as it varies by make and model.
To test the voltage, set your multimeter to the DC voltage setting, usually marked with a "V" and a dashed line. Ensure the range is appropriate for automotive systems, typically 20V or higher. Connect the multimeter’s red probe to the relay’s power input terminal (usually marked as "87") and the black probe to a good ground, such as the battery negative terminal. With the ignition in the "on" position, the multimeter should display 12V, indicating power is reaching the relay. If no voltage is detected, the issue likely lies in the wiring or fuse supplying power to the relay.
Next, test the relay’s control circuit by probing the terminals that receive the activation signal from the engine control unit (ECU). These are often marked as "85" (ground) and "86" (signal). Turn the ignition to the "on" position and have an assistant crank the engine. The multimeter should show a momentary voltage drop, typically 12V, as the ECU sends the activation signal. If no signal is detected, the ECU or wiring to the relay may be faulty. Always ensure the multimeter leads are securely connected to avoid false readings.
A critical caution: never probe high-current terminals (like "30" or "87") while the relay is energized, as this can damage the multimeter or cause a short circuit. Instead, test these terminals with the ignition off. Additionally, be mindful of the relay’s orientation, as terminals vary by manufacturer. Misidentifying terminals can lead to incorrect diagnoses. For example, confusing the ground terminal ("85") with the signal terminal ("86") will yield misleading results.
In conclusion, testing voltage at the fuel pump relay terminals with a multimeter is a systematic process that requires attention to detail. By verifying power and control signals, you can isolate whether the relay, wiring, or ECU is at fault. This method not only saves time but also prevents unnecessary part replacements. Always prioritize safety, ensuring the vehicle is off when probing high-current terminals and double-checking terminal identification. With practice, this technique becomes second nature, empowering you to diagnose fuel system issues with confidence.
Diagnosing Fuel Pump Relay Issues in Your 2006 BMW 525i
You may want to see also
Explore related products
Inspect Connections: Ensure relay plugs are clean, secure, and free of corrosion
Corroded or loose relay plugs can disrupt the electrical circuit, preventing power from reaching the fuel pump. Even a minor buildup of oxidation or a slightly misaligned connection can cause voltage drops, leading to erratic fuel pump operation or complete failure. Before replacing components, inspect the relay plugs as a first diagnostic step.
Begin by locating the fuel pump relay, typically found in the fuse box under the hood or near the firewall. Consult your vehicle’s manual for the exact location. With the ignition off, remove the relay by gently pulling it straight out of its socket. Examine the plug terminals for signs of corrosion, such as greenish deposits or blackened surfaces. Use a magnifying glass if necessary to spot subtle damage. Clean the terminals with a wire brush or fine-grit sandpaper, ensuring all residue is removed. For stubborn corrosion, apply a small amount of electrical contact cleaner and allow it to dry completely.
Reinsert the relay, ensuring it clicks securely into place. Wiggle the relay slightly to confirm it’s seated firmly. Loose connections can cause intermittent power loss, mimicking fuel pump failure. If the relay feels unstable, inspect the socket for bent pins or damage. In severe cases, replace the relay or socket to restore proper contact.
Prevent future issues by applying a thin layer of dielectric grease to the relay terminals. This protects against moisture and corrosion, especially in humid climates. Regularly inspect connections during routine maintenance, particularly if you notice symptoms like hard starting or stalling. Addressing these small details can save time and money by avoiding misdiagnosis and unnecessary part replacements.
Hyundai Elantra 2009: Fuel Pump Relay Location and Function Explained
You may want to see also
Explore related products
$22.12 $23.37
Swap Relays: Test by replacing with a similar relay to check functionality
Swapping relays is a straightforward yet effective method to diagnose fuel pump relay issues. Begin by identifying a relay in your vehicle that matches the fuel pump relay’s pin configuration and voltage rating—often, the horn or radiator fan relay works. With the ignition off, locate both relays under the hood or in the fuse box. Swap their positions, then attempt to start the vehicle. If the fuel pump now operates, the original relay is faulty. This test isolates the problem to the relay itself, eliminating other potential causes like wiring or the pump.
Steps to Execute the Swap:
- Locate Relays: Consult your vehicle’s manual to identify the fuel pump relay and a compatible substitute.
- Swap Relays: With the ignition off, pull out the fuel pump relay and insert the substitute into its slot, then place the fuel pump relay into the substitute’s slot.
- Test Functionality: Turn the ignition to the "on" position (not start) and listen for the fuel pump’s priming hum. Alternatively, use a multimeter to check for power at the fuel pump connector.
- Evaluate Results: If the pump operates, the original relay is defective. If not, the issue may lie elsewhere, such as a faulty pump or wiring.
Cautions to Consider:
Always ensure the ignition is off during the swap to prevent electrical shorts. Avoid using relays with different voltage or amperage ratings, as this can damage the circuit. If unsure about compatibility, cross-reference part numbers or consult a professional. Additionally, some relays have diode configurations specific to their function, so prioritize relays with identical designs.
Practical Tips for Success:
Label the relays before swapping to avoid confusion. If the substitute relay is in a critical system (e.g., cooling fan), limit the test duration to prevent overheating. Carry a spare relay of the correct type to expedite repairs if the original is confirmed faulty. This method is particularly useful in older vehicles where diagnostic tools may be less accessible.
By systematically swapping relays, you can quickly pinpoint whether the fuel pump relay is the culprit, saving time and avoiding unnecessary part replacements. This approach is a cost-effective, hands-on solution that leverages existing components for accurate troubleshooting.
Intermittent Fuel Pump Failure: Causes, Symptoms, and Troubleshooting Tips
You may want to see also
Explore related products
Ground Verification: Confirm proper grounding of relay circuit for accurate operation
A poorly grounded relay circuit can lead to erratic fuel pump operation, causing symptoms like hard starting, stalling, or reduced engine performance. Ground verification is a critical step in diagnosing fuel pump relay issues, as a weak or absent ground connection can mimic power supply problems. To begin, locate the fuel pump relay in your vehicle’s fuse box or under the hood, typically near the battery or firewall. Consult your vehicle’s manual for the exact location, as placement varies by make and model.
Once identified, use a multimeter set to the continuity or resistance mode to test the ground circuit. Disconnect the relay and identify the ground pin, often labeled as "87" or "GND" on the relay’s base. Attach one multimeter lead to the ground pin and the other to a known good ground, such as the battery negative terminal. A reading of near 0 ohms indicates a solid ground, while high resistance or an open circuit suggests a grounding issue. If the ground is faulty, inspect the wiring harness for corrosion, loose connections, or damaged insulation.
For a more dynamic test, perform a voltage drop test under load. With the ignition on, connect the multimeter in voltage mode across the ground circuit while operating the fuel pump. A voltage drop exceeding 0.1 volts indicates excessive resistance in the ground path. This method is particularly useful for identifying intermittent issues that may not appear during static testing. Always ensure the vehicle is in a safe, well-ventilated area and the ignition is off when working on electrical systems.
Comparing ground verification to power supply testing highlights its importance: while power supply issues are often straightforward, grounding problems can be subtle and easily overlooked. A weak ground not only affects the fuel pump relay but can also impact other systems sharing the same ground point. For example, a faulty ground might cause the fuel pump to operate intermittently while simultaneously triggering dashboard warning lights or affecting the ECU’s performance.
In conclusion, ground verification is a diagnostic cornerstone for ensuring the fuel pump relay operates reliably. By systematically testing for continuity, resistance, and voltage drop, you can pinpoint grounding issues that might otherwise go unnoticed. Addressing these problems not only resolves fuel pump malfunctions but also contributes to the overall electrical health of your vehicle. Always prioritize safety and precision when working with automotive electrical systems, and consider consulting a professional if uncertainties arise.
Husqvarna 340 Fuel Pump: Does This Chainsaw Model Have One?
You may want to see also
Frequently asked questions
The fuel pump relay is typically located in the fuse box under the hood or near the driver's side dashboard. Refer to your vehicle's manual for the exact location, as it varies by make and model.
You will need a multimeter to test voltage, a wiring diagram for your vehicle, and possibly a relay puller or pliers to remove the relay safely.
Use a multimeter to check for voltage at the relay's input and output terminals. With the ignition on, the input terminal should show battery voltage, and the output terminal should show voltage when the relay is activated. If no voltage is present, the issue may be with the wiring or the relay itself.
