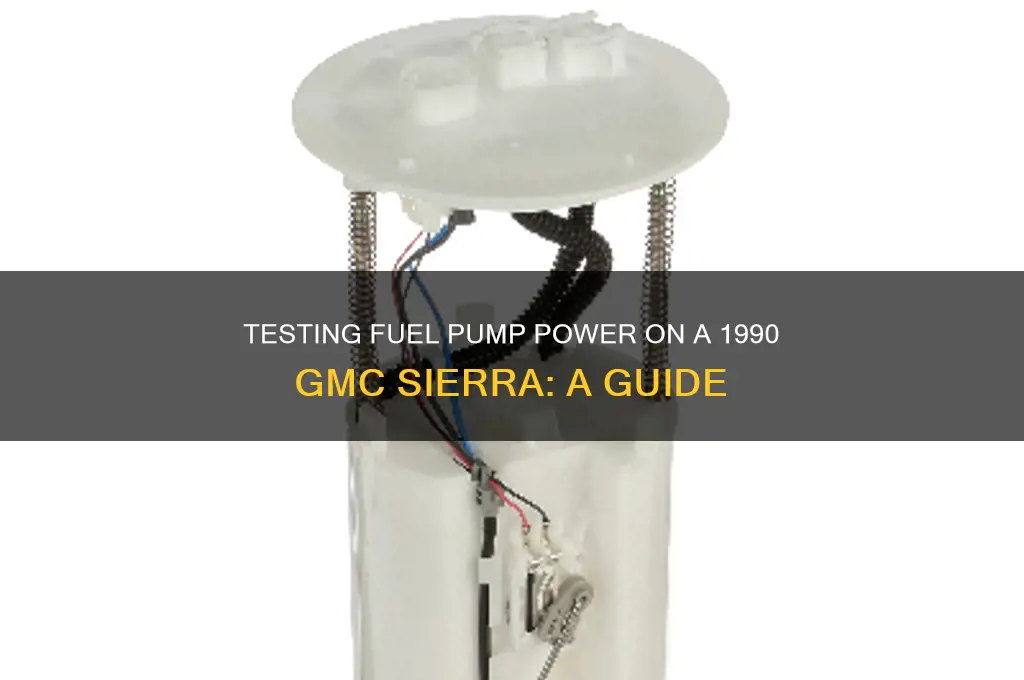

Checking the power to the fuel pump on a 1990 GMC Sierra is a critical step in diagnosing fuel system issues, such as a no-start condition or poor engine performance. To begin, locate the fuel pump relay, typically found in the underhood fuse/relay box, and identify the fuel pump fuse in the interior fuse panel. Using a multimeter, test the relay’s power supply by checking for voltage at the relay’s input and output terminals with the key in the on position. Next, verify power at the fuel pump connector by accessing it through the fuel tank or using a test light at the connector under the seat or in the cab. Ensure the fuel pump ground is also intact, as a faulty ground can prevent proper operation. If power and ground are confirmed but the pump isn’t functioning, the pump itself may be faulty and require replacement. Always exercise caution when working with electrical systems and fuel components to avoid hazards.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1990 GMC Sierra |
| Fuel Pump Location | Inside the fuel tank |
| Power Source | 12V DC from the vehicle's electrical system |
| Fuse Location | Under the hood in the fuse box (check owner's manual for specific fuse) |
| Relay Location | Under the hood in the relay center (check owner's manual for specific relay) |
| Wiring Diagram | Available in the vehicle's service manual or online resources |
| Voltage Check Points | Fuel pump connector, fuse, relay, and battery |
| Tools Required | Multimeter, screwdriver, and possibly a fuel pump pressure tester |
| Safety Precautions | Disconnect battery, relieve fuel system pressure, work in a ventilated area |
| Steps to Check Power | 1. Locate fuel pump connector 2. Disconnect connector 3. Turn ignition to "ON" 4. Check for 12V at the connector using a multimeter |
| Common Issues | Blown fuse, faulty relay, damaged wiring, or a bad fuel pump |
| Diagnostic Codes | None specific for fuel pump power; use a scanner for related codes |
| Replacement Parts | Fuel pump, fuse, relay, wiring harness (if damaged) |
| Professional Assistance | Recommended if unsure or if issues persist after basic checks |
| Additional Tips | Always refer to the vehicle's service manual for accurate information |
Explore related products
What You'll Learn
Locate the Fuel Pump Fuse and Relay
The fuel pump fuse and relay are critical components in ensuring your 1990 GMC Sierra’s fuel system operates correctly. Locating these parts is the first step in diagnosing power issues to the fuel pump. Start by consulting your vehicle’s manual, which typically provides a diagram of the fuse box and relay locations. For a 1990 GMC Sierra, the fuse box is often found under the dashboard on the driver’s side, while the relay may be housed in a separate panel under the hood. Familiarizing yourself with these locations saves time and prevents unnecessary disassembly of other components.
Once you’ve identified the fuse box, locate the fuse specifically labeled for the fuel pump. It’s usually a higher-amp fuse, often rated at 15 to 20 amps, to handle the pump’s power demands. Use a fuse puller or needle-nose pliers to carefully remove the fuse and inspect it for signs of damage, such as a broken filament or discoloration. A blown fuse is a common culprit for fuel pump power loss and is a straightforward fix. If the fuse appears intact, reinsert it and proceed to check the relay.
The fuel pump relay is a switch that controls power to the pump, often activated when the ignition is turned on. In the 1990 GMC Sierra, the relay is typically located in the under-hood fuse/relay box. Relays can fail due to age, heat, or electrical issues, so testing it is crucial. Swap the fuel pump relay with another relay of the same type (e.g., the horn relay) to see if the pump engages. If the pump works after swapping, the relay is likely faulty and needs replacement.
When working with fuses and relays, always ensure the ignition is off to avoid electrical hazards. Keep a multimeter handy to test for continuity in the fuse or voltage at the relay terminals if you’re comfortable with basic electrical diagnostics. If you’re unsure, consult a professional to avoid misdiagnosis or further damage. Properly locating and testing the fuel pump fuse and relay can save you from unnecessary repairs and get your Sierra back on the road efficiently.
Diagnosing Your Vehicle: How to Check if a Fuel Pump is Working
You may want to see also
Explore related products
Test for Power at the Fuel Pump Connector
The fuel pump connector is a critical junction in your 1990 GMC Sierra's fuel delivery system, and testing for power here can quickly diagnose whether the issue lies with the pump itself or the electrical supply. To begin, locate the connector, typically found near the fuel tank or along the chassis. It’s a multi-pin plug that delivers power and ground to the fuel pump. Before proceeding, ensure the vehicle is on a level surface, the ignition is off, and the battery is disconnected to prevent accidental activation of the pump or electrical shorts.
Testing for power at the connector involves using a multimeter set to the voltage setting. With the ignition in the "on" position (but not started), probe the power wire at the connector—usually the largest wire—and compare the reading to your vehicle’s battery voltage. If the voltage matches, power is reaching the connector. If not, trace the wiring back toward the fuse box or relay to identify potential breaks, corrosion, or blown fuses. A common culprit is the fuel pump relay, which can be swapped with a similar relay (e.g., the horn relay) to test functionality.
Ground is equally important, as a poor ground connection will prevent the pump from operating. Check the ground wire by connecting one multimeter lead to the ground wire at the connector and the other to a known good ground, such as the battery negative terminal. With the ignition on, the multimeter should show continuity (near 0 ohms). If resistance is high, clean the ground connection or repair the wiring. This step often resolves issues that mimic a lack of power.
A practical tip: if power and ground are confirmed but the pump still doesn’t operate, the pump itself may be faulty. However, before replacing it, test the pump’s resistance by disconnecting the connector and measuring across the power and ground pins. Compare this reading to the manufacturer’s specifications (typically 1–3 ohms for most fuel pumps). If out of range, the pump is likely defective. This systematic approach ensures you diagnose the issue accurately without unnecessary part replacements.
Accessing the Fuel Pump on a 2005 Impala: Panel Guide
You may want to see also
Explore related products
Check the Fuel Pump Ground Connection
A weak or faulty ground connection can mimic fuel pump failure, leading to misdiagnosis and unnecessary part replacements. The fuel pump ground is critical for completing the electrical circuit, allowing current to flow and the pump to operate. Over time, corrosion, loose connections, or damaged wiring can compromise this connection, especially in older vehicles like a 1990 GMC Sierra. Before assuming the pump itself is defective, verifying the integrity of the ground is a logical and cost-effective first step.
To inspect the fuel pump ground, locate the grounding point, typically near the fuel tank or frame rail. Use a multimeter set to the continuity or resistance mode to test the connection. Connect one probe to the ground terminal and the other to a known good ground, such as the battery negative terminal. A reading of zero or near-zero resistance indicates a solid ground, while high resistance or an open circuit suggests a problem. Clean the grounding point with a wire brush and dielectric grease to remove corrosion, then retest. If the issue persists, trace the ground wire for damage or breaks, replacing it if necessary.
Another practical method involves bypassing the existing ground temporarily. Attach a jumper wire from the fuel pump ground terminal directly to the vehicle’s chassis or battery negative terminal. If the pump operates correctly with this direct connection, the original ground is at fault. This test isolates the issue, confirming whether the problem lies in the ground path rather than the pump or power supply. Always ensure the vehicle is off and the ignition is disabled during this process to prevent accidental pump activation.
Comparing the ground connection to the electrical system’s foundation highlights its importance. Just as a house’s grounding wire ensures safety and functionality, the fuel pump ground ensures reliable operation. Neglecting this component can lead to intermittent issues, such as stalling or difficulty starting, which worsen over time. Regularly inspecting and maintaining the ground connection, especially in older vehicles prone to corrosion, can save time and money by preventing misdiagnosis and ensuring the fuel system operates as intended.
Diagnosing a Faulty Fuel Pump Diaphragm in Outboard Motors: Key Signs
You may want to see also
Explore related products
Use a Multimeter to Verify Voltage
A multimeter is an indispensable tool for diagnosing fuel pump issues in a 1990 GMC Sierra. By verifying voltage at the pump’s electrical connector, you can determine whether the problem lies in the power supply or the pump itself. This method eliminates guesswork, saving time and frustration.
To begin, locate the fuel pump’s wiring harness, typically found near the fuel tank. Disconnect the connector and set your multimeter to measure DC voltage within the 0–20V range. With the ignition in the "on" position (not cranking), touch the multimeter probes to the appropriate terminals: positive lead to the power wire (usually red or pink) and negative lead to a ground (black wire or vehicle chassis). A healthy system should show 10–12 volts, matching the battery voltage.
If voltage reads low or nonexistent, trace the issue back through the circuit. Check the fuel pump relay, fuse, and inertia switch (if equipped), as these are common failure points. A blown fuse or faulty relay will prevent power from reaching the pump. Conversely, if voltage is present but the pump doesn’t operate, the pump itself or its ground connection may be at fault.
Precision matters here. Ensure the multimeter leads are securely connected to avoid false readings. If testing alone, use one hand to prevent accidental grounding that could short the circuit. Always refer to a wiring diagram for your specific Sierra model to identify correct wire colors and terminal locations.
By systematically verifying voltage with a multimeter, you isolate electrical issues efficiently. This approach not only diagnoses the fuel pump’s power supply but also highlights weaknesses in the supporting circuitry. Armed with this data, you can proceed with confidence, whether replacing a fuse or installing a new pump.
Diagnosing a Constantly Running Fuel Pump in Your BMW E90
You may want to see also
Explore related products
Inspect the Fuel Pump Inertia Switch
The fuel pump inertia switch is a critical safety feature in your 1990 GMC Sierra, designed to cut power to the fuel pump in the event of a collision. However, it can also trip accidentally, causing your engine to stall or fail to start. Inspecting this switch is a straightforward process that can save you time and frustration when diagnosing fuel pump issues.
Location and Identification
The inertia switch is typically located in the cab of the truck, often near the driver’s side kick panel or under the dashboard. It’s a small, red button encased in a plastic housing. In some models, it may be labeled or marked with a fuel pump symbol. If you’re unsure of its location, consult your vehicle’s manual or search for model-specific diagrams online. Identifying the switch correctly is the first step in ensuring it hasn’t been activated inadvertently.
Inspection and Reset Procedure
To inspect the inertia switch, start by locating the red button. If it’s popped out, the switch has tripped, cutting power to the fuel pump. To reset it, simply press the button firmly until it clicks back into place. After resetting, attempt to start the engine. If the switch trips again immediately, this could indicate a more serious issue, such as a faulty switch or a recurring impact that’s triggering it. In such cases, further investigation is necessary.
Testing for Power
If the switch appears normal but you suspect a power issue, test the circuit using a multimeter. Disconnect the inertia switch connector and check for voltage at the terminals. With the ignition on, one terminal should show battery voltage, while the other should show voltage only when the switch is reset. If no voltage is present, trace the wiring back to the fuse box or relay to identify the source of the problem. This step ensures the issue isn’t just a tripped switch but a broader electrical fault.
Preventive Measures and Maintenance
Regularly inspecting the inertia switch and its wiring can prevent unexpected breakdowns. Ensure the switch is securely mounted and free from debris or damage. If the switch frequently trips without cause, consider replacing it, as it may be worn or malfunctioning. Additionally, avoid rough driving or off-roading that could jostle the switch unnecessarily. Proper maintenance of this component is key to keeping your fuel system reliable.
Step-by-Step Guide: Installing a New Fuel Pump in Your Vehicle
You may want to see also
Frequently asked questions
Locate the fuel pump relay in the fuse box, usually under the hood. Use a multimeter to test for power at the relay's output terminal when the ignition is on. If there’s no power, check the fuse and wiring leading to the relay.
You’ll need a multimeter to check voltage, a wiring diagram for your truck, and possibly a test light to trace the circuit. Basic hand tools may be required to access the fuel pump relay or wiring.
The fuel pump fuse is typically located in the fuse box under the hood. Refer to your owner’s manual or a repair guide to identify the correct fuse number and location.
Swap the fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay). If the fuel pump starts working, the relay is likely faulty. You can also test the relay’s terminals with a multimeter to check for continuity.
