Checking if a fuel pump relay is functioning properly is essential for diagnosing fuel system issues in a vehicle. The fuel pump relay acts as a switch, controlling the power supply to the fuel pump, and a faulty relay can lead to symptoms like engine stalling, difficulty starting, or no fuel pressure. To test the relay, start by locating it in the fuse box, often labeled as fuel pump or FP. Use a multimeter to check for continuity across the relay’s terminals when activated, ensuring power flows correctly. Additionally, swapping the relay with another of the same type in the fuse box can quickly determine if the relay is the culprit. If the relay fails these tests, it likely needs replacement to restore proper fuel system operation.
Explore related products
What You'll Learn
- Visual Inspection: Check for corrosion, damage, or loose connections on the relay and its socket
- Multimeter Testing: Use a multimeter to test the relay’s terminals for continuity and proper voltage
- Swap Relays: Temporarily replace the fuel pump relay with a similar relay to test functionality
- Listen for Operation: Start the engine and listen for a clicking sound from the relay
- Voltage Drop Test: Measure voltage drop across the relay to ensure it’s not causing excessive resistance
Visual Inspection: Check for corrosion, damage, or loose connections on the relay and its socket
A visual inspection is often the first and most straightforward step in diagnosing fuel pump relay issues. Start by locating the relay, typically found in the fuse box under the hood or near the driver’s side dashboard. Once identified, carefully remove the relay from its socket. Examine the relay’s exterior for signs of physical damage, such as cracks, burns, or melted plastic, which could indicate overheating or electrical faults. Similarly, inspect the socket for bent pins, discoloration, or charring, as these are red flags for poor conductivity or short circuits. Even minor damage can compromise the relay’s functionality, making this step critical.
Corrosion is another common culprit that can hinder the relay’s performance. Look for greenish or whitish deposits on the relay terminals or socket contacts, which often result from moisture exposure. These deposits act as insulators, disrupting the electrical flow between the relay and the circuit. To address this, gently clean the affected areas using a small wire brush or fine-grit sandpaper, ensuring all residue is removed. For stubborn corrosion, a contact cleaner or electrical parts cleaner can be applied, followed by a thorough drying process to prevent further moisture buildup.
Loose connections are equally problematic, as they can cause intermittent power delivery to the fuel pump. Wiggle the relay slightly while it’s in the socket to check for excessive play, which may indicate worn-out contacts. If the relay feels secure, inspect the wiring harness connected to the socket for frayed wires or loose terminals. A multimeter can be used to test continuity, but a visual check for gaps or misalignment between the relay and socket is often sufficient to identify connection issues. Tightening screws or clips, if present, can help secure the relay in place.
While visual inspection is a valuable diagnostic tool, it’s important to approach it methodically. Work in a well-lit area and use a magnifying glass if necessary to spot subtle defects. Avoid forcing the relay out of its socket, as this can cause further damage. If corrosion or damage is extensive, replacement may be more practical than repair. Always disconnect the battery before handling electrical components to prevent accidental shorts or shocks. By combining thoroughness with caution, this step can save time and provide clear insights into the relay’s condition.
Rebuilding Your AC 4529 Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
Multimeter Testing: Use a multimeter to test the relay’s terminals for continuity and proper voltage

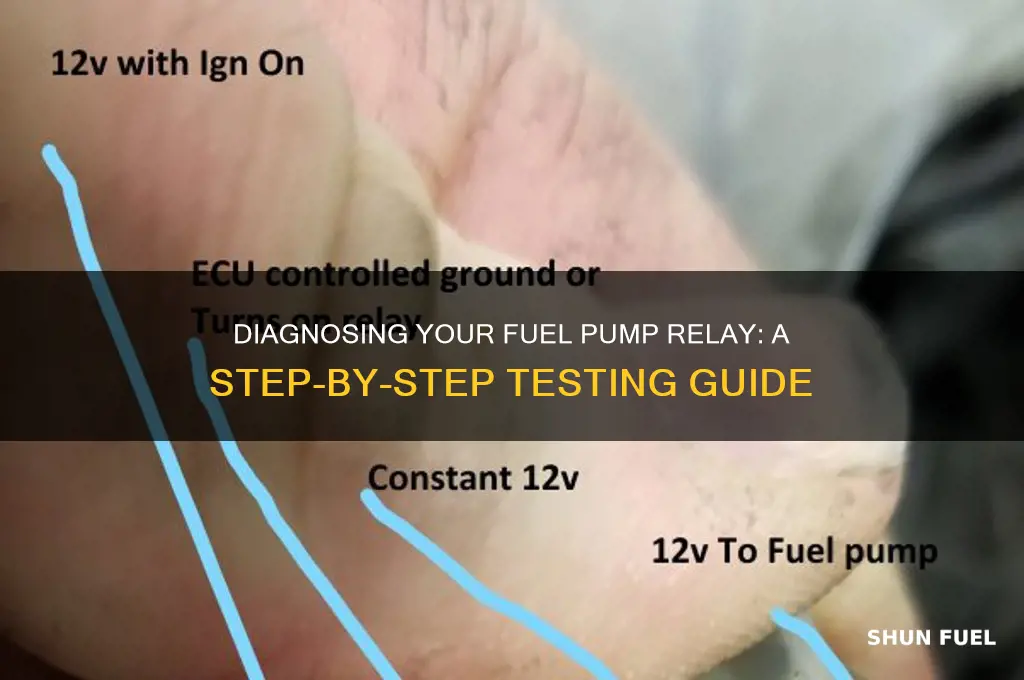

A multimeter is an indispensable tool for diagnosing fuel pump relay issues, offering precise insights into continuity and voltage levels. To begin, set your multimeter to the continuity mode, which typically beeps when a circuit is complete. Identify the relay’s terminals—usually labeled as 30 (input), 87 (output), 85 (ground), and 86 (control). With the relay removed from the vehicle, place the multimeter probes on terminals 30 and 87. If the relay is functioning, the multimeter should indicate continuity, either through a beep or a low resistance reading, typically under 100 ohms. This confirms the relay can close the circuit, allowing current to flow to the fuel pump.
