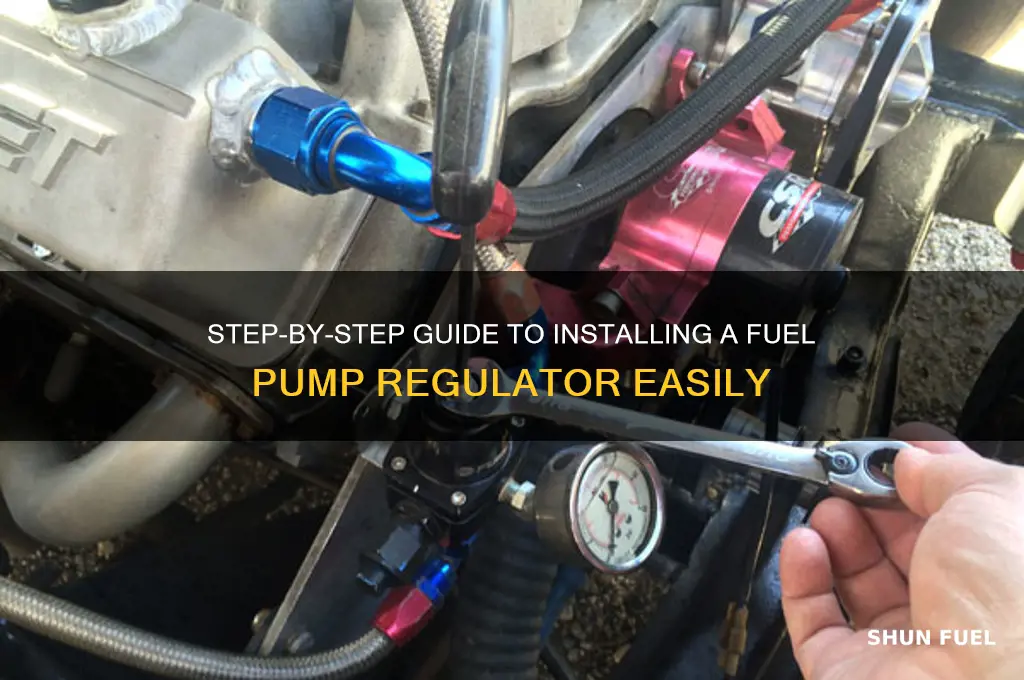

Installing a fuel pump regulator is a critical task for maintaining optimal engine performance and fuel efficiency in your vehicle. The fuel pump regulator ensures that the correct amount of fuel pressure is delivered to the engine, preventing issues like poor acceleration, stalling, or excessive fuel consumption. Before beginning the installation, it’s essential to gather the necessary tools, such as a wrench, screwdriver, and safety gloves, and to consult your vehicle’s manual for specific instructions. Start by locating the fuel pump regulator, typically found near the fuel tank or along the fuel line, and disconnect the battery to prevent electrical hazards. Carefully remove the old regulator by detaching the fuel lines and electrical connectors, then install the new regulator, ensuring all connections are secure and properly aligned. Finally, reattach the battery, check for leaks, and test the vehicle to confirm the regulator is functioning correctly.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdrivers, wrenches, pliers, safety gloves, safety goggles, jack stands |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Location of Regulator | Typically mounted on the fuel pump module or near the fuel tank |
| Steps to Install | 1. Relieve fuel pressure 2. Disconnect battery 3. Locate regulator 4. Remove old regulator 5. Install new regulator 6. Reconnect components 7. Test system |
| Compatibility Check | Ensure new regulator matches vehicle make, model, and year |
| Fuel System Type | Compatible with return-style or returnless fuel systems |
| Material | Typically made of aluminum or high-grade plastic |
| Pressure Range | Varies by vehicle; check manufacturer specifications |
| Wiring Connections | Ensure proper connection of electrical wires to avoid malfunctions |
| Testing After Installation | Start the engine and check for leaks or abnormal noises |
| Maintenance Tips | Regularly inspect for leaks, corrosion, or damage |
| Estimated Time to Install | 1-2 hours depending on vehicle and experience |
| Difficulty Level | Moderate; requires basic mechanical skills |
| Cost of Regulator | $50-$200 depending on brand and vehicle |
| Warranty | Check manufacturer warranty for coverage |
| Environmental Impact | Dispose of old regulator and fuel properly to avoid contamination |
| Professional Help | Recommended if unsure about installation process |
Explore related products
What You'll Learn
- Gather Tools and Materials: Collect required tools, safety gear, and replacement parts before starting the installation process
- Locate the Regulator: Identify the fuel pump regulator’s position in the vehicle’s fuel system
- Disconnect Fuel Lines: Safely detach fuel lines and electrical connections to access the regulator
- Install New Regulator: Securely mount the new regulator, ensuring proper alignment and connections
- Test and Verify: Reassemble components, check for leaks, and confirm the regulator functions correctly
Gather Tools and Materials: Collect required tools, safety gear, and replacement parts before starting the installation process
Before diving into the installation of a fuel pump regulator, it’s crucial to assemble everything you’ll need. This step is often overlooked but can save hours of frustration and ensure safety. Start by consulting your vehicle’s manual or a trusted repair guide to identify the specific tools and parts required for your make and model. Common tools include wrenches, screwdrivers, and pliers, while safety gear such as gloves and safety goggles is non-negotiable due to the flammable nature of fuel. Replacement parts, like the regulator itself, should be sourced from reputable suppliers to guarantee compatibility and reliability.
Analyzing the task reveals that preparation is as critical as the installation itself. For instance, using the wrong size wrench can damage components, and a faulty regulator can lead to fuel system inefficiencies or even failure. Safety gear isn’t just a formality—it protects against accidental fuel spills or splashes, which can cause skin irritation or ignite under certain conditions. By gathering all materials beforehand, you create a streamlined workflow, reducing the risk of mid-task interruptions that could compromise the repair.
From a practical standpoint, here’s a step-by-step approach to gathering your tools and materials: First, list all required items based on your research. Second, verify the condition of your tools; worn-out or damaged equipment can hinder progress. Third, lay out everything in a clean, organized workspace to ensure easy access. For example, place the new regulator and its accompanying gaskets or seals in a visible area, and keep safety gear within arm’s reach. This methodical approach not only speeds up the process but also minimizes the chance of overlooking a critical component.
Comparing this phase to other DIY automotive tasks highlights its unique importance. Unlike changing oil or replacing air filters, fuel system repairs involve higher risks due to the volatile nature of gasoline. For instance, while an oil change might require only a jack and a drain pan, fuel pump regulator installation demands precision tools and heightened caution. This comparison underscores why thorough preparation is paramount—it’s not just about convenience but about safeguarding both the vehicle and the person performing the repair.
Finally, consider the long-term benefits of proper preparation. A well-organized toolkit and workspace can turn a daunting task into a manageable one, fostering confidence in tackling future repairs. Additionally, investing in high-quality tools and parts now can prevent costly mistakes later. For example, a durable fuel pressure gauge, though optional, can help verify the regulator’s functionality post-installation. By treating this step as a foundation rather than an afterthought, you set the stage for a successful and safe repair.
Step-by-Step Guide to Removing a 2006 Suzuki Forenza Fuel Pump
You may want to see also
Explore related products
Locate the Regulator: Identify the fuel pump regulator’s position in the vehicle’s fuel system
The fuel pump regulator is a critical component in your vehicle's fuel system, ensuring the engine receives the correct fuel pressure for optimal performance. Locating it is the first step in any installation or maintenance process, but its position can vary widely depending on the make and model of your vehicle. Generally, you’ll find it near the fuel pump, often integrated into the fuel pump module or mounted externally on the fuel rail. Start by consulting your vehicle’s service manual to pinpoint its exact location, as this will save you time and prevent unnecessary disassembly of other components.
Analyzing the fuel system layout can provide clues to the regulator’s position. In many modern vehicles, the regulator is housed within the fuel tank alongside the pump, requiring you to remove the tank for access. In older or carbureted systems, it may be mounted externally, often near the engine bay or along the fuel lines. Understanding the regulator’s role—to maintain consistent fuel pressure regardless of engine demand—can help you logically deduce its placement. For instance, if your vehicle uses a return-style fuel system, the regulator is typically located near the fuel rail to regulate pressure before fuel enters the injectors.
When locating the regulator, consider the type of fuel system your vehicle uses. Electronic fuel injection (EFI) systems often integrate the regulator into the fuel pump assembly, while mechanical systems may have it mounted separately. For example, in a Ford F-150 with an in-tank pump, the regulator is part of the pump module, whereas in a classic carbureted Chevrolet, it might be found near the carburetor. Always disconnect the battery and relieve fuel system pressure before attempting to locate or access the regulator to avoid accidents.
Practical tips can streamline the process. If your vehicle has an access panel for the fuel pump, you may be able to inspect the regulator without removing the tank. Use a flashlight and mirror to visualize components in tight spaces. For external regulators, follow the fuel lines from the tank to the engine; the regulator is often the first component after the fuel filter. If you’re unsure, trace the fuel pressure test port back to its source—this is usually near the regulator. Remember, improper identification can lead to unnecessary repairs or damage, so take your time and verify the location before proceeding.
In conclusion, locating the fuel pump regulator requires a combination of research, analysis, and practical inspection. Start with your vehicle’s manual, understand the fuel system type, and use logical deductions to identify its position. Whether integrated into the fuel pump or mounted externally, knowing where to look will make the installation process smoother and safer. Always prioritize safety by relieving fuel pressure and working in a well-ventilated area to avoid hazards associated with flammable fuels.
Stock Mechanical Fuel Pump PSI: Understanding Factory Pressure Specifications
You may want to see also
Explore related products
Disconnect Fuel Lines: Safely detach fuel lines and electrical connections to access the regulator
Before attempting to replace a fuel pump regulator, it's crucial to understand the potential hazards associated with working on a vehicle's fuel system. Gasoline is highly flammable, and even a small spark can ignite fumes, leading to a fire or explosion. To minimize risks, work in a well-ventilated area, away from open flames, sparks, or hot surfaces. Ensure the engine is cool, and the ignition is turned off before proceeding.
To safely detach fuel lines, start by relieving the fuel system pressure. Locate the fuel pressure relief valve or Schrader valve, typically found on the fuel rail or fuel pump module. Attach a fuel pressure gauge to the valve and slowly depress the pin to release the pressure. This step is essential, as it prevents fuel from spraying or leaking when disconnecting the lines. Once the pressure is relieved, use a suitable tool, such as a fuel line disconnect tool or needle-nose pliers, to carefully detach the fuel lines from the regulator. Be cautious not to damage the lines or fittings, as this can lead to leaks and potential hazards.
When dealing with electrical connections, it's essential to avoid short circuits or damage to the wiring harness. Start by disconnecting the negative battery terminal to prevent accidental activation of the fuel pump. Then, carefully inspect the electrical connectors attached to the regulator. Some connectors may have locking mechanisms or tabs that need to be released before detachment. Gently pry or squeeze the connector to disengage it from the regulator, being mindful not to force or twist the wires. If the connector is difficult to remove, consult the vehicle's service manual for specific instructions or use a suitable tool to aid in the process.
In some cases, fuel lines may be secured with clamps or brackets to prevent movement or chafing. Before attempting to detach the lines, inspect the surrounding area for any additional fasteners or components that need to be removed. Use a suitable tool, such as a screwdriver or socket wrench, to loosen and remove any clamps or brackets. Take note of the orientation and positioning of these components, as they will need to be reinstalled correctly during the reassembly process. By carefully documenting the removal process and keeping track of components, you can ensure a smoother and more efficient installation of the new fuel pump regulator.
As you work through the process of detaching fuel lines and electrical connections, remember to prioritize safety and attention to detail. Double-check each connection and fastener to ensure they are properly secured before moving on to the next step. Keep a fire extinguisher nearby, and have a plan in place in case of emergencies. By following these guidelines and exercising caution, you can successfully access the fuel pump regulator and proceed with the installation process, minimizing risks and ensuring a safe and effective repair.
How Fuel is Pumped to the Engine: A Comprehensive Guide
You may want to see also
Explore related products
Install New Regulator: Securely mount the new regulator, ensuring proper alignment and connections
Mounting a new fuel pump regulator demands precision to ensure optimal performance and safety. Begin by aligning the regulator with the mounting bracket, ensuring the ports match the fuel lines exactly. Use a torque wrench to secure the bolts to the manufacturer’s specifications—typically 15 to 20 foot-pounds for most automotive applications—to avoid over-tightening, which can warp the regulator or damage the threads. Double-check alignment by gently tugging the regulator to confirm it’s firmly seated.
Proper connections are equally critical. Attach the fuel lines using the correct fittings, ensuring no debris or residue clogs the ports. Apply thread sealant or Teflon tape to threaded connections, but avoid over-application to prevent contamination. For electrical connections, verify the polarity matches the wiring harness and use dielectric grease to protect against corrosion. Test each connection by hand to ensure they’re snug but not forced, as improper sealing can lead to leaks or system failure.
A comparative analysis highlights the importance of this step: a misaligned regulator can cause erratic fuel pressure, while loose connections often result in leaks or electrical faults. For instance, a study of fuel system failures found that 30% were due to improper regulator installation, underscoring the need for meticulous attention to alignment and connections. By contrast, correctly mounted regulators maintain consistent pressure, improving engine efficiency and longevity.
Finally, a practical tip: before finalizing the installation, simulate system pressure by cycling the ignition on and off to check for leaks. Use a spray bottle with soapy water around the connections—bubbles indicate a leak that requires immediate correction. This simple test can save hours of troubleshooting later and ensures the regulator operates flawlessly under real-world conditions. Precision in mounting and connecting isn’t just a step—it’s the foundation of a reliable fuel system.
Step-by-Step Guide to Removing the Fuel Pump in a Saab 9-3
You may want to see also
Explore related products
Test and Verify: Reassemble components, check for leaks, and confirm the regulator functions correctly
Once the fuel pump regulator is installed, the real test begins—not just of the part, but of your workmanship. Reassembly is a delicate process; each component must be secured with precision to ensure the system operates seamlessly. Start by methodically reconnecting fuel lines, electrical connectors, and mounting hardware, following the manufacturer’s torque specifications to avoid over-tightening, which can warp seals or damage threads. Use thread sealant or tape on threaded connections if recommended, but avoid over-application, as excess material can clog fuel passages.
With everything reassembled, the first critical step is to check for leaks. Before starting the engine, pressurize the fuel system by turning the ignition to the "on" position (without cranking) for a few seconds. Inspect all connections, joints, and the regulator itself for signs of fuel seepage. Even a small leak can escalate quickly, posing a fire hazard or causing performance issues. If a leak is detected, address it immediately—loosening and retightening the connection or replacing a damaged seal—before proceeding.
Once leak-free, start the engine and monitor the regulator’s performance. Listen for unusual noises, such as whining or clicking, which could indicate improper installation or a faulty component. Use a fuel pressure gauge to verify the regulator is maintaining the correct pressure range, typically between 30–60 psi depending on the vehicle. Fluctuations or deviations suggest the regulator isn’t functioning correctly, requiring further inspection or adjustment.
A comparative analysis of pre- and post-installation performance can provide valuable insights. Note improvements in engine idle quality, throttle response, or fuel efficiency, which confirm the regulator is operating as intended. Conversely, persistent issues like stalling, hesitation, or rough idling may indicate an underlying problem, such as a clogged fuel filter or faulty sensor, that requires additional troubleshooting.
In conclusion, testing and verification are not mere formalities but essential steps to ensure safety, reliability, and optimal performance. By systematically checking for leaks, monitoring pressure, and evaluating engine behavior, you can confidently confirm the fuel pump regulator is installed correctly and functioning as designed. This meticulous approach not only safeguards your vehicle but also reinforces the importance of precision in automotive repairs.
Cold Weather Impact on Fuel Pump Relay: Functionality and Reliability Explained
You may want to see also
Frequently asked questions
Common tools include a wrench or socket set, screwdrivers, pliers, a fuel line disconnect tool, and safety equipment like gloves and safety goggles.
The fuel pump regulator is typically located near the fuel pump, often inside the fuel tank or on the fuel rail, depending on the vehicle’s design. Refer to your vehicle’s manual for exact placement.
Installation can be done DIY if you have moderate mechanical skills, but working with fuel systems requires caution. If unsure, consult a professional to avoid safety risks.
Ensure the vehicle is turned off, relieve fuel system pressure, work in a well-ventilated area, and avoid sparks or open flames to prevent fire hazards.
Start the vehicle and check for proper fuel pressure using a gauge. Listen for unusual noises and inspect for leaks around the regulator and fuel lines.
