Checking the fuel pump relay in a 1997 Chevrolet Silverado is a crucial diagnostic step if you suspect fuel delivery issues. The fuel pump relay is responsible for controlling power to the fuel pump, ensuring it operates correctly. To inspect it, locate the relay in the under-hood fuse/relay box, typically near the battery. Start by consulting the owner’s manual or a repair guide to identify the correct relay. With the ignition off, remove the relay and inspect it for signs of damage, corrosion, or burnt pins. You can also swap it with a similar relay in the box to test functionality. If the issue persists, use a multimeter to check for continuity and proper voltage across the relay’s terminals. This process helps determine whether the relay is faulty or if the problem lies elsewhere in the fuel system.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1997 Chevrolet Silverado |
| Fuel Pump Relay Location | Under the hood, in the fuse/relay box near the firewall |
| Relay Identification | Typically labeled "FUEL PUMP" or "FP" on the relay box cover |
| Relay Pin Configuration | 5-pin relay (common for GM vehicles of this era) |
| Tools Required | Multimeter, small screwdriver, jumper wires (optional) |
| Testing Method | 1. Locate and remove the relay. 2. Use a multimeter to check for continuity across pins. 3. Test for power supply to the relay. 4. Swap with a known good relay if available. |
| Power Supply Pins | Pin 85 (Ground), Pin 86 (Control from PCM), Pin 87 (Battery Power), Pin 30 (Output to fuel pump) |
| Common Symptoms of Failure | No fuel pressure, engine cranks but won’t start, intermittent starting issues |
| Replacement Relay Part Number | AC Delco Part # 212-601 (or equivalent) |
| Safety Precautions | Disconnect the battery before testing to avoid electrical hazards |
| Additional Tips | Check the fuel pump fuse and wiring harness for damage or corrosion |
Explore related products
What You'll Learn
- Locate the fuel pump relay in the under-hood fuse/relay box
- Identify the relay's position using the diagram on the box cover
- Check for power at the relay's input and output terminals
- Test the relay's continuity using a multimeter to ensure proper function
- Swap the fuel pump relay with a similar one to verify if it's faulty

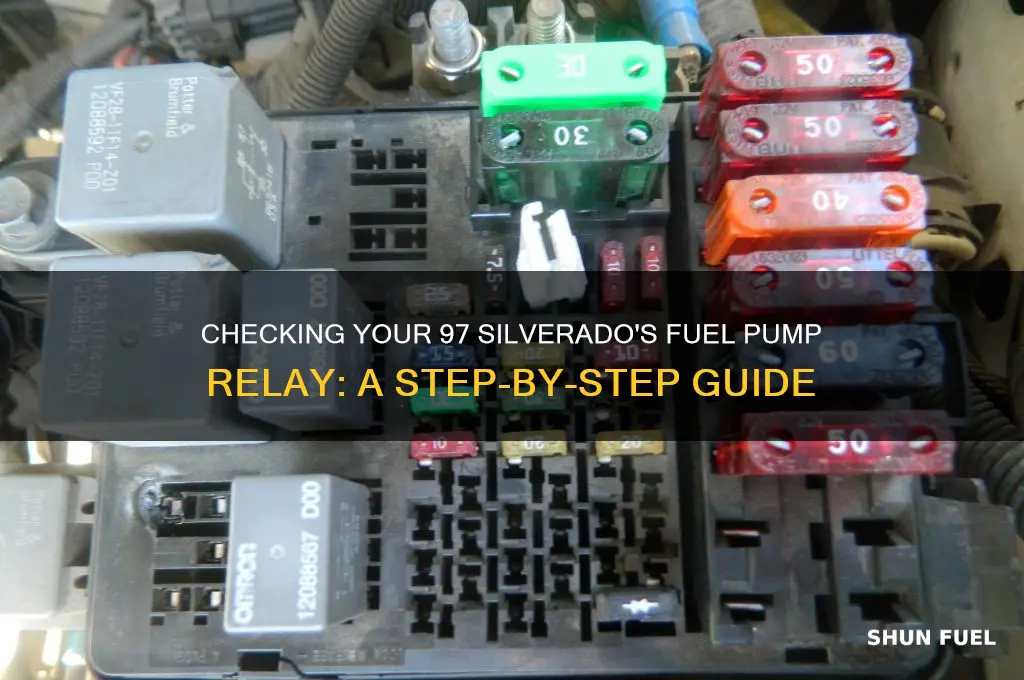

Locate the fuel pump relay in the under-hood fuse/relay box
The under-hood fuse/relay box in a 1997 Silverado is a critical hub for electrical components, including the fuel pump relay. To locate this relay, start by opening the hood and identifying the rectangular black box typically situated near the driver’s side fender or firewall. This box houses multiple relays and fuses, each labeled with a diagram on the underside of the lid or in the owner’s manual. The fuel pump relay is often marked as "FUEL PUMP" or "FP," but if labels are unclear, consult the diagram to pinpoint its exact position.
Once you’ve identified the fuel pump relay, take note of its orientation and surrounding components. Relays are usually rectangular or square with four or five pins, and they may be color-coded or standardized in size. If the relay is difficult to distinguish, compare it to others in the box or use a multimeter to test for continuity. Ensure the ignition is off before handling any components to avoid electrical hazards.
Removing the fuel pump relay requires a gentle but firm approach. Use a flathead screwdriver or a relay puller tool to carefully pry it out of its slot, taking care not to damage the surrounding plastic housing. If the relay is stuck, wiggle it slightly while pulling to release it. Once removed, inspect the relay for signs of corrosion, melting, or loose pins, as these are common indicators of failure.
For a practical tip, keep a spare fuel pump relay in your vehicle for emergency troubleshooting. If the relay is faulty, swapping it with a known-good one can quickly confirm whether the relay is the source of fuel pump issues. Always reinsert the relay firmly into its slot to ensure proper electrical contact, and double-check the fuse/relay box lid is securely closed to protect against moisture and debris.
In summary, locating and inspecting the fuel pump relay in the under-hood fuse/relay box is a straightforward process that requires attention to detail and the right tools. By following these steps, you can efficiently diagnose potential fuel pump issues and maintain your 1997 Silverado’s reliability.
Is Your Fuel Pump Too Loud? Signs and Solutions
You may want to see also
Explore related products
Identify the relay's position using the diagram on the box cover
The underhood fuse/relay box of a 1997 Silverado is a labyrinth of switches and fuses, each with a specific function. To locate the fuel pump relay, you'll need to consult the diagram on the box cover, which serves as a treasure map for the electrically inclined. This diagram is typically molded into the plastic cover or printed on a sticker, providing a visual representation of the relay's position.
Analyzing the diagram, you'll notice that each relay is assigned a unique identifier, often a combination of letters and numbers. The fuel pump relay, for instance, is commonly labeled as "F/P" or "FP," indicating its function. By cross-referencing this label with the diagram, you can pinpoint the exact location of the relay within the box. It's essential to note that the diagram may use different symbols or color-coding to distinguish between relays, fuses, and other components, so pay close attention to these details.
To effectively use the diagram, start by orienting the box cover correctly, ensuring that the diagram aligns with the physical layout of the relays. Then, locate the fuel pump relay label on the diagram and trace its position to the corresponding slot in the box. Keep in mind that the relay may be situated in a less obvious location, such as near the edge of the box or in a corner, so don't be afraid to scrutinize the diagram carefully. A helpful tip is to use a flashlight to illuminate the box, making it easier to distinguish between the various components.
When identifying the relay's position, consider the following practical tips: first, if the diagram is worn or faded, try cleaning the box cover with a mild solvent to enhance visibility. Second, if you're still unsure about the relay's location, consult the vehicle's manual or an online resource specific to your Silverado's make and model. Lastly, remember that the fuel pump relay is typically located near other engine management components, such as the ECM or ignition module, so use this contextual information to guide your search. By mastering the art of deciphering the diagram, you'll be well on your way to diagnosing and resolving fuel pump issues in your 1997 Silverado.
In comparison to other diagnostic methods, using the diagram on the box cover is a straightforward and cost-effective approach that doesn't require specialized tools or equipment. While it may seem rudimentary, this method is often overlooked by novice mechanics, who may resort to more complex or invasive techniques. By embracing the simplicity of the diagram, you can save time, reduce frustration, and develop a deeper understanding of your vehicle's electrical system. As you become more proficient in interpreting the diagram, you'll find that identifying relay positions becomes second nature, enabling you to tackle a wide range of automotive challenges with confidence and precision.
Signs Your Fuel Pump is Failing: What to Watch For
You may want to see also
Explore related products
Check for power at the relay's input and output terminals
The fuel pump relay in a 1997 Silverado acts as a switch, controlling power delivery to the fuel pump. To diagnose relay issues, verifying power at its input and output terminals is crucial. This step isolates whether the problem lies within the relay itself or elsewhere in the circuit.
Without proper power input, the relay cannot activate, starving the fuel pump. Conversely, a lack of output power indicates a faulty relay unable to transmit the signal.
Begin with the ignition in the "on" position. Locate the fuel pump relay, typically found in the under-hood fuse box. Consult your Silverado's manual for the exact location. Using a multimeter set to volts (DC), backprobe the relay's input terminal. This terminal receives power from the battery or ignition switch. A reading of 12 volts indicates power is reaching the relay. If no voltage is present, investigate the wiring leading to the relay for breaks, corrosion, or blown fuses.
Next, backprobe the relay's output terminal. This terminal should supply power to the fuel pump when the relay is energized. With the ignition on, you should see 12 volts at this terminal. If voltage is absent, the relay is likely defective and needs replacement.
Remember, safety is paramount. Always disconnect the battery before working on electrical systems. Backprobing minimizes the risk of short circuits, but caution is essential. If you're unsure about any step, consult a qualified mechanic.
Does the 2003 GMC Duramax Have a Fuel Pump?
You may want to see also
Explore related products
Test the relay's continuity using a multimeter to ensure proper function
A faulty fuel pump relay can leave your 97 Silverado stranded, but testing its continuity with a multimeter is a straightforward way to diagnose the issue. This process involves checking the electrical pathway within the relay to ensure it opens and closes as intended, allowing power to reach the fuel pump. By verifying continuity, you can determine if the relay is functioning correctly or if it needs replacement.
To begin, locate the fuel pump relay in your Silverado’s fuse box, typically found under the hood or near the driver’s side dashboard. Consult your vehicle’s manual for the exact location. Once identified, remove the relay by pulling it straight out of its slot. A multimeter, set to the continuity or resistance mode (usually denoted by a diode symbol or the Greek letter omega), will be your primary tool. Touch the multimeter probes to the relay’s terminals, specifically the input and output pins, which are often labeled on the relay’s housing or can be identified using a wiring diagram.
When testing, ensure the relay is in its "off" state, as this allows you to measure the initial resistance. A functional relay should show no continuity (infinite resistance) between the input and output terminals when off. Next, activate the relay by applying power to the control circuit, typically by bridging the designated terminals with a jumper wire or using a relay tester. With the relay energized, retest the continuity. This time, the multimeter should read low resistance (close to zero), indicating a complete circuit. If the relay fails either test—showing continuity when off or no continuity when on—it’s defective and requires replacement.
Practical tips include ensuring the multimeter is properly calibrated and the probes are clean for accurate readings. Additionally, if you’re unsure about terminal identification, refer to a wiring diagram specific to your Silverado’s model year. Testing continuity not only diagnoses the relay but also helps rule out other electrical issues in the fuel pump circuit. By mastering this technique, you’ll save time and avoid unnecessary part replacements, keeping your Silverado running reliably.
Dodge Ramcharger Fuel Pump Installation Guide: 1989 Model Hookup Tips
You may want to see also
Explore related products
Swap the fuel pump relay with a similar one to verify if it's faulty
One of the most straightforward methods to determine if your 1997 Silverado's fuel pump relay is faulty is by swapping it with a similar relay from another circuit. This diagnostic technique leverages the fact that many relays in a vehicle are interchangeable, provided they have the same pin configuration and current rating. By temporarily replacing the fuel pump relay with a known-good relay from a non-critical system, such as the horn or A/C compressor, you can quickly isolate whether the relay itself is the source of the issue. This approach eliminates the need for specialized tools and provides immediate feedback on the relay's functionality.
To perform this swap, start by locating the fuel pump relay in the under-hood fuse/relay box. Consult your Silverado's manual or a reliable online resource to identify the correct relay, as it may be labeled as "FUEL PUMP" or "FP." Once identified, pull the relay straight out of its socket. Next, locate a similar relay in the same fuse box—look for one with the same part number or physical appearance. Common candidates include the horn relay or the A/C compressor clutch relay, as these often share the same design. Ensure the replacement relay is from a non-essential system to avoid disrupting critical functions during the test.
After swapping the relays, start the vehicle and observe its behavior. If the fuel pump relay was indeed faulty, the engine should start and run normally with the replacement relay in place. However, the system you borrowed the relay from (e.g., the horn) will no longer function, which is a normal part of this diagnostic process. If the engine fails to start, the issue likely lies elsewhere, such as with the fuel pump itself, the wiring, or another component in the fuel system. In this case, reinsert the original relay and proceed to test other components.
A critical caution when performing this swap is to avoid using a relay with a significantly different current rating, as this can cause damage to the circuit. Always verify that the replacement relay matches the specifications of the fuel pump relay. Additionally, be mindful of the relay's orientation when reinserting it, as some relays have polarized pins that must align correctly with the socket. If unsure, compare the pin layout of both relays before proceeding.
In conclusion, swapping the fuel pump relay with a similar one is a quick and effective way to diagnose relay failure in a 1997 Silverado. This method requires minimal tools and provides immediate results, making it a valuable technique for both DIY enthusiasts and professional mechanics. By understanding the process and taking necessary precautions, you can confidently determine whether the relay is at fault and take appropriate steps to resolve the issue.
Do All Fuel Pumps Make Noise? Understanding Common Sounds
You may want to see also
Frequently asked questions
The fuel pump relay in a 1997 Silverado is typically located in the underhood fuse/relay box. Look for a black box near the battery or firewall, and refer to the lid or owner’s manual for the exact relay position.
Symptoms include the engine not starting, stalling, or difficulty starting. You may also hear no fuel pump hum when turning the key to the "ON" position.
Use a multimeter to check for continuity across the relay’s terminals. Swap the fuel pump relay with another relay of the same type (e.g., AC compressor relay) and see if the issue persists. If the problem moves, the relay is likely faulty.
Yes, you can temporarily bypass the relay by connecting the fuel pump’s power wire directly to the battery (with a fuse in line). If the pump runs, the relay or wiring is likely the problem. However, this is a temporary diagnostic step only.
