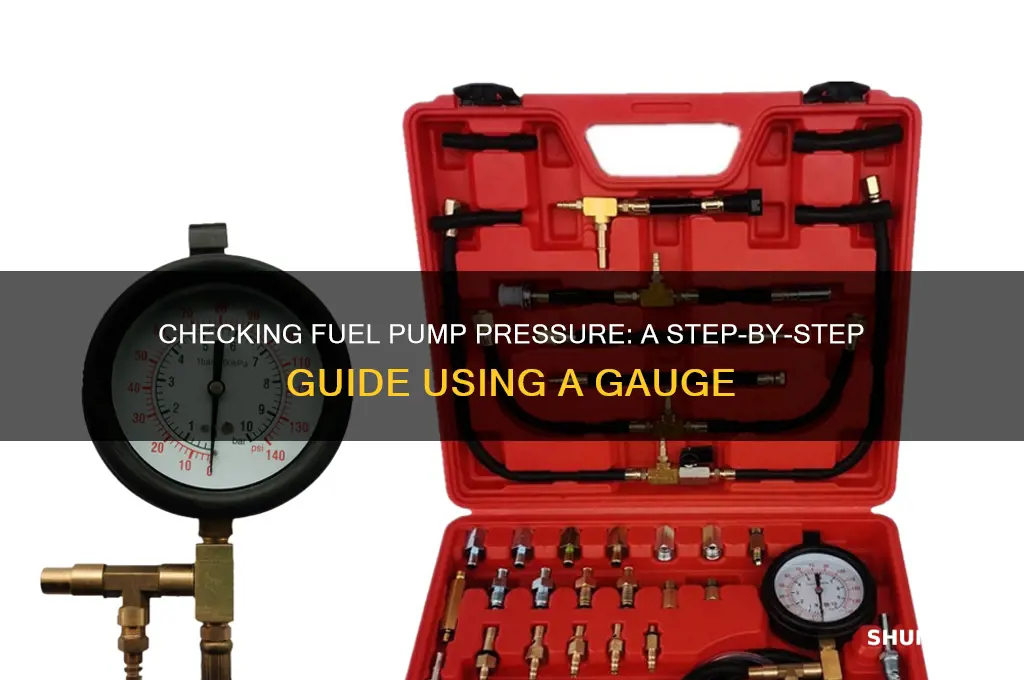

Checking fuel pump pressure with a gauge is a critical diagnostic procedure for assessing the health and efficiency of a vehicle's fuel system. This process involves using a specialized fuel pressure gauge to measure the pressure at which fuel is delivered to the engine, ensuring it meets the manufacturer's specifications. Proper fuel pressure is essential for optimal engine performance, fuel efficiency, and preventing issues such as misfires or stalling. By connecting the gauge to the fuel rail or Schrader valve, technicians can accurately diagnose problems like a weak fuel pump, clogged fuel filter, or faulty pressure regulator. This method is particularly useful for troubleshooting drivability concerns and ensuring the fuel system operates within the required parameters.
Explore related products
What You'll Learn
Gather Tools and Safety Gear
Before attempting to check fuel pump pressure, ensure you have the right tools and safety gear to perform the task efficiently and safely. The essential tools include a fuel pressure gauge, a fuel pressure tester kit, and a wrench or socket set to disconnect fuel lines. The gauge should be compatible with your vehicle’s fuel system, typically rated for 0–100 psi for most gasoline engines. Additionally, a pair of safety goggles and nitrile gloves are non-negotiable to protect against fuel spills and chemical exposure. Fuel is highly flammable, so keep a fire extinguisher nearby and work in a well-ventilated area away from open flames or sparks.
Analyzing the tools further, the fuel pressure tester kit often includes adapters to fit various fuel systems, ensuring a secure connection to prevent leaks. If your vehicle has a Schrader valve (similar to a tire valve stem), you may only need a gauge with a corresponding connector. However, older vehicles might require T-fitting adapters to tap into the fuel line. Always verify compatibility with your vehicle’s make and model to avoid damaging components or obtaining inaccurate readings.
From a practical standpoint, organizing your workspace is as critical as the tools themselves. Lay out all equipment within arm’s reach to minimize movement around fuel lines. Use a drip pan or absorbent cloth to catch any spills, and keep a clean rag handy to wipe residual fuel. If working on a lifted vehicle, ensure it’s securely supported on jack stands, not just a jack, to prevent accidents. Remember, fuel systems operate under pressure, so relieve the system by disconnecting the fuel pump fuse or relay before starting.
A comparative look at safety gear highlights the importance of nitrile gloves over latex or vinyl. Nitrile resists fuel and oil better, reducing the risk of skin irritation or chemical absorption. Safety goggles with side shields provide full eye protection, especially when working under pressure, as fuel can spray unexpectedly. While a respirator isn’t always necessary, it’s advisable in enclosed spaces to avoid inhaling fuel vapors, which can cause dizziness or headaches.
In conclusion, gathering the right tools and safety gear is the foundation of a successful fuel pressure check. Skimping on equipment or safety measures can lead to inaccurate results, vehicle damage, or personal injury. By investing in quality tools, organizing your workspace, and prioritizing safety, you’ll not only ensure a precise diagnosis but also protect yourself and your vehicle throughout the process.
