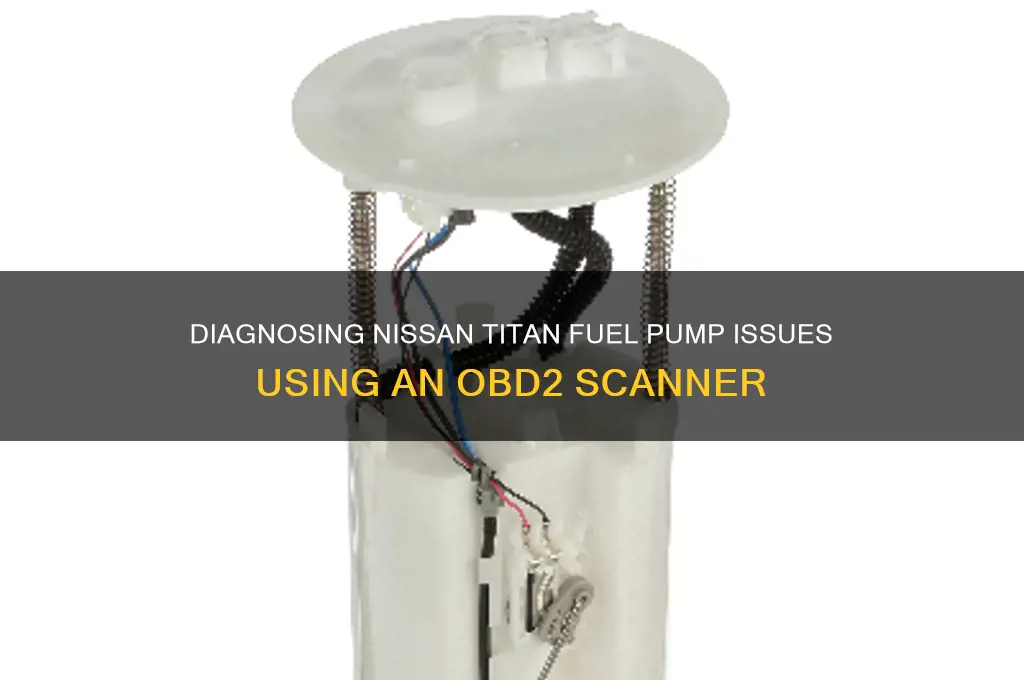

Checking the fuel pump on a Nissan Titan using a scanner is a straightforward process that can help diagnose issues related to fuel delivery. Begin by connecting the OBD-II scanner to the vehicle’s diagnostic port, typically located under the dashboard. Once connected, turn the ignition to the ON position and allow the scanner to communicate with the vehicle’s ECU. Navigate to the live data or sensor readings section on the scanner to monitor the fuel pump’s performance metrics, such as fuel pressure, pump control circuit status, and any error codes related to the fuel system. If the scanner detects abnormalities or error codes, it may indicate a faulty fuel pump or related issues, requiring further inspection or replacement. This method provides a quick and accurate way to assess the fuel pump’s functionality without extensive disassembly.
| Characteristics | Values |
|---|---|
| Vehicle Model | Nissan Titan |
| Tool Required | OBD-II Scanner (compatible with Nissan vehicles) |
| Diagnostic Trouble Codes (DTCs) | P0087, P0088, P0089 (Fuel Pressure-related codes) |
| Scanner Connection Port | OBD-II port (usually located under the dashboard on the driver's side) |
| Fuel Pump Control Module Location | Near the fuel tank or under the rear seat (varies by year and model) |
| Fuel Pump Relay Location | In the fuse box under the hood or inside the cabin (check vehicle manual) |
| Fuel Pressure Test Range | Typically 40-60 PSI (check Nissan Titan service manual for exact specifications) |
| Scanner Functions Needed | Live data streaming, DTC reading, actuation tests (fuel pump control) |
| Steps to Check Fuel Pump | 1. Connect scanner to OBD-II port. 2. Read DTCs. 3. Monitor live fuel pressure data. 4. Perform fuel pump actuation test via scanner. |
| Common Symptoms of Fuel Pump Issues | Engine stalling, hard starting, loss of power, unusual noises from fuel tank area |
| Year Range Applicability | 2004-2023 (methods may vary slightly by year; consult year-specific manual) |
| Safety Precautions | Ensure vehicle is off, disconnect battery if accessing fuel pump module directly |
| Additional Tools (if needed) | Fuel pressure gauge, multimeter (for manual testing if scanner method fails) |
