Checking the fuel pump on a 2007 Ram 1500 is essential for diagnosing fuel delivery issues and ensuring optimal engine performance. To begin, locate the fuel pump, which is typically housed inside the fuel tank. Start by relieving the fuel system pressure and disconnecting the battery to prevent accidents. Next, access the fuel pump by removing the bed or using a fuel pump access panel if available. Use a multimeter to test the pump’s electrical connections for power and ground, ensuring the circuit is functioning correctly. Additionally, listen for the pump’s hum when the key is turned to the on position, as a lack of noise may indicate a faulty pump. If necessary, perform a fuel pressure test using a gauge to verify the pump’s output. Following these steps will help determine whether the fuel pump is operating properly or needs replacement.
Explore related products
What You'll Learn
- Locate Fuel Pump: Find the fuel pump under the truck bed, near the fuel tank
- Check Fuel Pressure: Use a gauge to test pressure at the fuel rail for accuracy
- Listen for Operation: Turn the key to ON and listen for the pump’s hum
- Inspect Fuses/Relays: Check the fuel pump fuse and relay in the power distribution center
- Test for Power: Use a multimeter to verify power is reaching the pump connector
Locate Fuel Pump: Find the fuel pump under the truck bed, near the fuel tank
The fuel pump in a 2007 Ram 1500 is not tucked away in some obscure corner of the engine bay but rather resides in a surprisingly accessible location. Positioned under the truck bed, near the fuel tank, this placement is both practical and strategic. It minimizes the risk of damage from road debris while ensuring easy access for maintenance or diagnostics. Before you start any work, ensure the vehicle is on a level surface, and the ignition is turned off to prevent accidents.
Locating the fuel pump begins with identifying the fuel tank itself. On the 2007 Ram 1500, the tank is situated beneath the rear passenger side of the truck bed. The fuel pump module, which includes the pump and sender unit, is typically mounted on top of the tank. To access it, you’ll need to remove a protective cover or panel, often secured by a few bolts or clips. This process requires basic hand tools like a socket wrench and a flathead screwdriver. Be cautious not to damage any surrounding components or wiring during removal.

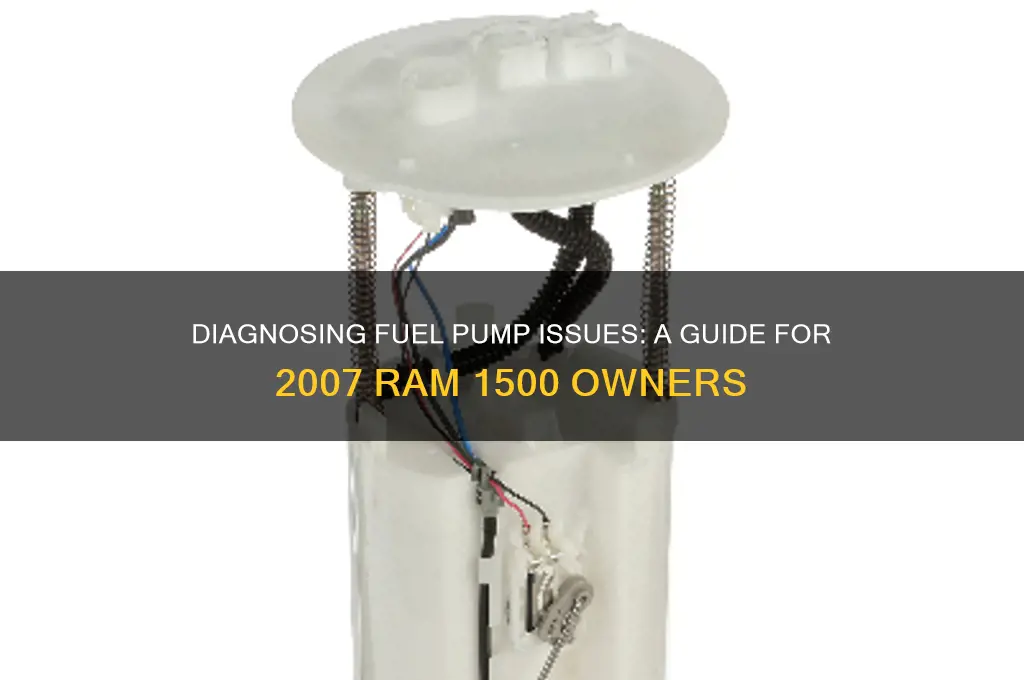

Once the cover is off, you’ll see the fuel pump module. It’s a cylindrical or rectangular unit with electrical connectors and fuel lines attached. Before proceeding with any tests or replacements, relieve the fuel system pressure to avoid spills or injuries. This can be done by locating the Schrader valve on the fuel rail (near the engine) and pressing it with the ignition off. If you’re unsure about this step, consult the vehicle’s manual or seek professional guidance.
A practical tip for this process is to use a drip pan or absorbent material under the work area to catch any fuel that may leak during disassembly. Additionally, if you’re testing the pump’s functionality, a multimeter can be used to check for voltage at the pump’s electrical connector. A lack of voltage could indicate a wiring issue, while a non-operational pump despite proper voltage suggests the pump itself may be faulty.
In summary, locating the fuel pump on a 2007 Ram 1500 is straightforward once you know where to look. Its position near the fuel tank under the truck bed allows for relatively easy access, but always prioritize safety and precision during the process. With the right tools and precautions, diagnosing or replacing the fuel pump can be a manageable DIY task.
Testing Your 1995 Ford Ranger Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Check Fuel Pressure: Use a gauge to test pressure at the fuel rail for accuracy
Fuel pressure is a critical factor in diagnosing fuel pump issues on a 2007 Ram 1500. Low pressure can indicate a failing pump, clogged filter, or faulty regulator, while high pressure may suggest a restricted return line or malfunctioning pressure regulator. To accurately assess the fuel pump's performance, you need to measure the pressure at the fuel rail, which delivers fuel to the injectors. This direct measurement eliminates variables like line restrictions or injector issues, providing a clear picture of the pump's output.
Steps to Check Fuel Pressure:
- Gather Tools: Obtain a fuel pressure gauge compatible with your Ram's fuel system (typically Schrader valve type). You'll also need safety gear, including gloves and safety goggles, as you'll be working with pressurized fuel.
- Locate the Fuel Rail: On a 2007 Ram 1500, the fuel rail is typically located on the driver's side of the engine bay, near the intake manifold. It's a metal tube with injector ports and a Schrader valve for pressure testing.
- Relieve Fuel System Pressure: Before connecting the gauge, relieve the fuel system pressure to prevent accidental fuel spray. This can be done by locating the fuel pump relay in the fuse box and removing it, or by disconnecting the fuel pump fuse.
- Connect the Gauge: Attach the fuel pressure gauge to the Schrader valve on the fuel rail. Ensure a secure connection to prevent leaks.
- Start the Engine: With the gauge connected, start the engine and allow it to reach normal operating temperature. Observe the pressure reading on the gauge.
Expected Pressure Values:
For a 2007 Ram 1500 with a 4.7L or 5.7L engine, the fuel pressure should typically be between 48-55 psi (pounds per square inch) at idle. If the pressure is significantly lower or higher, it may indicate a problem with the fuel pump, regulator, or other components.
Cautions and Tips:
- Always work in a well-ventilated area and avoid open flames or sparks when working with fuel.
- If you're unsure about the fuel system's pressure specifications, consult the vehicle's manual or a trusted repair guide.
- When testing fuel pressure, be cautious of hot engine components and moving parts.
- If you suspect a fuel pump issue, consider testing the pump's electrical circuit and checking for proper voltage and ground before replacing the pump.
By accurately measuring fuel pressure at the rail, you can pinpoint fuel pump issues and avoid unnecessary repairs. This diagnostic step is crucial in maintaining the performance and reliability of your 2007 Ram 1500's fuel system. Remember to prioritize safety and follow proper procedures when working with fuel systems.
Grounding Your Fuel Pump: A Step-by-Step Guide for Safe Installation
You may want to see also
Explore related products
Listen for Operation: Turn the key to ON and listen for the pump’s hum
One of the simplest yet most effective ways to check the fuel pump on a 2007 Ram 1500 is to listen for its operation. This method requires no tools, just your ears and attention to detail. When you turn the key to the ON position (without starting the engine), the fuel pump should activate for a few seconds to pressurize the fuel system. This activation is accompanied by a distinct humming sound, which is your first clue that the pump is functioning. If you hear this hum, it’s a positive sign, but absence doesn’t necessarily mean the pump is faulty—it could indicate an issue with the pump relay or wiring.
The humming sound typically lasts 2-3 seconds and is most audible near the fuel tank, which is located under the truck bed on the driver’s side. To optimize your listening, open the rear driver’s side door and place your ear close to the fuel tank area. If you’re unsure what to listen for, compare it to the sound of a small electric motor running briefly. This step is particularly useful as a preliminary check before diving into more complex diagnostics, saving time and effort if the pump is indeed operational.
However, relying solely on this method has limitations. For instance, a weak or failing fuel pump might still produce a faint hum but fail to deliver adequate fuel pressure. Additionally, external noise, such as a loud engine bay or radio interference, can mask the sound. To mitigate this, perform the test in a quiet environment and consider having a helper listen while you focus on other diagnostics. Pairing this auditory check with a fuel pressure test using a gauge provides a more comprehensive assessment.
A practical tip for enhancing this method is to use a mechanic’s stethoscope or a length of rubber hose to amplify the sound. Place one end near the fuel tank and listen through the other end. This technique isolates the pump’s hum, making it easier to detect even faint or irregular operation. If the hum is inconsistent or unusually loud, it could signal a pump that’s on its way out, warranting further investigation.
In conclusion, listening for the fuel pump’s hum is a quick and accessible diagnostic step for a 2007 Ram 1500. While it’s not definitive, it serves as a valuable starting point to narrow down potential issues. Combine it with other tests for accuracy, and remember that a healthy pump should produce a clear, brief hum when the key is turned to ON. This simple check can save you from unnecessary part replacements or more invasive inspections.
Jumper Fuel Pump Guide for Mazda 2600i: DIY Steps
You may want to see also
Explore related products
Inspect Fuses/Relays: Check the fuel pump fuse and relay in the power distribution center
The fuel pump in your 2007 Ram 1500 relies on a healthy electrical system, and the fuse and relay are its first line of defense. These components act as gatekeepers, ensuring the pump receives the correct amount of power. A blown fuse or faulty relay can mimic fuel pump failure, leading to unnecessary repairs.
Before condemning the pump itself, a thorough inspection of these components is crucial.
Locate the power distribution center, typically found under the hood near the battery. Consult your Ram's manual for the exact location. Inside, you'll find a diagram labeling each fuse and relay. Identify the ones dedicated to the fuel pump. Fuses are small, colored plastic components, while relays are slightly larger and often black.
A visual inspection can reveal a blown fuse – a broken or melted wire inside is a telltale sign. However, relays require a more nuanced approach.
Testing a relay involves using a multimeter, a tool that measures electrical current. Set the multimeter to the ohms setting to check for continuity. With the ignition off, connect the multimeter leads to the relay's terminals. A good relay will show continuity (a low resistance reading), while a faulty one will show an open circuit (high resistance or no reading). If you're unsure about using a multimeter, consult a repair manual or seek assistance from a knowledgeable individual.
Replacing a fuse is straightforward – simply swap it with a new one of the same amperage rating. Relay replacement is slightly more involved, requiring careful removal and installation to ensure proper seating.
Remember, a blown fuse or faulty relay doesn't necessarily mean a permanent problem. A temporary short circuit or power surge could be the culprit. However, recurring issues warrant further investigation into the wiring harness or the fuel pump itself. By diligently inspecting the fuses and relays, you can save time, money, and frustration in diagnosing fuel pump problems on your 2007 Ram 1500.
Mastering Fuel Injection Pump Adjustments: A Step-by-Step Guide
You may want to see also
Explore related products
Test for Power: Use a multimeter to verify power is reaching the pump connector
A faulty fuel pump can leave you stranded, but before replacing it, confirm the issue isn't simply a lack of power reaching the pump. This is where your multimeter becomes your diagnostic ally.
Understanding the Circuit: The fuel pump in a 2007 Ram 1500 relies on a dedicated circuit to receive power. This circuit includes a fuse, relay, and wiring harness. If any component in this chain fails, the pump won't receive the necessary voltage to operate.
Think of it as a broken wire in a string of Christmas lights – one faulty connection disrupts the entire system.
Multimeter Mastery: A multimeter is your tool for tracing the flow of electricity. Set it to measure DC voltage (typically 20V range). Locate the fuel pump connector, usually found near the fuel tank. With the ignition on, carefully connect the multimeter's positive lead to the power pin on the connector and the negative lead to a good ground (like the battery negative terminal).
A healthy pump should show voltage close to your battery voltage (around 12.6V). If you read 0V, the power isn't reaching the pump, indicating a problem upstream in the circuit.
Troubleshooting Tips: If you find no voltage at the pump connector, systematically check the fuse, relay, and wiring for faults. A blown fuse or faulty relay are common culprits. Inspect the wiring harness for damage or corrosion. Remember, safety first – always disconnect the battery before working on electrical components.
Beyond the Multimeter: While a multimeter test is crucial, it's just one step in diagnosing a fuel pump issue. If power is present at the connector but the pump still isn't functioning, further tests are needed to assess the pump's internal resistance and operation.
How to Test a Fuel Pump: A Comprehensive Guide for Car Owners
You may want to see also
Frequently asked questions
The fuel pump is located inside the fuel tank. To access it, you’ll need to remove the bed or lower the tank, depending on your model. Disconnect the battery, relieve fuel system pressure, and then remove the tank to access the pump.
Common symptoms include difficulty starting the engine, sputtering or stalling, loss of power, and unusual noises (like whining) from the fuel tank area.
Yes, you can test it by listening for the pump’s hum when you turn the ignition to the "ON" position (but don’t start the engine). You can also use a fuel pressure gauge to check for proper pressure at the fuel rail.
Locate the fuel pump relay in the power distribution center (usually under the hood). Swap it with a relay of the same type (e.g., A/C compressor relay) and see if the pump engages. If it works, the relay is likely faulty.
You’ll need basic tools like wrenches, sockets, a fuel line disconnect tool, a jack and jack stands (or ramps), and possibly a fuel pressure gauge. If replacing the pump, a new fuel pump module and locking ring tool may be required.
