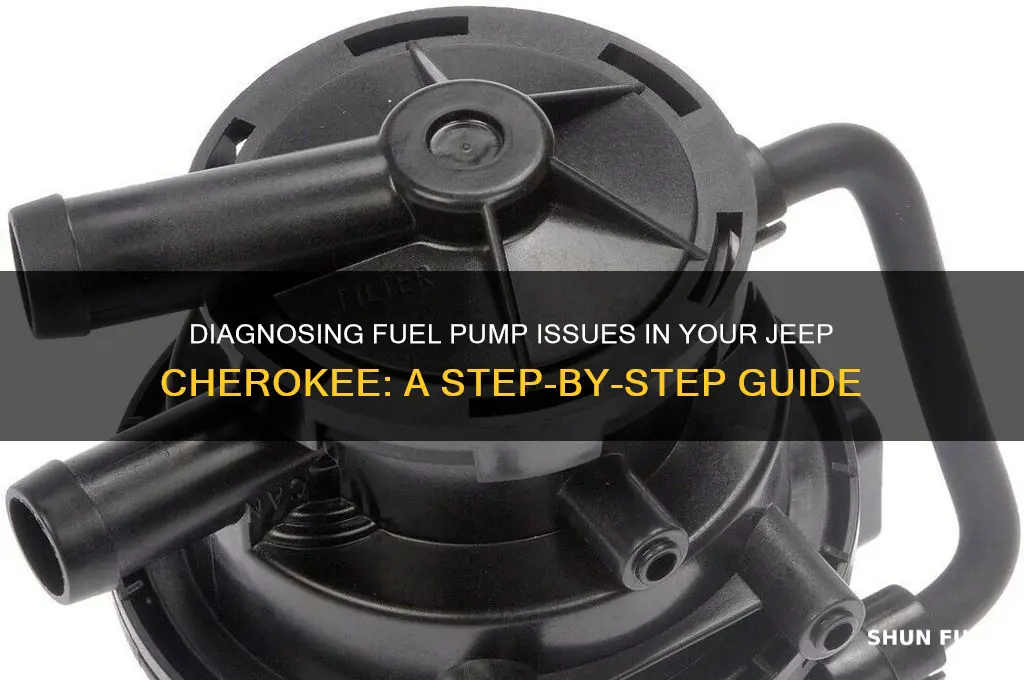

Checking the fuel pump on a Jeep Cherokee is essential for diagnosing issues related to fuel delivery, such as engine stalling or difficulty starting. Begin by locating the fuel pump, which is typically housed inside the fuel tank. To test it, start by listening for the pump’s hum when you turn the ignition to the on position but do not start the engine. If no sound is heard, check the fuel pump fuse and relay for faults. For a more precise test, use a fuel pressure gauge to measure the pump’s output, ensuring it matches the manufacturer’s specifications. If the pressure is low or non-existent, the fuel pump may need to be replaced. Always exercise caution when working with fuel systems, and consider consulting a professional if unsure.
| Characteristics | Values |
|---|---|
| Applicable Models | Jeep Cherokee (XJ) 1984-2001, Jeep Cherokee (KJ) 2002-2007, Jeep Cherokee (KK) 2008-2012, Jeep Cherokee (KL) 2014-Present |
| Tools Required | Multimeter, Fuel pressure gauge, Screwdriver, Wrench set, Safety goggles, Gloves |
| Safety Precautions | Work in a well-ventilated area, Disconnect battery, Relieve fuel system pressure, Avoid smoking or open flames |
| Fuel Pump Location | Inside the fuel tank (most models), Near the fuel tank (some older models) |
| Fuel Pump Relay Location | Under the hood, in the power distribution center (varies by model) |
| Fuel Pump Fuse Location | Under the hood or in the interior fuse box (varies by model) |
| Fuel Pressure Specification | Typically 30-60 PSI (varies by model and engine type) |
| Fuel Pump Operation Test | Turn ignition to ON (do not start), Listen for fuel pump hum (2-3 seconds), Use multimeter to check voltage at fuel pump connector |
| Fuel Pressure Test | Connect fuel pressure gauge to fuel rail, Start engine and check pressure, Compare to specifications |
| Common Symptoms of Fuel Pump Failure | Engine cranks but won’t start, Loss of power, Surging or stalling, Whining noise from fuel tank |
| Diagnostic Trouble Codes (DTCs) | P0087 (Fuel Rail/System Pressure - Too Low), P0191 (Fuel Rail Pressure Sensor Circuit Range/Performance) |
| Replacement Interval | Typically 100,000-150,000 miles (varies by usage and maintenance) |
| Replacement Difficulty | Moderate to Difficult (requires fuel tank removal in most cases) |
| Estimated Replacement Cost | $200-$800 (parts and labor, varies by model and location) |
| DIY Feasibility | Moderate (requires mechanical skill and proper tools) |
| Professional Recommendation | Recommended for fuel tank removal and complex diagnostics |
