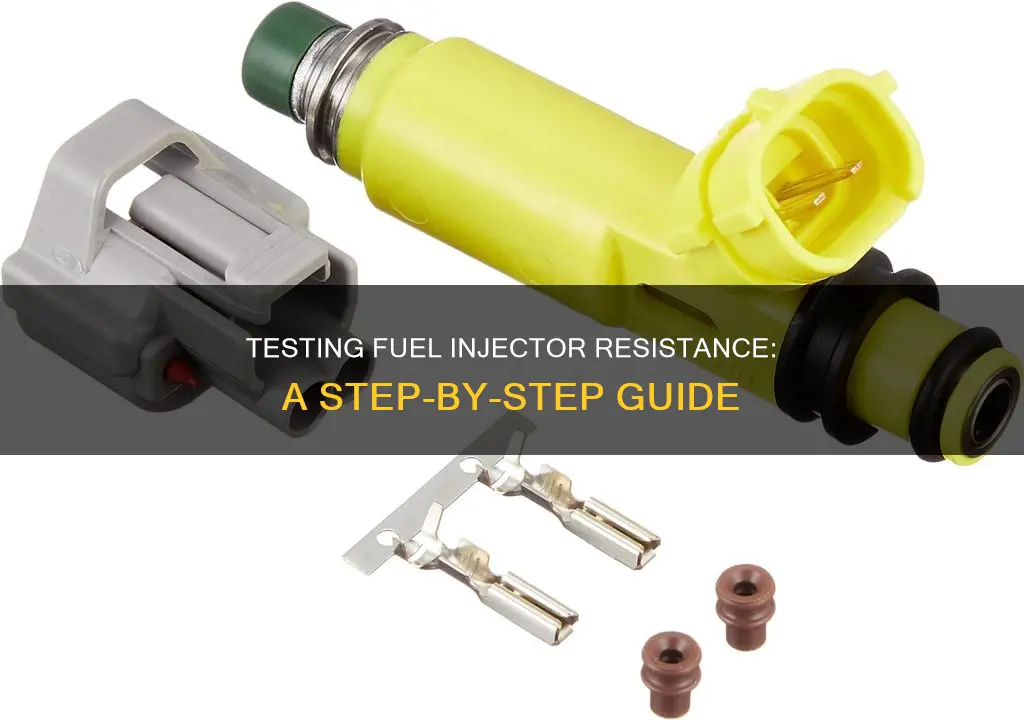

Fuel injectors are components that use an electrical signal to deliver a precise amount of fuel to your engine. Over time, they can start to malfunction due to dirt, gunk, or carbon buildup. To check the resistance of your fuel injectors, you can use an ohm meter or a multimeter to measure the coil resistance. The resistance should be within the range suggested by the manufacturer, typically between 10 and 18 ohms. If the resistance is off, the faulty injector will need to be repaired or replaced.
| Characteristics | Values |
|---|---|
| What to use | Ohm meter or multimeter |
| What to check | Coil resistance |
| Normal range | 10-18 ohms |
| What to do if abnormal | Injector needs to be replaced |
| What to do if injectors look the same | Check coil resistance, spray pattern, and flow rate differences |
| What to do if injector is suspected to be faulty | Swap it out with another one on an engine to see if the problem follows |
| What to do if injector is dirty | Clean it |
Explore related products
What You'll Learn
Using a multimeter to check resistance
To check the resistance of a fuel injector, you will need a multimeter, also known as a digital volt-ohm meter (DVOM). This device will allow you to measure the resistance of the electromagnetic coil within the injector.
First, ensure that your car is turned off. You do not need the engine running for this test. Next, remove the injector wiring harness by pressing down on the tabs and, if necessary, moving a slide lock. Now, set your multimeter to measure ohms. Place the negative lead of the multimeter to a ground source, such as an unpainted piece of the car's frame under the hood. Then, place the positive lead on the wiring harness terminal. The wiring harness will have two terminals that the prongs on the injector insert into. One will be connected to the ground and will read 0 volts.
The resistance of the coils should be within about plus or minus 10% of each other. For example, if one injector measures 12 ohms and another measures 8 ohms, the latter likely has shorted turns and needs to be replaced. The exact numbers will vary depending on the vehicle, so it is recommended to check the correct value for your vehicle's injectors in the service manual or online (most fuel injectors should read between 10 and 18 ohms).
If you cannot find the resistance specification, measure the resistance of all the injectors and they should be within 0.5 ohms of each other. If the rated resistance is more than 0.5% off or does not match the other units, the injector is faulty and will need to be replaced.
Understanding the Quick Workings of Lucas Fuel Injectors
You may want to see also
Explore related products
Checking the voltage
First, it is important to consult your vehicle's service manual or online resources to determine the correct resistance value for your specific fuel injectors. Most fuel injectors should have a resistance reading between 10 and 18 ohms. This value is essential for accurately assessing the condition of your fuel injectors.
To begin the test, disconnect the fuel injector from the engine by removing the wire harness connector. This will allow you to isolate the injector and perform the voltage check. Once the injector is disconnected, use an ohmmeter or a multimeter to measure the resistance. Ohmmeter leads should be placed on the injector contacts or the two prongs of the injector.
When measuring the resistance, ensure that the polarity of the meter leads does not matter. The reading should be within the range specified by the manufacturer. A good injector will typically have a resistance reading within 0.5 ohms of the rated resistance. For example, if the rated resistance is 16.5 ohms, a functioning injector should measure between 16 and 17 ohms.
If the resistance reading is significantly off or does not match the other injectors, it indicates a potential issue. A faulty injector may need to be repaired or replaced to ensure optimal engine performance. It is recommended to compare the readings of all injectors to identify any discrepancies.
Additionally, you can test the spray pattern of the injector by removing the fuel rail while keeping the injector attached. Turn on the fuel pump and apply voltage to the injector using a 9-volt battery. This will help you observe the spray pattern and identify any issues with the fuel delivery.
When to Clean Fuel Injectors for Optimal Performance
You may want to see also
Explore related products
Testing the spray pattern
There are a few methods for testing the spray pattern of a fuel injector. One method is to use a cylinder balance test. This involves unplugging each injector one at a time and measuring the drop in RPM. If the RPM does not drop significantly when an injector is unplugged, it may indicate that the injector is not spraying properly.
Another method is to use a testing machine that allows you to visualise the spray pattern. A working fuel injector should produce a clear-coloured, fine spray with a light misting.
It is also possible to test the spray pattern of an injector by setting up a pump with a known pressure and a measuring device, such as a flask with graduations of known value. The injector is placed over the flask, and if there are drips or a poor flow, it indicates that the injector pintle is not sealing properly. By activating the pulser for a set time, you can calculate the flow rate and observe the spray pattern to determine if the injector is functioning correctly.
It is important to note that flow rate is critical when testing injectors, as all injectors in an engine should have the same flow rate. A low flow rate can cause the engine to run hotter and leaner, damaging the engine over time.
Replacing Fuel Injectors: Step-by-Step Guide for '01 Focus
You may want to see also
Explore related products
Comparing resistance to other injectors
When comparing resistance, it is essential to consider the potential impact of lower resistance fuel injectors. Installing fuel injectors with lower resistance than the recommended range can lead to several issues. Firstly, lower resistance injectors will deliver more fuel to the engine, resulting in increased fuel consumption. Secondly, the excess fuel delivered may not burn completely, leading to higher vehicle emissions. Lastly, the additional fuel can cause the engine to run rich, resulting in performance problems such as hesitation, misfiring, and decreased power.
It is worth noting that while resistance values provide valuable information, they do not offer a comprehensive diagnosis of fuel injector performance. For example, an injector with perfect resistance readings may still exhibit a flow imbalance or spray pattern degradation. Conversely, an injector with slightly lower resistance may continue to function adequately for an extended period. Therefore, it is crucial to consider other factors, such as flow rates, spray patterns, and propagation delays, when assessing the overall health and performance of fuel injectors.
To accurately compare resistance across multiple injectors, it is recommended to use an ohm meter or a voltmeter. This allows for direct measurement of the coil resistance of each injector. The resistance values of all injectors should be within a close range, typically within about plus or minus 10% of each other. Significant deviations from this range indicate a potential issue with the injector, such as shorted turns or an open circuit, necessitating repair or replacement.
Backflushing 1979 Porsche 924 Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Checking the service manual
To locate the relevant information in the service manual, look for the chapter or section specifically dedicated to the fuel injection system. In some manuals, this may be found under a heading such as "Fuel Line Inspection." Once you have located the correct section, refer to the specifications for the fuel injectors, including the resistance range.
The service manual may also provide additional information on testing and troubleshooting fuel injectors. For example, it may include instructions on how to remove the fuel injectors, clean them, or replace them if they are faulty. It may also specify the correct tools and equipment required for testing, such as a multimeter or ohmmeter, and provide safety precautions to follow when working with fuel and electrical systems.
Additionally, the service manual may offer insights into common issues associated with the specific vehicle's fuel injectors. This information can help identify potential problems and provide guidance on preventative maintenance. By consulting the service manual, individuals can gain a comprehensive understanding of the fuel injection system and take appropriate steps to maintain and, if necessary, repair or replace the fuel injectors.
Cleaning Fuel Injectors: Bench Method for Optimal Performance
You may want to see also
Frequently asked questions
You can check the fuel injector resistance by using an ohm meter or a multimeter. First, remove the wire harness connector from the injector. Then, place the meter leads on the injector contacts. The resistance should be within .5 ohms of the injectors' rated resistance.
Most fuel injectors should read between 10 and 18 ohms. However, the exact numbers will vary with the vehicle. It is best to check your vehicle's service manual or look up the rated resistance online.
If the resistance is off, the faulty injector needs to be repaired or replaced. You can try cleaning the injector first, as dirt, gunk, or carbon buildup can cause problems. If that does not work, you may need to replace the injector.
