Fuel injectors are an essential component of modern internal combustion engines. Testing their flow rate is crucial to ensure optimal engine performance and fuel economy. A faulty fuel injector can lead to issues such as misfires, poor acceleration, and increased fuel consumption. To check the flow rate, the injectors undergo static and dynamic flow tests at specific fuel pressures and duty cycles, simulating real-world conditions. Ultrasonic cleaning and specialised detergents are also employed to remove any contaminants. This guide will delve into the detailed process of testing fuel injector flow, including the equipment and procedures involved, and highlight the importance of regular maintenance for optimal vehicle performance.
| Characteristics | Values |
|---|---|
| Cleaning | Ultrasonic cleaning, high-pressure back-flush, special detergent |
| Testing | Leakage, flow rate, spray pattern, resistance, ohm testing |
| Cost | $15 per injector for flow testing, $30 per MPI injector for cleaning, $35 per Direct Injector for cleaning |
| Symptoms of Faulty Injectors | Engine misfires, rough idle, stalling, decrease in power, increase in fuel consumption, over-fuelling, check engine light |
Explore related products
What You'll Learn
Signs of faulty injectors
A faulty or dirty fuel injector will cause your engine to lose power. You may find it challenging to accelerate or maintain speed when driving uphill. The engine may also stutter and judder as it misses revolutions.
A dirty fuel injector will interfere with the finely balanced fuel-air mixture inside the combustion chamber of each cylinder, causing the cylinder to misfire. This will result in erratic revolutions per minute (RPMs), even when your foot is off the gas pedal. You may notice the needle on your dashboard's RPM gauge moving in an unpredictable manner.
A malfunctioning fuel injector can also cause your engine to stall. This is often accompanied by rough idling, characterised by varying RPMs. Additionally, the check engine light on your dashboard may illuminate, indicating a problem with the fuel injector or another issue that requires immediate attention.
Another sign of a faulty fuel injector is poor fuel economy. Dirty fuel injectors can cause incomplete combustion by delivering an incorrect amount of fuel to the engine, resulting in more frequent visits to the gas station.
When to Use Fuel Injector Cleaner: A Guide
You may want to see also
Explore related products
Leakage test
Step 1: Visual Inspection
Start by popping the hood and performing a visual inspection of the fuel injectors. Look for any wet spots, shiny substances that resemble gasoline, or an accumulation of dirt and grime around the injectors, which could indicate fuel leakage.
Step 2: Smell Test
Use your sense of smell to detect potential fuel leaks. Run the engine for several minutes and then turn it off. Carefully sniff around the fuel injectors and engine bay, being cautious not to lean too close to hot components. A strong gasoline smell near the injectors is a sign of a potential leak.
Step 3: Engine Performance
Even if there are no apparent signs of leakage, monitor your engine's performance for clues. Common symptoms of a leaking fuel injector include reduced gas mileage, rough idling, frequent misfires, and poor emissions. Engine misfires can also be confirmed by checking for trouble codes with an OBD2 scanner.
Step 4: Multimeter Voltage Test
Turn off the engine and disconnect the throttle socket or cable. Use a multimeter to test the voltage on the injector sockets. For most cars with two-pin injectors, voltage readings above 3.70 to 3.89 indicate a potential issue.
Step 5: Fuel Pressure Test
Disconnect the fuel injector and measure the fuel pressure using a syringe or a pressure gauge. Send current to each injector and observe the spraying rate. Leaking injectors may spray excess fuel or exhibit large drops. Additionally, pinch the fuel return line and watch the fuel pressure gauge. A rapid pressure drop indicates leaking injectors.
Step 6: Injector Removal and Inspection
If you suspect a leak, remove the fuel injector and inspect the O-rings and other components for damage. Replace any damaged O-rings or other parts, as these can cause air leaks and affect engine performance.
Step 7: Cleaning and Flow Testing
For a comprehensive assessment, consider sending your fuel injectors to a specialised service for cleaning and flow testing. They will perform various tests, including leak testing, spray pattern analysis, and flow rate measurements. This ensures that your fuel injectors are thoroughly cleaned and functioning optimally.
Remember, it is essential to address any signs of fuel injector leakage promptly to prevent potential safety hazards and costly engine repairs.
Piezo Fuel Injectors: Understanding Their Functionality
You may want to see also
Explore related products
Injecting flow test
The first step in the process is to externally clean the injectors in a special detergent and visually inspect them for any damage. This is followed by testing the injectors' coils for resistance, shorts, and current draw. It is important to note that a fuel injector's coil can pass a resistance test but still fail when under load. To address this, the fuel injectors' coil windings are checked under a simulated load to detect any intermittent coil faults.
The next step involves wire brushing any loose paint and rust from the metal injector bodies. Plastic injectors skip this step. The filter baskets, O-rings, and pintle caps are then removed, and the injectors are re-cleaned to eliminate any particles or dirt that may contaminate the cleaning fluid in the subsequent step.
Subsequently, the injectors are placed in an ultrasonic cleaning tank where they are electronically cycled on and off while being ultrasonically cleaned with special detergents. This process ensures that the ultrasonic waves dislodge any particles, carbon, gum, or varnish build-up, both outside and inside the injectors. The cleaning step typically lasts for a minimum of 30 minutes, depending on the condition of the injectors.

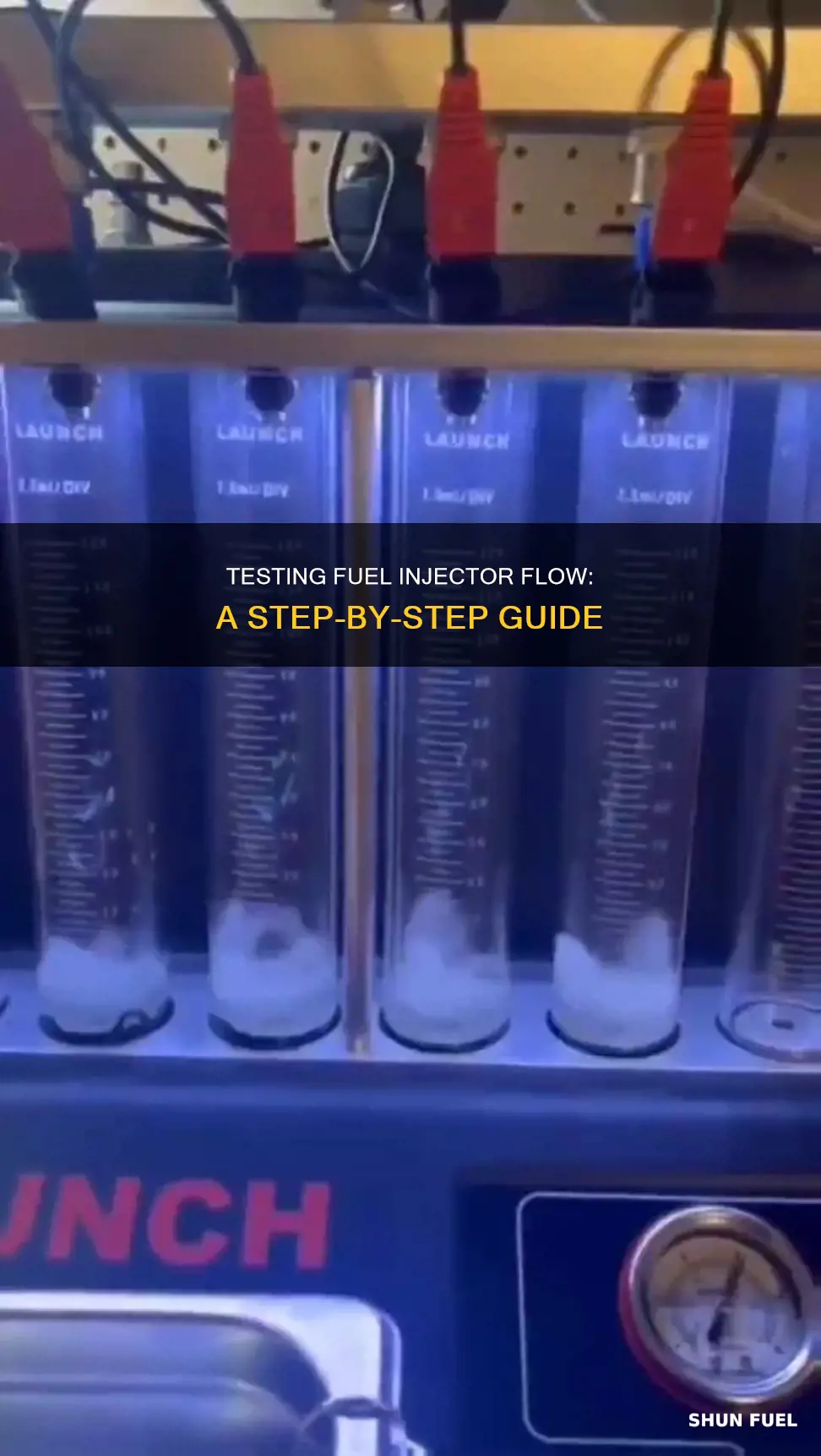

Following the cleaning process, the injectors undergo flow testing to assess their performance. This includes both static and dynamic simulations to replicate real-world conditions. During the static flow test, the injectors are flow tested for 15 seconds at a specific fuel pressure (43.5 psi or 3 BAR) while being held fully open. In contrast, the dynamic (pulsed) flow test involves testing the injectors for 30 seconds at different duty cycles and pulse widths, simulating various driving conditions such as idling, acceleration, deceleration, low speed, and high speed. The injectors are tested at different pulse widths (3 ms, 6 ms, and 12 ms) and RPMs ranging from 750 RPM (idle) to 3000 RPM (high speed).
After the flow tests, the results are recorded, and any injectors that fail the leak down or flow tests are marked as defective. Finally, new filter baskets, O-rings, and pintle caps are installed, and the injectors are lubricated before being sealed in Poly bags.
Testing BMW E85 Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Static flow test
A static flow test is a fuel injector test that determines whether a set of fuel injectors flow the same amount of fuel. This test is done at a specific fuel pressure and over a set period.
The process of a static flow test involves the following steps:
- The injectors are externally cleaned in a special detergent and visually inspected.
- The resistance, shorts, and current draw of the injectors' coils are tested.
- Any loose paint and rust on the metal injector bodies are wire-brushed away.
- The filter baskets, O-rings, and pintle caps are removed.
- The injectors are re-cleaned to eliminate any particles or dirt that may contaminate the cleaning fluid in the next step.
- The injectors are placed in an ultrasonic cleaning tank, where they are electronically cycled on and off while being ultrasonically cleaned with detergents.
- The injectors are then flow tested for 15 seconds at a specific fuel pressure (43.5 psi or 3 BAR) while being held fully open (static).
It is important to note that a static flow test will not indicate the health of the injector or the fuel injector set. A dynamic flow test is a more comprehensive assessment of the injector's health but is more time-consuming and expensive.
Fuel Injector Maintenance: Lucas Cleaner Frequency Guide
You may want to see also
Explore related products
Dynamic flow test
A dynamic flow test is one of the methods to check the flow rate of a fuel injector. The flow rate is the volume of gas each injector flows in cc/min at 43.5 psi / 3 bar of fuel pressure. For context, the injectors in a set should be flowing within 5% of each other for proper engine performance.
The dynamic flow test, also known as the pulsed flow test, involves testing the injectors for 30 seconds at different duty cycles. The injectors are pulsed at varied pulse widths to duplicate real-world conditions such as idling, acceleration, deceleration, low speed, and high speed. The amount of time the injector is energised and held open is measured in milliseconds (1000ths of a second) and is referred to as the pulse width.
The dynamic flow test is different from the static flow test, where the injectors are flow tested for 15 seconds at a specific fuel pressure (43.5 psi or 3 BAR) while the injector is held Full Open (i.e. static).
It is important to have the right fuel injectors with a flow rate suitable for the engine's power output. Using fuel injectors that are too large will result in sluggish acceleration, while using ones that are too small will starve the engine of fuel.
Additionally, a leaking fuel injector can cause significant issues. If one of the injectors starts leaking fuel, the ECU (Engine Control Unit) will not detect the leak. Instead, it will detect a rich condition in the exhaust and try to correct it by altering the fuel trims. As a result, the other cylinders may receive a leaner fuel mixture, which can lead to increased heat in the cylinder and potential engine damage.
When to Use Fuel Injector Cleaner?
You may want to see also
Frequently asked questions
There are several signs that your fuel injectors may be malfunctioning. These include a sudden increase in fuel consumption, a rough idle, stalling, a decrease in power, an audible popping sound, and the check engine light coming on.
You can either replace your fuel injectors or get them cleaned. Injector cleaner machines are a specialised device designed to clean fuel injectors. They use a solution, often combined with ultrasonic technology or high-pressure solvents, to clean the injectors without the need for disassembly.
You can either get them cleaned at a service centre or use an injector cleaner machine. Service centres like Injector RX and Fuel Injector Clinic offer fuel injector cleaning services. They will externally clean the injectors, test them for resistance, shorts, and current draw, and then re-clean them to remove any particles or dirt. The injectors are then placed in an ultrasonic cleaning tank and electronically cycled on and off while being ultrasonically cleaned. Finally, the injectors are lubricated and sealed.
