Ameer Randolph
The fuel filter in a Mustang is a vital maintenance part that needs to be replaced regularly. Over time, the filter can become clogged with dirt and particles, leading to reduced performance and fuel economy. This article will provide a step-by-step guide on how to check and replace the fuel filter on a 2004 Mustang, ensuring optimal performance and driveability. From locating the fuel filter to the tools required for its replacement, this guide will empower you to maintain your Mustang's fuel system effectively.
Explore related products
What You'll Learn

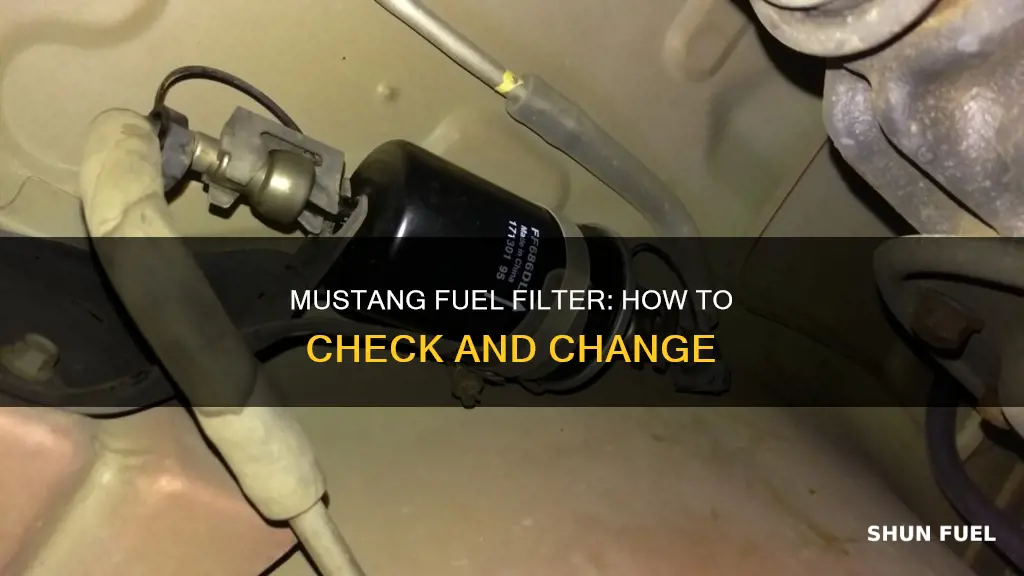

Location of the fuel filter
The fuel filter in a Mustang is a vital maintenance part that needs to be replaced from time to time. It is designed to prevent any dirt from entering the engine and can become clogged over time, causing performance issues.
The fuel filter on a 2004 Mustang GT is located in front of the rear axle, above and to the front of the rear differential. To access it, you will need to raise the car, with the front wheels on wheel ramps and the rear wheels on jack stands. This will give you enough space to crawl under and locate the fuel filter.
The fuel filter on a 1996-2004 Mustang GT is also located in the rear of the vehicle, but the specific location is not mentioned. The replacement procedure involves removing the fuel pump relay and cranking the engine to clear the fuel lines.
It is important to note that the fuel system should be depressurized before any maintenance work is performed on the fuel filter. This can be done by accessing the fuse panel and removing the associated fuse or relay for the fuel pump.
Nissan Rogue Fuel Filter: Step-by-Step Replacement Guide
You may want to see also
Explore related products
Removing the old filter
To remove the old fuel filter from your 04 Mustang, follow these steps:
First, locate the fuel filter. It is situated in front of the rear axle, above and to the front of the rear differential. You may need to lift the rear of the car with a jack to gain access. With the car in the air, crawl underneath and locate the fuel filter directly above the rear differential.
Next, depressurise the fuel system. Open the hood of the car and access the fuse panel. Remove the associated fuse or relay for the fuel pump to depressurise the system. Then, with the car running, unplug the inertia switch connector. The car will run for a few seconds before shutting off, indicating that the fuel system is empty.
Now, you can remove the old fuel filter. Start by removing the two plastic end covers from the filter connection. Then, undo the screw securing the filter. After that, remove the fuel line from both sides of the filter using a quick disconnect tool. Push the tool into the connector firmly to release the two clips inside, then pull the filter and line apart. Have a rag handy, as gas will start leaking out.
Once the fuel lines are removed, pull the fuel filter off the mount and remove it from the car. Place the old filter in a safe location, such as a drain pan, to prevent fuel spillage.
Inspecting Old Fuel Filters: A Step-by-Step Guide
You may want to see also
Explore related products
Disconnecting the fuel lines
First, ensure the fuel system is depressurized. Pop the hood and access the fuse panel to depressurize the fuel system. Remove the associated fuse or relay for the fuel pump. Next, you need to cut off the fuel pump. This can be done via an inertia switch in the trunk on the driver's side. Remove the panel by unfastening the plastic connector. You will see the inertia switch, which is a black plastic box with orange on top. Unplug the connector, and the car will shut off after a few seconds.
Now, you can lift the car to gain access to the fuel filter. Place the front wheels on wheel ramps and the rear wheels on jack stands to level the car. The fuel filter is located in front of the rear axle, above and to the front of the rear differential. Once you have located the fuel filter, remove the two plastic end covers.
To disconnect the fuel lines, you will need a fuel line disconnect tool. Clip the tool onto the fitting and push it in away from the connector. You will feel it close around the line. Push it firmly into the connector to release the two clips inside. Then, pull the filter and line apart. Be prepared for gas to start leaking out, so have a rag or drain pan ready. Repeat this process for the other side if needed.
Once the fuel lines are removed, you can pull the fuel filter off the mount and take it out of the car. Now you can check the fuel filter and replace it if necessary. Remember to follow the manufacturer's guidelines and recommended tools for the best results.
Changing Fuel Filter in Toyota Camry: Step-by-Step Guide
You may want to see also
Explore related products
Installing the new filter
Installing a new filter in your Mustang is simple and can be done in your driveway in less than an hour.
First, make sure the new filter is a suitable replacement. For 1983-1997 Mustangs, a Motorcraft Fuel Filter (FG-800A) is recommended. For 2005-2014 Mustang V6 and GT models, the Motorcraft filter is not required, as these vehicles will have an internal filter located within the fuel tank.
Next, slide the new filter into place, ensuring that the arrow on the filter is pointing towards the engine. Tighten the clamp or retaining bracket, and slide the hoses back into position. Use the supplied plastic retaining clips to secure the lines to the filter.
Once the new filter is in place, reinstall the fuel line shield and install the fuel pump relay. Reconnect the negative battery terminal.
Finally, start the car and check for any leaks. Crank the engine over a few times to ensure any residual fuel is cleared from the lines.
Changing Fuel Filter: Yamaha Four-Stroke Motor Guide
You may want to see also
Explore related products
Reattaching the fuel lines
It is important to ensure the fuel lines are correctly attached and secure to avoid any leaks. Once you have reattached the fuel lines, you can reinstall the fuel line shield and install the fuel pump relay. Finally, connect the negative battery terminal and start the car to check for any leaks.
Some sources suggest using a quick disconnect tool to help with the process of removing and reattaching the fuel lines. This tool will help you to release the clips inside the connector, allowing you to pull the filter and lines apart. You can then reattach the lines by pushing them back into the connector.
It is also important to note that the fuel system should be depressurized before beginning any work on the fuel filter. This can be done by accessing the fuse panel and removing the associated fuse or relay for the fuel pump.
Ford Focus: Checking the Fuel Filter
You may want to see also
Frequently asked questions
Ford recommends replacing the fuel filter every 30,000 miles.
The fuel filter is located in front of the rear axle, above and to the front of the rear differential.
You will need a 1/4" socket set, a fuel line disconnect tool, a push-pin removal tool, and a lift or jacks and jack stands.
First, remove the fuel pump relay (#21) to ensure that the fuel pump doesn't turn on while you work. Then, crank the engine over a few times to clear the fuel from the lines. Next, lift the car and remove the old fuel filter. Finally, install the new fuel filter and reverse the installation steps.
