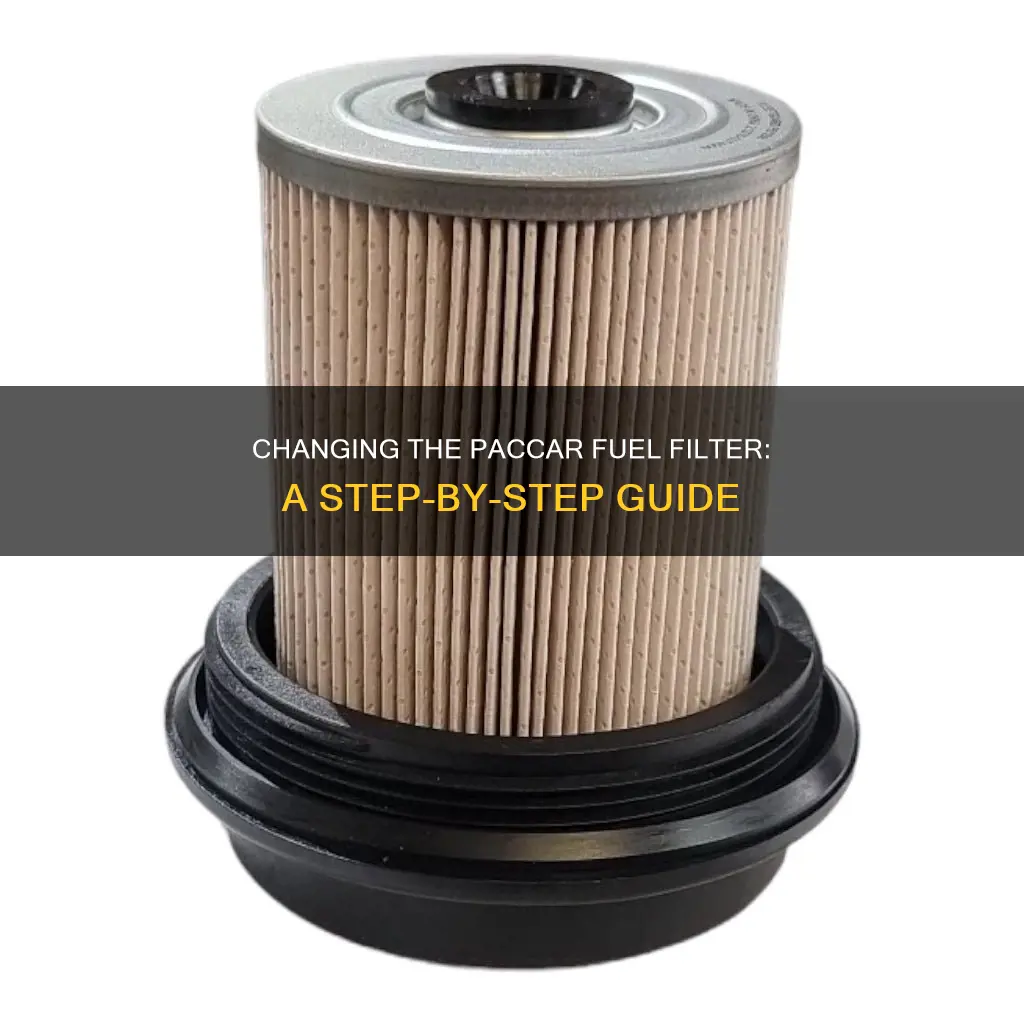

Changing the fuel filter on a Paccar engine requires careful attention to safety and a good understanding of the engine's workings. The Paccar MX engine, for example, doesn't hold pressure after the engine stops running, unlike other engines, which maintain pressure indefinitely. This means that safety procedures must be followed to avoid serious injury or death. This guide will cover the steps to change the fuel filter, P/N: P2133096E, on a Paccar engine, and the precautions to take when doing so.
Characteristics and Values Table for Changing Paccar Fuel Filter P2133096E
| Characteristics | Values |
|---|---|
| Engine Type | Paccar MX 16 |
| Vehicle Type | 2016 Kenworth T680 |
| Filter Location | Primary and Secondary |
| Priming Process | Remove air from primary filter and expel it |
| Bleeding Process | Use manual primer pump or low air pressure method |
| Injector Line | Do not loosen while engine is running |
| Blending Valve | Prime system with filter cap removed, then replace cap |
| Fuel Spill | May occur during certain procedures |
| Safety | Avoid high-pressure fuel and always wear protection |
Explore related products
What You'll Learn
Draining and replacing the primary fuel filter
To drain and replace the primary fuel filter, follow these steps:
Firstly, locate the primary fuel filter. This is usually mounted on the frame of the truck. Once you have found it, you can begin the process of draining and replacing it.
The next step is to drain the primary fuel filter. Place a container underneath the filter to catch the drained fuel, then carefully remove the drain plug or valve and allow the fuel to drain out. Be cautious when handling fuel and ensure that the area is well-ventilated.
After draining the primary fuel filter, it's important to clean or replace the filter element. Remove the old filter element and inspect it for any damage or excessive dirt. If it is damaged or extremely dirty, it is recommended to replace it with a new one. Make sure the new or cleaned filter element is properly secured in place.
Now, you can refill the primary fuel filter with fresh fuel. Ensure that the drain plug or valve is securely closed, then carefully pour new fuel into the filter until it reaches the appropriate level. Check your truck's manual or consult a mechanic if you're unsure about the correct fuel type and level.
Finally, you can proceed to bleed the air out of the primary fuel filter. This step ensures that any air trapped in the filter is released, allowing the fuel to flow smoothly. Locate the bleeder screw or valve on the primary fuel filter and slowly loosen it. You may need to crank the engine to help remove the air. Once a constant stream of fuel is observed, tighten the bleeder screw and start the engine to ensure proper functioning.
It is important to exercise caution when performing any fuel filter maintenance, especially due to the high-pressure system in the Paccar MX engine. Always refer to official manuals or seek professional assistance if you are unsure about any steps or procedures.
Changing Your Mercruiser Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Bleeding air from the primary filter housing
To bleed air from the primary filter housing, you must first ensure that the engine is not running. The Paccar MX engine does not hold pressure after the engine stops running, but other engines do, so it is important to be cautious.
Next, locate the bleeder screw to the right of the primer pump on the primary filter housing. Open the bleeder screw and have the driver crank the engine. This will fill the filter housing and force air and fuel out of the valve. You will see bubbles, and then a constant stream of fuel. Shut the valve and let the engine run for a minute. Then, shut off the engine and change the internal secondary filter. Try not to remove all the fuel sitting in the secondary filter.
Replace the filter and O-ring, then open the valve and wait for the stream. Shut the valve and let the engine run for a minute. Finally, shut off the engine and tighten the nut to its original spot. Restart the engine.
Be careful, as there is high pressure involved, and bleeding air from the primary filter housing is a potentially dangerous task.
Changing Fuel Filter: 2006 Nissan Altima Guide
You may want to see also
Explore related products
Using the blending valve
The fuel blender is a feature found in some primary filters. Typically, in a primary filter, you would observe only the fuel line coming from the tank and another going to the engine. However, if a blender is present, a return line connects to what appears to be a T-fitting on top of the filter housing. This blending valve allows warm fuel from the engine to return directly to the suction side of the filter instead of going back to the tank.
Consequently, if there is any air in the system, the blending valve complicates the removal process as it allows the air to be sucked right back into the engine. Any residual air can circulate in the fuel system for an extended period before it is completely purged.
If there is no way to bypass the blending valve, begin priming the system with the filter cap removed. After that, put the cap back on. Immediately loosen the injector line and operate the priming pump. This method will prevent fuel from being pushed through the return line, allowing it to flow out through the injector line opening instead. While this will result in a significant fuel spill, it is a viable option if no alternatives are available.
If the engine still doesn't start, you might want to have someone crank the engine while you operate the priming pump.
Changing Fuel Filter: Ram 3500 Guide
You may want to see also
Explore related products
Priming the system
To prime the system of a Paccar MX engine, you must first check if the primary fuel filter/separator has a blending valve on top of its housing and whether it includes a bypass option. If there is no way to bypass it, begin priming the system with the filter cap removed. After that, put the cap back on and immediately loosen the injector line. Operate the priming pump—this will prevent fuel from being pushed through the return line, allowing it to flow out through the injector line opening instead.
During the priming process, you need to remove all the air from the primary filter and expel it. This is why you may observe air in the secondary fuel filter while priming. You can also try to bleed air out of the fuel line.
There is a manual primer pump on the main fuel filter. You can drain and replace the primary or fuel water separator filter, then open the bleeder and have the driver crank it over. This fills up the filter housing, and out of the valve, bubbles will come, then a constant stream. Shut the valve and let it run for a minute, then shut it off and go change the internal secondary. Try not to pull out all the fuel sitting there.
Another method is to put very low air pressure, 5 PSI or less, on one fuel tank with vents closed on both. Then bleed air from the primary filter housing, then from the secondary and/or where the line was connected to the head. Loosen one injector nut and head for reference, then feather-starting fluid in the air filter just enough to keep it running. It will then blow air and fuel out and then fire up.
Changing Fuel Filter: Exmark Pioneer Guide
You may want to see also
Explore related products
Safety precautions
Safety should be a top priority when attempting to change a Paccar fuel filter. Here are some detailed safety precautions to follow:
First, it is important to note that the process described here is specific to the Paccar MX engine, which does not hold pressure after the engine stops running. Other engines may maintain pressure indefinitely, so loosening injector lines can be dangerous. This procedure should never be used with other engines.
When priming the Paccar MX13 fuel system, there are several safety measures to keep in mind. One user recommends putting very low air pressure (5 PSI or less) on one fuel tank with the vents closed on both. It is crucial to be cautious when dealing with high pressure. Additionally, make sure to bleed air from the primary filter housing and then from the secondary or where the line was connected to the head.
Before starting the engine, ensure that all necessary replacements and adjustments have been made. Replace the filter and O-ring, and open the bleeder. This will fill up the filter housing and cause bubbles to come out of the valve. Wait for a constant stream to come out before shutting the valve and letting the engine run for a minute. Then, shut it off and go to change the internal secondary, trying not to pull out all the fuel sitting there.
Another user shares their experience with the priming process. They recommend filling the spin-on filter and separator filter as much as possible before installation and tightening. It is important to emphasize that traditional methods for removing air will not work in this case. Instead, pump the primer pump without opening any bleed ports. Keep pumping until the separator filter is full and you hear the pressure release valves in the head start clicking, indicating that both filters are full and pressurized.
By following these safety precautions and instructions, you can effectively change the Paccar fuel filter while minimizing the risk of accidents or damage to the engine.
Changing Fuel Filter on LBZ Duramax: Step-by-Step Guide
You may want to see also
Frequently asked questions
The following steps outline the process of changing the fuel filter on a Paccar engine:
- Drain and replace the primary fuel water separator filter.
- Open the bleeder and have the driver crank it over.
- Fill up the filter housing and allow bubbles to escape through the valve.
- Shut the valve and let the engine run for a minute.
- Shut off the engine and change the internal secondary filter, being careful not to spill the fuel.
- Replace the secondary filter and o-ring.
- Open the valve and wait for the stream.
During the priming process, you need to remove all the air from the primary filter and expel it. You may observe air exiting through the secondary fuel filter while priming.
If the blending valve cannot be bypassed, begin priming the system with the filter cap removed. Put the cap back on and immediately loosen the injector line. Operate the priming pump to prevent fuel from being pushed through the return line.
Yes, it is important to never loosen the injector line while the engine is running. The high fuel pressure can be extremely dangerous and can lead to serious injury or death.
