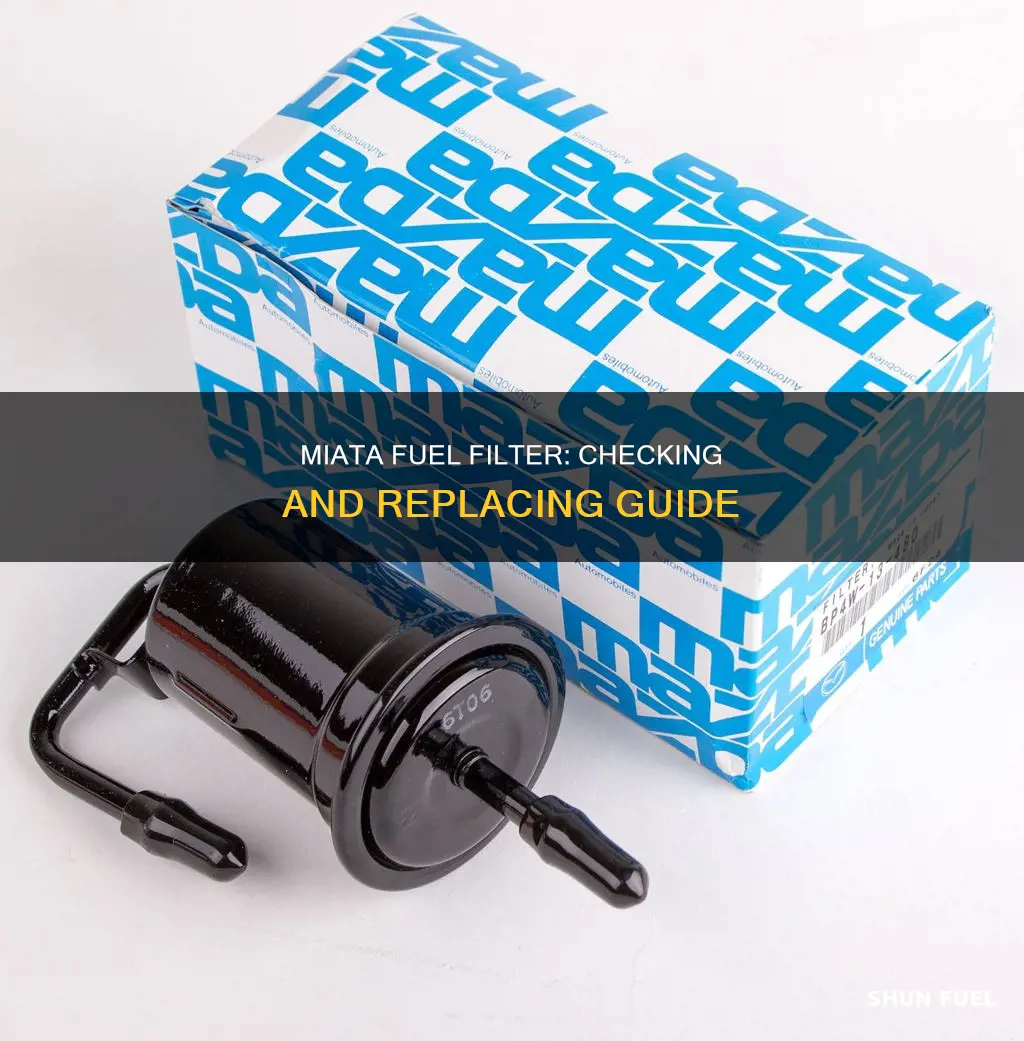

The fuel filter in a Mazda Miata is located towards the middle, in front of the rear passenger-side wheel. It is plumbed into the high-pressure fuel supply line beneath the car. The fuel filter should be replaced if a car has been sitting with unused gas in the tank for over 3 to 6 months. The process of changing the fuel filter involves disconnecting the Circuit Opening Relay (1.6) or Fuel Pump Relay (1.8) under the dashboard, removing the fuel filter cover, loosening the hose clamps, and replacing the old filter with a new one. It is important to depressurize the fuel system and place a pan under the filter to catch any leaking fuel.
Explore related products
What You'll Learn
Locate the fuel filter
To locate the fuel filter of a Miata, drive the rear of the car onto ramps and place chocks under the front wheels to prevent the car from moving. Next, remove the fuel cap to relieve pressure from the fuel tank. Then, with the engine idling, disconnect the yellow plug under the dashboard near the steering column. This is the Circuit Opening Relay (1.6) or the Fuel Pump Relay (1.8). Once the plug is disconnected, the engine will stall and the fuel line will be depressurized.
Now, crawl under the rear bumper and locate the fuel filter cover. The cover is held in place by 4 or 5 plastic screw clamps, which can be removed with a cross-tip screwdriver. The fuel filter is located toward the middle, in front of the rear passenger-side wheel, toward the center of the car. It is plumbed into the high-pressure fuel supply line beneath the car, right next to a sturdy frame rail.
Place a pan under the filter to catch any fuel that may leak out during the removal process. Use a 10 mm (13/32-inch) socket to remove the bolt that secures the clamp holding the fuel filter to the car. Be sure to have a rag or a bucket nearby to catch any fuel that may spill or leak during this process. Safety glasses are also recommended to protect your eyes from any fuel splashes. If you are having trouble disconnecting the tubes, you can use zip ties to press the tabs down and disconnect the tubes.
