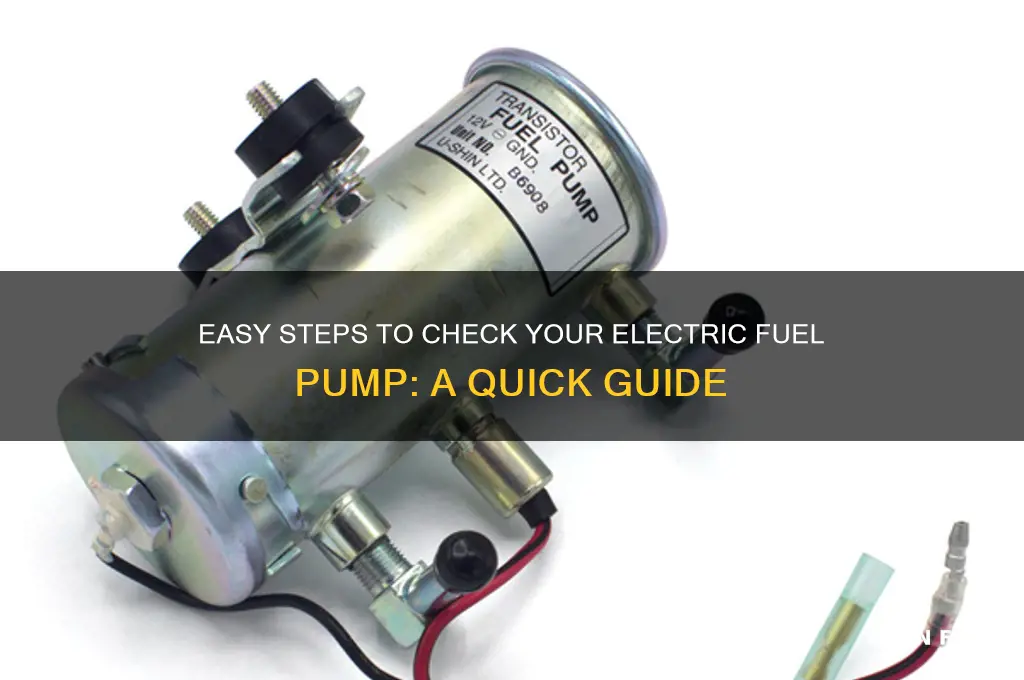

Checking an electric fuel pump is a crucial aspect of vehicle maintenance, ensuring optimal engine performance and preventing unexpected breakdowns. The process typically begins with a visual inspection of the fuel pump and its connections for any signs of damage or leaks. Next, using a multimeter, you can test the pump’s electrical circuit to verify it’s receiving power and ground. If the pump is accessible, a fuel pressure gauge can be attached to measure its output, ensuring it meets the manufacturer’s specifications. Additionally, listening for the pump’s priming hum when the ignition is turned on can provide immediate feedback on its functionality. If issues persist, further diagnostics or professional assistance may be necessary to address potential faults.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Fuel pressure gauge, Screwdriver, Pliers, Safety gloves |
| Safety Precautions | Disconnect battery, Work in well-ventilated area, Avoid sparks |
| Check for Power | Measure voltage at pump connector (typically 12V when key is in "ON" position) |
| Listen for Operation | Turn key to "ON" and listen for humming sound (indicating pump is running) |
| Fuel Pressure Test | Connect gauge to fuel rail and check pressure against manufacturer specs |
| Resistance Check | Measure pump resistance using multimeter (compare with service manual) |
| Fuel Flow Test | Disconnect fuel line and crank engine to check for fuel flow |
| Fuse and Relay Check | Inspect fuel pump fuse and relay for damage or corrosion |
| Ground Connection | Ensure pump ground wire is clean and securely connected |
| Diagnostic Trouble Codes (DTCs) | Use OBD-II scanner to check for fuel pump-related error codes |
| Fuel Tank Level | Ensure tank is at least 1/4 full for accurate testing |
| Pump Replacement | Replace pump if it fails any of the above tests |
| Post-Repair Test | Reinstall components and test vehicle for proper fuel delivery |
