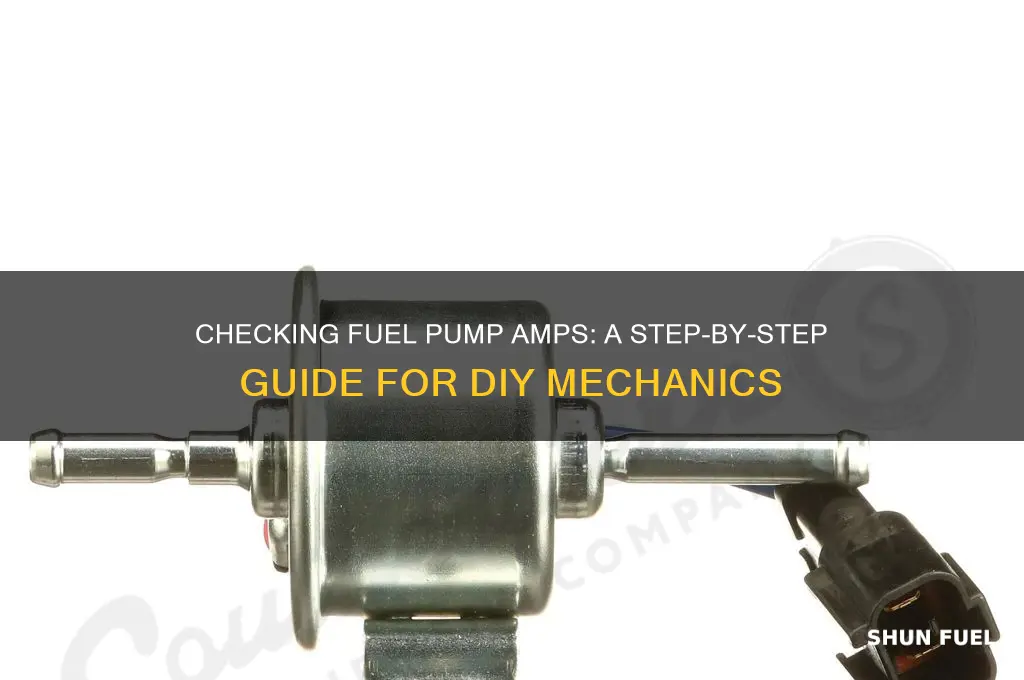

Checking the amps on a fuel pump is a critical diagnostic step to ensure it’s functioning correctly and not drawing excessive current, which could indicate a failing pump or electrical issue. To measure the amps, you’ll typically need a multimeter set to the amperage (A) or milliamp (mA) range, depending on the expected current draw. Start by disconnecting the fuel pump’s wiring harness and inserting the multimeter in series with the circuit, ensuring the vehicle is off to avoid electrical hazards. Once connected, turn the ignition to the on position (without starting the engine) and observe the amp reading on the multimeter. Compare this value to the manufacturer’s specifications for your specific fuel pump; if the reading is significantly higher or lower, it may suggest a problem such as a clogged fuel filter, weak pump, or wiring issue. Always consult the vehicle’s service manual for precise instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, wrench or socket set, safety gloves, safety goggles |
| Safety Precautions | Disconnect battery, work in well-ventilated area, avoid sparks near fuel |
| Fuel Pump Location | Typically near the fuel tank or in-tank (varies by vehicle) |
| Amps Measurement Method | Measure current draw using multimeter in series with fuel pump circuit |
| Expected Amp Range | 2-8 amps (varies by vehicle and pump type) |
| Testing Conditions | Ignition on, engine off (key-on engine-off or KOEO) |
| Wiring Connections | Connect multimeter in series between battery and fuel pump wiring |
| Diagnosis of High Amps | Indicates possible pump failure, clogged filter, or electrical issue |
| Diagnosis of Low Amps | May suggest weak pump, faulty relay, or wiring problem |
| Vehicle-Specific Variations | Consult vehicle manual or repair guide for exact procedures |
| Professional Assistance | Recommended if unsure or for in-tank fuel pump testing |
| Additional Tips | Ensure fuel pump relay is functioning; check for voltage drops |
Explore related products
What You'll Learn
- Using a Multimeter: Connect multimeter in series with pump circuit to measure current draw accurately
- Clamp Meter Method: Clamp around power wire to read amps without disconnecting wires
- Fuse Monitoring: Check fuse rating and use test light to verify current flow
- Load Testing: Simulate pump operation under pressure to measure real-world amp draw
- Diagnostic Scanner: Use OBD-II scanner to read fuel pump control module data
Using a Multimeter: Connect multimeter in series with pump circuit to measure current draw accurately
To accurately measure the current draw of a fuel pump, connecting a multimeter in series with the pump circuit is a precise and reliable method. This approach allows you to directly observe the amperage the pump consumes during operation, providing critical insights into its performance and health. By breaking the circuit and inserting the multimeter, you ensure that all current flowing to the pump passes through the meter, enabling an accurate reading. This technique is particularly useful for diagnosing issues such as weak fuel pump performance, electrical faults, or improper fuel delivery.
Steps to Measure Current Draw:
- Disconnect the Fuel Pump Circuit: Locate the fuel pump wiring harness, typically found near the fuel tank or under the rear seat. Disconnect the wire supplying power to the pump, ensuring the vehicle is turned off to prevent electrical hazards.
- Set Up the Multimeter: Configure the multimeter to measure current (amps). Use the appropriate range—most fuel pumps draw between 2 to 10 amps, so start with a 10A or 20A setting. Connect the multimeter in series by attaching one lead to the disconnected wire and the other to the fuel pump terminal.
- Reestablish Power and Measure: With the multimeter connected, turn the ignition to the "on" position (but do not start the engine). Observe the multimeter reading to determine the current draw. Compare this value to the manufacturer’s specifications to assess if the pump is operating within normal parameters.
Cautions and Practical Tips:
Always ensure the vehicle is off when connecting or disconnecting the multimeter to avoid short circuits. If the pump draws excessively high or low amperage, investigate further—high draw may indicate a failing pump, while low draw could suggest a clogged fuel filter or weak electrical connection. For safety, wear insulated gloves and work in a well-ventilated area to minimize fuel fume exposure.
Using a multimeter in series with the fuel pump circuit is a straightforward yet powerful diagnostic tool. It provides real-time data on current draw, helping pinpoint electrical or mechanical issues with precision. By following these steps and precautions, you can confidently assess fuel pump performance and make informed decisions about repairs or replacements.
