Calibrating diesel fuel injectors is a critical aspect of diesel engine maintenance that significantly impacts fuel efficiency, engine performance, emissions, and the engine's lifespan. Proper calibration ensures the precise delivery of fuel into the combustion chamber, optimising the combustion process, maximising power output, and reducing harmful emissions. This intricate process requires attention to detail and specific tools, such as a torque wrench, pressure gauges, and the manufacturer's calibration specifications. The injector's spray pattern and fuel delivery rate are key factors in calibration, ensuring that the injectors deliver the right amount of fuel at the correct pressure and timing. This process can enhance fuel economy, improve engine performance, and prevent costly engine repairs.
| Characteristics | Values |
|---|---|
| Importance | Calibration is essential for maintaining optimal engine performance, fuel efficiency, and longevity. |
| Impact | Improves performance, efficiency, and longevity of the engine. Reduces harmful emissions and prevents engine damage. |
| Tools | Torque wrench, socket set, pressure gauges, dial gauge, timing light, safety glasses, gloves, and manufacturer's calibration specifications. |
| Removal | Follow manufacturer's guidelines and label each injector. |
| Testing | Use a fuel injection pump simulator to test spray pattern and atomization. |
| Adjustment | Nozzle opening pressure is adjusted with a pressure gauge and torque wrench per manufacturer's specifications. |
| Reinstallation | Torque injectors to recommended specifications and start the engine. |
| Monitoring | Observe engine performance and injector functionality. |
| Final Check | Verify each injector delivers the correct amount of fuel at the right pressure and timing. |
| Test Drive | Assess overall engine performance and fuel efficiency. |
| Calibration Process | Measure injector opening time and open-injector fuel flow rate. |
| Fuel Injector Calibration | Connect to fuel rail, pump, and regulator. Use a collection vessel to measure volume or weigh fuel. |
| Fuel Injector Pulse | Specialist companies calibrate by altering injector pulses and observing fuel spray pattern. |
| Fuel Pressure | Test fuel pressure before installing new or remanufactured injectors. |
Explore related products
What You'll Learn
Importance of calibration
Calibration of NPR fuel injectors is a critical process that ensures optimal engine performance and fuel efficiency. It involves a series of precise steps to adjust the injector's nozzle opening pressure, spray pattern, and fuel delivery. By calibrating the fuel injectors, you can achieve a smoother power output and minimise emissions.
The importance of calibration lies in its direct impact on the overall operation of the engine. Proper calibration ensures that the correct amount of fuel is delivered to the combustion chamber at the right time. This optimises the combustion process, enhancing fuel economy and reducing harmful emissions. Well-calibrated injectors can also prolong the lifespan of the engine, preventing costly repairs due to engine problems.
One of the key benefits of calibration is improved fuel efficiency. By ensuring that the fuel injectors deliver the precise amount of fuel needed, the engine avoids wasting fuel, resulting in better fuel mileage. This not only saves money on fuel costs but also contributes to a more environmentally friendly vehicle.
Calibration also plays a crucial role in engine performance and reliability. Properly calibrated fuel injectors provide a smoother driving experience with improved power output. They help maintain engine performance by reducing the chances of engine misfires and other issues. Regular calibration ensures that the engine runs efficiently and reliably over an extended period.
Additionally, calibration can help identify potential issues with the fuel injectors. During the calibration process, technicians can detect any abnormalities or wear and tear, allowing for prompt replacement or repair. This proactive approach helps prevent unexpected breakdowns and ensures the injectors are functioning correctly, maintaining the overall health of the engine.
Testing Fuel Injectors: A Step-by-Step Guide to Bench Testing
You may want to see also
Explore related products
$107 $127
Required tools
Calibrating diesel fuel injectors is a crucial maintenance task that has a direct impact on the performance, efficiency, and longevity of your NPR's engine. It is a precise process that requires attention to detail and the right set of tools. Here is a list of the tools you will need to successfully calibrate your NPR fuel injectors:
- Torque wrench: This tool is essential for tightening the fuel injectors to the specified torque values. It ensures that the injectors are securely fastened during the calibration process.
- Socket set: A variety of socket sizes will be needed to remove and install the fuel injectors, as well as to access other engine components.
- Pressure gauges: Pressure gauges are used to measure the fuel pressure in the system. They help ensure that the fuel is delivered at the correct pressure to each cylinder.
- Manufacturer's calibration specifications: It is crucial to refer to the manufacturer's guidelines for calibrating the fuel injectors. These specifications include torque values, fuel pressure settings, and other important parameters specific to your NPR vehicle.
- Fuel injection pump simulator: By connecting the injectors to a fuel injection pump simulator, you can test the spray pattern and ensure proper atomization of the fuel. This step is crucial for adjusting the injector's performance.
- Collection vessel: A collection vessel, such as a graduated cylinder or a test tube, is used to collect the fuel sprayed by the injector. This allows you to measure the volume or weight of the fuel delivered during the calibration process.
- Timing light: A timing light is used to accurately set the timing of the injection process. It helps ensure that the fuel is delivered to the cylinders at the correct time, optimizing the engine's performance.
- Dial gauge: The dial gauge provides precise measurements of the pump's plunger lift during calibration. It helps you adjust the injector's performance accurately.
- Safety equipment: Don't forget to prioritize your safety. Safety glasses and gloves are recommended to protect your eyes and hands during the calibration process.
Having the right tools is the first step to successfully calibrating your NPR fuel injectors. Once you have gathered all the necessary equipment, you can proceed with the calibration process, following the manufacturer's guidelines and making the necessary adjustments to ensure optimal engine performance and fuel efficiency.
Harley Fuel Injectors: Cleaning Frequency and Maintenance Guide
You may want to see also
Explore related products
Injector removal
Calibrating fuel injectors is a crucial aspect of diesel engine maintenance, impacting fuel efficiency, performance, emissions, and reliability. Before calibrating, the injectors must be carefully removed to ensure no damage is caused to the engine. Here is a detailed guide on the injector removal process:
- Set up the engine: Ensure the engine is cold and disconnect the battery. This is important as you do not want the engine to start unexpectedly during the removal process.
- Remove engine covers: Use the appropriate socket to remove plastic engine covers. Set them aside carefully to avoid misplacing any parts.
- Disconnect electrical connectors: Use pliers to carefully disconnect the electrical connector on each injector. Some injectors may have small metal clips that need to be removed or depressed with a small flathead screwdriver.
- Remove the fuel rail: The fuel rail is the metal rod over the injectors. Use a socket and ratchet to loosen and remove the bolts and brackets holding the fuel rail in place. Depending on your engine model, you may also need to disconnect the fuel line from the fuel rail. Be cautious, as some fuel may spill during this step.
- Lift the fuel rail: This step requires a good amount of force as the injectors are firmly attached to the rail. Lift the fuel rail off the intake manifold, bringing the injectors with it. Be careful not to deform or bend the fuel rail during this process.
- Remove the injectors: With the fuel rail removed, carefully pull out each injector. They are usually held in place with small clips and should be removed gently to avoid any damage. Label each injector to maintain their original positions.
It is important to follow manufacturer guidelines during the removal process and take necessary safety precautions to avoid any accidents or damage to the engine. Once the injectors are removed, they can be tested, cleaned, or replaced as needed.
Bleeding Air from Deutz Fuel Injector Pumps: A Step-by-Step Guide
You may want to see also
Explore related products
$200
$90.88
Testing and adjusting

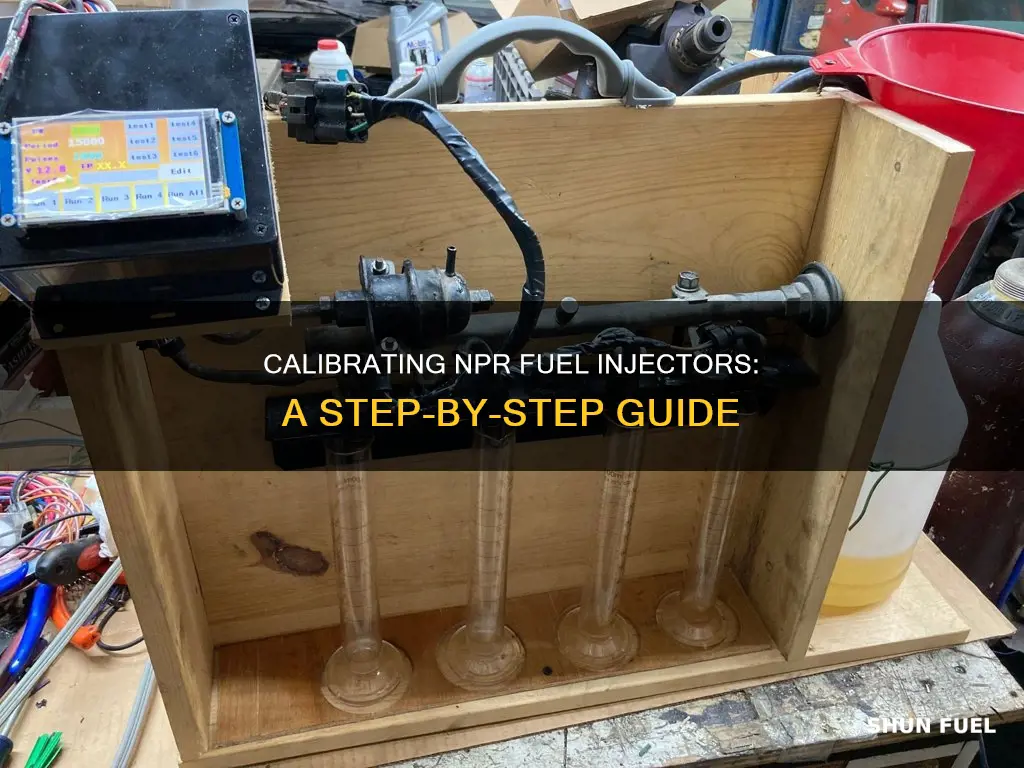

Step 1: Connect the Injectors to a Simulator
Connect the fuel injectors to a fuel injection pump simulator or a testing apparatus. This setup will allow you to analyse the spray pattern and atomization of the fuel. Ensure that the injector is connected to the fuel rail, pump, and regulator, mimicking the configuration in the vehicle.
Step 2: Evaluate the Spray Pattern
Examine the spray pattern of the injector. Observe the dispersion and direction of the fuel spray. A well-calibrated injector should produce a consistent and even spray pattern. Adjust the injector's nozzle and pulse rate to achieve the desired spray pattern as per the manufacturer's specifications.
Step 3: Measure Injector Opening Time and Flow Rate
The injector opening time and the open-injector fuel flow rate are critical factors. It takes approximately 0.5 to 3.5 milliseconds for the injector to open, and during this time, very little fuel is delivered. Measure the amount of fuel delivered and the time the injector is held open. Calculate the fuel flow rate by dividing the weight of the fuel delivered by the time.
Step 4: Fine-Tune the Nozzle Opening Pressure
Using a pressure gauge and a torque wrench, adjust the nozzle opening pressure of the injector according to the manufacturer's guidelines. This step ensures that the injector delivers fuel at the correct pressure, optimizing the combustion process.
Step 5: Reinstall and Monitor Engine Performance
Reinstall the calibrated injectors into the engine, following the manufacturer's torque specifications. Start the engine and carefully monitor its performance. Observe engine behaviour, fuel efficiency, and emissions levels.
Step 6: Final Adjustments
Conduct a comprehensive check to ensure that each injector is delivering the precise amount of fuel at the correct pressure and timing. Fine-tune the injectors as needed by repeating the previous steps until optimal performance is achieved. A test drive can also help assess the engine's overall performance and fuel efficiency with the newly calibrated injectors.
By meticulously following these testing and adjusting steps, you can ensure that your NPR fuel injectors are properly calibrated, resulting in improved engine performance, enhanced fuel efficiency, and prolonged engine life.
Backhoe Maintenance: Replacing Fuel Injectors for Optimal Performance
You may want to see also
Explore related products
Reinstallation
Before beginning the reinstallation process, ensure that you have gathered all the necessary tools and equipment, including a torque wrench, socket set, pressure gauges, and the manufacturer's calibration specifications. It is also important to have a fuel injector test kit or a similar specialized tool to measure the fuel flow rate.
First, carefully remove the old fuel injectors, following the manufacturer's guidelines and labeling each injector to maintain their original positions. This step ensures that you can reinstall them in the correct order. After removal, it is recommended to clean the injectors using an appropriate cleaning solution to eliminate any built-up deposits or debris that could impact performance.
Next, thoroughly inspect the injectors for any signs of wear, damage, or leaks. Pay close attention to the needle and the hole it closes, as contamination or wear in this area can result in a dirty spray pattern or fuel leakage. If any issues are identified, replace the affected parts to ensure proper functioning.
Once your injectors are clean and in good condition, connect them to a fuel injection pump simulator to test their spray pattern and atomization. This step ensures that the injectors are functioning optimally and delivering fuel efficiently.
Now, you can proceed to reinstall the calibrated injectors back into the engine. Refer to the manufacturer's guidelines and torque the injectors to the recommended specifications. This step ensures that the injectors are securely and correctly installed.
Finally, test the fuel injectors after reinstallation to ensure they are working correctly. Utilize a fuel injector test kit to measure the fuel flow rate through each injector. This step confirms that each cylinder receives the same amount of fuel, optimizing the combustion process and engine performance.
By carefully following these reinstallation and calibration steps, you can maintain the performance, efficiency, and longevity of your NPR engine, ensuring a smooth and powerful driving experience.
Adjusting Fuel Injectors: Using ISTA for Precision Tuning
You may want to see also
Frequently asked questions
Calibrating fuel injectors is essential for maintaining optimal engine performance and fuel efficiency. Proper calibration ensures the precise delivery of fuel into the combustion chamber, maximizing power output, improving mileage, and minimizing emissions.
Calibrating fuel injectors is a complex process that requires attention to detail. First, ensure you have the necessary tools and equipment, including a torque wrench, socket set, pressure gauges, and the manufacturer’s calibration specifications. Next, carefully remove the fuel injectors from the engine, following the manufacturer’s guidelines, and label each injector. Then, connect the injectors to a fuel injection pump simulator to test the spray pattern and atomization. Adjust the nozzle opening pressure according to the manufacturer’s specifications. Reinstall the calibrated injectors, start the engine and monitor its performance. Finally, conduct a test drive to assess overall performance and fuel efficiency.
It is recommended to prioritize injector calibration as part of your regular maintenance routine to ensure a smoother driving experience and extend the life of your vehicle’s engine. The exact calibration frequency will depend on various factors, including the age and condition of your vehicle, the quality of fuel used, and your driving habits. Regularly calibrating your fuel injectors can help prevent costly repairs due to engine problems caused by injector issues.
