Katerina Swanson
Bypassing the fuel pump relay on a Ford Ranger can be a useful troubleshooting step if you suspect the relay is faulty and causing fuel delivery issues. This process involves directly connecting the fuel pump to the battery, bypassing the relay's control, to determine if the pump operates correctly. However, it’s important to approach this method with caution, as it’s a temporary diagnostic measure and not a long-term solution. Always ensure the ignition is off and the vehicle is in a safe, well-ventilated area to avoid fire hazards. If the fuel pump functions properly when bypassed, it confirms the relay is likely the problem, necessitating its replacement. Consult your Ford Ranger’s service manual or seek professional assistance for accurate guidance tailored to your specific model.
| Characteristics | Values |
|---|---|
| Purpose | Bypassing the fuel pump relay to test if the relay is faulty or to temporarily start the vehicle. |
| Tools Required | Wire, pliers, screwdriver, multimeter (optional). |
| Safety Precautions | Disconnect the battery before starting, work in a well-ventilated area, avoid sparks near fuel. |
| Steps | 1. Locate the fuel pump relay in the fuse box. 2. Identify the relay terminals (usually 30, 87, and 85). 3. Connect a jumper wire between terminals 30 and 87. 4. Reapply power to the system (reconnect battery). 5. Start the vehicle to test if the fuel pump operates. |
| Temporary Fix | Bypassing is a temporary solution; replace the relay if faulty. |
| Common Relay Location | Under the hood in the fuse/relay box (Ford Ranger models vary, consult manual). |
| Voltage Check | Use a multimeter to ensure power is reaching the fuel pump after bypassing. |
| Model Compatibility | Applicable to most Ford Ranger models (1995-2011), but verify relay layout for your year. |
| Risks | Potential fire hazard if wires are not properly connected or insulated. |
| Professional Advice | Consult a mechanic if unsure or if the issue persists after bypassing. |
Explore related products
What You'll Learn
- Identify Relay Location: Locate the fuel pump relay in the Ford Ranger's fuse box
- Test Relay Functionality: Use a multimeter to check if the relay is functioning properly
- Bypass with Jumper Wire: Temporarily bypass the relay using a jumper wire to test the pump
- Replace Faulty Relay: Steps to replace a defective relay with a compatible new one
- Check Fuse and Wiring: Inspect related fuses and wiring for damage or corrosion

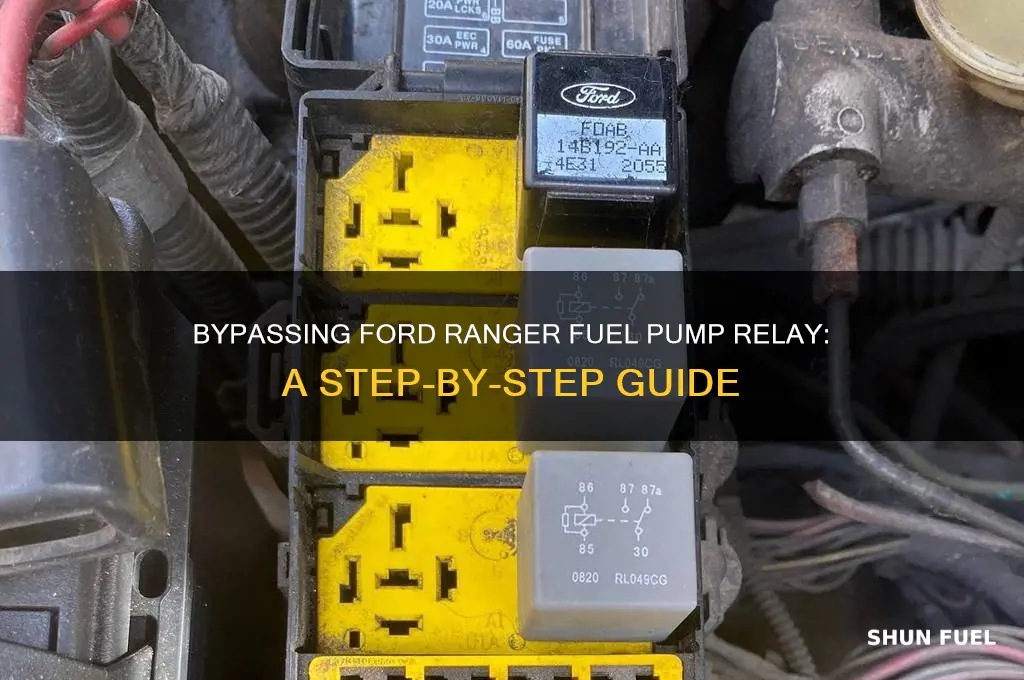

Identify Relay Location: Locate the fuel pump relay in the Ford Ranger's fuse box
The fuel pump relay in a Ford Ranger is a critical component, ensuring your vehicle's engine receives the necessary fuel for operation. Locating this relay is the first step in any bypass or troubleshooting process. The Ford Ranger's fuse box, typically found under the hood or in the cabin, houses this relay, but its exact position can vary depending on the model year and configuration.
Analyzing the Fuse Box Layout:
For most Ford Ranger models, the fuse box diagram is your roadmap to finding the fuel pump relay. This diagram is often located on the inside cover of the fuse box or in the vehicle's owner's manual. It provides a visual representation of each fuse and relay, labeled with their respective functions. Look for the symbol or label indicating the fuel pump relay, which might be abbreviated as "FPR" or "FP Relay." This visual guide is essential, as it eliminates the need for guesswork and ensures you don't mistake the fuel pump relay for other similarly sized relays.
A Step-by-Step Locating Process:
- Access the Fuse Box: Start by opening the hood of your Ford Ranger and locating the fuse box. In some models, it might be on the driver's side, while others may have it on the passenger side. For certain years, the fuse box could also be inside the cabin, often under the dashboard or near the steering column.
- Identify the Relay: With the fuse box accessible, compare the physical relays with the diagram. The fuel pump relay is typically a rectangular or square-shaped component with several pins or blades. It might be black or color-coded, depending on the manufacturer's design.
- Verify the Position: Cross-reference the physical layout with the diagram to confirm the fuel pump relay's position. This step is crucial, as some relays may look similar, but their functions differ significantly.
Practical Tips for Success:
- Model-Specific Variations: Ford Rangers produced in different years or regions may have slight variations in their fuse box layouts. Always refer to the specific model's documentation or online resources for accurate information.
- Lighting Conditions: Ensure you have adequate lighting when working under the hood or in the cabin. A well-lit environment makes it easier to distinguish between relays and fuses.
- Safety First: Before attempting any work on your vehicle, ensure it is parked on a level surface, the engine is off, and the keys are removed. This precaution prevents accidental startups and ensures your safety during the process.
Understanding the location of the fuel pump relay is fundamental for any Ford Ranger owner looking to perform maintenance or troubleshoot fuel-related issues. By following these steps and utilizing the provided resources, you can confidently identify the relay, setting the stage for further actions, such as testing or bypassing the relay if necessary. This knowledge empowers you to take control of your vehicle's maintenance and potentially save on repair costs.
Mastering Fuel Injection Pump Adjustments: A Step-by-Step Guide
You may want to see also
Explore related products
Test Relay Functionality: Use a multimeter to check if the relay is functioning properly
Before attempting to bypass the fuel pump relay on a Ford Ranger, it's crucial to confirm whether the relay itself is faulty. A multimeter is an indispensable tool for this diagnostic step, allowing you to test the relay’s functionality with precision. Start by locating the fuel pump relay in the fuse box, typically found under the hood or near the driver’s side dashboard. Consult your Ford Ranger’s manual for the exact location, as it varies by model year. Once identified, remove the relay carefully to avoid damaging the surrounding components.
To test the relay, set your multimeter to the ohms (resistance) setting. Identify the relay’s terminals, which usually include a coil (control circuit) and contacts (load circuit). Apply power to the coil terminals and measure the resistance across the contacts. A functioning relay should show a closed circuit (low resistance) when energized and an open circuit (high resistance) when de-energized. If the relay fails to switch states or shows inconsistent readings, it’s likely defective and may be the root cause of your fuel pump issues.
Another method involves using the multimeter’s continuity setting to test the relay’s internal switch. With the relay removed, place the multimeter probes on the input and output terminals of the load circuit. Manually activate the relay by applying voltage to the coil terminals and listen for a clicking sound, which indicates the switch closing. The multimeter should beep or show continuity when the circuit is closed, confirming the relay’s mechanical operation. If there’s no response, the relay’s internal components may be damaged.
While testing, ensure the multimeter is properly calibrated and the probes are securely connected to the relay terminals. Avoid applying excessive voltage or current, as this can damage the relay or multimeter. If you’re unsure about the relay’s pin configuration, refer to a wiring diagram specific to your Ford Ranger model. This step-by-step approach not only helps diagnose the relay’s condition but also eliminates guesswork, ensuring you address the actual problem rather than bypassing a functional component.
In conclusion, testing the fuel pump relay with a multimeter is a straightforward yet critical step in troubleshooting fuel system issues on a Ford Ranger. By verifying the relay’s functionality, you can make an informed decision about whether to replace it or proceed with a bypass. This method saves time, reduces unnecessary repairs, and ensures your vehicle operates safely and efficiently. Always prioritize diagnostics before attempting workarounds, as they provide clarity and prevent further complications.
BMW X5 Fuel Pump Count: Understanding Your Vehicle's System
You may want to see also
Explore related products
Bypass with Jumper Wire: Temporarily bypass the relay using a jumper wire to test the pump
A jumper wire can be a quick diagnostic tool to determine if your Ford Ranger's fuel pump is functioning properly, even if the relay is suspect. This method involves bypassing the relay to send power directly to the fuel pump, allowing you to isolate the pump as the potential issue. It's a temporary fix, not a permanent solution, but it can save you time and money by pinpointing the problem before replacing parts unnecessarily.
Understanding the Process:
Imagine the fuel pump relay as a switch controlling power flow to the pump. When this switch malfunctions, the pump remains inactive, leading to a no-start condition. By connecting a jumper wire directly from the battery's positive terminal to the fuel pump's power wire, you essentially bypass the faulty switch, forcing power to the pump. This simple test can reveal whether the pump itself is operational or if the relay is indeed the culprit.
Executing the Bypass:
- Safety First: Ensure your vehicle is parked on a level surface, the engine is off, and the ignition is in the "Off" position. Disconnect the negative battery terminal to prevent accidental short circuits.
- Locate the Fuel Pump Connector: Consult your Ford Ranger's service manual to identify the fuel pump's wiring harness, typically located near the fuel tank.
- Identify the Power Wire: Using a multimeter set to the continuity setting, trace the wire leading from the fuel pump connector to the relay. This wire carries power to the pump.
- Connect the Jumper Wire: Attach one end of the jumper wire to the positive battery terminal and the other end to the identified power wire at the fuel pump connector. Ensure a secure connection.
- Listen for the Pump: Turn the ignition to the "On" position (without starting the engine). You should hear the fuel pump whirring for a few seconds as it pressurizes the fuel system. If the pump doesn't activate, the pump itself may be faulty.
Important Considerations:
This method is a diagnostic tool, not a permanent fix. Driving with a bypassed relay is dangerous and can lead to fuel system issues. If the pump operates with the jumper wire, the relay is likely faulty and needs replacement. If the pump remains silent, further investigation into the pump itself or the wiring harness is necessary. Always prioritize safety and consult a qualified mechanic if you're unsure about any step.
Exploring the Fuel Pump Setup in Cobras: A Comprehensive Guide
You may want to see also
Explore related products
Replace Faulty Relay: Steps to replace a defective relay with a compatible new one
A defective fuel pump relay in your Ford Ranger can leave you stranded, but replacing it is a straightforward task that restores your vehicle's functionality. Before diving into the replacement process, ensure you have the correct replacement relay. Compatibility is key—verify the part number and specifications to match your Ranger's make, model, and year. Using an incompatible relay can lead to further issues, so double-check before purchasing.
Begin by locating the fuel pump relay, typically found in the fuse box under the hood. Consult your Ranger’s manual for the exact location, as it varies by model. Once identified, disconnect the battery to prevent electrical mishaps. Carefully remove the old relay by pulling it straight out of its slot—avoid twisting or forcing it, as this can damage the fuse box. Inspect the relay for visible signs of damage, such as burnt pins or a cracked casing, to confirm it’s the source of the problem.
With the old relay removed, insert the new one into the same slot, ensuring it clicks securely into place. Reattach the battery and test the fuel pump’s operation by turning the ignition to the "on" position (without starting the engine). Listen for the pump’s hum, which should last 2-3 seconds as it primes the system. If the pump doesn’t activate, recheck the relay’s connection and ensure it’s properly seated.
While replacing the relay is a simple fix, it’s crucial to address the root cause of the failure. Relays often fail due to overheating, electrical surges, or age. If the issue persists, inspect the wiring harness for damage or corrosion, and consider testing the fuel pump itself for faults. Regular maintenance, such as cleaning the fuse box and checking connections, can prevent future relay failures and keep your Ranger running smoothly.
Accessing the Fuel Pump on a Sterling 827: Step-by-Step Guide
You may want to see also
Explore related products
Check Fuse and Wiring: Inspect related fuses and wiring for damage or corrosion
Before attempting any bypass, it's crucial to rule out simpler issues that could be causing your Ford Ranger's fuel pump relay problems. A faulty fuse or corroded wiring can mimic relay failure, leading to unnecessary repairs.
Fuses act as safeguards, protecting your electrical system from overloading. Locate the fuse box, typically under the hood or near the driver's side dashboard. Consult your Ranger's manual for the specific fuse number associated with the fuel pump. Visually inspect the fuse for signs of burning, melting, or a broken filament. A blown fuse is a clear indicator of a problem, but even a seemingly intact fuse can be weak. Use a multimeter to test for continuity, ensuring the fuse is functioning properly.
Remember, replacing a blown fuse without addressing the underlying cause is a temporary fix. If the fuse blows again, further investigation is necessary.
Corroded or damaged wiring can disrupt the electrical flow to the fuel pump, causing intermittent or complete failure. Carefully inspect the wiring harness leading to the fuel pump relay and the pump itself. Look for frayed wires, exposed copper, or signs of corrosion, especially at connection points. Green or white residue around terminals is a telltale sign of corrosion. Gently clean corroded areas with a wire brush and dielectric grease to improve conductivity. For severely damaged wires, splicing in new sections or replacing the entire harness might be necessary.
Ensuring clean, secure connections is vital for reliable fuel pump operation.
While checking fuses and wiring might seem like a basic step, it's often overlooked in the rush to diagnose complex issues. This simple inspection can save you time, money, and frustration by identifying easily fixable problems before resorting to more involved repairs. By systematically examining these components, you can confidently move forward with troubleshooting, knowing you've ruled out common culprits.
Optimal Fuel Pump Filter Replacement Frequency for Peak Engine Performance
You may want to see also
Frequently asked questions
Symptoms include the engine not starting, stalling, or difficulty starting, especially after the engine has been running and is hot. You may also notice a lack of power or hesitation during acceleration.
Yes, you can temporarily bypass the fuel pump relay by connecting the fuel pump directly to the battery using a fused wire. However, this is only a temporary fix and should not replace a proper repair, as it lacks safety features like the relay’s control.
You can test the relay by swapping it with another relay of the same type in the fuse box (e.g., the horn relay) to see if the issue persists. Additionally, use a multimeter to check for continuity in the relay’s terminals when activated. If there’s no continuity or the fuel pump doesn’t engage, the relay is likely faulty.
