The 1993 Ford F-150, a popular pickup truck model from the early '90s, typically features a single in-tank fuel pump as part of its fuel delivery system. This setup is standard for most F-150s of that era, designed to efficiently supply fuel from the tank to the engine. However, some owners might consider aftermarket modifications or dual-pump setups for high-performance applications, though these are not factory standard. Understanding the fuel pump configuration is essential for maintenance, troubleshooting, or upgrading the vehicle’s fuel system.
| Characteristics | Values |
|---|---|
| Year and Model | 1993 Ford F-150 |
| Number of Fuel Pumps | 1 (in-tank) |
| Fuel Pump Type | Electric |
| Fuel Pump Location | Inside the fuel tank |
| Fuel System Type | Return-style (non-returnless) |
| Fuel Pressure | Approximately 35-40 PSI (varies by engine) |
| Common Engines | 4.9L Inline-6, 5.0L V8, 5.8L V8 |
| Fuel Tank Capacity | 21-25 gallons (depending on configuration) |
| Fuel Pump Replacement | Requires dropping the fuel tank for access |
| Notable Feature | Single-pump design for all engines in this model year |
Explore related products
What You'll Learn
Location of fuel pumps in 93 F150
The 1993 Ford F-150, a stalwart of American trucks, houses its fuel pump within the fuel tank, a common design for that era. This in-tank location offers several advantages, including reduced noise, improved fuel cooling, and protection from external damage. However, it also means that accessing the pump for maintenance or replacement requires dropping the fuel tank, a task that demands careful planning and safety precautions.
Location Specifics:

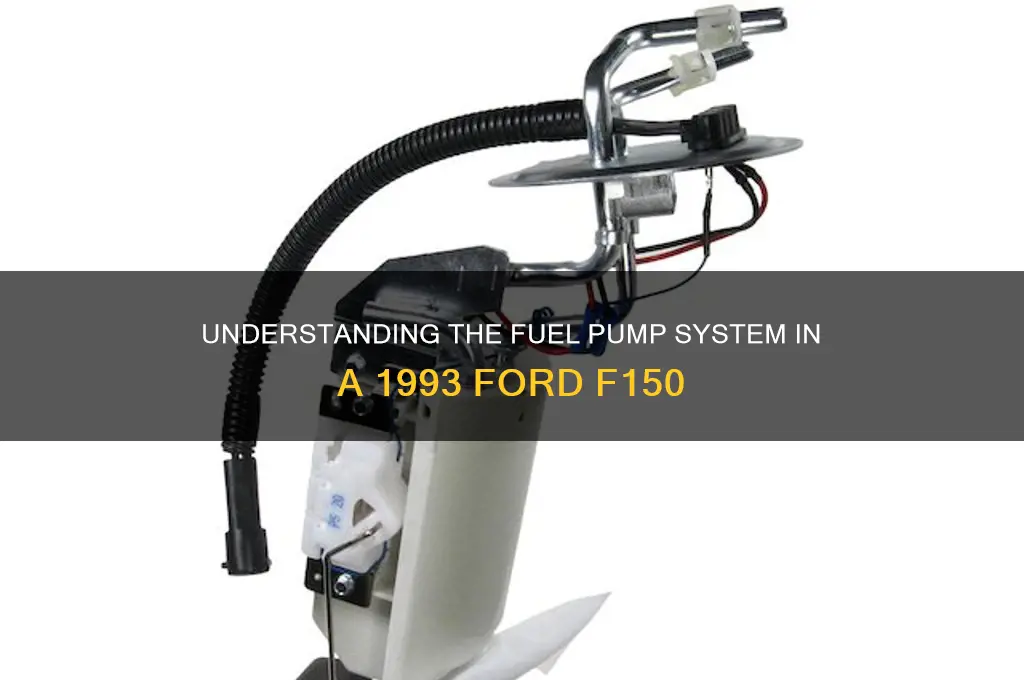

The fuel tank on a 93 F-150 is typically located underneath the truck bed, towards the rear of the vehicle. Accessing the tank involves removing the bed or working from beneath the vehicle, depending on the specific model and body style. Once the tank is exposed, the fuel pump module, which includes the pump, sender unit, and sometimes the filter, is located at the top of the tank.
Accessing the Fuel Pump:
Before attempting any work on the fuel pump, ensure the fuel system is depressurized. This involves relieving the fuel pressure through the Schrader valve located on the fuel rail. With the pressure relieved, disconnect the battery to prevent accidental ignition. Then, carefully support and lower the fuel tank to access the pump module.
Replacement Considerations:
When replacing the fuel pump, it's crucial to use a high-quality replacement part designed specifically for the 93 F-150. Consider replacing the fuel filter at the same time, as it's often integrated into the pump module. After installation, reattach all connections securely, ensuring proper sealing to prevent leaks. Finally, refill the tank and check for any leaks before starting the engine.
Understanding the DA 40's Fuel System: Number of Pumps Explained
You may want to see also
Explore related products
Number of fuel pumps in 93 F150
The 1993 Ford F-150, a stalwart of American trucks, typically comes equipped with a single in-tank fuel pump. This design is standard for most gasoline-powered F-150 models of that era, ensuring efficient fuel delivery to the engine. The pump is located inside the fuel tank, a common placement that minimizes exposure to external elements and reduces the risk of contamination. For owners, understanding this setup is crucial for maintenance, as issues like fuel pump failure can lead to poor performance or stalling.
Analyzing the fuel system of the '93 F-150 reveals a straightforward yet effective design. Unlike some modern vehicles with dual pumps for high-performance or dual-tank configurations, this truck relies on a single pump to handle all fuel delivery needs. This simplicity reduces complexity and potential points of failure, making it easier for DIY mechanics to diagnose and repair. However, the trade-off is that a failing pump will immediately affect drivability, necessitating prompt attention.
For those considering upgrading their '93 F-150’s fuel system, it’s essential to note that aftermarket dual-pump setups are available but not necessary for stock applications. Such modifications are typically reserved for high-horsepower builds or vehicles with significant fuel demands. Stock owners should focus on maintaining the existing single pump, including regular fuel filter changes and monitoring for symptoms like whining noises or reduced power, which often signal pump wear.
Comparatively, diesel variants of the '93 F-150 may feature different fuel pump configurations, but the gasoline models remain consistent with the single in-tank design. This uniformity simplifies parts sourcing and repairs, as replacements are widely available and affordable. When replacing the pump, ensure compatibility with the vehicle’s year and engine type, as slight variations may exist within the model range.
In conclusion, the 1993 F-150’s reliance on a single fuel pump underscores its practical, no-frills engineering. Owners benefit from a system that’s easy to understand and maintain, though vigilance is key to catching issues early. Whether troubleshooting or upgrading, knowing this truck’s fuel pump configuration is the first step toward keeping it running reliably for years to come.
Understanding 12 Volt Fuel Pump Amp Draw: A Comprehensive Guide
You may want to see also
Explore related products
Fuel pump replacement for 93 F150
The 1993 Ford F-150, a stalwart of the pickup truck world, typically comes equipped with a single in-tank fuel pump. This design is common in many vehicles of that era, ensuring a consistent fuel supply to the engine. However, some owners might wonder if their truck has additional pumps or if there are variations based on the model or engine type. The straightforward answer is that the standard configuration includes one fuel pump, located inside the fuel tank. Understanding this setup is crucial when considering a fuel pump replacement, as it simplifies the diagnostic and repair process.
Replacing the fuel pump on a 93 F-150 requires careful preparation and execution. Start by relieving the fuel system pressure to avoid accidents. This involves locating the Schrader valve on the fuel rail and using a pressure gauge to release the pressure. Next, disconnect the battery to prevent electrical mishaps. Accessing the fuel pump necessitates removing the fuel tank, which is secured by straps and may require draining the tank first. Once the tank is lowered, disconnect the electrical connector and fuel lines from the pump, then remove the retaining ring or bolts holding the pump assembly in place. Precision is key to avoid damaging the tank or surrounding components.
Choosing the right replacement fuel pump is essential for optimal performance. Ensure the new pump matches the specifications of the original, including flow rate and pressure. Aftermarket options are available, but compatibility with the 93 F-150’s system must be verified. Installation follows the reverse of removal: secure the new pump, reconnect the fuel lines and electrical connector, and reinstall the tank. Post-installation, check for leaks and ensure the pump primes correctly by turning the ignition on without starting the engine. This step confirms the pump is functioning before a full test drive.
A common oversight during fuel pump replacement is neglecting to inspect related components. The fuel filter, for instance, should be checked and replaced if clogged or old, as it can strain the new pump. Additionally, inspect the fuel tank for rust or debris, which could damage the pump prematurely. Another practical tip is to use a fuel pump strainer sock, often included with new pumps, to filter out contaminants. These precautions extend the life of the replacement pump and ensure reliable performance. By addressing these details, owners can avoid recurring issues and maintain their 93 F-150’s fuel system efficiently.
1991 Ford Econoline Fuel Pump Count: What You Need to Know
You may want to see also
Explore related products
Symptoms of failing fuel pumps in 93 F150
The 1993 Ford F-150, a stalwart of its era, typically comes equipped with a single in-tank fuel pump. This setup is standard for most models, ensuring efficient fuel delivery to the engine. However, when this critical component begins to fail, it can manifest in several distinct ways, each signaling the need for immediate attention. Recognizing these symptoms early can prevent more severe issues, such as engine stalling or damage.
One of the earliest and most common signs of a failing fuel pump is a noticeable loss of power during acceleration. As the pump weakens, it struggles to deliver the required amount of fuel to the engine, particularly under load. This can feel like a hesitation or sputtering when you press the gas pedal, especially when overtaking or climbing hills. If you experience this, it’s crucial to check the fuel pump’s condition before the problem escalates.
Another telltale symptom is difficulty starting the engine, particularly after the vehicle has been sitting for a while. A failing fuel pump may not build sufficient pressure to deliver fuel to the injectors, resulting in extended cranking times or a complete failure to start. This issue often worsens in colder temperatures, as fuel becomes thicker and harder to pump. If your 93 F-150 requires multiple attempts to start, the fuel pump should be inspected promptly.
Unusual noises coming from the fuel tank area are also indicative of a failing pump. A whining or humming sound that increases in pitch as you accelerate can signal that the pump’s internal components are wearing out. While some noise is normal during operation, a sudden change in tone or volume warrants investigation. Ignoring these sounds can lead to a complete pump failure, leaving you stranded.
Lastly, a failing fuel pump can trigger the check engine light, often accompanied by error codes related to fuel system pressure or delivery. Modern diagnostics can pinpoint issues with the pump’s performance, but it’s essential to cross-reference these codes with the symptoms described above. Relying solely on error codes without observing real-world performance can lead to misdiagnosis or unnecessary repairs.
In summary, a 93 F-150’s single fuel pump is critical to its operation, and its failure can manifest through reduced power, starting difficulties, unusual noises, and diagnostic warnings. Addressing these symptoms promptly can save time, money, and the hassle of unexpected breakdowns. Regular maintenance and attentive driving habits are key to keeping this vital component in optimal condition.
Chevy Colorado Fuel Pump Lifespan: What to Expect and Maintenance Tips
You may want to see also
Explore related products
Maintenance tips for 93 F150 fuel pumps
The 1993 Ford F-150, a stalwart of American trucks, typically comes equipped with a single in-tank fuel pump. This setup is common for its era, ensuring efficient fuel delivery to the engine without the complexity of multiple pumps. However, maintaining this critical component is essential to avoid costly repairs and ensure reliable performance. Here’s how to keep your 93 F-150’s fuel pump in top condition.
Regular Fuel Filter Replacement: The fuel filter is the first line of defense against contaminants that can damage the pump. Replace it every 30,000 miles or as recommended in your owner’s manual. A clogged filter forces the pump to work harder, leading to premature failure. Use a high-quality filter and ensure proper installation to avoid leaks.
Keep the Fuel Tank Above a Quarter Full: Running on low fuel consistently can cause the pump to overheat, as it relies on fuel for cooling. Aim to keep the tank at least a quarter full, especially during hot weather or heavy driving conditions. This simple habit extends the pump’s lifespan and prevents unnecessary strain.
Use High-Quality Fuel: Low-quality or contaminated fuel can introduce debris into the system, clogging the pump’s internal components. Opt for reputable gas stations and consider using a fuel additive designed to clean the fuel system. Products like Star Tron or Sea Foam can help dissolve varnish and prevent buildup, ensuring smooth operation.
Inspect Fuel Lines and Connections: Over time, fuel lines can crack or develop leaks, leading to air entering the system or fuel loss. Periodically inspect the lines for signs of wear, especially in areas exposed to heat or movement. Tighten connections as needed and replace damaged lines promptly. This proactive approach prevents fuel starvation and potential pump damage.
Listen for Warning Signs: A failing fuel pump often gives audible clues, such as whining or surging noises during acceleration. If you notice these symptoms, address the issue immediately. Ignoring them can lead to complete pump failure, leaving you stranded. Regularly test the pump’s performance by monitoring engine behavior under load, such as during towing or uphill driving.
By following these maintenance tips, you can ensure your 93 F-150’s fuel pump remains reliable, even after decades of service. Proper care not only saves money but also preserves the truck’s legendary durability.
Replacing a SX200TXRA Fuel Injection Pump: Timeframe and Tips
You may want to see also
Frequently asked questions
A 1993 Ford F150 typically has one in-tank fuel pump, located inside the fuel tank.
No, the 1993 F150 does not have a secondary fuel pump; it relies on a single in-tank fuel pump for operation.
The fuel pump in a 1993 F150 is located inside the fuel tank, which is usually mounted on the driver's side of the vehicle.
Yes, you can replace the fuel pump yourself, but it requires dropping the fuel tank, which can be labor-intensive. It’s recommended to have basic mechanical skills and follow safety precautions.
