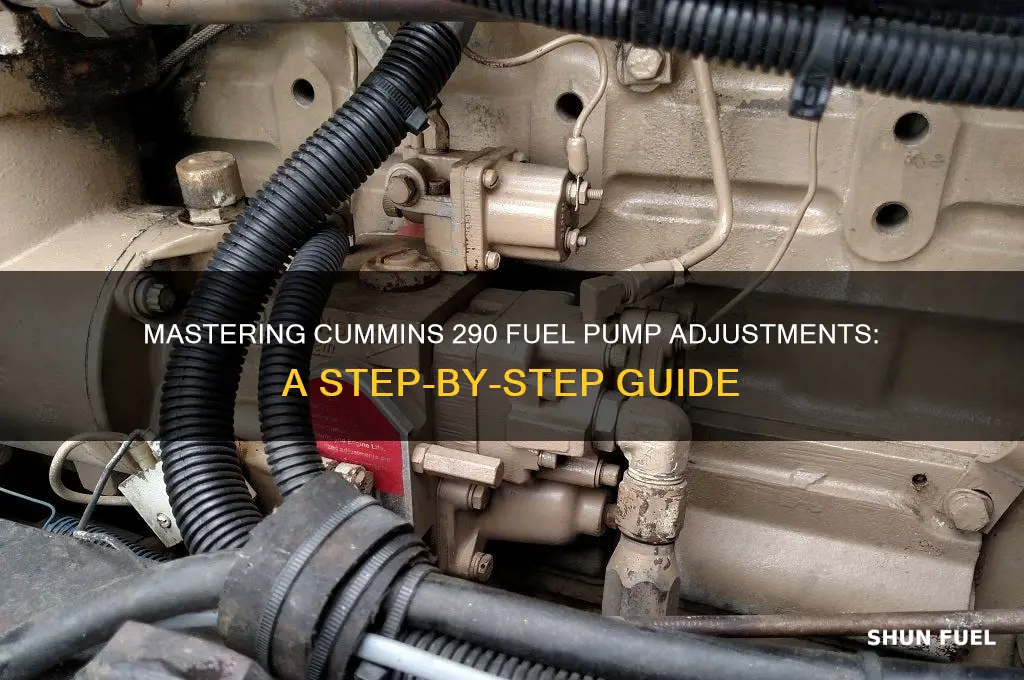

Adjusting the Cummins 290 fuel pump is a critical task for maintaining optimal engine performance and fuel efficiency. This process involves fine-tuning the pump's timing and pressure to ensure the correct amount of fuel is delivered to the engine under various operating conditions. Proper adjustments can help prevent issues such as rough idling, poor acceleration, or excessive fuel consumption. The procedure typically requires specific tools, a clear understanding of the pump's mechanics, and adherence to the manufacturer's guidelines. Whether you're addressing a performance issue or performing routine maintenance, mastering the steps to adjust the Cummins 290 fuel pump is essential for keeping your engine running smoothly and reliably.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Cummins PT (Pressure-Time) Fuel Pump |
| Adjustment Tool | Cummins Fuel Pump Calibration Tool or equivalent |
| Adjustment Screw Location | Top of the fuel pump, under the calibration cover |
| Adjustment Screw Type | Slotted screw for timing and metering adjustments |
| Timing Adjustment Range | Typically ±4° before top dead center (BTDC) |
| Metering Adjustment Range | Adjusts fuel delivery volume, usually calibrated to manufacturer specs |
| Required Tools | Screwdriver, timing light, pressure gauge, wrenches |
| Adjustment Procedure | 1. Loosen lock nut, 2. Adjust screw, 3. Tighten lock nut |
| Calibration Method | Adjust timing with a timing light and metering with a pressure gauge |
| Safety Precautions | Ensure engine is off, relieve fuel pressure, wear safety gear |
| Common Issues | Hard starting, rough idle, poor fuel economy, excessive smoke |
| Recommended Service Interval | As needed or during major engine service |
| Manufacturer Guidelines | Refer to Cummins service manual for specific torque and timing values |
| Diagnostic Tools | Cummins INSITE or similar diagnostic software for advanced adjustments |
| Fuel Pressure Specs | Typically 10-15 psi (varies by application) |
| Compatibility | Cummins 290 engines in industrial, marine, or power generation setups |
Explore related products
What You'll Learn
- Timing Pin Removal: Locate and remove the timing pin for initial pump timing setup
- Timing Gear Alignment: Align timing gears to ensure proper fuel pump synchronization with the engine
- Plunger Stroke Adjustment: Adjust plunger stroke to control fuel delivery volume accurately
- Fuel Pressure Regulation: Set fuel pressure using the regulator to meet engine requirements
- Final Timing Verification: Verify timing with a dial indicator to confirm correct pump operation
Timing Pin Removal: Locate and remove the timing pin for initial pump timing setup
The timing pin is a critical component in the initial setup of the Cummins 290 fuel pump, acting as a mechanical reference point for aligning the pump's timing gear with the engine's camshaft. Before adjusting the fuel pump, this pin must be located and removed to allow for proper timing adjustments. Typically, the timing pin is found on the fuel pump's timing gear housing, secured by a small retaining clip or screw. Identifying its exact location requires consulting the Cummins 290 service manual or inspecting the pump assembly closely, as its position can vary slightly depending on the model year and configuration.
Removing the timing pin involves a precise, methodical approach to avoid damaging the pump or surrounding components. Begin by ensuring the engine is off and the fuel system is depressurized to prevent accidental fuel spray or injury. Using a suitable tool, such as a small pick or screwdriver, carefully disengage the retaining clip or remove the securing screw. Once the pin is free, gently pull it straight out of its housing, taking care not to disturb the timing gear's position. It’s essential to note the pin’s orientation and the gear’s alignment before removal, as this information will be crucial during the subsequent timing adjustment process.
A common mistake during timing pin removal is applying excessive force, which can misalign the gear or damage the housing. To avoid this, work slowly and use tools that fit snugly without slipping. If the pin is stubborn, inspect for hidden retaining mechanisms or consult the manual for additional guidance. For example, some models may require loosening a nearby bolt to relieve tension on the pin before removal. Patience and attention to detail at this stage can prevent costly errors later in the adjustment process.
Once the timing pin is removed, the fuel pump is ready for initial timing setup. This step is foundational for ensuring the pump delivers fuel at the correct intervals relative to the engine’s combustion cycle. Without proper timing, the engine may run inefficiently, produce excessive emissions, or fail to start altogether. By carefully removing the timing pin and documenting its position, you create a reliable starting point for fine-tuning the pump’s performance, aligning it precisely with the engine’s requirements.
In summary, timing pin removal is a delicate yet essential task in adjusting the Cummins 290 fuel pump. By locating the pin accurately, using the right tools, and working methodically, you can ensure a smooth transition to the timing adjustment phase. This step, though small, sets the stage for optimal fuel delivery and engine performance, making it a cornerstone of the overall adjustment process. Always refer to the manufacturer’s guidelines and exercise caution to achieve the best results.
