Mercedes Mullins

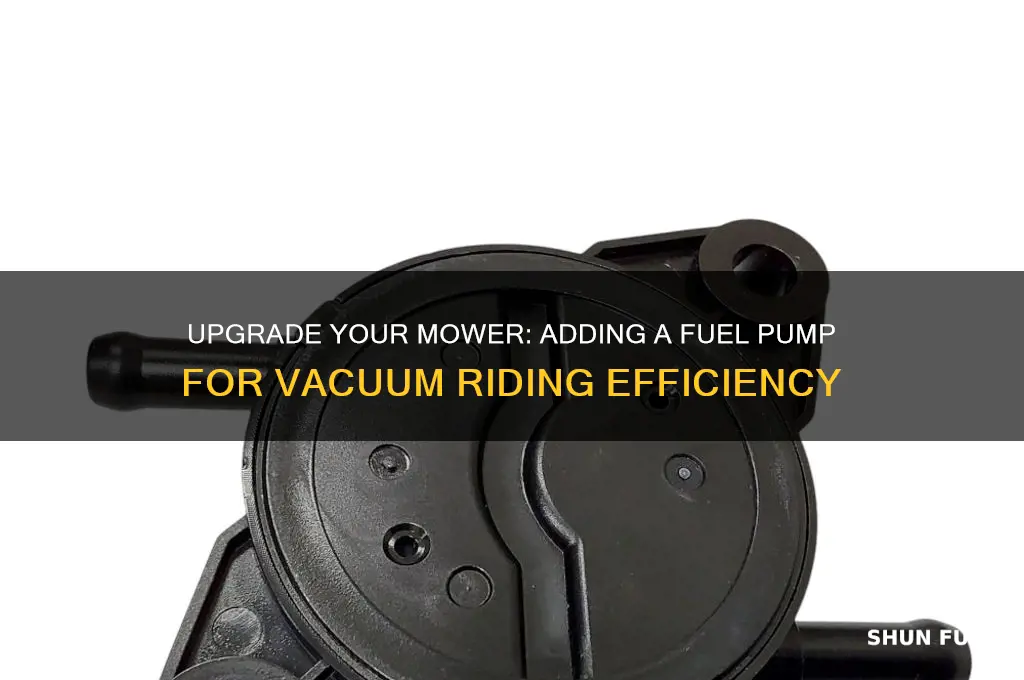

Adding a fuel pump to a vacuum-powered riding mower can significantly improve its performance and reliability, especially in situations where the mower struggles to draw fuel due to vacuum issues or fuel line restrictions. This modification is particularly beneficial for older models or mowers operating on uneven terrain, where gravity-fed fuel systems may not suffice. The process involves selecting a compatible fuel pump, ensuring it meets the mower’s fuel requirements, and integrating it into the existing fuel system. Proper installation includes mounting the pump securely, connecting it to the fuel lines, and ensuring it’s powered correctly, either through the mower’s electrical system or an external source. By enhancing fuel delivery, this upgrade can reduce engine stalling, improve efficiency, and extend the mower’s lifespan.
| Characteristics | Values |
|---|---|
| Purpose | To ensure consistent fuel delivery to the engine, especially in vacuum-equipped riding mowers where fuel flow might be hindered by the vacuum system. |
| Fuel Pump Type | Typically an electric inline fuel pump is recommended for ease of installation and reliability. |
| Fuel Pump Location | Installed between the fuel tank and the carburetor or fuel injection system. |
| Fuel Line Compatibility | Ensure the fuel pump is compatible with the type of fuel used (e.g., gasoline, ethanol blends). |
| Pressure Rating | The fuel pump should have a pressure rating suitable for the mower's engine requirements, usually 3-7 PSI. |
| Electrical Connection | Requires connection to the mower's electrical system, often using a switched power source (e.g., ignition switch). |
| Fuel Filter Integration | Some fuel pumps come with integrated filters; otherwise, a separate fuel filter should be installed inline. |
| Mounting | Securely mounted to the mower frame or a stable surface to prevent vibration damage. |
| Fuel Line Routing | Route fuel lines away from hot surfaces and moving parts to prevent damage or leaks. |
| Priming | May require priming the fuel pump before initial use to ensure proper operation. |
| Safety Precautions | Work in a well-ventilated area, disconnect the spark plug, and avoid spills to prevent fire hazards. |
| Testing | Test the fuel pump for proper operation before fully reassembling the mower. |
| Maintenance | Regularly inspect fuel lines and connections for leaks or wear, and replace the fuel filter as needed. |
| Cost | Varies depending on the pump model and additional components, typically ranging from $20 to $100. |
| DIY Difficulty | Moderate; requires basic mechanical skills and familiarity with electrical systems. |
| Tools Required | Basic hand tools (wrenches, screwdrivers), wire strippers, and possibly a multimeter for electrical testing. |
Explore related products
What You'll Learn
Choosing the Right Fuel Pump
Selecting a fuel pump for your vacuum riding mower requires understanding the mower's fuel system demands. Most riding mowers operate on gravity-fed systems, but adding a vacuum-assist setup necessitates a pump that delivers consistent, low-pressure fuel flow. Start by verifying your mower’s fuel line diameter (typically 1/4" or 5/16") and the engine’s fuel consumption rate, usually measured in gallons per hour (GPH). A pump rated for 3-5 GPH is sufficient for small to mid-sized engines, while larger engines may require up to 10 GPH. Compatibility with ethanol-blended fuels is also critical, as ethanol can degrade certain pump materials over time.
Material and construction are non-negotiable factors in fuel pump selection. Opt for pumps with ethanol-resistant components, such as viton seals and stainless steel internals, to prevent corrosion and ensure longevity. Avoid plastic-bodied pumps, as they are prone to cracking under heat and pressure. In-line electric pumps are popular for their reliability and ease of installation, but ensure the pump’s voltage matches your mower’s electrical system (typically 12V). For carbureted engines, a low-pressure mechanical pump may suffice, but it requires precise calibration to avoid over-pressurization.
Installation considerations cannot be overlooked. Measure the distance between the fuel tank and the engine to determine the pump’s head pressure requirements. If the tank is mounted higher than the engine, a lower-pressure pump may be adequate. Conversely, tanks positioned below the engine demand a pump capable of overcoming gravity. Always install an inline fuel filter between the pump and the carburetor to prevent debris from clogging the system. Secure the pump away from heat sources and ensure all connections are airtight to prevent leaks.
Cost versus performance is a balancing act. Entry-level pumps (under $30) may save money upfront but often lack durability and precision. Mid-range options ($50–$80) offer better materials and flow control, making them a safer long-term investment. High-end pumps ($100+) are overkill for most mowers unless you’re modifying the engine for increased performance. Consider your mower’s age and intended use—if it’s an older model or used infrequently, a mid-range pump strikes the best balance. Always factor in the cost of additional components like wiring harnesses, relays, and mounting hardware.
Testing and maintenance are essential to ensure the pump operates as intended. After installation, run the mower at idle and full throttle to check for consistent fuel delivery. Monitor for unusual noises or vibrations, which may indicate improper mounting or a failing component. Replace the inline filter every season and inspect the pump’s connections for leaks or corrosion. Regularly cleaning the fuel tank and lines will extend the pump’s lifespan and maintain optimal performance. A well-chosen and maintained fuel pump not only enhances the mower’s efficiency but also prevents costly engine damage down the line.
Lexus IS250 Fuel Pump Count: Understanding Your Vehicle's System
You may want to see also
Explore related products
Wiring and Power Connections
Proper wiring and power connections are critical when adding a fuel pump to a vacuum-powered riding mower. The fuel pump requires a dedicated power source, typically the mower’s battery, to operate efficiently. Begin by identifying the correct gauge wire for the amperage draw of your fuel pump—usually 14-16 AWG for most small pumps. Connect the positive wire directly to the battery’s positive terminal using a fused link to prevent overcurrent. Ground the negative wire to the mower’s chassis or a clean metal surface to ensure a stable return path. Always use heat-shrink tubing or electrical tape to insulate connections and protect them from moisture and debris.
A common mistake is neglecting to install a relay, especially if the fuel pump draws significant power. A relay acts as a switch, allowing a low-current signal from the ignition switch to control the high-current flow to the pump. Wire the relay’s coil to the ignition switch so the pump activates only when the mower is running. This prevents the pump from draining the battery when the mower is off. Ensure the relay is rated for the pump’s amperage and mount it in a location with good airflow to prevent overheating.
When routing wires, avoid areas near the engine or exhaust where heat can damage insulation. Use zip ties or wire looms to secure the wiring harness neatly along the mower’s frame. If the fuel pump requires a specific voltage (e.g., 12V), verify the mower’s electrical system matches this requirement. Some older mowers may have inconsistent voltage output, necessitating a voltage regulator or upgrade to the charging system.
Testing the wiring before final installation is essential. Use a multimeter to check for continuity and proper voltage at the pump’s terminals. Simulate the ignition being turned on and off to ensure the relay and pump operate as expected. If the pump fails to activate, inspect connections for loose wires or blown fuses. Once confirmed functional, secure all components with weatherproof seals to protect against grass clippings, water, and vibration.
Incorporating a manual override switch can add versatility, allowing the pump to run independently of the ignition for troubleshooting or priming. Install the switch in a convenient location, such as the dashboard, and wire it in parallel with the ignition circuit. Label the switch clearly to avoid confusion. By following these steps, you’ll ensure a safe, reliable power connection that enhances the mower’s performance without compromising its electrical system.
Understanding APM Requirements for HESCO MPI Fuel Pump Efficiency
You may want to see also
Explore related products
Mounting the Fuel Pump Securely
Securing a fuel pump on a vacuum riding mower demands precision and foresight. Unlike standard mowers, vacuum models often have compact frames and high-vibration environments, making mounting location critical. Avoid areas near exhaust systems or moving parts to prevent heat damage or interference. Opt for a flat, sturdy surface like the firewall or chassis, ensuring the pump remains level to maintain consistent fuel flow. Use vibration-dampening materials, such as rubber gaskets or mounts, to minimize wear and tear from constant operation.
Consider the fuel pump’s orientation during installation. Most electric fuel pumps perform best when mounted below the fuel tank to utilize gravity, but vacuum mower designs may require lateral mounting due to space constraints. In such cases, ensure the pump’s inlet and outlet ports align with the fuel lines to prevent air pockets or leaks. Secure the pump with stainless steel bolts and lock washers to withstand vibrations without loosening over time. Double-check torque specifications to avoid stripping threads or damaging the mounting surface.
A common oversight is neglecting the electrical connections. Mount the pump near the mower’s battery or wiring harness to reduce voltage drop, but keep wires away from hot surfaces or sharp edges. Use heat-resistant loom or conduit to protect wiring from fuel spills or debris. Ground the pump properly to prevent electrical interference with the mower’s ignition system. Test connections with a multimeter before final assembly to ensure continuity and avoid future troubleshooting.
Finally, simulate operating conditions to validate the mount’s stability. Run the mower at idle and full throttle, checking for excessive movement or unusual noises. If the pump shifts or vibrates excessively, reinforce the mount with additional brackets or adjust the dampening material. Regularly inspect the setup during the first few uses, tightening bolts as needed until the system stabilizes. A securely mounted fuel pump not only ensures reliable performance but also extends the lifespan of both the pump and the mower.
Understanding the Fuel Pump System in a 1998 Volkswagen Beetle
You may want to see also
Explore related products
Fuel Line Installation and Routing
Proper fuel line installation and routing are critical to ensuring your vacuum riding mower’s fuel pump operates efficiently and safely. Begin by selecting fuel lines rated for ethanol-blended gasoline, as most modern fuels contain up to 10% ethanol, which can degrade incompatible materials. Use ¼-inch ID (inner diameter) fuel line for most small engines, ensuring it’s flexible enough to route without kinking but durable enough to resist fuel vapors and pressure. Avoid sharp bends or tight loops, as these restrict fuel flow and increase the risk of leaks. Secure the line with clamps every 6–8 inches, particularly near moving parts or hot surfaces like the engine block.
Routing the fuel line requires strategic planning to minimize exposure to heat and vibration. Start by running the line along the mower’s frame, away from exhaust manifolds, mufflers, or other heat sources that could melt or harden the material. Maintain a clearance of at least 2 inches from these components. If crossing over sharp edges or rough surfaces, use a protective sleeve or conduit to prevent abrasion. For electric fuel pumps, position the line so it slopes slightly downward toward the pump inlet to aid fuel flow and reduce airlock risks. Always test the routing by manually moving the mower through its full range of motion to ensure the line doesn’t snag or stretch excessively.
When connecting the fuel line to the pump and carburetor, use barbed fittings with hose clamps rather than relying on friction alone. Tighten clamps snugly but avoid over-tightening, which can crush the line and restrict flow. Apply a thin layer of silicone-based lubricant to the fittings to ease installation and create a tighter seal. If your mower uses a primer bulb, position it along the fuel line between the tank and pump for optimal priming efficiency. Label connections clearly if working with multiple lines (e.g., main supply, return, vent) to avoid confusion during reassembly or future maintenance.
Inspect the fuel line periodically for cracks, swelling, or brittleness, especially if the mower operates in extreme temperatures. Replace lines every 3–5 years as a preventive measure, or sooner if signs of wear appear. During installation, avoid leaving excess slack in the line, as this can trap fuel and create a fire hazard. Conversely, ensure there’s enough length to accommodate engine movement without tension. For added safety, install a fuel shut-off valve near the tank to isolate the system during storage or repairs. Following these guidelines ensures a reliable fuel delivery system that enhances mower performance and longevity.
Understanding Holley Electric Fuel Pump Amp Draw: A Comprehensive Guide
You may want to see also
Explore related products
Testing and Troubleshooting the Setup
Once the fuel pump is installed, testing and troubleshooting are critical to ensure the system operates efficiently and safely. Begin by checking all connections for tightness and integrity, as loose fittings can lead to fuel leaks or inadequate pressure. Use a fuel pressure gauge to verify the pump is delivering the manufacturer’s specified PSI, typically between 3 and 6 PSI for small engines. If pressure is low, inspect the pump’s inlet and outlet for clogs or restrictions, and ensure the fuel filter is clean. A clogged filter or faulty pump will starve the engine, leading to poor performance or failure to start.
Next, simulate real-world conditions by running the mower at various speeds and loads. Observe the engine’s response during acceleration and under heavy cutting tasks. If the engine sputters or stalls, the pump may not be supplying enough fuel under demand. In such cases, check the pump’s flow rate against the engine’s requirements, often found in the mower’s manual. For example, a 16 HP engine might need a pump capable of delivering 2–3 gallons per hour. If the pump falls short, consider upgrading to a higher-capacity model.
Electrical issues are another common culprit. Ensure the pump’s wiring is securely connected to the mower’s battery or ignition system, using inline fuses to prevent shorts. Test the pump’s power draw with a multimeter; it should match the manufacturer’s specifications, usually around 1–2 amps. If the pump fails to activate, trace the wiring for breaks or corrosion, and verify the relay or switch is functioning. A faulty relay can prevent the pump from engaging, even if the wiring is intact.
Vacuum leaks in the fuel line can also disrupt performance. Apply a light coating of soapy water to all connections and observe for bubbles, which indicate leaks. Tighten or replace fittings as needed. Additionally, ensure the fuel tank vent is clear, as a blocked vent can create a vacuum that restricts fuel flow. A simple test is to loosen the gas cap while the engine is running; if performance improves, the vent is likely obstructed.
Finally, log performance data during testing to identify patterns. Note engine behavior at different throttle positions, fuel consumption rates, and any unusual noises from the pump. This documentation will help diagnose intermittent issues and ensure the setup is optimized for long-term reliability. By methodically addressing these areas, you can fine-tune the fuel pump system to meet the mower’s demands and avoid costly downtime.
2006 Suzuki SV650S Fuel Pump Size in Millimeters Explained
You may want to see also
Frequently asked questions
Use an electric inline fuel pump designed for small engines, typically 3-5 PSI, to ensure compatibility with your mower’s fuel system.
Install the fuel pump between the fuel tank and the carburetor, ensuring it’s mounted securely and away from excessive heat or moving parts.
Connect the pump’s power wire to the mower’s battery or ignition switch, and ground it to the chassis. Use a fuse to protect the circuit.
Yes, install an inline fuel filter before the pump to prevent debris from damaging the pump and ensure clean fuel delivery.
Turn on the ignition and listen for the pump’s hum. Check for fuel flow at the carburetor and ensure there are no leaks in the fuel lines.
