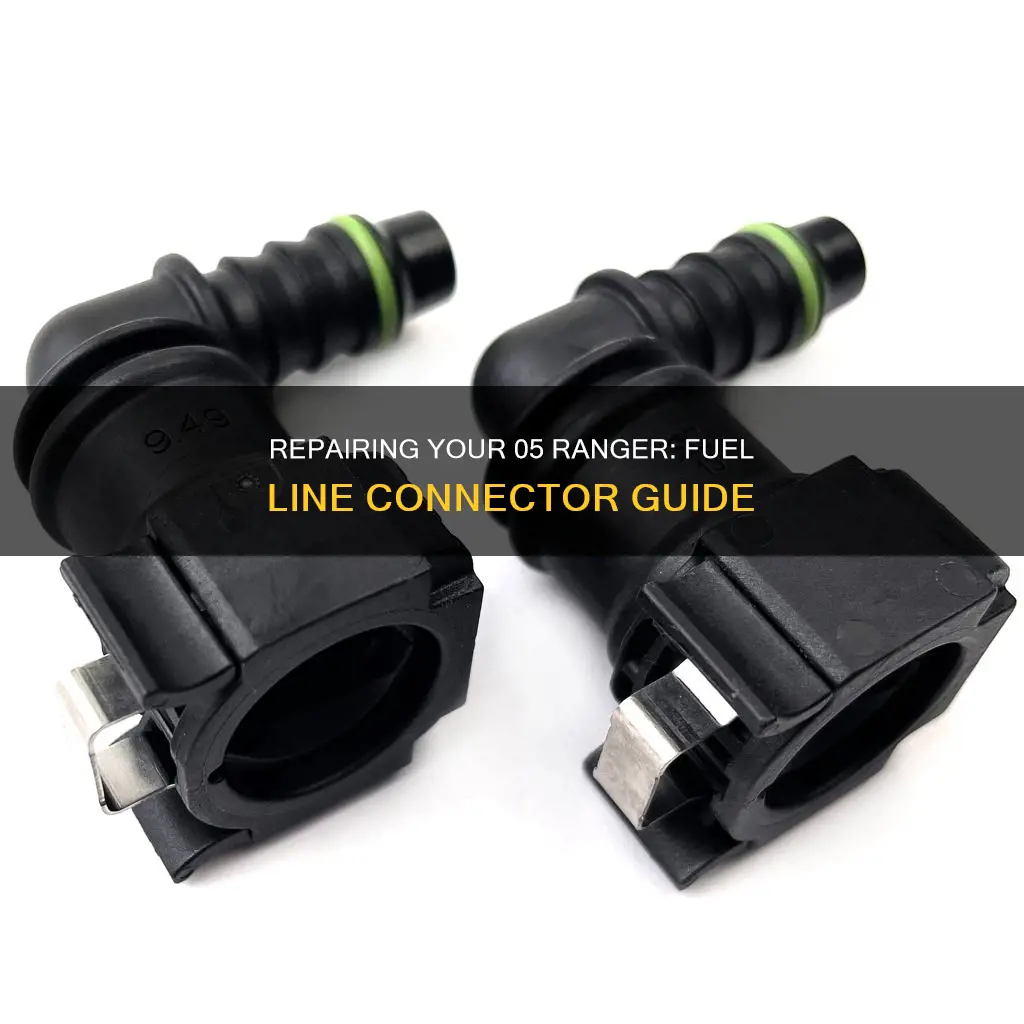

Mastering The 05 Ranger Fuel Line Connector: A Comprehensive Guide

If you're a Ford Ranger owner, you might have encountered issues with your fuel line connector, which can lead to engine performance problems. This guide will provide a step-by-step process to inspect, clean, and potentially replace the fuel line connector on your 2005 Ford Ranger. By following these instructions, you can ensure your vehicle's fuel system is functioning optimally, improving overall engine performance and reliability.

Fuel Line Inspection: Check for cracks, leaks, and debris around the connector

When inspecting the fuel lines on your 05 Ford Ranger, it's crucial to pay close attention to the connector, as this is a common area for issues. Start by visually examining the fuel line and its connector for any visible signs of damage or deterioration. Look for cracks, splits, or any other form of structural weakness in the fuel line itself, as well as around the connector. Even small cracks can lead to fuel leaks, which can cause engine performance issues and potential safety hazards. Check for any signs of corrosion or rust, especially if the vehicle has been exposed to harsh weather conditions or has a history of fuel contamination.

The fuel line connector should be securely attached to the fuel line and the engine. Inspect the connector for any signs of looseness or damage. Ensure that the connector is tight and secure, as a loose connection can lead to fuel leaks and potential engine misfires. If the connector appears damaged, it may need to be replaced. Look for any signs of debris or contamination around the connector. Fuel lines can accumulate dirt, rust, or other contaminants over time, which can restrict fuel flow and cause engine problems. Use a clean cloth or brush to gently remove any visible debris from the fuel line and the connector.

Leak testing is a critical part of the inspection process. If you suspect a leak, you can use a simple leak detection method. Start the engine and listen for any hissing or bubbling sounds, which could indicate a fuel leak. Alternatively, you can use a soapy water solution to test for leaks. Apply a thin layer of soapy water around the fuel line and connector, then check for any bubbles or foam. Bubbles indicate a leak, and you should address the issue promptly.

If you find any cracks, leaks, or debris during your inspection, it's essential to take appropriate action. Cracks in the fuel line should be repaired or replaced immediately to prevent fuel loss and potential engine damage. For leaks, you may need to tighten connections, replace gaskets, or even replace the fuel line itself. Debris accumulation can be cleaned and cleared, ensuring smooth fuel flow. Regular maintenance and inspections can help prevent major fuel system issues and keep your engine running efficiently.

Fuel Filter Replacement: Clean or replace the filter to ensure proper fuel flow

When it comes to maintaining your Ford Ranger, ensuring that the fuel system is in top condition is crucial. One often overlooked but essential component is the fuel filter. Over time, this filter can become clogged or contaminated, leading to reduced engine performance and potential issues. Here's a step-by-step guide on how to replace or clean the fuel filter in your 2005 Ford Ranger to maintain optimal fuel flow.

Accessing the Fuel Filter:

Start by locating the fuel filter, which is typically positioned under the vehicle, near the front passenger side. It is often connected to a metal bracket or a plastic housing. You might need to lift the vehicle or remove some underbody panels to access it, depending on your Ranger's configuration.

Removing the Old Filter:

• Jack up the vehicle and support it securely using jack stands. This step is crucial for safety and to prevent any accidents.
• Locate the fuel filter's mounting bracket or housing. It is usually held in place by clips or screws.
• Carefully remove the clips or screws to detach the bracket/housing from the fuel line. Take note of the orientation of the fuel lines to ensure proper reattachment.
• Pull the old fuel filter out of its housing, being mindful of any fuel residue that may remain.

Cleaning or Replacing the Filter:

• Cleaning: If the filter is not excessively clogged, you can attempt to clean it. Soak the filter in a fuel system cleaner for a few hours or overnight. Then, rinse it thoroughly and reinstall it, ensuring all connections are secure.
• Replacing: If the filter is heavily contaminated or shows signs of damage, it's best to replace it. Purchase a new fuel filter that is compatible with your 2005 Ford Ranger. Ensure you have the correct size and type to avoid any fitment issues.

Reinstalling the System:

After cleaning or replacing the filter, carefully reconnect the fuel lines to the new or cleaned filter. Ensure all connections are tight and secure. Reattach the mounting bracket or housing, and lower the vehicle.

Post-Replacement Checks:

Start the engine and check for any leaks around the fuel lines and filter connections. Let the engine run and observe for any unusual noises or vibrations. Properly securing the fuel lines and filter will prevent fuel leaks and ensure a smooth engine operation.

Remember, regular maintenance of the fuel filter can prevent costly repairs and keep your Ranger's engine running efficiently. Always refer to your vehicle's manual for specific instructions and recommendations for your particular model.

Fuel Pump Maintenance: Regularly test and clean the pump for optimal performance

Maintaining your fuel pump is crucial for ensuring your vehicle's engine runs smoothly and efficiently. Over time, fuel pumps can accumulate dirt, debris, and contaminants, leading to reduced performance and potential issues. Regular testing and cleaning of the fuel pump are essential to keep it in optimal condition. Here's a step-by-step guide to help you with this maintenance task:

Testing the Fuel Pump: Start by ensuring your vehicle is parked on a level surface and the engine is off. Locate the fuel pump relay, which is typically found near the engine compartment. Disconnect the relay and use a multimeter to test the fuel pump's electrical connection. Set the multimeter to the ohms setting and touch the probes to the fuel pump relay terminals. A healthy fuel pump should read a low resistance value. If the reading is significantly high or infinite, it indicates a faulty pump. You can also use a fuel pump flow meter to measure the pump's output. Connect the flow meter to the fuel line and turn on the engine. The meter will display the pump's performance, and any deviations from the expected flow rate suggest a problem.

Cleaning the Fuel Pump: Cleaning the fuel pump is an important part of maintenance. Start by disconnecting the negative battery terminal to prevent any electrical issues during the process. Locate the fuel pump, which is usually mounted near the fuel tank. Carefully inspect the pump for any visible dirt or debris. You can use a soft brush or compressed air to gently remove any contaminants. For a more thorough clean, you can use a fuel pump cleaner, which is available at most auto parts stores. Follow the manufacturer's instructions for application. After cleaning, reassemble the pump and ensure all connections are secure.

Regular Maintenance Schedule: Establish a regular maintenance routine to keep your fuel pump in top shape. Aim to test and clean the pump every 30,000 to 50,000 miles or as recommended by your vehicle's manufacturer. Regular maintenance will help prevent unexpected breakdowns and ensure your engine's longevity. Keep a record of each cleaning and testing to track the pump's performance over time.

By following these steps, you can effectively maintain your fuel pump, ensuring it delivers the required fuel flow for optimal engine performance. Remember, regular care can save you from potential fuel system issues and keep your vehicle running smoothly.

Fuel Injector Care: Inspect and clean injectors to prevent clogging and ensure efficient fuel delivery

Fuel injectors are critical components in modern engines, responsible for delivering precise amounts of fuel to the engine's cylinders. Over time, these injectors can become clogged with deposits, leading to reduced performance and potential engine issues. Regular inspection and cleaning of fuel injectors are essential to maintain optimal engine operation and prevent costly repairs. Here's a step-by-step guide to help you inspect and clean your fuel injectors:

Step 1: Understanding the Fuel Injector System

Before you begin, it's crucial to understand the fuel injector system in your 05 Ranger. Familiarize yourself with the location of the fuel injectors, which are typically mounted near the engine's cylinders. Each injector is responsible for delivering fuel to a specific cylinder or group of cylinders. The system also includes a fuel rail, which acts as a reservoir for the injected fuel, and a fuel pump that supplies pressurized fuel to the injectors.

Step 2: Inspect for Clogging

Regular visual inspections can help identify potential issues early on. Start by removing the fuel injectors one by one, ensuring you have the necessary tools and safety equipment, such as gloves and eye protection. Inspect each injector for any signs of clogging, such as excessive soot, carbon buildup, or debris. Clogged injectors may appear discolored or have a rough, textured surface. If you notice any significant buildup, it's time to clean the injectors.

Step 3: Cleaning the Fuel Injectors

There are several methods to clean fuel injectors, and you can choose the one that suits your preferences and the severity of the clogging. Here's a common approach:

• Fuel Injector Cleaner: Use a high-quality fuel injector cleaner, which is designed to dissolve and remove deposits. Follow the manufacturer's instructions and add the cleaner to the fuel tank or use it as a direct injector cleaner. Run the engine for a few minutes to allow the cleaner to circulate. Then, disconnect the fuel lines and flush the system with clean fuel to remove any remaining cleaner.
• Ultrasonic Cleaning: For more severe clogging, consider using an ultrasonic cleaner. This method employs high-frequency sound waves to vibrate and dislodge deposits from the injector nozzles. Place the injectors in the cleaning solution and use the ultrasonic device according to the manufacturer's guidelines.

Step 4: Reassembly and Testing

After cleaning, carefully reassemble the fuel injectors and ensure they are securely attached to the engine. Start the engine and monitor its performance. Check for any unusual noises or changes in idling quality. Efficient fuel delivery should result in improved engine response and reduced emissions.

Remember, regular maintenance and inspection of fuel injectors can save you from potential engine problems and costly repairs. By following these steps, you can ensure that your 05 Ranger's fuel injectors remain clean and functional, contributing to overall engine performance and longevity.

Fuel System Diagnostics: Use a diagnostic tool to identify and resolve fuel system issues

When dealing with fuel system issues in a 2005 Ford Ranger, using a diagnostic tool can be an invaluable asset. These tools are designed to help pinpoint problems within the complex network of fuel lines, injectors, and pumps, making the troubleshooting process more efficient and accurate. Here's a step-by-step guide on how to utilize a diagnostic tool for fuel system diagnostics:

Step 1: Understanding the Fuel System

Before connecting any diagnostic tool, it's essential to have a basic understanding of the fuel system in your 2005 Ranger. Familiarize yourself with the fuel pump, fuel injectors, fuel lines, and the engine's fuel management system. This knowledge will help you interpret the diagnostic tool's readings and identify potential issues.

Step 2: Connecting the Diagnostic Tool

Most modern vehicles, including the 2005 Ford Ranger, come equipped with an On-Board Diagnostics (OBD) system. This system can be accessed using a diagnostic tool, often referred to as a scan tool or code reader. Connect the tool to the OBD port, usually located under the dashboard on the driver's side. Ensure that the tool is compatible with your vehicle's OBD system (typically OBD-II for newer vehicles).

Step 3: Reading Error Codes

Once connected, the diagnostic tool will allow you to read error codes stored in the engine's computer. These error codes provide valuable information about the fuel system's performance. Look for codes related to fuel injection, fuel pressure, or fuel pump operation. For example, a code P0299 might indicate a problem with the fuel pump, while a code P0300 could suggest multiple misfires, possibly related to fuel delivery.

Step 4: Performing Tests

Diagnostic tools often come with built-in test modes that simulate various fuel system conditions. These tests can help identify issues with fuel pressure, injector operation, and fuel pump functionality. For instance, you can use the tool to perform a fuel pressure test, which will activate the fuel pump and measure the pressure at different points in the system. Any deviations from the expected pressure range could indicate a problem with the fuel pump, lines, or regulator.

Step 5: Isolating Issues

After reading error codes and performing tests, you can start isolating potential issues. If a specific fuel-related code is consistently present, it's likely the primary concern. For example, if code P0299 is consistently displayed, you can focus on inspecting the fuel pump and its connections. Use the diagnostic tool's data logging feature to record sensor readings and fuel system parameters to further refine your diagnosis.

Step 6: Repair or Replacement

Once you've identified the issue, you can proceed with the necessary repairs or replacements. This might involve fixing a damaged fuel line, replacing a faulty fuel pump, or cleaning/replacing fuel filters. Always refer to your vehicle's manual or seek professional advice for specific repair procedures.

Remember, while diagnostic tools provide valuable assistance, they should be used in conjunction with your mechanical knowledge and experience. Properly identifying and resolving fuel system issues can save time and money, ensuring your 2005 Ford Ranger runs efficiently and reliably.
