Mastering Fuel Cut-Off Relay Wiring: A Comprehensive Guide

Replacing the fuel cut-off relay wiring is a crucial step in ensuring your vehicle's engine operates efficiently and safely. This process involves replacing the wiring harness that connects the fuel cut-off relay to the engine's fuel system. By understanding the importance of this task and following a step-by-step guide, you can effectively troubleshoot and resolve issues related to fuel delivery, enhancing your vehicle's performance and reliability.

Identify Relay Location: Locate the fuel cut-off relay in your vehicle's engine compartment

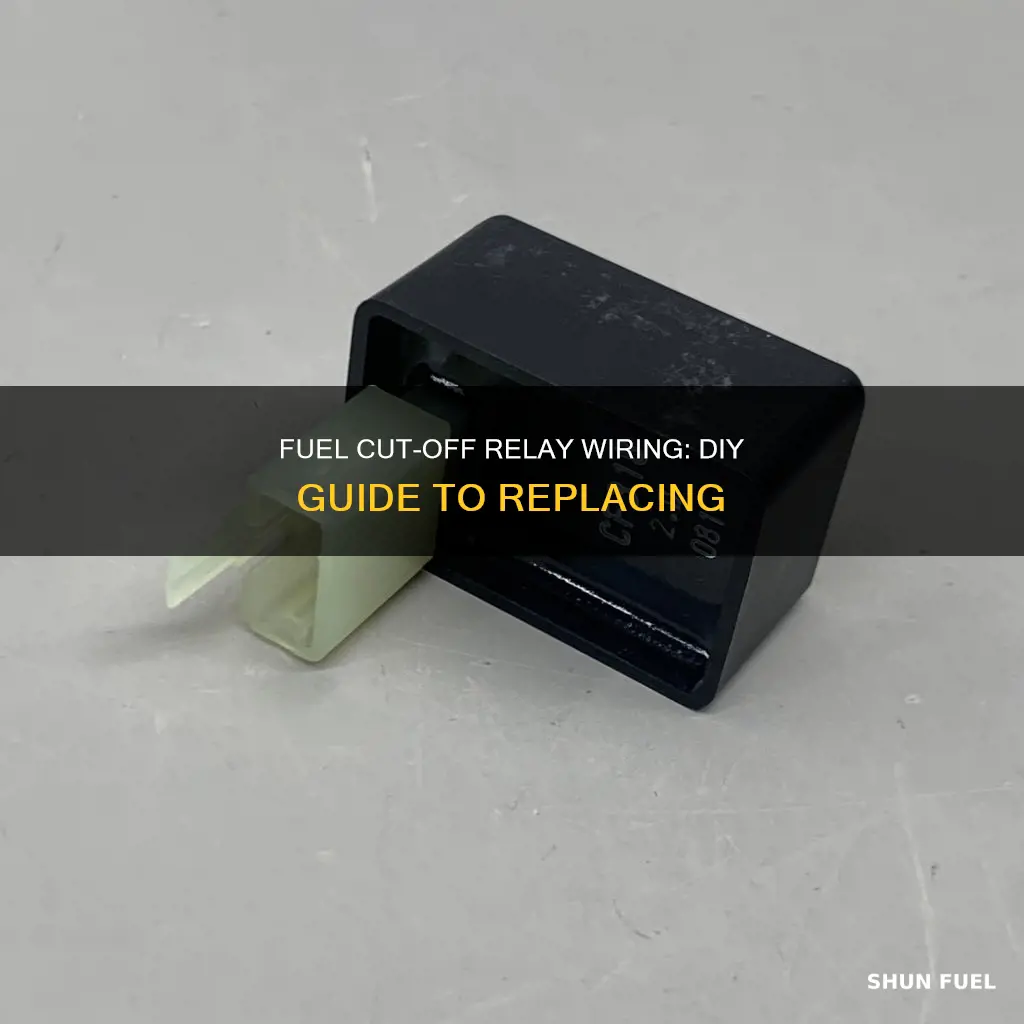

Locate the fuel cut-off relay in your vehicle's engine compartment. This relay is typically found near the battery or under the dashboard, depending on the make and model of your car. It is usually a small, rectangular box with wires connected to it. The relay is an important component of your vehicle's fuel system, as it controls the flow of fuel to the engine. If the relay is faulty, it can cause the engine to stall or not start at all.

To identify the relay's location, you can refer to your vehicle's owner's manual. The manual will provide detailed information about the location of all the relays and fuses in your car. Alternatively, you can use a search engine to find diagrams or images of your vehicle's engine compartment, which can help you locate the relay.

Once you have identified the relay's location, you can inspect it for any signs of damage or corrosion. If the relay is dirty or corroded, you can clean it with a cloth and a mild detergent. If the relay is damaged, you may need to replace it.

If you are unsure about the location of the fuel cut-off relay, it is best to consult a professional mechanic. They can help you identify the relay and ensure that it is properly installed. Additionally, a mechanic can also help you troubleshoot any issues with the relay and the fuel system.

Remember, it is important to handle the fuel cut-off relay with care. If you are not comfortable working with electrical components, it is best to leave the repair to a professional.

Inspect Wiring: Carefully examine the wiring for any signs of damage or corrosion

When replacing the fuel cut-off relay wiring, a thorough inspection of the wiring harness is crucial to ensure a successful repair. Start by locating the wiring harness, which is typically a bundle of wires connected to various components in the vehicle's electrical system. Carefully examine the harness for any visible signs of damage, such as frayed or exposed wires, burns, or cuts. These issues could have been caused by previous repairs, accidents, or general wear and tear. Look for any discolored or charred areas, especially around the relay and its associated connectors.

Corrosion is another potential problem that can affect the wiring. Check for any signs of rust or oxidation on the wiring terminals and connectors. Corrosion can hinder the flow of electricity and may lead to erratic behavior or even failure of the relay. If you notice any corrosion, gently clean the affected areas using a suitable cleaning agent and a soft cloth to ensure a proper connection.

Pay close attention to the connections between the wiring harness and the fuel cut-off relay. Ensure that all connections are secure and tightly fastened. Loose connections can result in poor electrical contact, causing the relay to malfunction. Carefully inspect each wire for any signs of damage or wear, especially where they connect to the relay and other components. Look for any signs of melting or discolored insulation, as these could indicate previous issues or potential hazards.

Additionally, check for any signs of water intrusion or moisture damage. Moisture can cause corrosion and short circuits, leading to electrical problems. If you notice any wet or damaged wiring, it is essential to address the issue before proceeding with the replacement.

During this inspection, it's also a good idea to look for any signs of previous repairs or modifications. Sometimes, improper repairs can lead to further complications. Ensure that all wiring is intact and that no additional damage has been caused during the repair process. By carefully examining the wiring for damage and corrosion, you can identify potential issues and ensure that the replacement process is carried out safely and effectively.

Remove Old Relay: Disconnect the old relay by carefully removing the clips or screws

When replacing a fuel cut-off relay, the first step is to carefully remove the old relay. This process involves disconnecting the wiring and carefully handling the relay to ensure no damage occurs. Here's a detailed guide on how to remove the old relay:

• Locate the Relay: Start by identifying the location of the fuel cut-off relay in your vehicle. Relays are typically found near the engine compartment, often mounted on the firewall or a bracket. Refer to your vehicle's manual if you're unsure about the exact location.
• Disconnect Wiring: Locate the wiring harness or connector attached to the old relay. Carefully disconnect the wiring by removing any clips, screws, or connectors that secure the wires. Take note of the wiring arrangement to ensure you reconnect it correctly during the installation of the new relay.
• Remove the Old Relay: Once the wiring is disconnected, you can now remove the old relay. This step may require gently prying the relay out of its mounting position using a flathead screwdriver or a specialized relay removal tool. Be cautious not to force it, as you want to avoid damaging the surrounding components. Carefully lift the relay out of its housing.
• Clean and Inspect: After removing the old relay, take a moment to clean the mounting area and any debris or old wiring. Inspect the relay and the wiring harness for any signs of damage or corrosion. This step ensures that any potential issues are identified before installing the new relay.
• Prepare for New Relay: With the old relay removed, you can now proceed to install the new fuel cut-off relay. Ensure you have the correct replacement relay that matches your vehicle's specifications. The new relay should be installed in the same manner as the old one, securing it in place with the appropriate clips or screws.

Install New Relay: Connect the new relay, ensuring proper polarity and secure it in place

When replacing the fuel cut-off relay, it's crucial to follow a systematic approach to ensure a successful installation. Here's a step-by-step guide to help you through the process:

• Prepare the Necessary Tools and Materials: Before you begin, gather all the required tools and components. You'll need a new fuel cut-off relay, a set of screwdrivers (flat and Phillips head), a wire stripper, and a voltage tester. Having the right tools will make the installation process smoother.
• Locate the Old Relay: Start by identifying the location of the old fuel cut-off relay. This relay is typically found near the engine compartment, often mounted on the firewall or a bracket. Carefully inspect the wiring harness and take note of the connections made to the old relay. Understanding the wiring layout will help you connect the new relay correctly.
• Disconnect the Old Relay: Carefully disconnect the wiring from the old relay. Loosen the screws holding the relay in place and carefully pull it out of the mounting bracket. Take note of the wiring colors and positions to ensure accurate connections for the new relay.
• Install the New Relay: Now, it's time to connect the new fuel cut-off relay. Begin by aligning the relay with the mounting bracket, ensuring it fits securely. Use the screws to fasten the relay in place, tightening them gently to avoid over-tightening.
• Connect the Wiring: Carefully connect the wiring to the new relay, matching the colors and positions as noted during the disconnection process. Ensure that the wiring is securely attached to the relay's terminals. Double-check the polarity to avoid any electrical issues. Proper polarity is essential to ensure the relay functions correctly.
• Test and Secure: Once the wiring is connected, use the voltage tester to verify that the new relay is receiving power. Check for any error codes or warning indicators on the vehicle's dashboard. If everything is functioning as expected, secure any loose wiring with ties or clips to maintain a tidy appearance.

Remember, when handling electrical components, it's crucial to exercise caution and ensure you have a good understanding of the wiring diagram to avoid any potential hazards. Properly installing the new fuel cut-off relay will ensure the vehicle's electrical system operates efficiently and safely.

Test and Verify: Turn on the ignition and check if the fuel cut-off function works correctly

When testing and verifying the functionality of the fuel cut-off relay, it's crucial to follow a systematic approach to ensure the system is working as intended. Here's a step-by-step guide to help you through this process:

Step 1: Prepare the Vehicle: Ensure the vehicle is parked in a safe, level area, and the engine is cool. Turn off the ignition and disconnect the negative terminal of the battery to prevent any accidental electrical discharges. This step is essential for safety and to ensure accurate testing.

Step 2: Locate the Relay: Identify the fuel cut-off relay in your vehicle. The location can vary depending on the make and model of your car. It is often found near the engine compartment, close to the battery, or in the fuse box. Refer to your vehicle's manual if you're unsure about its exact location.

Step 3: Inspect Connections: Check the wiring connected to the fuel cut-off relay. Ensure all connections are secure and free from any signs of corrosion or damage. Loose connections can lead to erratic behavior, so tighten any loose terminals.

Step 4: Turn on the Ignition: With the engine off, turn the ignition key to the 'on' position. This will power up the electrical system and allow you to test the relay's functionality.

Step 5: Check for Power: Use a multimeter or a test light to verify if power is supplied to the fuel cut-off relay when the ignition is on. Set the multimeter to the appropriate voltage range and test the relay's input and output terminals. You should read a voltage value at the input terminal when the ignition is on, indicating power supply.

Step 6: Simulate Fuel Cut-Off: Depending on your vehicle's system, you might need to simulate a fuel cut-off condition. This could involve using a test light or a dedicated fuel cut-off tester. Connect the tester according to the manufacturer's instructions and observe if the relay activates when the fuel cut-off function is triggered.

Step 7: Observe Engine Behavior: After simulating the fuel cut-off, start the engine and observe its behavior. The engine should not start or should stall immediately if the fuel cut-off function is working correctly. If the engine starts or runs smoothly, it may indicate a problem with the relay or the wiring.

Step 8: Verify with a Professional: If you're unsure about any step or encounter any issues, it's advisable to consult a professional mechanic. They can provide expert advice and ensure the fuel cut-off system is functioning as per the manufacturer's specifications.

Remember, this process requires a methodical approach and a good understanding of your vehicle's electrical system. Always exercise caution when working with electrical components, and ensure you have the necessary knowledge or assistance to avoid any potential hazards.
