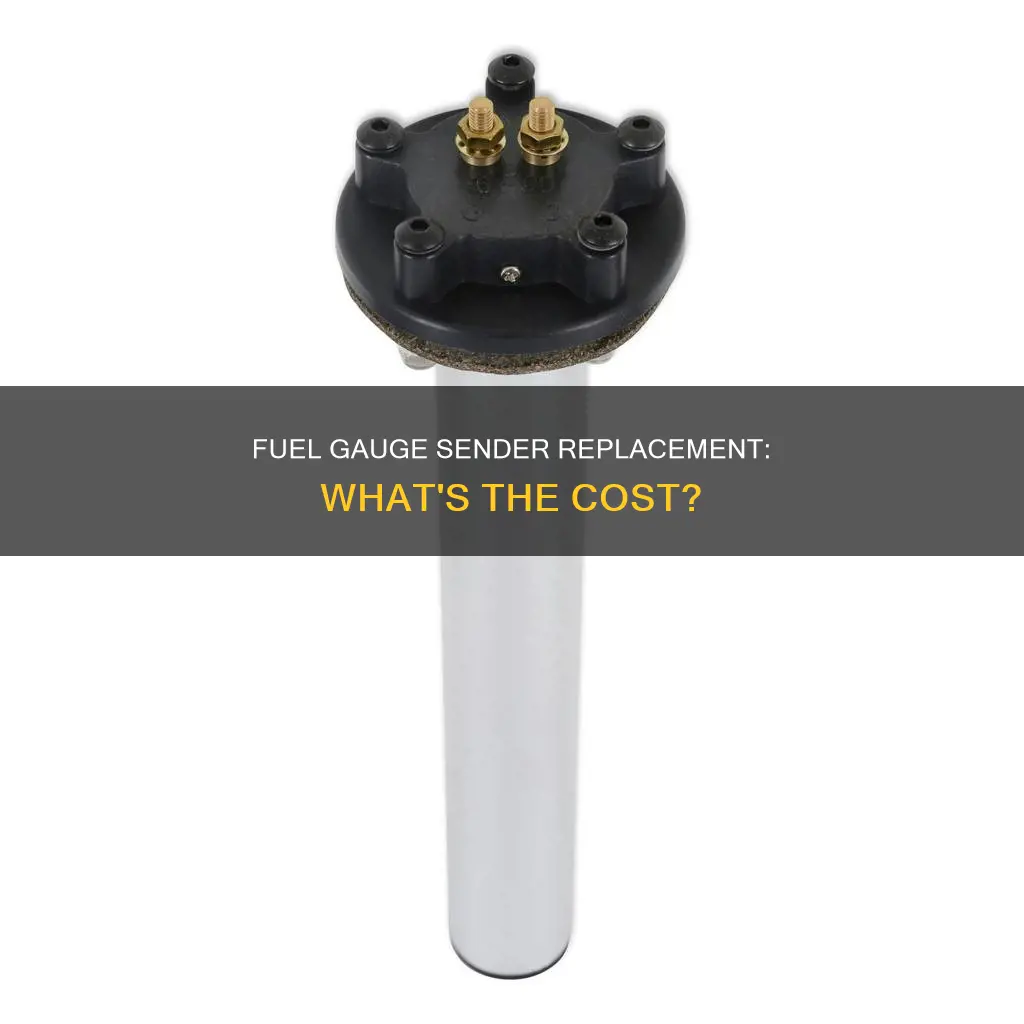

Fuel Gauge Sender Replacement: Cost Breakdown And Factors

The cost to replace a fuel gauge sender can vary depending on several factors, including the make and model of your vehicle, the location of the sender, and the complexity of the repair. Generally, the sender unit itself can range from $50 to $200, while labor costs can vary from $50 to $150 per hour, depending on the mechanic's experience and the specific vehicle. Additionally, if the replacement requires specialized tools or parts, this can further increase the overall cost. It's recommended to get quotes from multiple mechanics or repair shops to ensure you receive a fair price for the job.

Fuel Gauge Sender Location: Identify the sender's position in the fuel tank

The fuel gauge sender, also known as the fuel level sensor, is a crucial component in your vehicle's fuel management system. It's responsible for providing accurate information about the fuel level in your tank to the fuel gauge, allowing you to monitor your vehicle's fuel status effectively. Understanding the location of this sender is essential for any DIY repairs or when seeking professional assistance.

In most vehicles, the fuel gauge sender is strategically positioned inside the fuel tank. This placement ensures that it comes into direct contact with the fuel, allowing for precise measurements. The sender is typically a small, cylindrical device with electrical connections that transmit data to the gauge. Its location is carefully designed to avoid any interference with the fuel flow, ensuring optimal performance.

Identifying the exact position of the sender can vary depending on the vehicle make and model. For some cars, it is usually located near the bottom of the tank, where the fuel level is lowest. This placement ensures that the sender measures the fuel level accurately, providing a reliable reading to the driver. In other vehicles, the sender might be positioned closer to the top of the tank, especially in tanks with a more complex design.

When inspecting your vehicle, locate the fuel tank and carefully remove the necessary panels or access points to reach the interior. Once inside, look for a small, flat object that resembles a sensor or a small cylinder. It might be attached to the fuel tank wall or suspended in the fuel. Ensure you have a clear understanding of its position to avoid any damage during removal.

Remember, the fuel gauge sender is a delicate component, and its location can vary. Always refer to your vehicle's manual or seek professional advice if you're unsure. Proper identification of the sender's position will make the replacement process smoother and more efficient, ensuring your fuel gauge provides accurate readings.

Tools and Materials: Gather necessary tools and replacement parts

To replace a fuel gauge sender, you'll need to gather the right tools and materials to ensure a successful repair. Here's a detailed list of what you should have:

Tools:

• Socket set: You'll need a set of sockets, especially a 1/2-inch drive socket, to remove the fuel gauge sender's mounting bolts.
• Wrenches: Both standard and adjustable wrenches are essential for tightening and loosening nuts and bolts.
• Pliers: Pliers can be helpful for gripping small parts or wires.
• Screwdrivers: Both flathead and Phillips screwdrivers may be needed depending on your vehicle's make and model.
• Fuel pump disconnect tool: This specialized tool allows you to safely disconnect the fuel pump without draining the fuel tank.
• Safety equipment: Safety glasses and gloves are crucial for protecting your eyes and hands during the repair.

Materials:

• Replacement fuel gauge sender: This is the core component you need to replace. Ensure it's compatible with your vehicle's make, model, and year.
• Fuel filter: While not always necessary, replacing the fuel filter simultaneously can be a good preventative measure.
• Fuel line: If the existing fuel line is damaged or leaking, you'll need a replacement section.
• Gaskets and seals: Have a few extra gaskets and seals on hand for any potential leaks or gaps.
• Fuel additive: Consider adding a fuel additive to clean the fuel system and improve performance after the repair.

Additional Tips:

• Consult your vehicle's manual: Your car's manual will provide specific instructions for your model, including tool requirements and step-by-step procedures.
• Online resources: There are often helpful videos and forums online that can guide you through the process.
• Professional assistance: If you're unsure or uncomfortable with the repair, don't hesitate to seek help from a qualified mechanic.

Fuel Gauge Removal: Carefully remove the old gauge and sender

Fuel gauge removal is a crucial step in replacing the sender unit, ensuring an accurate reading of the vehicle's fuel level. This process requires careful execution to avoid any potential damage to the surrounding components. Here's a step-by-step guide to removing the old fuel gauge and sender:

Step 1: Gather the Necessary Tools and Materials

Before beginning the removal process, ensure you have the required tools and materials. You will typically need a fuel gauge removal tool, which is a specialized instrument designed to release the gauge from its housing. Additionally, have a set of screwdrivers (flat and Phillips head) and a small wrench or socket set handy. It's also a good idea to have a new fuel gauge sender ready for installation.

Step 2: Locate the Fuel Gauge and Sender

Identify the fuel gauge and sender unit in your vehicle. The sender is usually located near the fuel tank, often attached to the tank or mounted on the inner fender well. Carefully inspect the gauge's wiring connections and note their positions for future reference.

Step 3: Disconnect the Wiring Connections

Start by carefully disconnecting the wiring harness from the fuel gauge. Loosen the screws or clips securing the harness to the gauge and gently pull it away. Take note of the color-coded wires and their respective connections to avoid confusion during the reinstallation process.

Step 4: Release the Fuel Gauge

Using the fuel gauge removal tool, carefully insert it into the gauge's housing and apply gentle pressure. This tool will help you pry the gauge away from the sender unit. Be cautious not to force it, as excessive pressure might damage the surrounding components. Once the gauge is released, carefully lift it out of the housing.

Step 5: Remove the Old Sender

With the gauge removed, you can now access the old sender unit. Carefully detach any remaining wiring connections and secure the wires with clips or ties to prevent tangling. Loosen the screws or clips holding the sender in place and gently pull it out of the tank or mounting bracket.

Step 6: Prepare for Installation

After removing the old sender, inspect it for any signs of damage or wear. If it's in good condition, you can proceed with installing the new sender unit. Ensure you follow the manufacturer's instructions for proper alignment and secure the new sender in place.

Sender Installation: Follow steps to install the new sender

The process of installing a new fuel gauge sender involves several steps to ensure proper functionality and accuracy. Here's a detailed guide on how to replace the sender:

• Prepare the Vehicle: Begin by locating the fuel tank in your vehicle. It is usually found under the car, behind the rear seats, or in the trunk. Ensure you have access to the tank and take note of any specific mounting points or brackets that hold the old sender in place. You might need to drain some fuel or remove certain components to gain access.
• Remove the Old Sender: Carefully detach the old fuel gauge sender from the fuel tank. This process may require unscrewing or unclipping the sender from its mounting position. Take note of the wiring connections and how the sender was positioned. It's crucial to understand the old setup to ensure the new sender is installed correctly. Carefully separate the sender from the fuel lines and any other components it was connected to.
• Prepare the New Sender: Obtain the new fuel gauge sender and familiarize yourself with its components. It should come with instructions or a diagram indicating the various parts. Identify the sender's wiring harness and ensure you have the correct connectors to match the vehicle's wiring. Check for any O-rings or seals provided with the new sender and ensure they are intact and properly positioned.
• Install the New Sender: Start by positioning the new sender into the fuel tank, ensuring it aligns with the mounting points. Secure it using the appropriate screws or brackets, following the manufacturer's guidelines. Connect the wiring harness to the vehicle's wiring, making sure to match the color-coded wires correctly. Tighten any connections securely but be careful not to overtighten.
• Test and Calibrate: After installation, it's crucial to test the new sender. Start the vehicle's engine and check the fuel gauge reading. Ensure it reflects the correct fuel level. If the gauge is not functioning as expected, you may need to calibrate it. This process can vary depending on the vehicle's make and model, so consult the vehicle's manual or seek professional assistance for calibration instructions.
• Final Checks: Once the gauge is functioning correctly, perform a few final checks. Ensure all connections are secure and there are no leaks or damage to the fuel lines. Test-drive the vehicle to confirm that the fuel gauge responds accurately to changes in fuel levels during driving.

Testing and Calibration: Ensure proper functioning and calibrate the gauge

To ensure the fuel gauge is functioning correctly and providing accurate readings, a series of tests and calibrations are necessary. This process involves checking the gauge's response to different fuel levels and adjusting it to match the actual fuel quantity. Here's a step-by-step guide to performing these tests and calibrations:

Step 1: Prepare the Vehicle

Before beginning, ensure the vehicle is parked on a level surface and the engine is off. Allow the fuel system to settle and the fuel gauge to stabilize. This step is crucial to obtain accurate readings.

Step 2: Check Fuel Levels

Start by checking the fuel gauge's response to various fuel levels. Remove the fuel tank cap and note the initial reading. Then, gradually pour known quantities of fuel into the tank, ensuring you cover the entire range from full to empty. After each addition, observe the gauge's response and record the readings. This test helps identify any discrepancies between the gauge and the actual fuel level.

Step 3: Calibration

Calibration is the process of adjusting the gauge to match the actual fuel quantity. If the test reveals discrepancies, you can calibrate the gauge. This typically involves using a specialized tool or software provided by the vehicle manufacturer. The tool sends a signal to the gauge, allowing you to fine-tune its sensitivity. Adjust the calibration until the gauge readings closely match the known fuel levels.

Step 4: Verify Accuracy

After calibration, repeat the fuel level checks to ensure the gauge now provides accurate readings. Compare the gauge's indications with the actual fuel levels, making sure they align closely. This verification step confirms that the calibration process was successful.

Step 5: Record and Document

Document the calibration process, including the settings used and the resulting accuracy. This record can be useful for future reference or if similar issues arise. Additionally, inform the vehicle owner or relevant parties about the calibration to ensure they are aware of the gauge's new accuracy.

By following these testing and calibration procedures, you can ensure that the fuel gauge is functioning correctly and providing reliable information about the vehicle's fuel status. This is essential for safe driving and maintaining the vehicle's performance.
