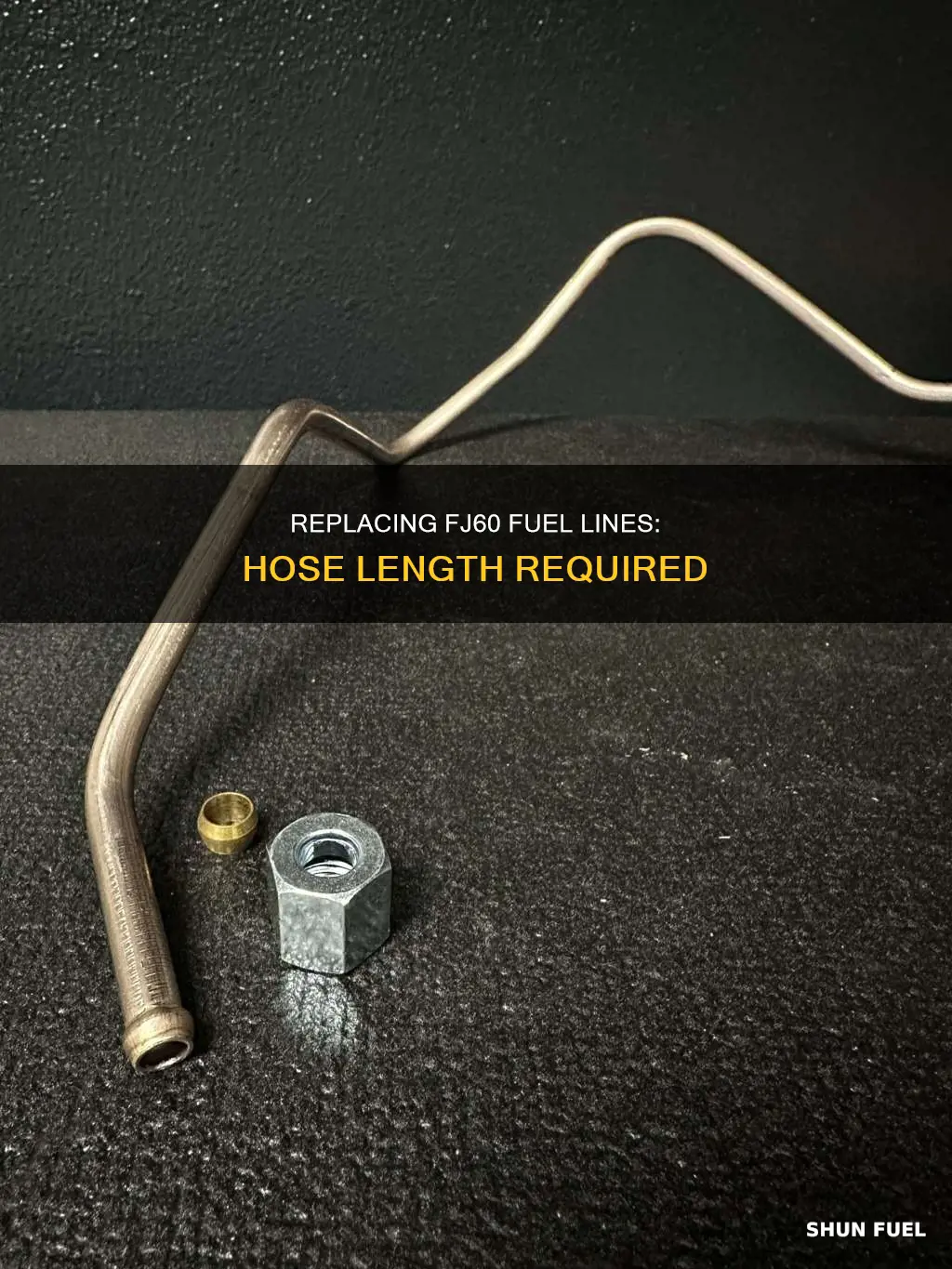

Replacing Fuel Lines: A Comprehensive Guide For Fj60 Owners

Replacing all fuel lines in a FJ60 vehicle is a significant task that requires careful planning and the right amount of hose material. Understanding the specific requirements and specifications of the FJ60's fuel system is essential to ensure a successful replacement. This introduction aims to guide readers through the process of determining the appropriate length and type of hose needed to replace the fuel lines, considering factors such as the vehicle's age, mileage, and any modifications made to the fuel system.

Fuel Line Inspection: Check for damage, corrosion, and leaks in existing lines

Fuel lines are a critical component of any vehicle's fuel system, and ensuring their integrity is essential for safe and efficient operation. When inspecting fuel lines, it's crucial to check for any signs of damage, corrosion, or leaks to prevent potential issues and costly repairs. Here's a detailed guide on how to inspect your fuel lines for these common problems:

Visual Inspection: Begin by visually examining the fuel lines for any visible damage. Look for cracks, cuts, or punctures that may have occurred due to age, wear, or previous repairs. Inspect the lines for any signs of brittleness, especially in areas where they connect to the fuel tank, pump, or injectors. Pay close attention to the fittings and clamps, as these are common points of failure. Check for any signs of corrosion or rust, particularly in areas exposed to the elements or near the vehicle's underbody. Corrosion can weaken the fuel lines over time, leading to potential leaks.

Leak Detection: A simple yet effective method to check for leaks is to use a soapy water solution. Fill a spray bottle with a mixture of dish soap and water. Spray the solution onto the fuel lines, paying extra attention to the connections and fittings. If you notice any bubbles forming, it indicates a leak. Leaks can be caused by damaged lines, faulty fittings, or worn-out gaskets. Addressing these issues promptly is crucial to prevent fuel spills and potential fire hazards.

Pressure Testing: For a more comprehensive assessment, consider using a fuel line pressure tester. This tool helps identify leaks by measuring the pressure in the fuel system. Connect the tester to the fuel pump outlet and activate the tester according to the manufacturer's instructions. A steady pressure reading indicates a healthy system, while a drop in pressure suggests a leak. This method is especially useful for detecting internal leaks within the fuel lines themselves.

Access and Reach: When inspecting, ensure you have easy access to all fuel lines. This might require removing certain panels or trim to expose the lines. Take note of any obstructions or difficult-to-reach areas that could hinder a thorough inspection. If you encounter challenges, consider using a mirror or a camera to inspect hard-to-reach spots.

Documentation and Comparison: Keep a record of your fuel line inspections, noting any issues found and their locations. This documentation will help you track the health of the lines over time. If you decide to replace the fuel lines, compare the existing lines with the new ones to ensure proper fit and function.

Hose Material: Choose appropriate material (e.g., rubber, braided steel) for durability

When it comes to replacing all the fuel lines on your FJ60, choosing the right hose material is crucial for durability and long-term performance. The material you select will determine how well the hoses withstand the rigors of the fuel system, including temperature fluctuations, fuel pressure, and chemical resistance. Here's a detailed guide on selecting the appropriate hose material:

Rubber Hose: Rubber is a classic choice for fuel lines due to its flexibility, resilience, and chemical resistance. Natural rubber hoses are known for their ability to absorb vibrations and provide a soft, flexible connection. They are also resistant to most common fuels, including gasoline and diesel. However, it's important to note that rubber hoses may become brittle over time, especially in extreme temperatures. For FJ60 owners, a good option is to use a high-temperature-rated natural rubber hose, which can handle the engine's operating conditions. Look for hoses with a durometer rating that ensures flexibility and durability.

Braided Steel Hose: For an upgrade in terms of strength and longevity, braided steel hoses are an excellent choice. These hoses are constructed with a steel wire braid wrapped around a rubber core, providing exceptional flexibility and rigidity. The steel braid offers superior resistance to fuel pressure, making it ideal for high-pressure fuel systems. Braided steel hoses are also highly resistant to corrosion and temperature extremes, ensuring they can withstand the harsh environment of an engine bay. This material is often used in high-performance applications and can significantly improve the overall reliability of your FJ60's fuel system.

Considerations for Selection: When choosing the hose material, consider the specific requirements of your FJ60. Take into account the fuel type, engine specifications, and operating conditions. For instance, if your FJ60 operates in extreme temperatures or has a high-performance engine, you might opt for a more robust material like braided steel. Additionally, ensure that the hoses you select are compatible with the fuel system's components and have the necessary fittings to ensure a secure connection.

Remember, the durability of the hose material is essential to ensure the long-term reliability of your FJ60's fuel system. Properly selecting the hose material will contribute to a well-maintained vehicle and potentially save you from costly repairs in the future.

Length Calculation: Measure and calculate the exact length of hose needed for replacement

To determine the exact length of hose required for replacing all fuel lines on an FJ60, you must follow a systematic approach. Here's a detailed guide on how to calculate the hose length:

• Visual Inspection and Documentation: Begin by thoroughly inspecting the existing fuel lines on your FJ60. Carefully measure and record the length of each line, noting any bends, kinks, or unique configurations. This initial step is crucial as it provides a baseline for your calculations and ensures you don't miss any critical sections.
• Identify Connection Points: Locate and mark the points where the fuel lines connect to the fuel tank, engine, and other components. These connection points will be essential reference points for your hose length calculation. Measure the distance between these points to understand the overall length required for each line.
• Measure and Calculate: For each fuel line, measure the distance between the identified connection points. Use a flexible measuring tape or a ruler to ensure accuracy. Add the lengths of all the individual line segments to get the total length required for that particular line. Repeat this process for each fuel line on the vehicle.
• Consider Hose Routing: When calculating the hose length, take into account the potential routing of the new hose. You might need to allow for bends, turns, and any obstacles the hose will encounter. This step ensures that the hose has sufficient length to navigate the vehicle's structure without being too tight or restrictive.
• Safety Margin: It's always a good practice to add a small safety margin to your calculated length. This extra length can accommodate any unexpected twists or turns in the hose's path and ensures a proper fit. A general rule of thumb is to add 5-10% to the total calculated length.

By following these steps, you can accurately determine the length of hose needed for replacing all fuel lines on your FJ60, ensuring a proper and safe installation.

Fitting Compatibility: Ensure new hoses fit existing fittings and connectors

When replacing all the fuel lines on a FJ60, it's crucial to prioritize fitting compatibility to ensure optimal performance and safety. The goal is to seamlessly integrate the new hoses with the existing fittings and connectors, allowing for a smooth and efficient fuel delivery system. Here's a detailed guide on how to approach this task:

Assess the Existing System: Begin by thoroughly inspecting the FJ60's fuel lines, fittings, and connectors. Take note of their lengths, diameters, and the specific types of connectors used. This information is vital as it will guide your choice of replacement hoses. Look for any signs of damage, wear, or leaks, and document these issues for reference during the replacement process. Understanding the original setup is key to ensuring a proper fit.

Measure and Compare: Obtain the measurements of the existing fuel lines, especially the length and diameter. These measurements will help you select hoses that match the original dimensions. It's important to consider the route the fuel lines take, as you'll need hoses that can navigate the same path without causing interference with other components. Compare these measurements with the specifications provided by the hose manufacturers to find the best fit.

Consider Connector Types: Different fuel lines may use various connector types, such as quick-release clips, bayonet fittings, or compression fittings. Identify the types of connectors currently in use on your FJ60. When purchasing replacement hoses, ensure they come with the appropriate connectors to match the existing setup. This compatibility will simplify the installation process and guarantee a secure connection.

Research and Source: After gathering the necessary measurements and connector types, research reputable suppliers or manufacturers that offer compatible hoses for FJ60s. Look for products that are specifically designed for this vehicle model to ensure accuracy in fitting. Obtain multiple quotes and compare prices to find the best value without compromising on quality.

Installation and Testing: Once the new hoses arrive, carefully install them, ensuring a snug fit with the existing fittings. Double-check all connections to prevent any potential leaks. After installation, start the engine and monitor for any unusual noises or leaks. Properly securing the hoses and connectors will contribute to a reliable fuel supply.

Installation Process: Follow a step-by-step guide for safe and efficient hose replacement

The process of replacing all the fuel lines on a FJ60 vehicle involves several steps to ensure a safe and efficient installation. Here's a step-by-step guide to help you through the process:

• Prepare the Vehicle: Begin by parking the FJ60 on a level surface and engaging the parking brake. This step is crucial for safety and stability during the replacement process.
• Locate the Fuel Lines: Familiarize yourself with the vehicle's fuel system. Identify the fuel lines that need replacement. Typically, these lines run from the fuel tank to the engine and may include various connections and fittings.
• Remove Old Fuel Lines: Start by disconnecting the negative battery cable to ensure no electrical issues during the process. Then, carefully cut or sever the old fuel lines at the appropriate points, being mindful of any clips or fasteners holding them in place. Take note of the order in which you remove the lines to facilitate reinstallation.
• Clean and Inspect: Once the old lines are removed, thoroughly clean the areas where they were attached. Inspect the fuel tank, lines, and fittings for any signs of damage, corrosion, or contamination. This step is essential to ensure the new hoses have a clean and secure installation.
• Measure and Cut New Hoses: Obtain the correct length of replacement hoses, typically made of fuel-resistant materials like rubber or silicone. Measure and cut the hoses to match the length of the old lines, ensuring a precise fit.
• Install New Hoses: Begin reinstalling the new hoses, starting from the fuel tank. Secure each hose with the appropriate clips or fasteners, ensuring they are tight and won't come loose during operation. Route the hoses away from moving parts to prevent damage and ensure a smooth flow of fuel.
• Connect and Test: After installing the hoses, reconnect all the necessary fittings and connections. Double-check that all fuel lines are properly attached and secure. Start the vehicle and check for any leaks. If no leaks are found, your fuel line replacement is complete.

Remember, working on a vehicle's fuel system requires caution and attention to detail. Always refer to the vehicle's manual for specific instructions and ensure you have the necessary tools and materials before beginning the replacement process.
