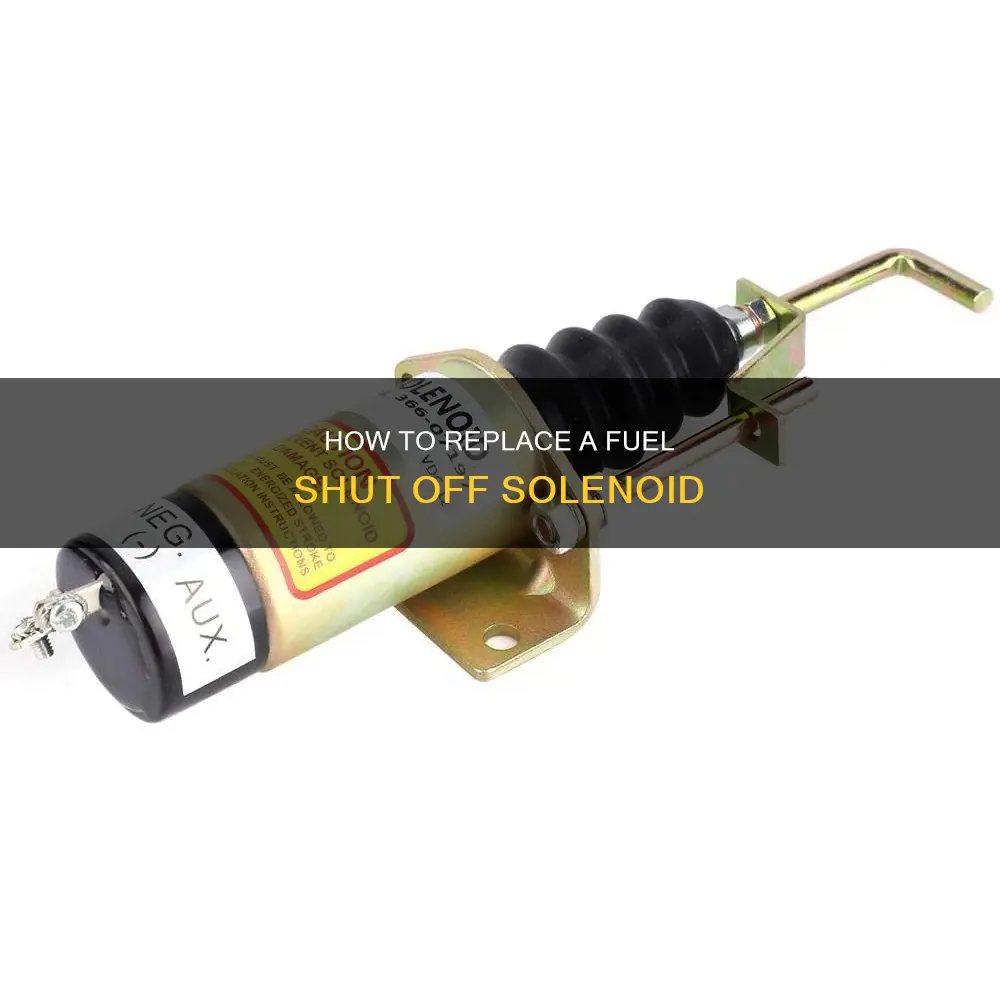

Replacing The Fuel Shut Off Solenoid: A Diy Guide

The fuel shut-off solenoid is a critical component in modern vehicle engines, responsible for controlling the flow of fuel from the tank to the engine. Over time, this solenoid can wear out or malfunction, leading to potential engine issues. Replacing the fuel shut-off solenoid is a common repair for vehicle owners, as it can help resolve starting problems, engine misfires, or fuel leaks. This guide will provide an overview of the process, tools required, and safety considerations for replacing the fuel shut-off solenoid, ensuring your vehicle runs smoothly and efficiently.

Symptoms: Engine stalls or won't start, indicating a potential solenoid issue

If your engine is stalling or failing to start, it could be a sign of a faulty fuel shut-off solenoid. This component is responsible for controlling the flow of fuel to the engine, and when it malfunctions, it can lead to a variety of starting issues. Here's a breakdown of the symptoms and how to address them:

One of the most common symptoms is the engine stalling or failing to start when you attempt to ignite it. When the fuel shut-off solenoid is not functioning correctly, it may fail to allow fuel to reach the engine, resulting in a lack of power and the engine's inability to start. This can occur during normal operation or when the engine is idling. If you notice that your engine suddenly stops running while driving or struggles to start in the morning, it could be an early indication of a solenoid problem.

Another sign to look out for is inconsistent or erratic engine behavior. The engine may start and run smoothly for a while, but then suddenly stall or refuse to start again. This unpredictability suggests that the solenoid is not consistently controlling the fuel flow, leading to potential fuel starvation or improper fuel delivery. If you experience this, it's essential to inspect the solenoid and consider replacing it if necessary.

In some cases, you might notice a delay in the engine's response when attempting to start it. The engine may crank but fail to start, or it might start with a delay, indicating a potential issue with the fuel shut-off solenoid. This delay can be caused by the solenoid not engaging quickly enough to allow the necessary fuel to enter the engine. Over time, this can lead to increased wear and tear on other engine components, making the problem more complex to resolve.

If you suspect a fuel shut-off solenoid issue, it's crucial to have the vehicle inspected by a professional mechanic. They can use diagnostic tools to identify the problem and confirm if the solenoid is the culprit. Replacing the solenoid is a specialized task that requires knowledge of engine mechanics and access to the correct replacement parts. Attempting to replace it without proper expertise might lead to further complications.

In summary, engine stalling or starting difficulties are clear indicators of a potential fuel shut-off solenoid problem. These symptoms can vary in intensity and may require professional diagnosis to confirm the exact cause. Addressing the issue promptly can prevent further engine damage and ensure reliable vehicle performance.

Diagnosis: Use a scan tool to check solenoid voltage and resistance

When diagnosing a fuel shut-off solenoid issue, using a scan tool is an essential step to ensure the problem is accurately identified. This tool allows you to access the vehicle's computer system and retrieve valuable data related to the solenoid's performance. Here's a detailed guide on how to use a scan tool for this specific diagnosis:

Step 1: Connect the Scan Tool

Start by connecting the scan tool to your vehicle's OBD-II (On-Board Diagnostics) port, which is usually located under the dashboard on the driver's side. Ensure that the tool is properly connected and powered on. Most modern vehicles have a dedicated port for this purpose, making the process straightforward.

Step 2: Access the Solenoid Data

Once the scan tool is connected, navigate through the menus to find the section related to engine or fuel system diagnostics. Look for options that specifically mention the fuel shut-off solenoid or its corresponding part number. The tool's interface may vary depending on the brand, but the general process remains similar. Select the appropriate solenoid data to access its live parameters.

Step 3: Check Voltage

One of the critical parameters to check is the voltage supplied to the solenoid. The fuel shut-off solenoid should receive a specific voltage when the engine is running or during specific operating conditions. Use the scan tool to monitor the voltage and compare it to the expected value. If the voltage is outside the normal range, it could indicate a problem with the solenoid or the wiring connected to it.

Step 4: Measure Resistance

In addition to voltage, measuring the resistance of the solenoid is crucial. The resistance should fall within a certain range when the solenoid is energized. Use the scan tool's resistance measurement function to check this value. A high resistance reading might suggest a faulty solenoid, while a reading that is too low could indicate a wiring issue or a short circuit.

Step 5: Compare with Specifications

Compare the voltage and resistance values obtained from the scan tool with the manufacturer's specifications for your specific vehicle model. These specifications can usually be found in the vehicle's service manual or online resources. If the measured values deviate significantly from the expected range, it confirms that the fuel shut-off solenoid is likely faulty and may require replacement.

By following these steps and utilizing a scan tool, you can accurately diagnose the condition of the fuel shut-off solenoid. This method provides valuable insights into the solenoid's electrical behavior, helping you make informed decisions about repairs or replacements. Remember to consult the vehicle's manual or seek professional advice if you encounter any challenges during the diagnostic process.

Replacement: Carefully remove the old solenoid and install a new one

To replace the fuel shut-off solenoid, you'll need to carefully follow these steps to ensure a successful repair. Begin by locating the solenoid, which is typically found near the fuel pump or under the hood, depending on your vehicle's make and model. It is often a small, cylindrical component with electrical connections. Once located, use a socket or wrench to loosen and remove the mounting bolts that secure the solenoid in place. Be cautious not to damage the surrounding components during this process. After removing the bolts, gently pull the solenoid out of its housing.

With the old solenoid removed, inspect it for any signs of damage or wear. If it appears faulty, take note of the specific make and model to ensure you purchase the correct replacement. Now, prepare the new solenoid by aligning it with the mounting holes and securing it in place using the same bolts. Ensure that all connections are tight and secure.

Connect the new solenoid to the vehicle's electrical system, following the manufacturer's wiring diagram. Double-check that all connections are clean and free of corrosion. Once the wiring is complete, reattach any hoses or lines that were disconnected during the removal process. Make sure they are properly secured and functioning.

Finally, test the new solenoid by starting the vehicle and checking for any error codes or unusual behavior. Ensure that the fuel shut-off function operates as expected. If everything is working correctly, you've successfully replaced the solenoid. Remember to dispose of the old solenoid responsibly and consider recycling any reusable parts.

Testing: Verify functionality with a test light or multimeter

When it comes to diagnosing and replacing a fuel shut-off solenoid, testing its functionality is a crucial step. This solenoid is responsible for controlling the flow of fuel to the engine, and any malfunction can lead to starting issues or even prevent the engine from running at all. Here's a detailed guide on how to verify the solenoid's functionality using a test light or multimeter:

Locate the Solenoid: Start by locating the fuel shut-off solenoid. It is typically mounted near the engine and is part of the fuel injection system. Refer to your vehicle's manual if you're having trouble finding it.

Prepare the Tools: You'll need a test light or a multimeter for this test. A test light is a simple tool that indicates continuity (a path for current to flow), while a multimeter can measure voltage and continuity. Ensure both tools are set to the appropriate settings for the type of solenoid you're testing.

Test for Continuity: With the engine off, use the test light or multimeter to check for continuity at the solenoid's electrical connections. Set the tool to the continuity setting and touch the probe tips to the solenoid's wires. If the tool beeps or lights up, it indicates continuity, meaning the solenoid is receiving power. If there's no response, the solenoid may be faulty, or there could be a problem with the wiring.

Check Voltage: If the solenoid is functioning, you should also check for the correct voltage at its terminals. With the engine in the 'on' position (but not running), measure the voltage across the solenoid's wires. The voltage should match the specifications for your vehicle's electrical system. If the voltage is incorrect, it could indicate a problem with the solenoid or the power supply.

Simulate Engine Conditions: To get a more accurate reading, you can simulate engine conditions. Turn the ignition to the 'on' position and use the multimeter to check the solenoid's resistance. The resistance should change as the solenoid's magnetic field is activated, allowing or blocking fuel flow. If the resistance doesn't change as expected, the solenoid may be faulty.

Troubleshooting: If the solenoid fails any of these tests, it's likely the cause of your vehicle's starting issues. You may need to replace the solenoid or investigate further, possibly checking the fuel pump and injectors for other potential problems.

Remember, this test requires a basic understanding of vehicle mechanics and electrical systems. Always ensure you have the necessary knowledge or seek assistance from a professional if you're unsure about any step.

Maintenance: Regularly inspect and clean the solenoid for optimal performance

Maintaining the fuel shut-off solenoid is crucial for ensuring the reliability and longevity of your vehicle's fuel system. This component plays a vital role in controlling the flow of fuel, and regular maintenance can help prevent potential issues and costly repairs. Here's a guide on how to inspect and clean the solenoid for optimal performance:

Inspection Process: Start by locating the fuel shut-off solenoid, which is typically found near the engine or under the vehicle's hood. It is often connected to the fuel rail or the fuel pump. Visually inspect the solenoid for any signs of damage, corrosion, or debris buildup. Look for cracks, leaks, or any discolored areas, as these could indicate internal issues. Check the wiring connections to ensure they are secure and free from corrosion. If the solenoid has a cover or housing, remove it carefully to access the internal components. Inspect the solenoid's coil, armature, and any other visible parts for any visible defects.

Cleaning and Maintenance: Cleaning the solenoid is essential to remove contaminants that can affect its performance. Use a soft-bristled brush or a small, clean cloth to gently remove any dirt, dust, or debris from the external surface. Be cautious not to scratch the solenoid's housing. If you notice any corrosion, carefully clean it using a mild acid-based cleaner or a specialized fuel system cleaner. Follow the manufacturer's instructions for application and rinsing. For internal cleaning, you can use compressed air to blow out any loose particles. However, be cautious not to introduce any foreign objects into the solenoid. For a more thorough clean, consider using a fuel system cleaner designed for solenoids, which can help dissolve any built-up contaminants.

Regularly cleaning and maintaining the solenoid will help ensure it operates smoothly and efficiently. This simple maintenance task can prevent fuel-related issues and improve overall engine performance. Remember, if you're unsure about any part of the process, it's best to consult a professional mechanic who can provide guidance tailored to your vehicle's specific needs.
