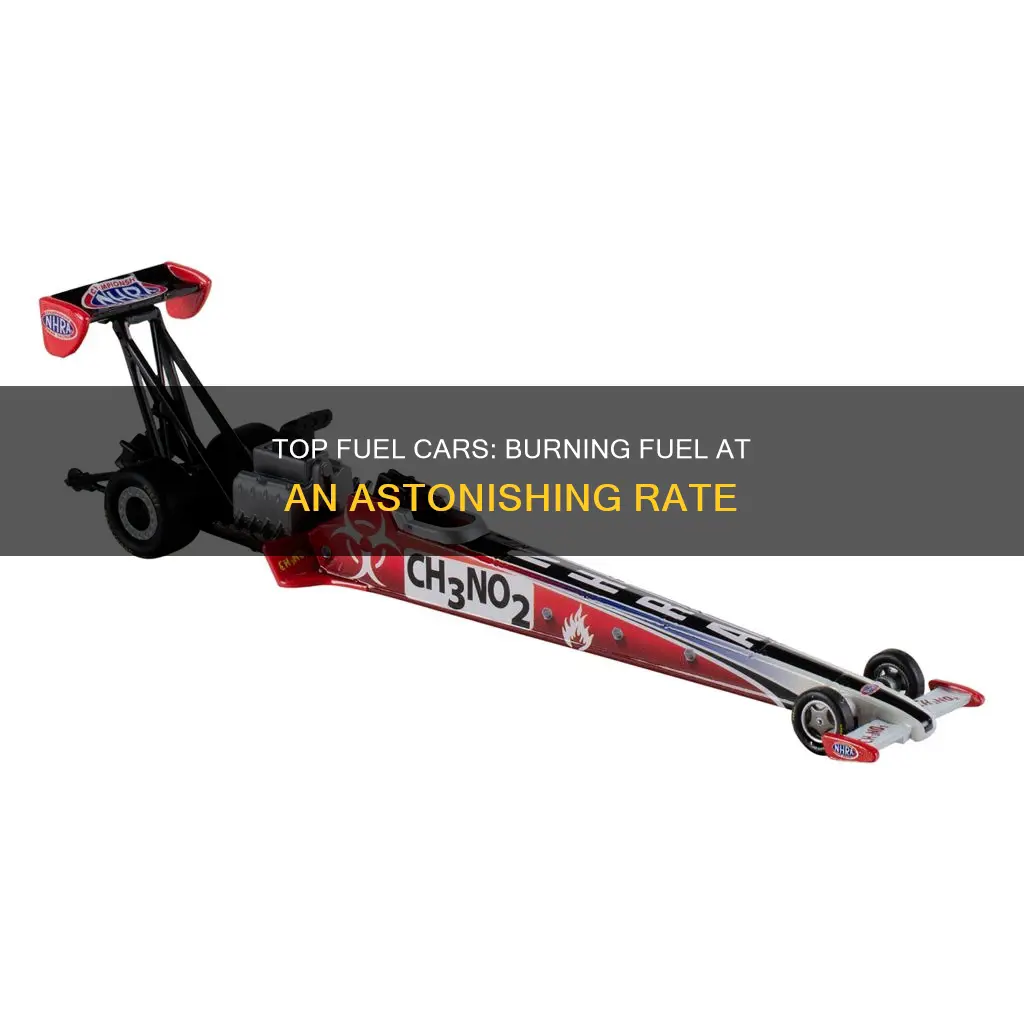

Top Fuel drag racing is a category of racing that features the quickest accelerating racing cars in the world. These dragsters can go from 0 to 100 mph in less than 0.8 seconds, reaching speeds of over 300 mph. To achieve these incredible speeds, Top Fuel dragsters consume a staggering amount of fuel. In this paragraph, we will explore the fuel consumption of these powerful machines and uncover just how much fuel they burn through during a run.
| Characteristics | Values |
|---|---|
| Engine horsepower | 8,000 HP |
| Acceleration | 0 to 100 mph in 0.8 seconds |
| Fuel consumption | 11.2 gallons of nitromethane per second |
| Fuel composition | 90% nitromethane, 10% methanol |
| Fuel delivery | 65 gallons of fuel per minute |
| Engine displacement | 500 cubic inches |
| Engine revolutions | 540 revolutions per run |
| Engine speed | 3,800 revolutions per minute |
| Race distance | 1,000 feet |
| Time | 3.641 seconds |
| Top speed | 338.94 miles per hour |
Explore related products
What You'll Learn
- Top Fuel dragsters burn 16-23 gallons of fuel per run
- The engine consumes 1.5 gallons of nitromethane per second
- A fuel pump for a Top Fuel car delivers 65 gallons of fuel per minute
- Top Fuel engines turn around 540 revolutions from light to light
- Top Fuel dragsters make more horsepower than the first 4 rows of cars at NASCAR's Daytona 500
Top Fuel dragsters burn 16-23 gallons of fuel per run
Top Fuel dragsters are among the quickest accelerating racing cars in the world. They can go from 0 to 100 mph in less than 0.8 seconds and exceed 297 mph in just 660 feet. To achieve such speeds, these cars require a lot of fuel—a staggering 16 to 23 gallons of it for a typical run. This includes warmup, burnout, staging, and the quarter-mile run.
The fuel used in Top Fuel dragsters is not your average gasoline. It is a mixture of nitromethane and methanol, with nitromethane making up a maximum of 90% of the blend since 2015, according to NHRA regulations. Nitromethane has a lower energy density than gasoline, but it can produce up to 2.4 times as much power when burned in an engine. This is because it has a higher latent heat of vaporization, allowing it to absorb a lot of engine heat during vaporization and cool the engine in the process.
The supercharged engines of Top Fuel dragsters consume an astonishing 1.5 gallons of this fuel per second when at full throttle. To put this into perspective, that is the same amount of fuel consumed by a fully loaded Boeing 747 jetliner, which produces 25% less energy. The powerful engines of these dragsters can produce upwards of 11,000 horsepower, which is more than the first four rows of cars at NASCAR's Daytona 500.
The cost of all this fuel is not cheap. Assuming no equipment malfunctions and nothing blows up, each run costs an estimated $1,000 per second. This means that a four-second run can cost $4,000, and that's not even taking into account the cost of the fuel itself.
Two-Stroke Fuel: Friend or Foe for Cars?
You may want to see also
Explore related products
The engine consumes 1.5 gallons of nitromethane per second
Top Fuel dragsters are the quickest-accelerating racing cars in the world. They can go from 0 to 100 mph in less than 0.8 seconds, which is almost 11 seconds faster than a Porsche 911 Turbo. They can also exceed 297 mph in just 660 feet. These cars are powered by 500-cubic-inch Hemi engines that produce more than 8,000 horsepower, which is more than the first four rows of cars at NASCAR's Daytona 500.
The power of a Top Fuel dragster is due in large part to its fuel. Top Fuel dragsters run on nitromethane, which has a much lower energy density than gasoline or methanol. However, because of its chemical composition, an engine burning nitromethane can produce up to 2.4 times as much power as an engine burning gasoline. The fuel also helps to cool the engine, as Top Fuel dragsters do not have cooling radiators.
Under full throttle, a Top Fuel dragster engine consumes an astonishing 1.5 gallons of nitromethane per second. This is the same rate at which a fully loaded Boeing 747 consumes jet fuel, but the dragster engine produces 25% more energy. The fuel is compressed into a near-solid form before ignition, and the cylinders run on the verge of hydraulic lockup at full throttle.
The total fuel consumption for a typical Top Fuel dragster run, including warmup, burnout, staging, and the quarter-mile run, is between 12 and 22.75 US gallons. This amounts to between 16 and 20 gallons of fuel per mile. The cost of each run, assuming no equipment damage, is estimated at $1,000 per second.
The Right Fuel for Your Car: 4-Cycle or Not?
You may want to see also
Explore related products
A fuel pump for a Top Fuel car delivers 65 gallons of fuel per minute
Top Fuel dragsters are the quickest-accelerating racing cars in the world, and the fastest sanctioned category of drag racing. They can go from 0 to 100 mph in 0.8 seconds, which is less than a third of the time required by a production Porsche 911 Turbo to reach 60 mph. They can exceed 297 mph in just 660 feet.
Top Fuel dragsters are powered by nitromethane, which has a much lower energy density than gasoline or methanol. However, an engine burning nitromethane can produce up to 2.4 times as much power as an engine burning gasoline. This is because nitromethane is less volatile than gasoline, meaning more of it can be burned in the combustion chamber, leading to much more power from every explosion inside the engine.
The fuel also serves to cool the engine, as Top Fuel dragsters don't have any cooling radiators. Nitromethane has a high latent heat of vaporization, meaning it can absorb a lot of engine heat as it vaporizes.
New Cars and Premium Fuel: Is It Necessary?
You may want to see also
Explore related products
Top Fuel engines turn around 540 revolutions from light to light
Top Fuel dragsters are incredibly powerful machines, capable of reaching upwards of 11,000 horsepower. This immense power output is achieved through the optimization of the three pillars of internal combustion: fuel, air, and spark. The fuel used in Top Fuel dragsters is a mixture of nitromethane and methanol, with nitromethane providing significantly more power than gasoline due to its ability to burn at a much slower rate and higher temperature.
The engines in these dragsters are designed to provide a wide range of power outputs, from very lean to very rich mixtures. By adjusting the fuel supplied to the engine, the mechanical crew can select power outputs that maximize tire traction, as too much power will cause the tires to smoke and result in a loss. The fuel mixture is ignited by spark plugs, which are fired by magnetos, and the normal ignition timing is between 58 and 65 degrees BTDC.
The incredible power of Top Fuel engines enables dragsters to accelerate from 0 to 100 mph in less than 0.8 seconds, generating a force nearly five times that of gravity at the starting line. To achieve such acceleration, the engine must rotate at an incredibly high speed, and Top Fuel engines turn around 540 revolutions from light to light. This means that the engine completes approximately 540 revolutions during the short duration of the race, which for a 1,000-foot run can be as quick as 3.641 seconds.
In addition to their remarkable acceleration, Top Fuel dragsters are also known for their high top speeds, exceeding 300 mph before reaching half-track. The combination of extreme acceleration and high top speed results in an average acceleration of about 4.0 g0 over the duration of the race, with a peak of over 5.6 g0. To withstand these intense forces, drivers are equipped with full-body fire suits, helmets, and other safety gear, as mandated by the National Hot Rod Association, which sanctions much of organized drag racing.
The high-performance nature of Top Fuel engines comes at a cost, and they have a limited lifespan. Including startup, burnout, staging, and the race, the engine must survive only 500 revolutions before being rebuilt. This calculation is based on an average racing engine speed of approximately 3,800 revolutions per minute over a 3.8-second duration. The short lifespan of these engines, combined with the high fuel consumption rates of up to 11.2 gallons of nitromethane per second, contributes to the significant costs associated with each run.
Fuel Cells: Car Companies' Future Plans and Investments
You may want to see also
Explore related products
Top Fuel dragsters make more horsepower than the first 4 rows of cars at NASCAR's Daytona 500
Top Fuel dragsters are the quickest-accelerating racing cars in the world, with the fastest competitors reaching speeds of 338.94 miles per hour (545.5 km/h) and finishing 1,000-foot runs in 3.641 seconds. They accelerate from 0 to 100 mph in less than 0.8 seconds, which is almost 11 seconds quicker than a Porsche 911 Turbo.
These dragsters are powered by nitromethane, which is pre-mixed with nitrous oxide. This alternative ""top fuel"" allows for a lot more power from every explosion inside the engine. To attain maximum performance, the mechanical crew varies the level of fuel supplied to the engine before each race.
Top Fuel dragsters burn a staggering amount of fuel, with one source stating that they consume 11.2 gallons of nitro methane per second under full throttle. Another source states that they consume 1.5 gallons of nitro methane per second, which is still an incredibly high amount. To put this into perspective, a fully loaded Boeing 747 consumes jet fuel at the same rate, but with 25% less energy being produced.
The incredible speed and power of Top Fuel dragsters are further contextualized when compared to NASCAR's Daytona 500. A Top Fuel dragster outfitted with a 500 cubic-inch replica Dodge Hemi engine produces 8,000 horsepower, which is more than the first four rows of cars at the Daytona 500. This comparison highlights the sheer performance and horsepower of these dragsters.
Fuel Injected Cars: Flooding Issues and Solutions
You may want to see also
Frequently asked questions
A top fuel car can burn anywhere from 12 to 23 gallons of fuel during a race. This includes warm-up, burnout, staging, and the race itself.
Under full throttle, a top fuel car engine consumes 1.5 gallons of nitromethane per second.
A top fuel car can burn between 16 and 20 gallons of fuel per mile.
