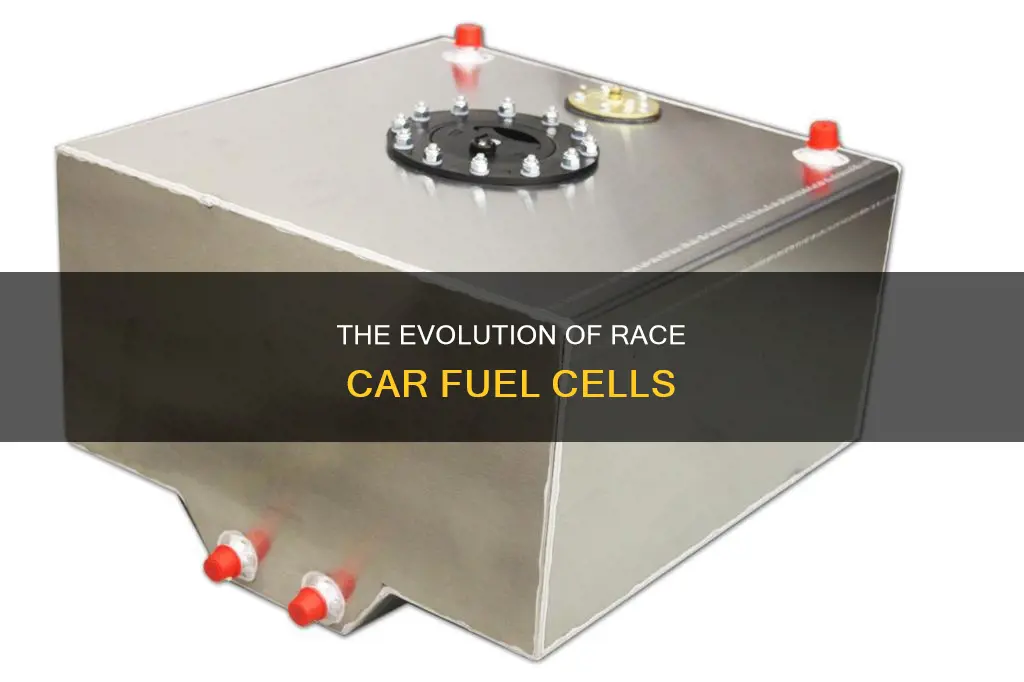

A fuel cell in a race car is essentially a gas tank, usually boxy and mounted inside the vehicle. It is a critical piece of safety equipment, as its material strength and design help prevent fuel spillage in the event of a crash. Racing fuel cells are designed to optimise fuel delivery in competitive racing and extreme off-road conditions. They are available in various shapes and sizes and are made from materials such as high-strength plastic or steel with internal bladders. The fuel bladder and foam within the fuel cell keep the fuel from sloshing around and absorb impact energy in a crash. Maintenance of racing fuel cells is crucial, with regular inspections for cracks, tears, and wear marks being necessary to ensure safety and performance.
Race Car Fuel Cell Characteristics
| Characteristics | Values |
|---|---|
| Definition | A fuel cell is a gas tank for liquid fuels. |
| Mounting | Usually mounted inside a vehicle. For trucks and off-road vehicles, they are mounted in the bed. In race cars, they are usually mounted in the truck. |
| Shape | Usually boxy. |
| Reinforcement | Usually reinforced and stronger. |
| Types | Gasoline/diesel fuel cell and hydrogen fuel cell. |
| Gasoline Cell | A reinforced tank with baffles and often a bladder. |
| Safety | Provides safety advantages over factory original gas tanks. Protects drivers in crashes by preventing fuel spillage. |
| Design | Available in several shapes and sizes. |
| Materials | High-strength plastic, steel with internal bladders, aluminium, natural, and elastomer-coated aramid materials. |
| Maintenance | Requires regular inspection and maintenance, especially after crashes. |
| Fuel Types | Alcohol, diesel, E85, and gasoline. |
| Capacity | Capacities vary, including 3, 5, 15, 20, and 25 gallons. |
Explore related products
What You'll Learn
Safety
Protection in Crashes and Accidents
One of the primary safety features of fuel cells is their ability to prevent fuel spillage in the event of a crash. The material strength and inner design of the fuel cell help achieve this. Additionally, the bladder, made from high tensile strength elastomeric components, is designed to be strong and flexible. This flexibility allows it to deform in the event of an impact, further reducing the risk of fuel leakage.
Fuel Retention
Fuel cells are designed to retain fuel even in the event of a direct impact, roll-over, or deformation of the vehicle. This is due to the layering of safety components, including the bladder and foam baffling. The foam baffling acts like a sponge, helping to prevent fuel from exploding or sloshing around inside the cell, which improves vehicle handling and provides better fuel efficiency.
Strong and Durable Construction
Race car fuel cells are constructed using technologically advanced materials and processes. For example, the current FIA standards require the use of elastomer-coated aramid materials, which are much stronger than the traditional rubber and fabric reinforcement used in older fuel cells. While these new materials have a limited lifespan, they offer superior strength and protection.
Regular Maintenance and Inspections
To ensure the ongoing safety of race car fuel cells, regular maintenance and inspections are necessary. This includes looking for signs of delamination, cracks, or other damage. Cracks can appear along folded edges and the base of moulded necks or spouts. It is recommended to completely drain the cell before off-season storage and after each event if using alcohol-bearing fuel. Additionally, following the manufacturer's instructions and having the necessary certifications are crucial aspects of maintaining a safe fuel cell.
Fuel cells come with safety ratings, such as the FIA ratings of FT3, FT3.5, and FT5, which indicate different levels of bladder material strength. Additionally, some fuel cells have certifications like the AS9100 certification, ensuring they are built to rigorous standards. It is important to check the rules and requirements of the racing class to determine if specific certifications, such as FIA certification, are mandatory.
