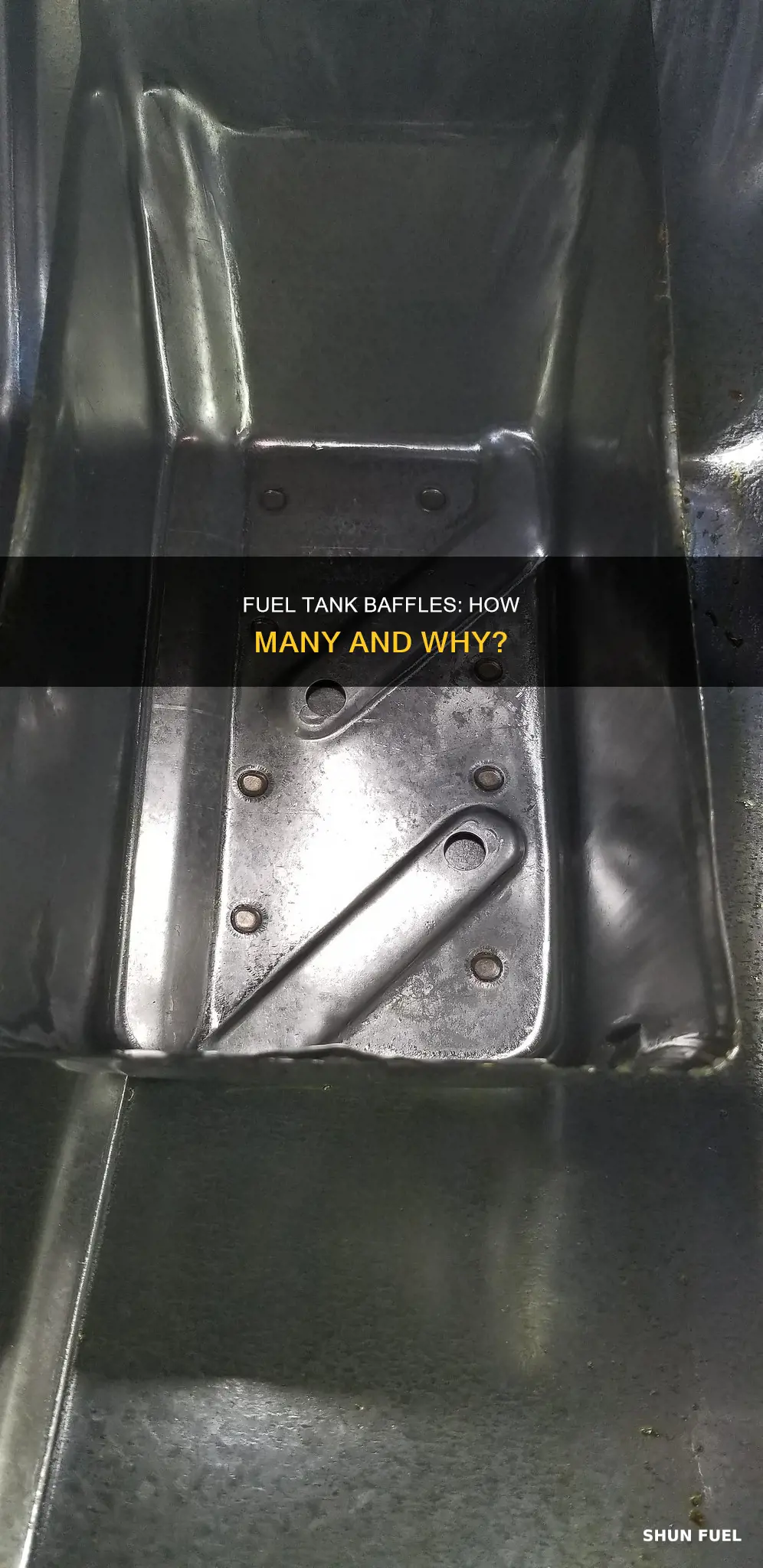

Fuel tanks with baffles are designed to control fuel slosh and keep the fuel in a certain area of the tank, usually the lowest part. Baffles are vertical and prevent the horizontal travel of fluids. They are commonly used in racing vehicles, aircraft, and boats. The number of baffles in a fuel tank depends on the shape and size of the tank and the driving style. While some tanks may have a single baffle, others may have multiple baffles.
Characteristics and Values of Baffles in a Fuel Tank
| Characteristics | Values |
|---|---|
| Purpose | To prevent fuel from sloshing around during manoeuvring, keeping it in a certain area of the tank, and preventing oscillations in-flight |
| Installation | Must be designed based on the type of vehicle and driving style (e.g. drag racing or road racing) to ensure proper function |
| Placement | Typically vertical to prevent horizontal travel of fluids, but can also be horizontal; should be placed to keep fuel in the lowest part of the tank and to ensure the fuel pump is constantly submerged |
| Composition | Can be made of metal or other materials like open-cell foam, which does not dissolve in aviation fuel |
| Number | The number of baffles varies depending on the fuel tank; some tanks have a single baffle at the halfway point, while others have multiple baffles |
Explore related products
What You'll Learn
- Baffles prevent fuel sloshing during acceleration, cornering, or manoeuvring
- They keep the fuel pickup point submerged, ensuring consistent fuel pressure
- Baffles are vertical to prevent horizontal fluid travel
- Some combat aircraft use sponge-like foam instead of baffles
- Baffled fuel tanks can be purchased from hot rod shops
Baffles prevent fuel sloshing during acceleration, cornering, or manoeuvring
Baffles inside fuel tanks are essential in preventing fuel sloshing during acceleration, cornering, or manoeuvring. Fuel sloshing can cause the fuel to rush backward, shifting the centre of gravity and causing the aircraft or vehicle to fly or drive erratically. This can lead to unsafe conditions, such as pilot-induced oscillations in aircraft or loss of power in vehicles with EFI systems.
By installing baffles in the fuel tank, the movement of the fuel is restricted, reducing the sloshing effect. The placement of the baffles is crucial to their effectiveness. For example, in a car, the baffles need to be located in a way that keeps the fuel near the pickup point for the fuel pump during acceleration, cornering, and manoeuvring. This ensures that the fuel pump constantly supplies fuel to the engine, maintaining consistent fuel pressure and preventing issues such as fuel starvation or loss of power.
The number and arrangement of baffles can vary depending on the shape and size of the fuel tank and the specific requirements of the vehicle or aircraft. In some cases, a single rear baffle may be used, while in other applications, multiple baffles may be necessary to effectively control fuel sloshing.
Additionally, the use of baffles can be tailored to specific driving styles or racing applications. For instance, in drag racing, the first 60 feet of the race requires careful fuel control, so the baffles are designed to bias the fuel towards the pump, reducing capacity to increase fuel flow. On the other hand, road racing fuel tanks need to keep the fuel near the pump during both acceleration and cornering, requiring a different baffle configuration.
Overall, baffles play a critical role in preventing fuel sloshing, ensuring the safe and efficient operation of vehicles and aircraft by maintaining proper fuel supply to the engine during various manoeuvres.
Briggs and Stratton Fuel Tank: Venting Solutions
You may want to see also
Explore related products
They keep the fuel pickup point submerged, ensuring consistent fuel pressure
Fuel tank baffles are essential in keeping the fuel pickup point submerged, thus maintaining consistent fuel pressure. They prevent the fuel from sloshing around during manoeuvres, which is crucial for stable flight. Without baffles, sudden movements could cause the fuel to rush backwards, altering the centre of gravity and leading to unintended flight dynamics.
The function of baffles is to obstruct the free flow of fluid, and in the context of fuel tanks, they help manage fuel oscillations. While some sloshing may still occur, baffles significantly reduce it, ensuring the fuel pickup point remains submerged. This is particularly important in aircraft, where fuel oscillations can affect the aircraft's stability and flight path.
There are various methods to secure baffles inside fuel tanks. Some common approaches include using wiffle balls, neodymium magnets, or flange bolts. It is important to ensure that any materials submerged in the fuel are compatible and do not dissolve, to prevent safety issues.
In some cases, open-cell foam is used instead of baffles to dampen fuel oscillations. This foam takes up a small percentage of the tank volume but effectively stabilises the fuel. However, it is crucial to use foam that is not dissolved by aviation fuel to maintain the system's integrity.
By utilising baffles or foam, fuel tanks can maintain consistent fuel pressure by keeping the fuel pickup point submerged. This, in turn, helps to ensure a steady supply of fuel during various manoeuvres and contributes to the overall stability and safe operation of the aircraft or vehicle. The specific number of baffles required can vary depending on the tank design and intended function, but the primary goal is to effectively manage fuel movement.
Cleaning Polyurethane Fuel Tanks: A Step-by-Step Guide
You may want to see also
Explore related products
Baffles are vertical to prevent horizontal fluid travel
The orientation of baffles in a fuel tank is an important consideration, as it directly impacts the flow path and effectiveness of heat transfer. Vertical baffles are specifically designed to prevent the horizontal travel of fluids. This is particularly beneficial in fuel tanks to minimise the undesirable effects of fuel sloshing during manoeuvres. By keeping the fuel relatively stable, vertical baffles help maintain the centre of gravity and reduce unwanted dynamics that could lead to pilot-induced oscillations.
In the context of shell and tube heat exchangers, vertical baffles excel when leakage flows are present, especially when the shell-side fluid is gaseous. The vertical orientation allows condensate to travel downward toward the outlet, preventing it from being trapped by the baffle. Additionally, vertical baffles contribute to a lower pressure drop compared to horizontal baffles in similar conditions. This makes vertical baffles ideal for applications where minimising pressure drop is a key design consideration.
On the other hand, horizontal baffles offer their own advantages. When there are no leakage flows, horizontal baffles generally provide superior heat transfer rates. This is because the longer flow path between the inlet and outlet valves increases the amount of shell-side fluid travelling alongside the baffle, enhancing heat transfer between the tubes and baffles. Horizontal baffles are also well-suited for preventing deposit buildup and stratification in single-phase fluid operations, promoting effective mixing of fluids at different temperatures.
Fabricators have the flexibility to choose the direction, size, and spacing of baffles to suit the specific requirements of their application. While vertical baffles are effective in preventing horizontal fluid travel, horizontal baffles should not be overlooked, as they offer distinct benefits in certain scenarios, such as improved heat transfer rates in leakage-free systems and better fluid mixing. Ultimately, the decision between vertical and horizontal baffles depends on factors such as the nature of the fluid, the presence of leakage flows, and the desired flow path and heat transfer efficiency.
Ford Pickup's Dual Fuel Tank System: How It Works
You may want to see also
Explore related products
Some combat aircraft use sponge-like foam instead of baffles
The role of baffles in a fuel tank is to keep the fuel from sloshing around during manoeuvring. Baffles prevent fuel oscillations, which, if left unchecked, could cause the aircraft to fly a wavy flight path. This would require the pilot to make constant adjustments to maintain a steady flight path, which could lead to pilot-induced oscillations.
Some combat aircraft, however, do not use baffles. Instead, they use a coarse, sponge-like foam that occupies approximately 2% of the tank volume. This foam effectively dampens fuel oscillations. It is essential that the foam is an open-cell type that is not dissolved by aviation fuel. The MRCA Tornado, for example, uses this type of foam, sourced from a Belgian company.
Using foam instead of baffles has safety advantages. Fuel is highly volatile, and a traditional fuel tank that is only partially full will contain a layer of gasoline vapour mixed with air. This vapour is highly flammable and can lead to explosions. Foam in a fuel cell prevents a concentration of this flammable mixture, significantly reducing the probability of an explosion in the event of a fire.
While manipulating the foam can provide more space for fuel, it creates a significant safety hazard by increasing the likelihood of an explosion in an accident. Therefore, it is crucial to carefully consider the benefits and risks of using foam in a fuel tank and to prioritise safety.
Kenworth W900 Fuel Tank: How Does It Work?
You may want to see also
Explore related products
Baffled fuel tanks can be purchased from hot rod shops
Hot Rod Hardware's collection includes alloy-coated steel or stainless steel tanks with a capacity of 16 gallons, ideal for universal pickup trucks. These tanks are fully baffled to ensure optimal fuel delivery and include features such as a top-mounted bolt-in pickup tube and vent. Another option is their universal stainless steel tanks with fuel injection trays, which are also fully baffled and come with a bolt-on neck, billet cap with an O-ring seal, and a rollover vent valve.
Additionally, Hot Rod Hardware carries products from renowned manufacturers like Tanks Inc., known for their high-quality fuel tanks and accessories. They offer a wide selection to ensure you can find the perfect tank to match your vehicle's specifications and performance requirements. Their products provide durability, efficiency, and peace of mind on every drive.
When considering baffled fuel tanks for your hot rod, it's important to note that some hot rodders adapt existing units to fit their vehicles rather than fabricating a new tank. For example, a reproduction 65 Mustang fuel tank can fit many vehicles with minimal modifications. However, if you have specific requirements or limited space, you may need to build a custom tank. Some hot rodders have shared their experiences building fuel tanks with baffles, offering insights into baffle design and placement to ensure effective fuel delivery.
Airplane Fuel Efficiency: Tank Capacity and Consumption
You may want to see also
Frequently asked questions
Baffles in a fuel tank help to control fuel slosh and keep the fuel in a certain area in the tank, usually the lowest part of the tank. This helps to keep the pickup point for the fuel pump submerged in fuel so that the fuel pump is constantly pumping fuel to the engine.
The number of baffles in a fuel tank can vary. Some fuel tanks have a single baffle, while others have multiple baffles. The number of baffles depends on the shape and size of the fuel tank, as well as the intended use of the vehicle. For example, the placement and design of baffles in a drag racing car may differ from those in a road racing car.
Yes, some combat aircraft use a coarse, sponge-like foam that takes up about 2% of the tank volume to dampen fuel oscillations effectively.
