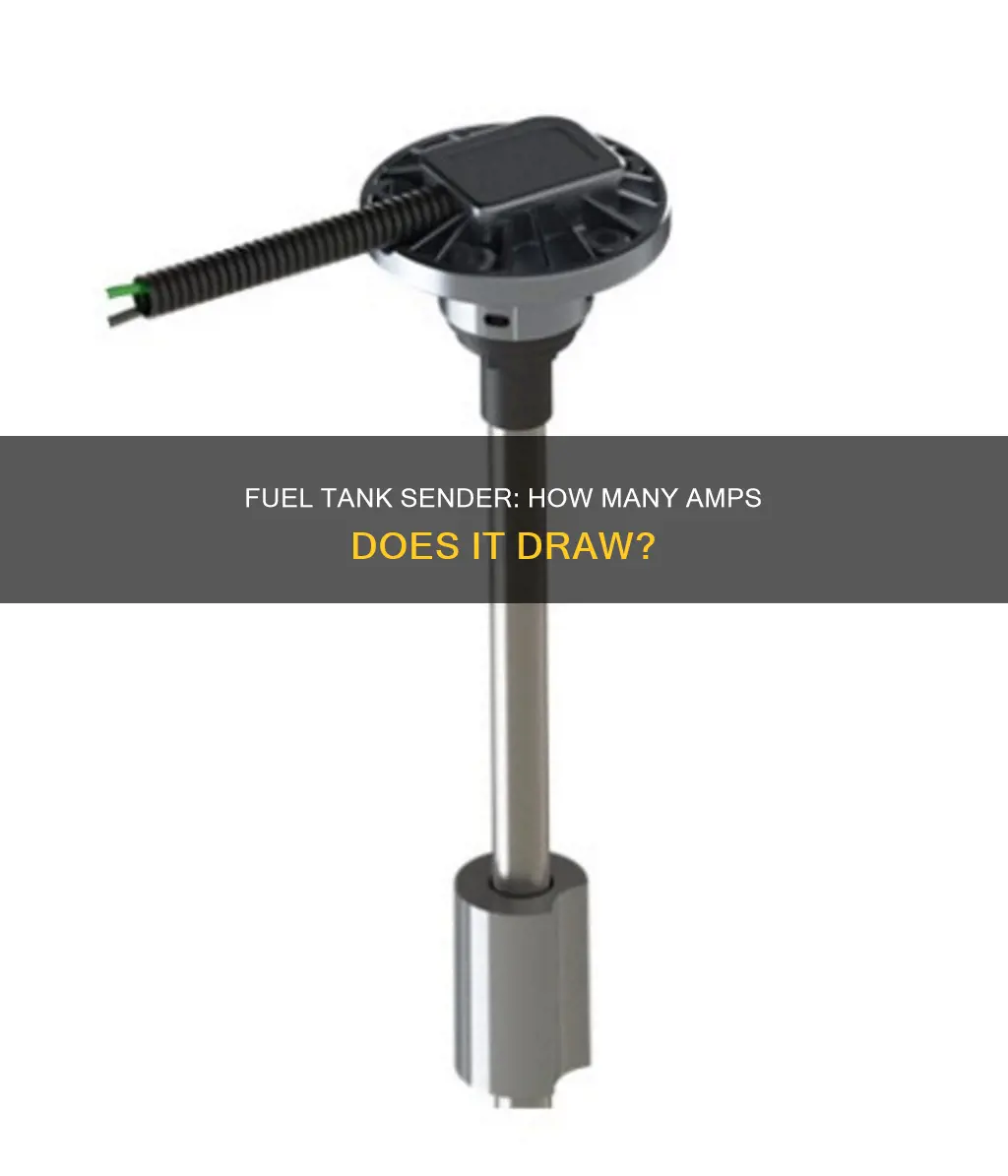

Fuel level senders are important pieces of equipment that allow users to monitor their fuel levels and know when they need to refuel. They are often equipped with additional features, such as triggering an alarm when the tank is nearing empty. When purchasing a fuel level sender, it is crucial to consider the application, mounting style, signal output, and unique tank shape to ensure accurate fuel readings. While fuel senders rely on currents rather than voltages, there is limited information specifically about the number of amps drawn by fuel tank senders. However, voltage and resistance values play a significant role in the functioning of fuel senders, and improper grounding can lead to inaccurate readings.
Explore related products
What You'll Learn
- Fuel senders work on currents, not voltages
- Resistance of the fuel sender should match that of the gauge
- Fuel senders have a rheostat that provides resistance to the ground
- Fuel level senders are important to monitor fuel levels and know when to refuel
- The mounting style of the sender unit is an important factor when purchasing a new one
Fuel senders work on currents, not voltages
Fuel senders are an integral part of any vehicle, as they measure the fuel level in the tank and communicate it to the fuel gauge on the dashboard. This helps drivers stay aware of their fuel levels and plan their fuel refills accordingly. While this system is crucial, it can sometimes malfunction, leading to incorrect fuel level readings.
One important aspect to understand about fuel senders is that they work on currents, not voltages. This means that the fuel sender's functionality depends on the electric current flowing through it rather than the voltage. The sender has a rheostat that provides resistance to the ground. As the fuel arm moves from empty to full, a contact moves across the rheostat, varying the resistance seen by the fuel gauge. For example, a 69 Camaro has a 0-90 ohm fuel sender. When the sender is empty, the rheostat shows zero ohms, and when full, it shows 90 ohms of resistance.
The resistance of the fuel sender should match that of the gauge for accurate readings. For instance, the stock gauge in a 55 Chevy has zero ohms when empty and 30 ohms when full. If the resistance values don't match, the gauge may read incorrectly. Additionally, ensuring proper grounding of the sending unit is essential for accurate readings.
To troubleshoot a faulty fuel sender, you can perform a bench test with a multimeter. Set the multimeter to the Ohm (Ω) setting and place the probes on the appropriate posts. If the gauge reads full, ensure a good ground connection at the sender connection. If the gauge doesn't read full, the gauge or sender may be faulty. It's important to perform these tests before concluding that the sender or gauge needs replacement, as the issue could lie elsewhere in the circuit or wiring.
While fuel senders work on currents, it's worth noting that voltage still plays a role in the overall system. The voltage at the sender lead should ideally match the voltage measured at the battery. A slight variation is acceptable, but a significant discrepancy could indicate an issue with the regulator or wiring. Monitoring the regulator output voltage can help identify potential problems. Additionally, voltage dividers are sometimes used to convert fuel level sender readings, ensuring the voltage at the fuel sender matches what the gauge expects.
In-Tank Fuel Filter: 1998 Toyota Camry Edition
You may want to see also
Explore related products
Resistance of the fuel sender should match that of the gauge
The resistance of the fuel sender should match that of the gauge for the system to work accurately. Fuel senders have a rheostat that provides a variable resistance to ground. As the fuel arm moves from the empty to the full position, a contact is moved across the board on the rheostat, which varies the resistance seen by the fuel gauge.
For example, a 69 Camaro has a 0-90-ohm fuel sender. When the sender is empty, the rheostat creates zero ohms of resistance to ground, and when full, it creates 90 ohms of resistance. The gauge reads this resistance to ground, so proper grounding of the sending unit is essential for an accurate reading.
To test the fuel sender, a multimeter can be used. Set the multimeter to the Ω setting, and put the red probe on the post that is the gauge lead. The black probe should be placed on the ground post or the body of the fuel sender. Record the readings with the fuel sender in the empty and full positions to determine the ohm range of the sender.
The ohm range of the sender must match that of the gauge. For example, a 73-10-ohm fuel sender would read backward on a 0-90-ohm fuel gauge. If the resistance values do not match, it may be possible to add a resistor in parallel with the fuel sender to adjust the resistance. However, this may result in nonlinear gauge readings.
It is important to note that the float arm of the rheostat must be installed correctly for the gauge to read accurately. If the float arm is installed on the wrong side or upside down, the gauge will read backward.
The Ultimate Guide to Cleaning Ethanol from Your Fuel Tank
You may want to see also
Explore related products
Fuel senders have a rheostat that provides resistance to the ground
Fuel senders are an integral part of a vehicle's fuel monitoring system, providing essential data on fuel levels. They are also known as fuel sending units, fuel level sensors, or fuel sender probes. These units employ a rheostat, a type of variable resistor, to offer resistance to the ground, which is crucial for the accurate measurement of fuel levels.
The rheostat in a fuel sender dynamically adjusts its resistance as the fuel level fluctuates. This resistance is measured relative to the ground. As the fuel arm moves from the empty position towards the full position, a contact moves across the rheostat, resulting in varying resistance levels detected by the fuel gauge. For example, a 69 Camaro with a 0-90 ohm fuel sender exhibits zero ohms of resistance when empty and 90 ohms when full.
The fuel sender's resistance must align with the gauge's resistance for accurate readings. For instance, a 55 Chevy's stock gauge has zero ohms of resistance when empty and 30 ohms when full. If the resistances do not match, issues such as incorrect or backward readings may occur. A fuel sender with a 73-10 ohm range would read backward on a 0-90 ohm fuel gauge.
Proper grounding of the sending unit is vital for precise fuel level measurements. If the sending unit or its centre terminal grounds out against the car body, or if there is a break in the sender lead wire, the gauge may malfunction. Bench testing with a multimeter can help diagnose such issues. During testing, the red probe is connected to the gauge lead post, while the black probe is attached to the ground post or the sender body.
In conclusion, fuel senders rely on rheostats to provide variable resistance to the ground, which is essential for fuel gauges to display accurate fuel levels. Proper grounding, matching resistance ranges, and ensuring the float arm's correct installation are critical for the overall functionality of the fuel monitoring system in a vehicle.
Building a Fuel Surge Tank: DIY Guide
You may want to see also
Explore related products
$69.99
Fuel level senders are important to monitor fuel levels and know when to refuel
Fuel level senders are essential components for monitoring fuel levels and determining when to refuel. They provide real-time data on the amount of fuel in a tank, helping users make informed decisions about refuelling. Here are some key reasons why fuel level senders are crucial:
Firstly, fuel level senders offer accurate fuel level readings. They utilise a rheostat that measures the resistance to ground as the fuel arm moves from empty to full, providing precise data to the fuel gauge. This information helps users understand their fuel usage patterns and plan refuelling accordingly.
Secondly, modern fuel level senders often include advanced features. Some models can trigger alarms when fuel levels are low, serving as a warning to refuel. Additionally, certain senders offer fuel pick-up and return lines, enhancing the efficiency of the refuelling process. These features not only provide convenience but also contribute to the overall safety of the vehicle or equipment.
Fuel level senders are versatile and can be customised to suit various applications. They can be installed in boats, antique cars, or even harsh environments with high vibrations. The mounting style can be tailored to the specific requirements, with options such as top or side-mounted units, ensuring compatibility with different tank locations and dashboard setups.
Lastly, fuel level senders come in different types, and it is essential to select the right one for your needs. Factors to consider include the signal output, such as analogue or digital, and the resistive ohms range required. Calibration is also crucial to ensure accurate fuel readings, especially when dealing with unique tank shapes or custom fuel level senders.
In summary, fuel level senders play a critical role in monitoring fuel levels and determining refuelling needs. They offer precise data, advanced features, versatility in applications, and customisation options. By choosing the appropriate fuel level sender and ensuring proper calibration, users can effectively manage their fuel usage and make timely refuelling decisions.
Draining the Hilux Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
The mounting style of the sender unit is an important factor when purchasing a new one
A fuel sender unit, also known as a fuel gauge sender or gas gauge sensor, is an essential component of a vehicle's fuel system. Its primary function is to measure the level of fuel in the tank and send this information to the fuel gauge on the dashboard. This allows drivers to keep track of their fuel levels and avoid running out unexpectedly.
Fuel sender units can experience issues over time, and inaccurate fuel gauge readings are a common symptom of a faulty unit. For instance, the gauge may consistently show that the tank is full even when it is running low on gas, or vice versa. Therefore, regular maintenance and inspection are crucial to ensure that all vehicle components, including the fuel sender unit, are in good working condition.
When purchasing a new fuel sender unit, it is important to consider the mounting style to ensure compatibility with the existing setup. The mounting style of the sender unit can vary depending on the application and tank setup. For example, in boats or antique cars, the location of the fuel tank may impact whether a top-mounted or side-mounted unit is more suitable.
Standard mounting styles include the SAE 5-hole bolt pattern, 1.25" British Standard Pipe thread (BSP), and 1.5" National Pipe Thread (NPT). Additionally, customized head options such as flange-bolt or bayonet mount may be available depending on the application or tank requirements.
By considering the mounting style and ensuring it matches the previous setup, individuals can avoid installation issues and ensure the proper functioning of their fuel sender unit. This attention to detail during the purchasing process can help prevent future problems and maintain the accuracy of fuel gauge readings.
